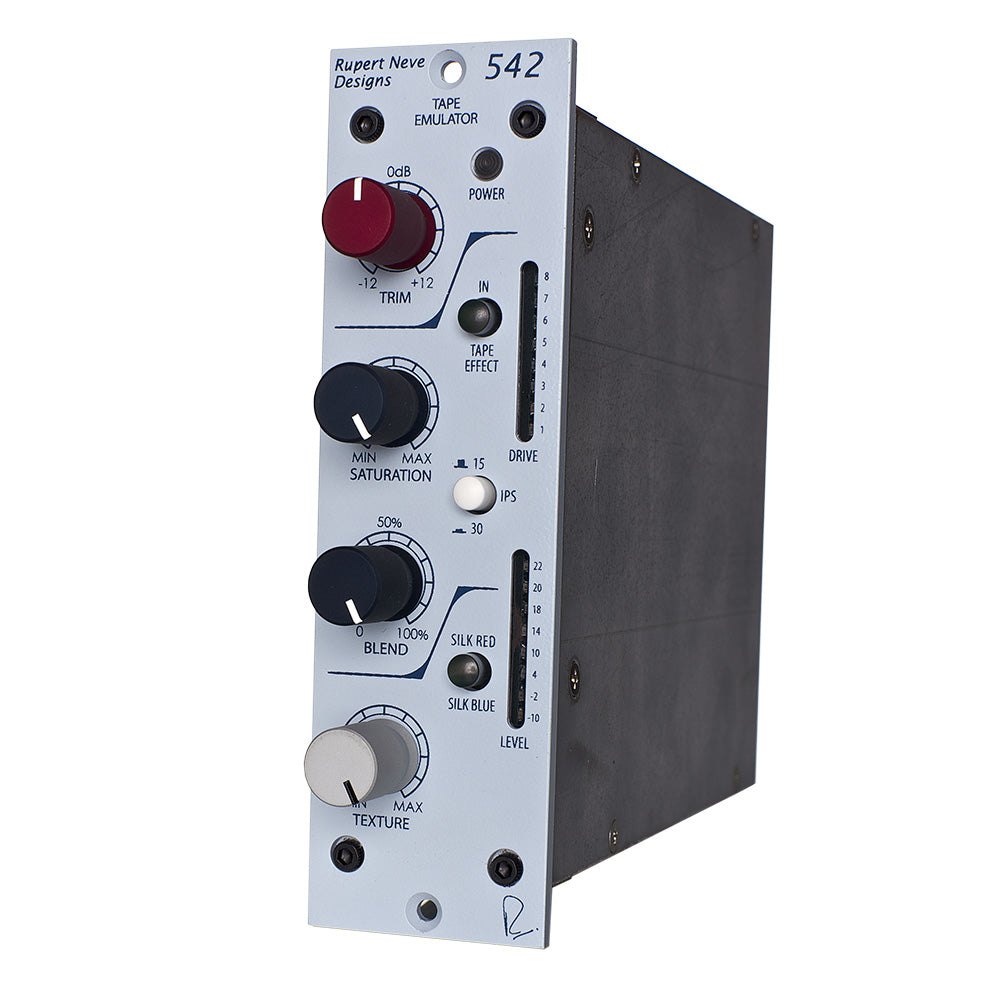

Rupert Neve Designs 542 Portico Analog Tape Emulation 500 Series Module


  • Dale #:

    RND-542
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The ultimate "color box". As a 500-series follow-up to the Portico 5042, the 542 delivers the same thick, musical simulation of tape while drastically enhancing creative control via a number of new features. In addition to the the "true tape" circuitry - great for bringing out 3rd-order harmonics... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The ultimate "color box". As a 500-series follow-up to the Portico 5042, the 542 delivers the same thick, musical simulation of tape while drastically enhancing creative control via a number of new features. In addition to the the "true tape" circuitry - great for bringing out 3rd-order harmonics - the 542 incorporates a soft-clip circuit that tames the harshest sources and enhances 2nd-order harmonics, a variable and versatile Silk/Texture circuit for three transformer tones in one, and a wet/dry control to blend in the perfect amount of saturation.

Unlike digital emulations, the "True Tape" drive circuit works by feeding a custom-designed transformer acting as a "record head", which in turn is coupled to a correctly equalized replay amplifier. As the voltage rises on the "record head", saturation increases, and a soft clip circuit engages at higher levels to round off peak transients. The sound of the tape circuit can be further modified with selectable 15 / 30 IPS modes and a pre/post-tape blend control. In addition to the tape circuit, the 542 also has the variable Silk & Texture circuitry found in the Portico II series of modules, which allows the engineer to fine-tune the harmonic ratio and tonality on the output transformer.

Getting the Most Out of the 542
While in the olden days, tape's non-linearity was generally looked upon as more of a curse than a "feature", the advent of digital systems that operate in a completely linear fashion has made many appreciate the quirks of non-linear audio processing. Unlike linear designs, non-linear devices require the user to actively experiment with gain staging to find the "sweet spot" of the circuit. Although this requires a small amount of effort on part of the engineer, if used properly, the effect can add a dynamic aspect to performances that can enhance the impact of a song.

The non-linearity in the 542's "True Tape" circuitry and Saturation control necessitate taking note of both drive and input levels. How levels are staged into the 542's tape circuit can significantly impact tone, depending on the position of the saturation control and the drive level on the tape circuit. As saturation is increased, low frequency compensation is decreased, and at a drive level of 5 the soft clipper enters the circuit. Finding the best balance point between low frequency response, total harmonic distortion, and desired soft clipping require playing with a combination of the saturation, trim and blend controls, and may also include using dynamics processing and proper gain staging before the 542.

As a rough guide, we recommend starting with an input signal from around 2-10dBu and applying saturation, 15 / 30 IPS, Silk, and blend to taste. However, it always behooves the engineer to experiment with the balance between the pre-tape signal level and the level of the saturation control to find the best results for each source.

To get a better idea of what is happening at different saturation and "Tape Head" levels, look through the frequency response and THD by frequency response graphs in the Technical Specifications section at the end of the manual.

Also, like a real tape machine, the flux loops in the "True Tape" circuitry can pick up signals from strong nearby magnetic fields (The most likely sources are nearby power supplies, power amplifiers and computer monitors). Although we have shielded both the unit as a whole and the tape circuit to minimize stray inductance, if you have issues with hum when engaging the tape circuit, try moving the 542 to other spots away from magnetic field radiators until the hum subsides.

Adding Texture
Both Silk modes are modified and fine tuned by the "Texture" control. By manipulating the Texture control, the amount of Silk can be changed from essentially absent, to roughly four times the amount of coloration found in Silk from the original Portico Series. With Silk / Texture engaged, the distortion characteristic and harmonic content of the unit are very reminiscent of many of Rupert's vintage class-A designs. These controls add another realm of tonal control to the 542, and should be explored creatively in conjunction with the "True Tape" for best effect.

Designed for 500 Series by Mr. Rupert Neve
Rupert Neve: "While creating functional 500-series modules is relatively simple, designing those modules to equal their non-500 series counterparts with the current, voltage and space restraints is quite challenging. In creating our own 500 Series Modules, we experimented with a number of different transformer and circuit designs to achieve the same presence and sweetness found in the Portico Series of modules. The result of these efforts is that outside of the slightly lowered headroom, our 500 series modules are nearly indistinguishable from standard Portico Series modules, and are perfectly suited for studios of the highest-caliber."

The 542 consists of a line driving amplifier having transformer balanced inputs and outputs. The sonic quality of these amplifiers is such that by providing galvanic isolation, simple single-sided circuit topology and freedom from grounding problems, they are capable of enhancing the sonic quality of many signal sources, especially those of digital origin. The sonic "signature" is one of extreme purity and the image is consistent with that of Rupert Neve's original designs of 35-40 years ago.

More +

Product Specs

Line Amp Specifications (Measurements with tape circuit disengaged) Noise:
Measured at Main Output, un-weighted, 20Hz-22kHz, Input Terminated 40 Ohms.
Unity Gain Better than -100dBu
Frequency Response Measured at +10dBu, trim at unity.
Main Output +/- 0.25dB from 5Hz to 60Khz
-2dB @ 120KHz
Maximum Output Level 23.25dBu
Total Harmonic Distortion and Noise @ 1kHz, +20dBu output level Better than 0.0025%
@ 20Hz, +20dBu output level 0.07% Typical (2nd and 3rd harmonic)
Tape FX Specifications
Noise Measured at Main Output, un-weighted, 20Hz-22kHz, Input Terminated 40 Ohms.
Saturation @ minimum Better than -100dBu
Saturation @ maximum Better than -100dBu
Frequency Response 15 IPS, Input @ -0 dBu -3dBu @ 28kHz
Saturation @ minimum 0dBu @ 10Hz
+5dBu Peak @ 60Hz
Saturation @ maximum -3dBu @ 20kHz
-3dBu @ 12.5Hz
+2.4dBu Peak @ 60Hz
30 IPS, Input @ -0 dBu -3dBu @ 120kHz
Saturation @ minimum -3dBu @ 10Hz +3.15dBu Peak @ 125Hz
Saturation @ maximum -3dBu @ 100kHz
-3dBu @ 12.5Hz
+1.3dBu Peak @ 110Hz
Total Harmonic Distortion and Noise Refer to sweeps on page10
15 IPS, Input @ -0 dBu 0.4% @ 3kHz to 1% @ 175Hz typical
Saturation @ minimum Greater than 1% below 175Hz typical
Saturation @ maximum 1% at 6kHz typical
0.3% @ 1kHz to 3% @ 50Hz typical
30 IPS, Input @ -0 dBu 1% at 1kHz typical
Saturation @ minimum 0.6% @ 400Hz 5% @ 20Hz typical
Saturation @ maximum 1.5% @ 20kHz to 0.4% @ 1kHz typical
0.4% @ 1kHz to 2 %@ 50Hz typical
Power requirements Supplied by 500 series rack with 110-125 mA @ +/- 16V DC
