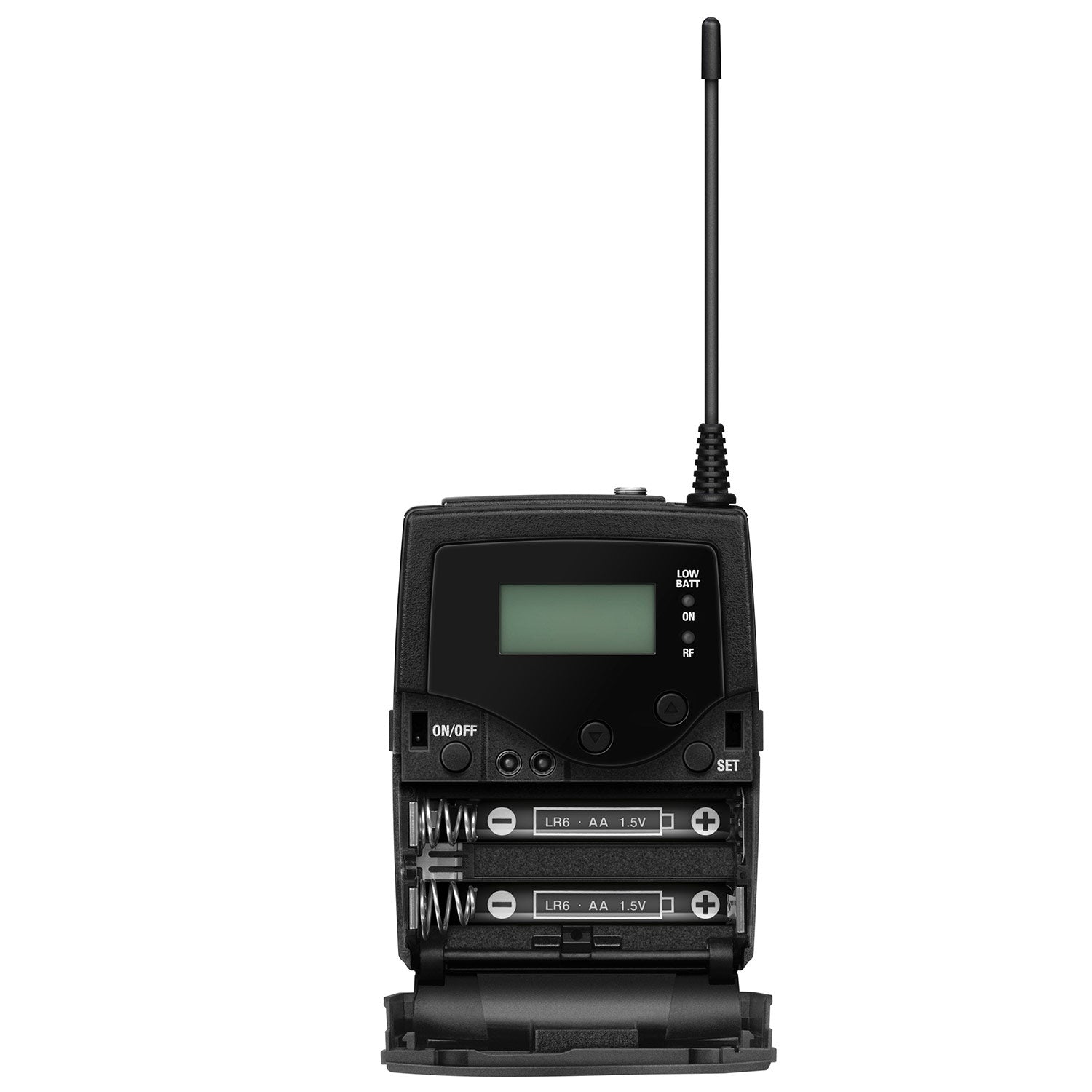

Sennheiser EK 500 G4 Evolution Camera Mount Wireless Receiver (GW1 Band/558-608 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Sennheiser EK 500 G4 Evolution Camera Mount Wireless Receiver (GW1 Band/558-608 MHz)
Sale price$479.00
Regular price$579.00
Description
The Evolution Wireless EK 500 G4 is a powerful black camera receiver with increased bandwidth and transmission power for evolution wireless G4 500P Series systems. For professional film productions, easily mounted on any kind of camera.
Features:
- Professional sound and excellent construction quality
- Easy to use and fast setup time
- Easy and exible wireless synchronisation between transmitter and receiver via infrared
- Up to 88 MHz bandwidth, up to 32 channels
- Range: up to 100 meters / 330 feet
- Increased RF output power (10/30/50 mW)
- Up to 8 hours of operation time
What's In The Box:
- EK 500 G4 camera receiver
- 2 AA batteries
- CA 2 camera adapter
- CL 1 3.5 mm jack cable
- CL 500 XLR to 3.5 mm jack adapter cable
- Quick guide
- Safety guide
- Manufacturer declaration sheet
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | Aw+: 470 - 558 MHz Gw1: 558 - 608 MHz |
| Receiving frequencies | Max. 2880 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-pre- set channels, no intermo- dulation 6 frequency banks with up to 32 programmable channels |
| Switching bandwidth | up to 72 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Receiver principle | Adaptive diversity |
| Sensitivity (with HDX, peak deviation) | < 1.6 V for 52 dBA eff S/N |
| Adjacent channel selection | Typically 65 dB |
| Intermodulation attenuation | Typically 65 dB |
| Blocking | 70 dB |
| Squelch | low: 5 dB V middle: 15 dB V high: 25 dB V |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| Signal-to-noise ratio (1 mV, peak deviation) | Line: 110 dBA Phones: approx. 90 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| AF output voltage (at peak deviation, 1 kHz AF) | 3.5 mm jack socket: +17 dBu (mono, unbalanced) |
| Adjustment range of audio output level | 42 dB, adjustable in steps of 6 dB |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 140 mA with receiver switched off: 25 A |
| Operating time | Typically 8 h |
| Dimensions | Approx. 82 x 64 x 24 mm |
| Weight (incl. batteries) | approx. 130 g |
The Evolution Wireless EK 500 G4 is a powerful black camera receiver with increased bandwidth and transmission power for evolution wireless G4 500P Series systems. For professional film productions, easily mounted on any kind of camera.
Features:
- Professional sound and excellent construction quality
- Easy to use and fast setup time
- Easy and exible wireless synchronisation between transmitter and receiver via infrared
- Up to 88 MHz bandwidth, up to 32 channels
- Range: up to 100 meters / 330 feet
- Increased RF output power (10/30/50 mW)
- Up to 8 hours of operation time
What's In The Box:
- EK 500 G4 camera receiver
- 2 AA batteries
- CA 2 camera adapter
- CL 1 3.5 mm jack cable
- CL 500 XLR to 3.5 mm jack adapter cable
- Quick guide
- Safety guide
- Manufacturer declaration sheet
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | Aw+: 470 - 558 MHz Gw1: 558 - 608 MHz |
| Receiving frequencies | Max. 2880 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-pre- set channels, no intermo- dulation 6 frequency banks with up to 32 programmable channels |
| Switching bandwidth | up to 72 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Receiver principle | Adaptive diversity |
| Sensitivity (with HDX, peak deviation) | < 1.6 V for 52 dBA eff S/N |
| Adjacent channel selection | Typically 65 dB |
| Intermodulation attenuation | Typically 65 dB |
| Blocking | 70 dB |
| Squelch | low: 5 dB V middle: 15 dB V high: 25 dB V |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| Signal-to-noise ratio (1 mV, peak deviation) | Line: 110 dBA Phones: approx. 90 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| AF output voltage (at peak deviation, 1 kHz AF) | 3.5 mm jack socket: +17 dBu (mono, unbalanced) |
| Adjustment range of audio output level | 42 dB, adjustable in steps of 6 dB |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 140 mA with receiver switched off: 25 A |
| Operating time | Typically 8 h |
| Dimensions | Approx. 82 x 64 x 24 mm |
| Weight (incl. batteries) | approx. 130 g |
