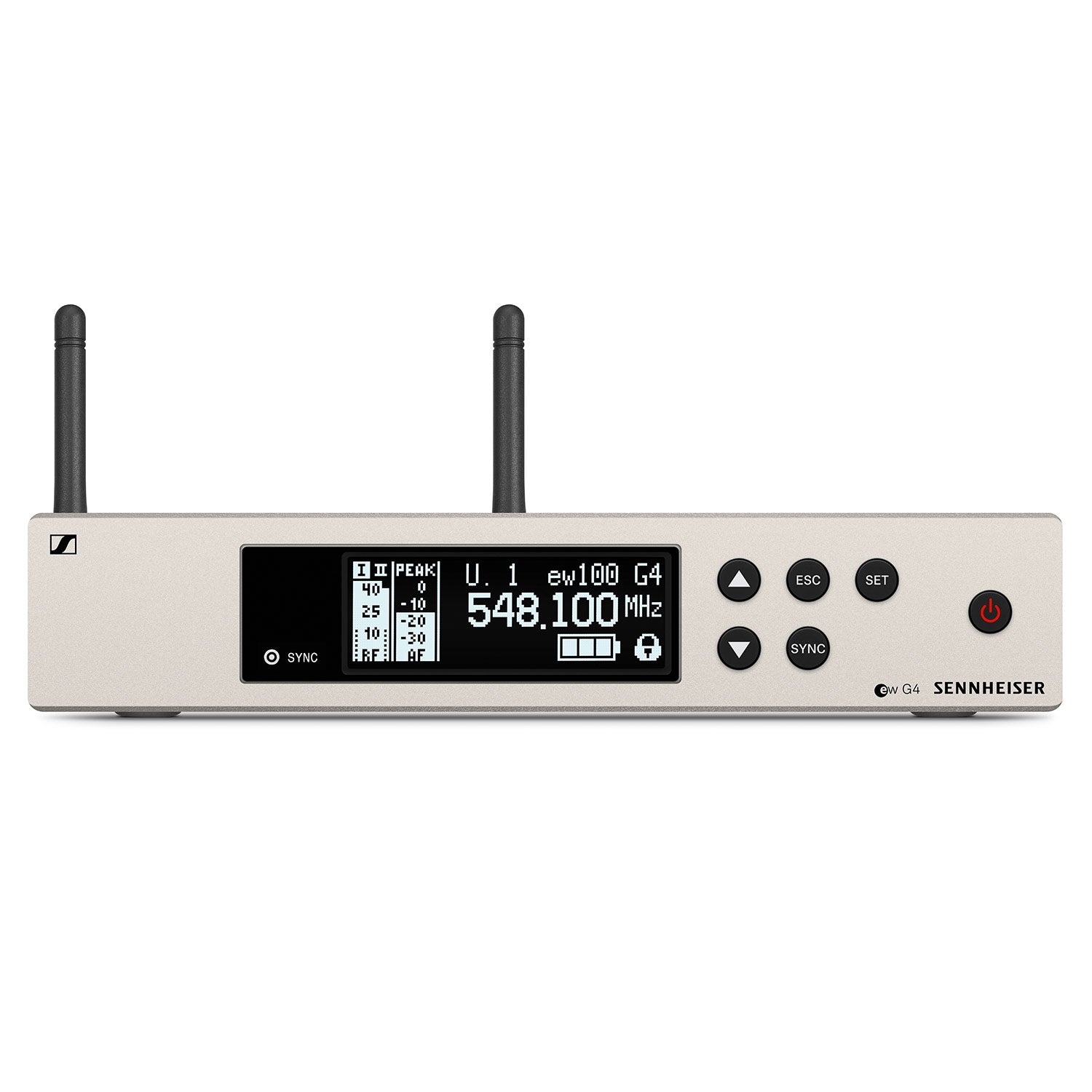

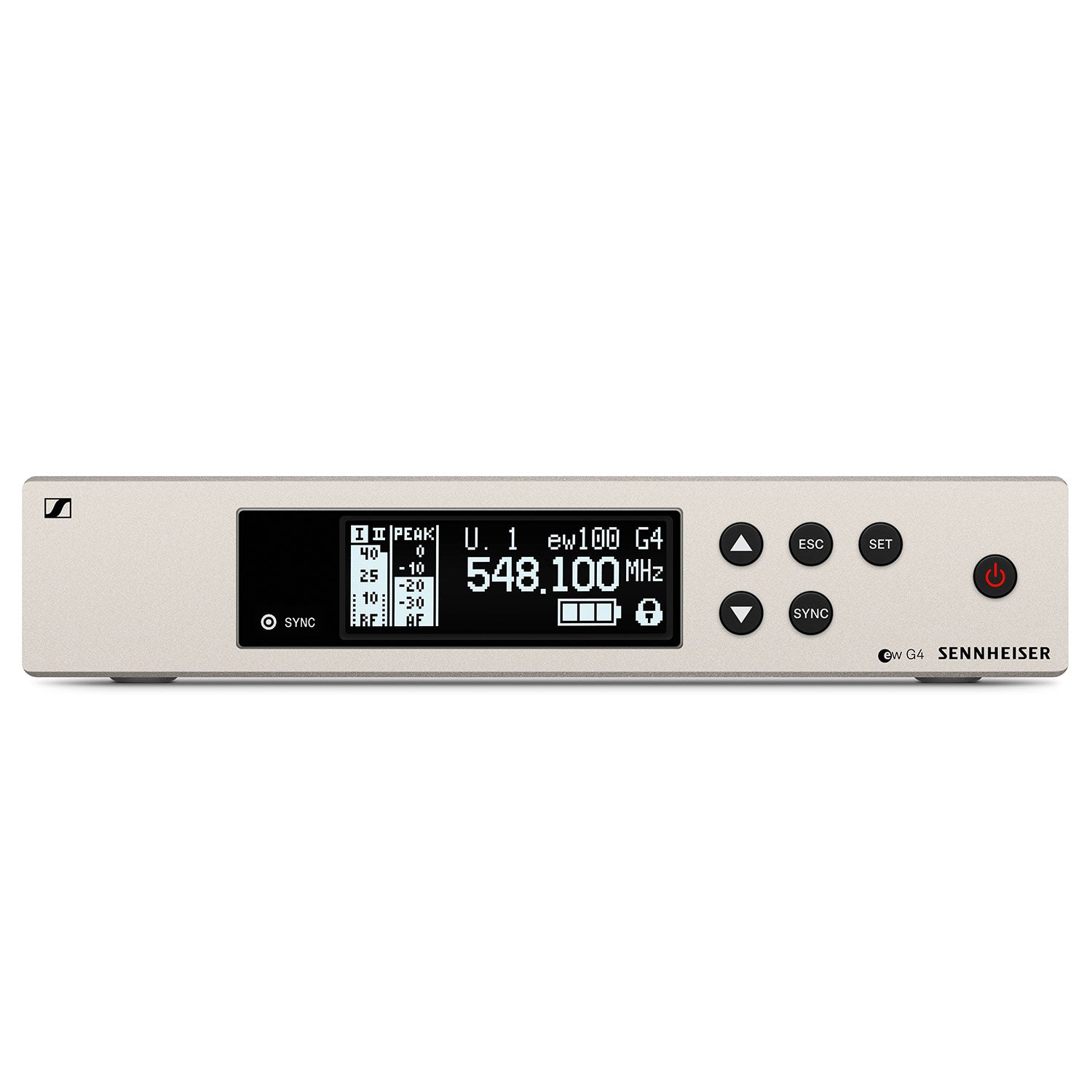

Sennheiser EM 100 G4 Evolution Wireless Receiver (A Band/518-554 MHz)



  • Dale #:

    SENN-EM100G4A

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Sennheiser's EM 100 G4 is a true diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control with evolution wireless G4 100 Series systems. Features: True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control. ... Read More

Retail Price: $499.95 Our Price: $399.95

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Sennheiser's EM 100 G4 is a true diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control with evolution wireless G4 100 Series systems.

Features:

  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control.
  • Easy and exible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequen- cies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 30 mW) depending on country regulations

What's In The Box:

  • EM 100 G4 true diversity receiver
  • 2 rod antennas
  • Power supply
  • RJ 10 cable
  • GA 3 rackmount set
  • Quick guide
  • Safety guide
  • Manufacturer declaration sheet
  • Frequency supplement sheet

More +

Product Specs

RF characteristics
Modulation Wideband FM
Frequency ranges A1: 470 - 516 MHz
A: 516 - 558 MHz
G: 566 - 608 MHz
Receiving frequencies Max. 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels
Switching bandwidth up to 42 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Receiver principle True diversity
Sensitivity (with HDX, peak deviation) < 2.5 V for 52 dBA eff S/N
Adjacent channel selection Typically 65 dB
Intermodulation attenuation Typically 65 dB
Blocking 70 dB
Squelch low: 5 dB V middle: 15 dB V high: 25 dB V
Pilot tone squelch Can be switched off
Antenna inputs 2 BNC sockets
AF characteristics
Compander system Sennheiser HDX
EQ presets (switchable, act on line and monitor outputs) Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
Signal-to-noise ratio (1 mV, peak deviation) 110 dBA
Total harmonic distortion (THD) 0.9 %
AF output voltage (at peak deviation, 1 kHz AF) 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
Setting range “AF Out” 48 dB (3 dB steps)
Overall device
Temperature range -10 °C to +55 °C
Power supply 12 V DC
Current consumption 300 mA
Dimensions Approx. 190 x 212 x 43 mm
Weight Approx. 980 g

More +
