Sennheiser EM 100 G4 Evolution Wireless Receiver (A1 Band/470-516 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Sennheiser EM 100 G4 Evolution Wireless Receiver (A1 Band/470-516 MHz)
Sale price$429.00
Regular price$499.00
Description

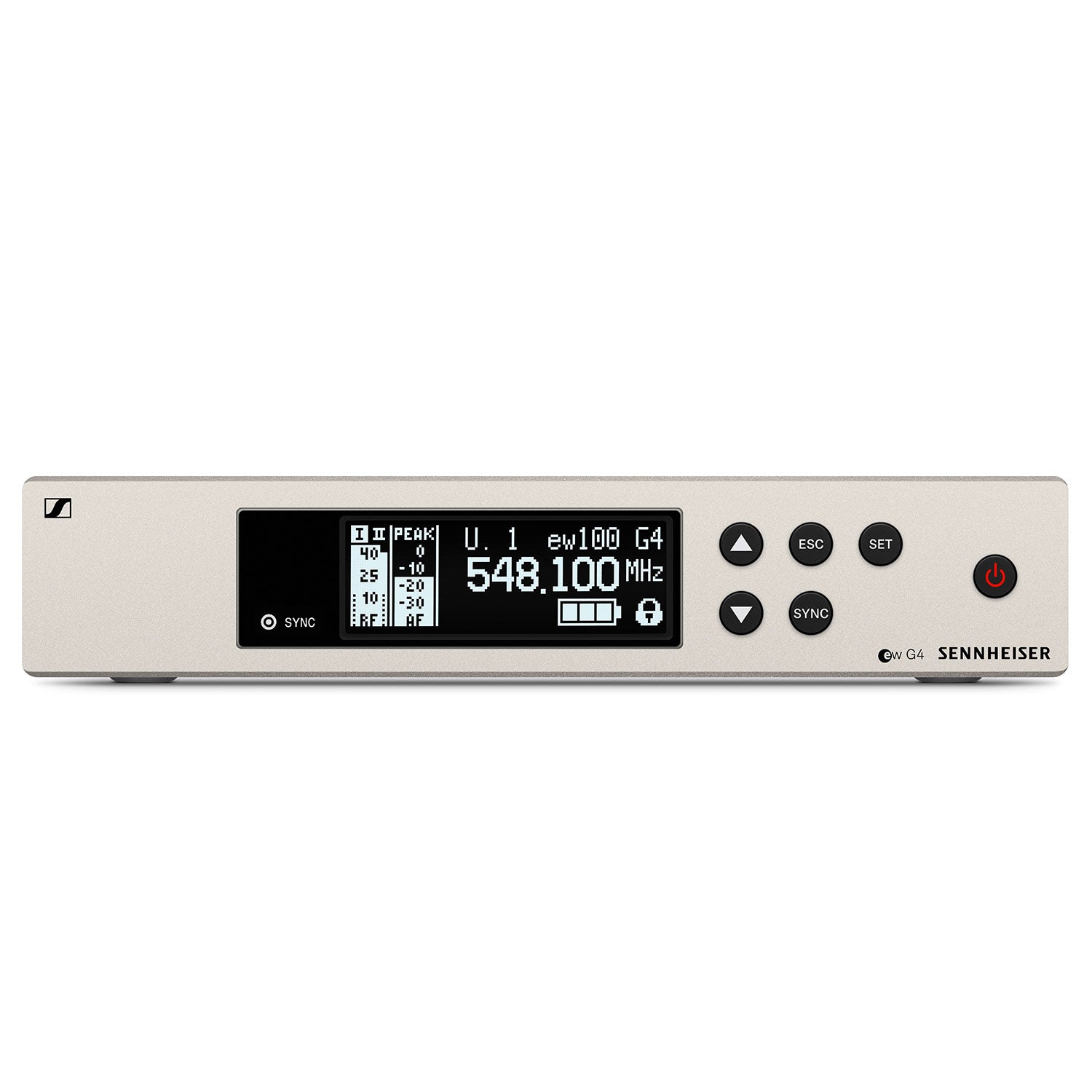

Sennheiser's EM 100 G4 is a true diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control with evolution wireless G4 100 Series systems.
Features:
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control.
- Easy and exible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequen- cies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
What's In The Box:
- EM 100 G4 true diversity receiver
- 2 rod antennas
- Power supply
- RJ 10 cable
- GA 3 rackmount set
- Quick guide
- Safety guide
- Manufacturer declaration sheet
- Frequency supplement sheet
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | A1: 470 - 516 MHz A: 516 - 558 MHz G: 566 - 608 MHz |
| Receiving frequencies | Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
| Switching bandwidth | up to 42 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Receiver principle | True diversity |
| Sensitivity (with HDX, peak deviation) | < 2.5 V for 52 dBA eff S/N |
| Adjacent channel selection | Typically 65 dB |
| Intermodulation attenuation | Typically 65 dB |
| Blocking | 70 dB |
| Squelch | low: 5 dB V middle: 15 dB V high: 25 dB V |
| Pilot tone squelch | Can be switched off |
| Antenna inputs | 2 BNC sockets |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| EQ presets (switchable, act on line and monitor outputs) | Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz) |
| Signal-to-noise ratio (1 mV, peak deviation) | 110 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| AF output voltage (at peak deviation, 1 kHz AF) | 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu |
| Setting range ÒAF OutÓ | 48 dB (3 dB steps) |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 12 V DC |
| Current consumption | 300 mA |
| Dimensions | Approx. 190 x 212 x 43 mm |
| Weight | Approx. 980 g |
Sennheiser's EM 100 G4 is a true diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control with evolution wireless G4 100 Series systems.
Features:
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control.
- Easy and exible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequen- cies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
What's In The Box:
- EM 100 G4 true diversity receiver
- 2 rod antennas
- Power supply
- RJ 10 cable
- GA 3 rackmount set
- Quick guide
- Safety guide
- Manufacturer declaration sheet
- Frequency supplement sheet
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | A1: 470 - 516 MHz A: 516 - 558 MHz G: 566 - 608 MHz |
| Receiving frequencies | Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
| Switching bandwidth | up to 42 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Receiver principle | True diversity |
| Sensitivity (with HDX, peak deviation) | < 2.5 V for 52 dBA eff S/N |
| Adjacent channel selection | Typically 65 dB |
| Intermodulation attenuation | Typically 65 dB |
| Blocking | 70 dB |
| Squelch | low: 5 dB V middle: 15 dB V high: 25 dB V |
| Pilot tone squelch | Can be switched off |
| Antenna inputs | 2 BNC sockets |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| EQ presets (switchable, act on line and monitor outputs) | Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz) |
| Signal-to-noise ratio (1 mV, peak deviation) | 110 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| AF output voltage (at peak deviation, 1 kHz AF) | 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu |
| Setting range ÒAF OutÓ | 48 dB (3 dB steps) |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 12 V DC |
| Current consumption | 300 mA |
| Dimensions | Approx. 190 x 212 x 43 mm |
| Weight | Approx. 980 g |
