Description

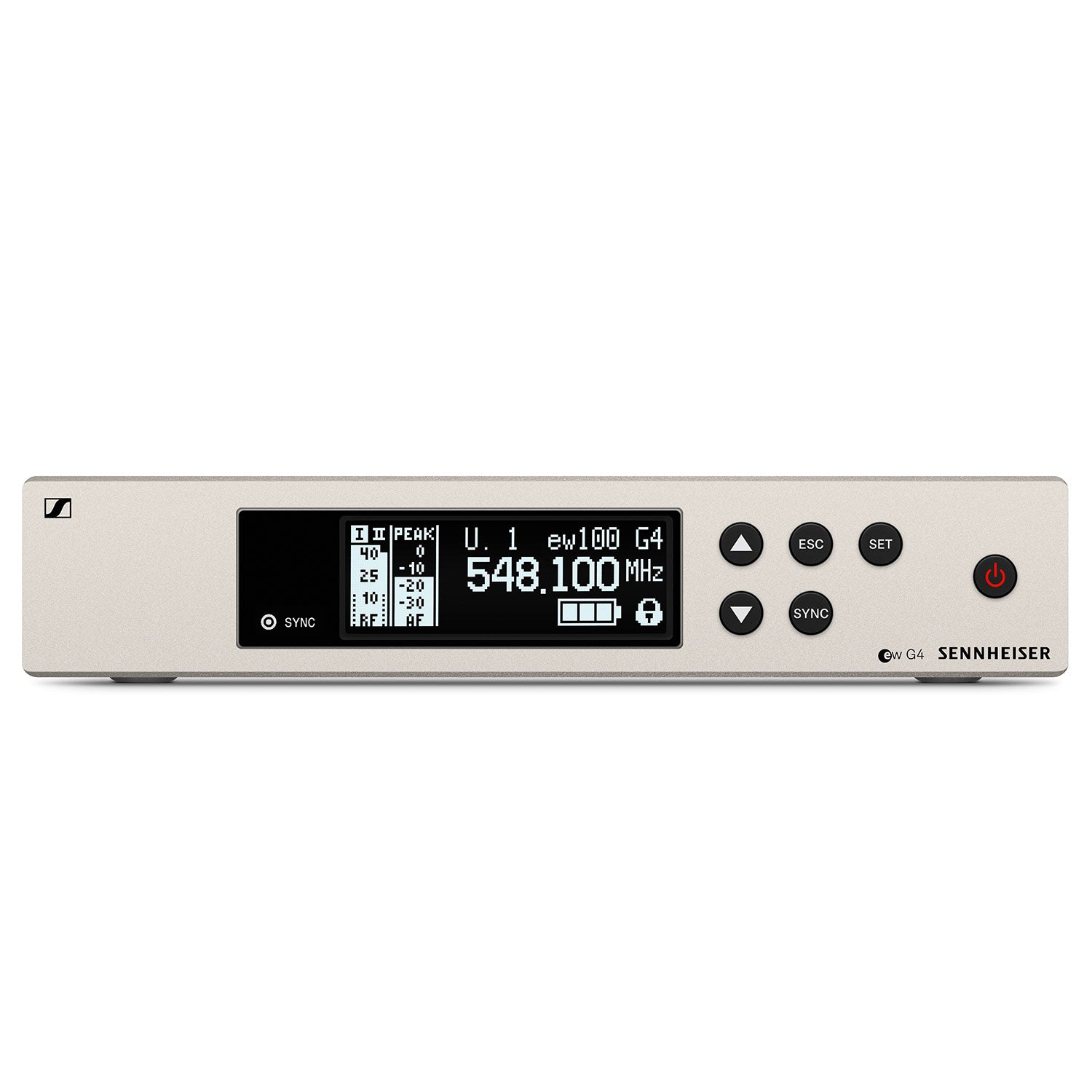

Sennheiser's EM 100 G4 is a true diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control with evolution wireless G4 100 Series systems.
Features:
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control.
- Easy and exible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequen- cies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
What's In The Box:
- EM 100 G4 true diversity receiver
- 2 rod antennas
- Power supply
- RJ 10 cable
- GA 3 rackmount set
- Quick guide
- Safety guide
- Manufacturer declaration sheet
- Frequency supplement sheet
RF characteristics | |
Modulation | Wideband FM |
Frequency ranges | A1: 470 - 516 MHz A: 516 - 558 MHz G: 566 - 608 MHz |
Receiving frequencies | Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
Switching bandwidth | up to 42 MHz |
Nominal/peak deviation | ±24 kHz / ±48 kHz |
Receiver principle | True diversity |
Sensitivity (with HDX, peak deviation) | < 2.5 V for 52 dBA eff S/N |
Adjacent channel selection | Typically 65 dB |
Intermodulation attenuation | Typically 65 dB |
Blocking | 70 dB |
Squelch | low: 5 dB V middle: 15 dB V high: 25 dB V |
Pilot tone squelch | Can be switched off |
Antenna inputs | 2 BNC sockets |
AF characteristics | |
Compander system | Sennheiser HDX |
EQ presets (switchable, act on line and monitor outputs) | Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz) |
Signal-to-noise ratio (1 mV, peak deviation) | 110 dBA |
Total harmonic distortion (THD) | 0.9 % |
AF output voltage (at peak deviation, 1 kHz AF) | 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu |
Setting range ÒAF OutÓ | 48 dB (3 dB steps) |
Overall device | |
Temperature range | -10 ¡C to +55 ¡C |
Power supply | 12 V DC |
Current consumption | 300 mA |
Dimensions | Approx. 190 x 212 x 43 mm |
Weight | Approx. 980 g |
