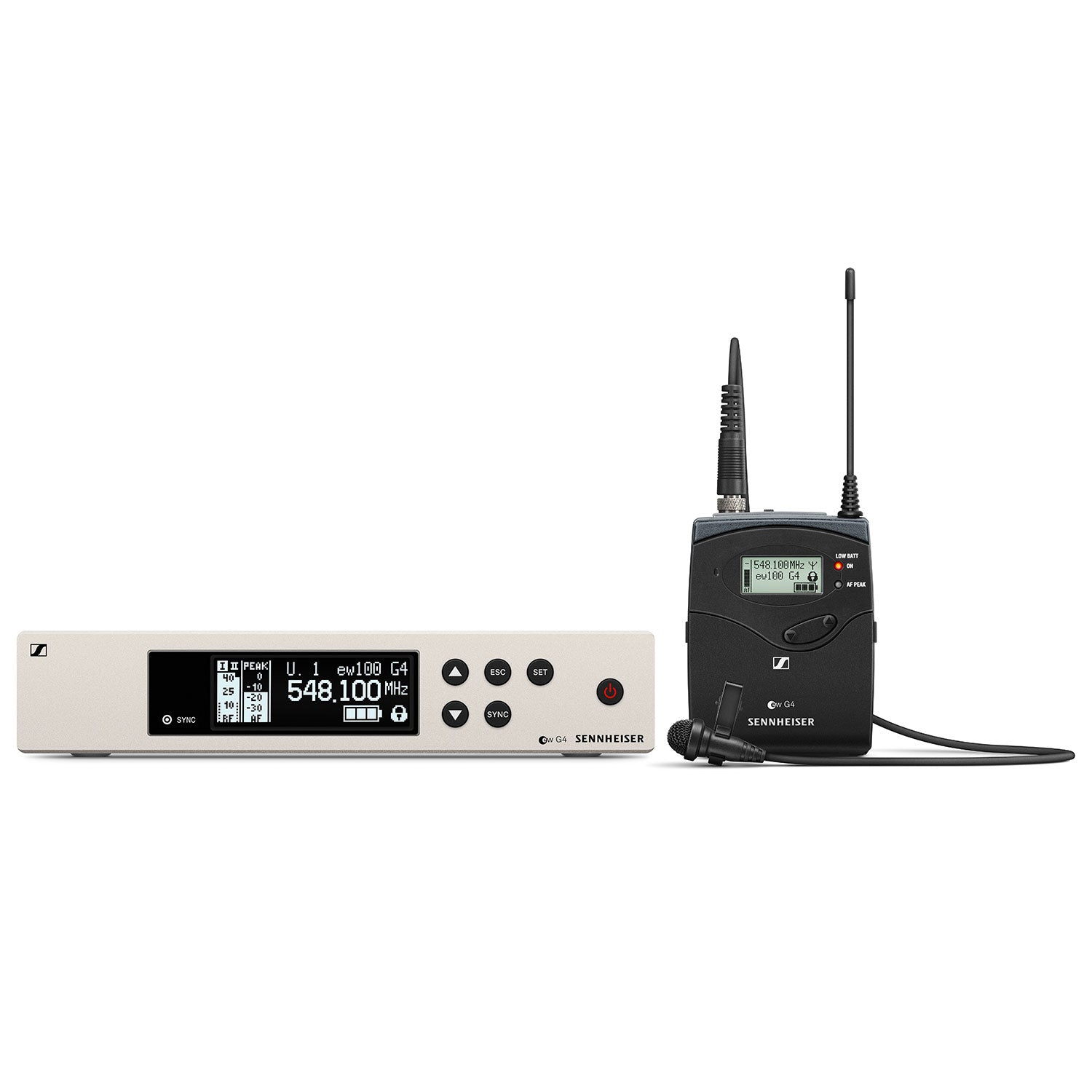

Sennheiser EW 100 G4-ME2 Evolution Lavalier Wireless System (A Band/518-554 MHz)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Sennheiser EW 100 G4-ME2 Evolution Lavalier Wireless System (A Band/518-554 MHz)
Sale price$749.00
Regular price$879.00
Description
Sennheiser's Evolution 100 G4 Series are versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems. The perfect choice for moderators and presenters: Robust bodypack transmitter and unobtrousive clip-on microphone ME 2-II (omni-directional) with high speech intelligibility for easy hands-free operation on any stage.
Features:
- Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators.
- Robust bodypack transmitter and unobstrusive clip-on microphone ME 2-II (omni-directional) with high speech intelligibility
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
What's In The Box:
- EM 100 G4 true diversity receiver
- SK 100 G4 bodypack transmitter
- ME 2 clip-on microphone
- GA 3 rackmount set
- Power supply
- 2 AA batteries
- 2 rod antennas
- RJ 10 cable
- Quick guide
- Safety guide
- Manufacturer declaration sheet
- Frequency supplement sheet

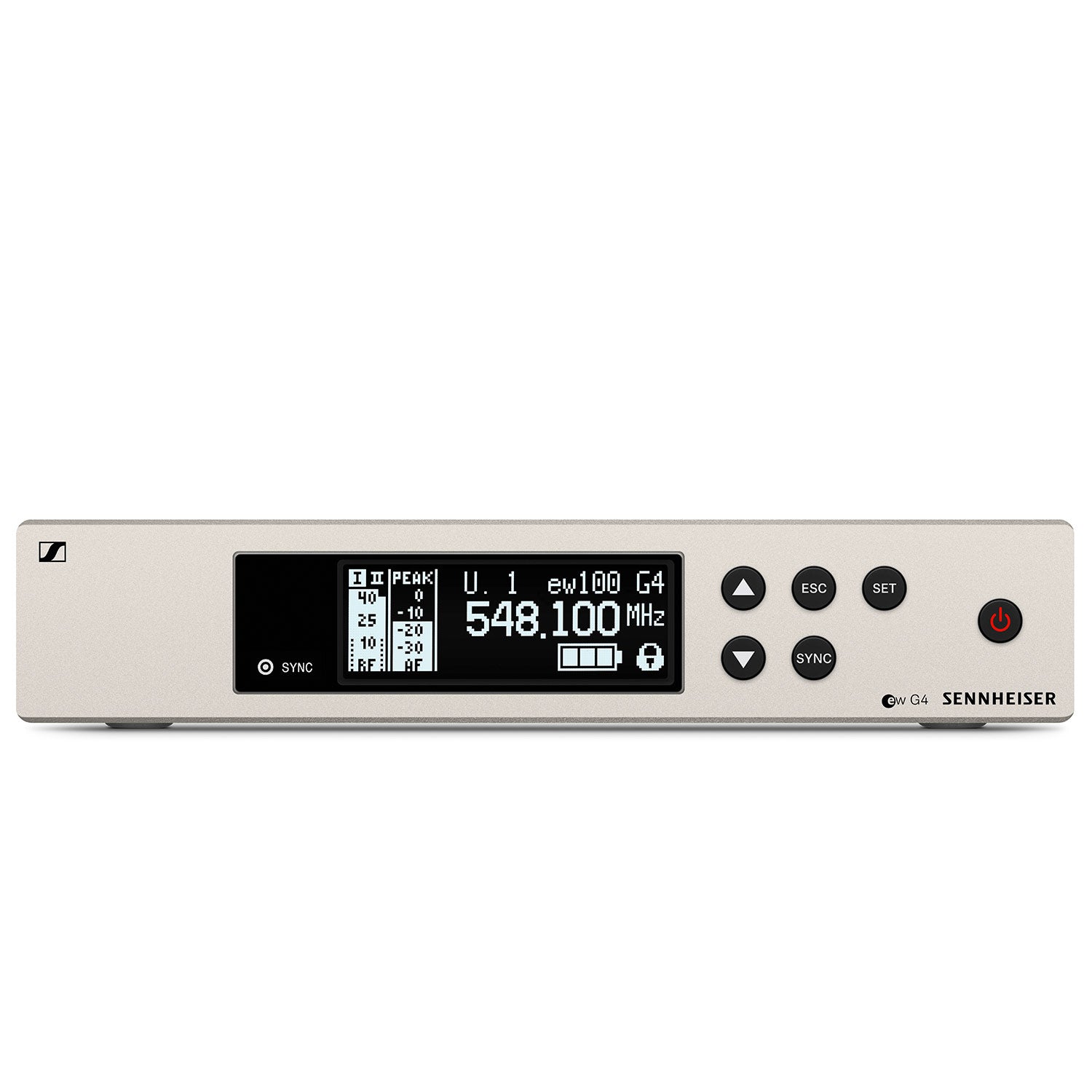

| EM 100 G4 Receiver | |
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | A1: 470 - 516 MHz A: 516 - 558 MHz G: 566 - 608 MHz |
| Receiving frequencies | Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodula- tion 1 frequency bank with up to 12 programmable channels |
| Switching bandwidth | up to 42 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Receiver principle | True diversity |
| Sensitivity (with HDX, peak deviation) | < 2.5 V for 52 dBA eff S/N |
| Adjacent channel selection | Typically 65 dB |
| Intermodulation attenuation | Typically 65 dB |
| Blocking | 70 dB |
| Squelch | low: 5 dB V middle: 15 dB V high: 25 dB V |
| Pilot tone squelch | Can be switched off |
| Antenna inputs | 2 BNC sockets |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| EQ presets (switchable, act on line and monitor outputs) | Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz) |
| Signal-to-noise ratio (1 mV, peak deviation) | 110 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| AF output voltage (at peak deviation, 1 kHz AF) | 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu |
| Setting range ÒAF OutÓ | 48 dB (3 dB steps) |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 12 V DC |
| Current consumption | 300 mA |
| Dimensions | Approx. 190 x 212 x 43 mm |
| Weight | Approx. 980 g |

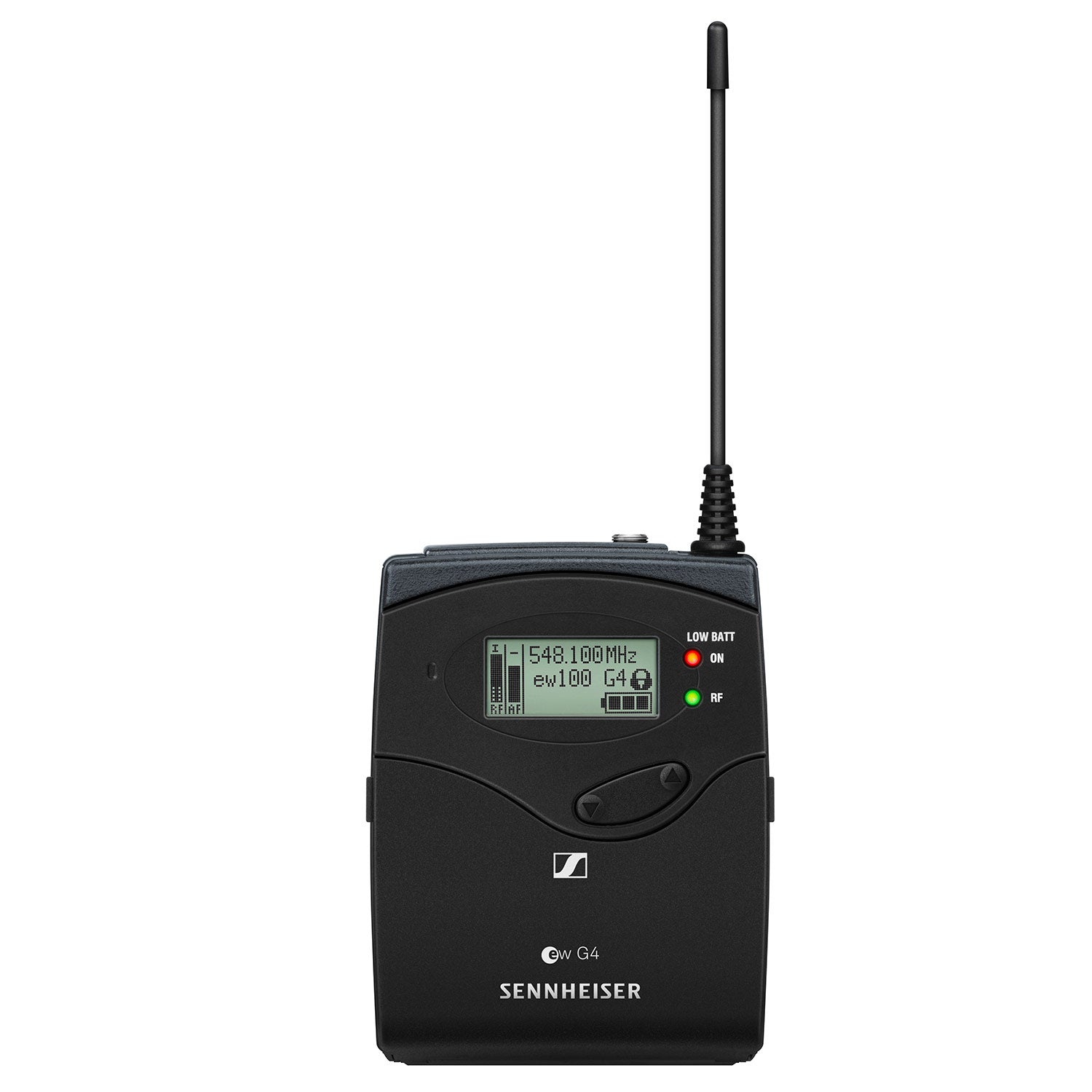

| SK 100 G4 Bodypack Transmitter | |
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | A1: 470 - 516 MHz A: 516 - 558 MHz G: 566 - 608 MHz |
| Transmission frequencies | Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodula- tion 1 frequency bank with up to 12 programmable channels |
| Switching bandwidth | up to 42 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Frequency stability | ±15 ppm |
| RF output power at 50 | Max. 30 mW |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | Mic: 80 Ð 18,000 Hz Line: 25 Ð 18,000 Hz |
| Signal-to-noise ratio (1 mV, peak deviation) | 110 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| Max. microphone/line input voltage | 3 V |
| Microphone/line input impedance | 40 k , unbalanced / 1 M |
| Input capacitance | Switchable |
| Setting range for input sensitivity | 60 dB, adjustable in 3 dB steps |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 180 mA with transmitter switched off: 25 A |
| Operating time | Typically 8 h |
| Dimensions | Approx. 82 x 64 x 24 mm |
| Weight (incl. batteries) | approx. 160 g |
Sennheiser's Evolution 100 G4 Series are versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems. The perfect choice for moderators and presenters: Robust bodypack transmitter and unobtrousive clip-on microphone ME 2-II (omni-directional) with high speech intelligibility for easy hands-free operation on any stage.
Features:
- Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators.
- Robust bodypack transmitter and unobstrusive clip-on microphone ME 2-II (omni-directional) with high speech intelligibility
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
What's In The Box:
- EM 100 G4 true diversity receiver
- SK 100 G4 bodypack transmitter
- ME 2 clip-on microphone
- GA 3 rackmount set
- Power supply
- 2 AA batteries
- 2 rod antennas
- RJ 10 cable
- Quick guide
- Safety guide
- Manufacturer declaration sheet
- Frequency supplement sheet
| EM 100 G4 Receiver | |
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | A1: 470 - 516 MHz A: 516 - 558 MHz G: 566 - 608 MHz |
| Receiving frequencies | Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodula- tion 1 frequency bank with up to 12 programmable channels |
| Switching bandwidth | up to 42 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Receiver principle | True diversity |
| Sensitivity (with HDX, peak deviation) | < 2.5 V for 52 dBA eff S/N |
| Adjacent channel selection | Typically 65 dB |
| Intermodulation attenuation | Typically 65 dB |
| Blocking | 70 dB |
| Squelch | low: 5 dB V middle: 15 dB V high: 25 dB V |
| Pilot tone squelch | Can be switched off |
| Antenna inputs | 2 BNC sockets |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| EQ presets (switchable, act on line and monitor outputs) | Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz) |
| Signal-to-noise ratio (1 mV, peak deviation) | 110 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| AF output voltage (at peak deviation, 1 kHz AF) | 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu |
| Setting range ÒAF OutÓ | 48 dB (3 dB steps) |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 12 V DC |
| Current consumption | 300 mA |
| Dimensions | Approx. 190 x 212 x 43 mm |
| Weight | Approx. 980 g |
| SK 100 G4 Bodypack Transmitter | |
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | A1: 470 - 516 MHz A: 516 - 558 MHz G: 566 - 608 MHz |
| Transmission frequencies | Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodula- tion 1 frequency bank with up to 12 programmable channels |
| Switching bandwidth | up to 42 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Frequency stability | ±15 ppm |
| RF output power at 50 | Max. 30 mW |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | Mic: 80 Ð 18,000 Hz Line: 25 Ð 18,000 Hz |
| Signal-to-noise ratio (1 mV, peak deviation) | 110 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| Max. microphone/line input voltage | 3 V |
| Microphone/line input impedance | 40 k , unbalanced / 1 M |
| Input capacitance | Switchable |
| Setting range for input sensitivity | 60 dB, adjustable in 3 dB steps |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 180 mA with transmitter switched off: 25 A |
| Operating time | Typically 8 h |
| Dimensions | Approx. 82 x 64 x 24 mm |
| Weight (incl. batteries) | approx. 160 g |
