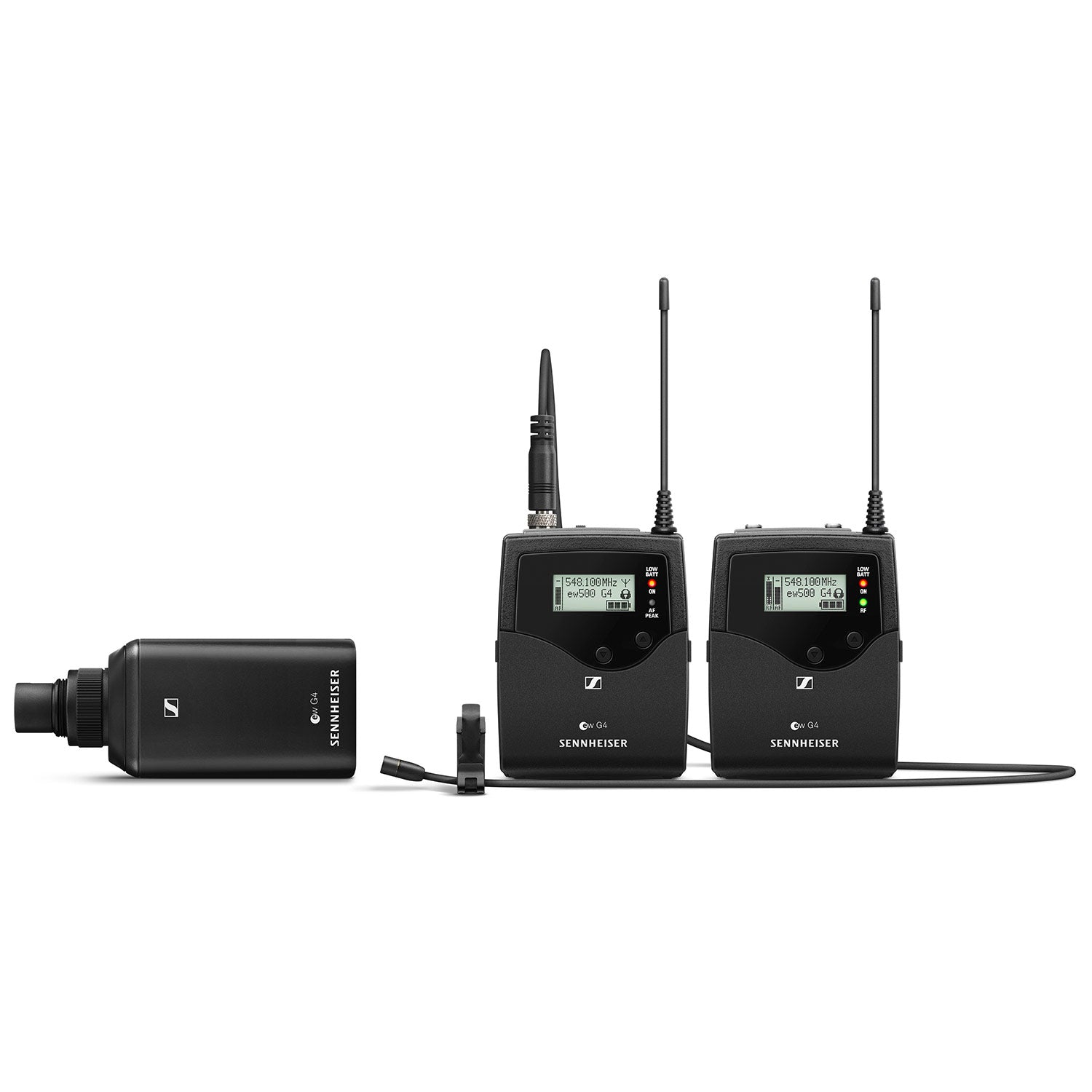

Sennheiser EW 500 FILM G4 Evolution Camera Mount Combo Wireless System (GW1 Band/558-608 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Sennheiser EW 500 FILM G4 Evolution Camera Mount Combo Wireless System (GW1 Band/558-608 MHz)
Sale price$1,599.00
Regular price$1,899.00
Description
The professional‘s choice for broadcast quality sound. The Sennheiser Evolution G4 provides the highest flexibility for your video sound and field recording applications. It's a robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use.
The EW 500 FILM G4 covers all sorts of applications on the set: The 48V phantom-power equipped SKP 500 turns all wired mics into a wireless transmitter, the MKE 2 Gold is a state-of-the-art professional clip-on microphone offering the highest speech intelligibility.
Features:
- Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
- Professional sound and excellent construction quality
- Easy to use and fast setup time
- Easy and flexible wireless synchronisation between transmitter and receiver via infrared
- Up to 88 MHz bandwidth, up to 32 channels
- Range: up to 100 meters / 330 feet
- Increased RF output power (10/30/50 mW)
- Up to 8 hours of operation time
What's In The Box:
- EK 500 G4 camera receiver
- SK 500 G4 bodypack transmitter
- SKP 500 G4 pro plug-on transmitter
- MKE 2 clip-on microphone
- 4 AA batteries
- CL 1 3.5 mm jack cable
- CL 500 XLR to 3.5 mm jack adapter cable
- CA 2 camera adapter
- Fur windscreen for MKE 2
- Quick guide
- Safety guide
- Manufacturer declaration sheet
| EK 500 G4 Camera Mount Receiver | |
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | Aw+: 470 - 558 MHz Gw1: 558 - 608 MHz |
| Receiving frequencies | Max. 2880 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-pre- set channels, no intermo- dulation 6 frequency banks with up to 32 programmable channels |
| Switching bandwidth | up to 72 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Receiver principle | Adaptive diversity |
| Sensitivity (with HDX, peak deviation) | < 1.6 V for 52 dBA eff S/N |
| Adjacent channel selection | Typically 65 dB |
| Intermodulation attenuation | Typically 65 dB |
| Blocking | 70 dB |
| Squelch | low: 5 dB V middle: 15 dB V high: 25 dB V |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| Signal-to-noise ratio (1 mV, peak deviation) | Line: 110 dBA Phones: approx. 90 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| AF output voltage (at peak deviation, 1 kHz AF) | 3.5 mm jack socket: +17 dBu (mono, unbalanced) |
| Adjustment range of audio output level | 42 dB, adjustable in steps of 6 dB |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 140 mA with receiver switched off: 25 A |
| Operating time | Typically 8 h |
| Dimensions | Approx. 82 x 64 x 24 mm |
| Weight (incl. batteries) | approx. 130 g |
| SKP 500 G4 Plug-On Transmitter | |
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | Aw+: 470 - 558 MHz Gw1: 558 - 608 MHz |
| Transmission frequencies | Max. 2880 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels |
| Switching bandwidth | up to 72 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Frequency stability | ±15 ppm |
| RF output power at 50 | switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | 80 Ð 18,000 Hz |
| Signal-to-noise ratio (1 mV, peak deviation) | 120 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| Max. input voltage | 6 V |
| Input impedance | 68 k , unbalanced |
| Input capacitance | Switchable |
| Setting range for input sensitivity | 48 dB, adjustable in 6 dB steps |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 210 mA with transmitter switched off: 25 A |
| Operating time | Typically 8 h |
| Dimensions | Approx. 105 x 43 x 43 mm |
| Weight (incl. batteries) | approx. 195 g |
The professional‘s choice for broadcast quality sound. The Sennheiser Evolution G4 provides the highest flexibility for your video sound and field recording applications. It's a robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use.
The EW 500 FILM G4 covers all sorts of applications on the set: The 48V phantom-power equipped SKP 500 turns all wired mics into a wireless transmitter, the MKE 2 Gold is a state-of-the-art professional clip-on microphone offering the highest speech intelligibility.
Features:
- Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
- Professional sound and excellent construction quality
- Easy to use and fast setup time
- Easy and flexible wireless synchronisation between transmitter and receiver via infrared
- Up to 88 MHz bandwidth, up to 32 channels
- Range: up to 100 meters / 330 feet
- Increased RF output power (10/30/50 mW)
- Up to 8 hours of operation time
What's In The Box:
- EK 500 G4 camera receiver
- SK 500 G4 bodypack transmitter
- SKP 500 G4 pro plug-on transmitter
- MKE 2 clip-on microphone
- 4 AA batteries
- CL 1 3.5 mm jack cable
- CL 500 XLR to 3.5 mm jack adapter cable
- CA 2 camera adapter
- Fur windscreen for MKE 2
- Quick guide
- Safety guide
- Manufacturer declaration sheet
| EK 500 G4 Camera Mount Receiver | |
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | Aw+: 470 - 558 MHz Gw1: 558 - 608 MHz |
| Receiving frequencies | Max. 2880 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-pre- set channels, no intermo- dulation 6 frequency banks with up to 32 programmable channels |
| Switching bandwidth | up to 72 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Receiver principle | Adaptive diversity |
| Sensitivity (with HDX, peak deviation) | < 1.6 V for 52 dBA eff S/N |
| Adjacent channel selection | Typically 65 dB |
| Intermodulation attenuation | Typically 65 dB |
| Blocking | 70 dB |
| Squelch | low: 5 dB V middle: 15 dB V high: 25 dB V |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| Signal-to-noise ratio (1 mV, peak deviation) | Line: 110 dBA Phones: approx. 90 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| AF output voltage (at peak deviation, 1 kHz AF) | 3.5 mm jack socket: +17 dBu (mono, unbalanced) |
| Adjustment range of audio output level | 42 dB, adjustable in steps of 6 dB |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 140 mA with receiver switched off: 25 A |
| Operating time | Typically 8 h |
| Dimensions | Approx. 82 x 64 x 24 mm |
| Weight (incl. batteries) | approx. 130 g |
| SKP 500 G4 Plug-On Transmitter | |
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | Aw+: 470 - 558 MHz Gw1: 558 - 608 MHz |
| Transmission frequencies | Max. 2880 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels |
| Switching bandwidth | up to 72 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Frequency stability | ±15 ppm |
| RF output power at 50 | switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | 80 Ð 18,000 Hz |
| Signal-to-noise ratio (1 mV, peak deviation) | 120 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| Max. input voltage | 6 V |
| Input impedance | 68 k , unbalanced |
| Input capacitance | Switchable |
| Setting range for input sensitivity | 48 dB, adjustable in 6 dB steps |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 210 mA with transmitter switched off: 25 A |
| Operating time | Typically 8 h |
| Dimensions | Approx. 105 x 43 x 43 mm |
| Weight (incl. batteries) | approx. 195 g |
