Sennheiser EW 500 G4-935 Evolution Handheld Wireless System (AW+ Band/470-558 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.

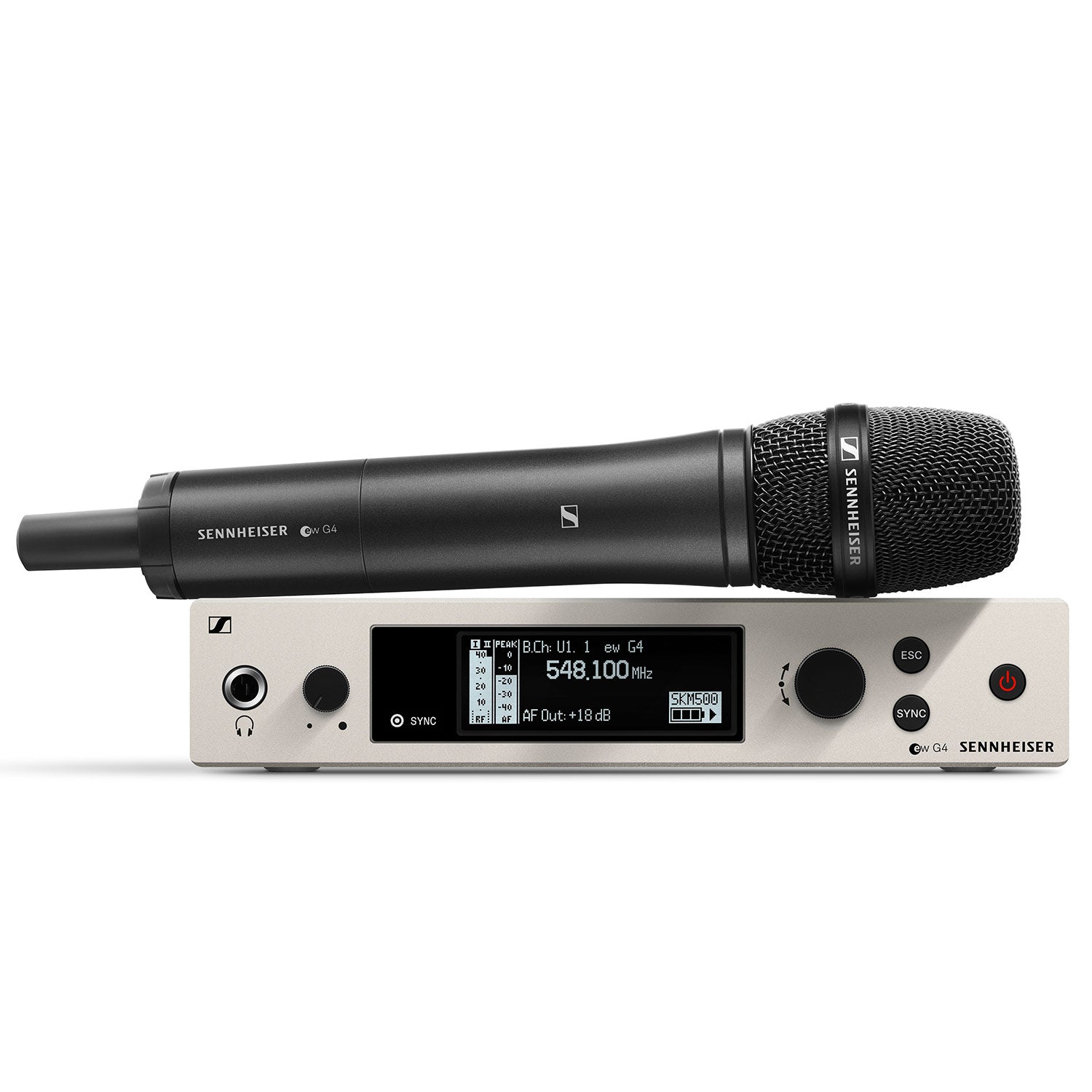

Sennheiser EW 500 G4-935 Evolution Handheld Wireless System (AW+ Band/470-558 MHz)
Sale price$1,099.00
Regular price$1,299.00
Description
The pro's choice. Renowned sound engineers rely on ew 500 G4‘s flexibility, especially when handling multi-channel settings on the world‘s music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.
The pinnacle of the evolution series, powered by Sennheiser’s renowned e 900 capsules e 935, e 945, and e 965 on a lightweight black aluminum handheld transmitter, ready to take the world’s biggest live stages.
Features:
- True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
What's In The Box:
- EM 300-500 G4 true diversity receiver
- SKM 500 G4 handheld transmitter
- MMD 935-1 microphone head
- MZQ 1 microphone clamp
- 2 AA batteries
- Power supply
- GA 3 rackmount set
- 2 rod antennas
- Quick guide
- Safety guide
- Manufacturer declaration sheet
| EM 300-500 G4 Receiver | |
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | Aw+: 470 - 558 MHz Gw1: 558 - 608 MHz |
| Receiving frequencies | Max. 2880 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-pre- set channels, no intermo- dulation 6 frequency banks with up to 32 programmable channels |
| Switching bandwidth | up to 72 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Receiver principle | True diversity |
| Sensitivity (with HDX, peak deviation) | < 2.5 V for 52 dBA eff S/N |
| Adjacent channel selection | Typically 75 dB |
| Intermodulation attenuation | Typically 70 dB |
| Blocking | 75 dB |
| Squelch | 5 to 25 dB V in steps of 2 dB |
| Pilot tone squelch | Can be switched off |
| Antenna inputs | 2 BNC sockets |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| EQ presets (switchable, act on line and monitor outputs) | Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz) |
| Signal-to-noise ratio (1 mV, peak deviation) | 115 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| AF output voltage (at peak deviation, 1 kHz AF) | 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu |
| Setting range ÒAF OutÓ | 48 dB (3 dB steps) |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 12 V DC |
| Current consumption | 350 mA |
| Dimensions | Approx. 202 x 212 x 43 mm |
| Weight | Approx. 980 g |
| SKM 500 G4 Handheld Transmitter | |
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | Aw+: 470 - 558 MHz Gw1: 558 - 608 MHz |
| Transmission frequencies | Max. 2880 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels |
| Switching bandwidth | up to 72 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Frequency stability | ±15 ppm |
| RF output power at 50 | switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | 80 Ð 18,000 Hz |
| Signal-to-noise ratio (1 mV, peak deviation) | 115 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| Setting range for input sensitivity | 48 dB, adjustable in 6 dB steps |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 180 mA with transmitter switched off: 25 A |
| Operating time | Typically 8 h |
| Dimensions | Approx. ¯ 50 x 265 mm |
| Weight (incl. batteries) | approx. 450 g |
The pro's choice. Renowned sound engineers rely on ew 500 G4‘s flexibility, especially when handling multi-channel settings on the world‘s music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.
The pinnacle of the evolution series, powered by Sennheiser’s renowned e 900 capsules e 935, e 945, and e 965 on a lightweight black aluminum handheld transmitter, ready to take the world’s biggest live stages.
Features:
- True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
What's In The Box:
- EM 300-500 G4 true diversity receiver
- SKM 500 G4 handheld transmitter
- MMD 935-1 microphone head
- MZQ 1 microphone clamp
- 2 AA batteries
- Power supply
- GA 3 rackmount set
- 2 rod antennas
- Quick guide
- Safety guide
- Manufacturer declaration sheet
| EM 300-500 G4 Receiver | |
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | Aw+: 470 - 558 MHz Gw1: 558 - 608 MHz |
| Receiving frequencies | Max. 2880 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-pre- set channels, no intermo- dulation 6 frequency banks with up to 32 programmable channels |
| Switching bandwidth | up to 72 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Receiver principle | True diversity |
| Sensitivity (with HDX, peak deviation) | < 2.5 V for 52 dBA eff S/N |
| Adjacent channel selection | Typically 75 dB |
| Intermodulation attenuation | Typically 70 dB |
| Blocking | 75 dB |
| Squelch | 5 to 25 dB V in steps of 2 dB |
| Pilot tone squelch | Can be switched off |
| Antenna inputs | 2 BNC sockets |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| EQ presets (switchable, act on line and monitor outputs) | Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz) |
| Signal-to-noise ratio (1 mV, peak deviation) | 115 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| AF output voltage (at peak deviation, 1 kHz AF) | 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu |
| Setting range ÒAF OutÓ | 48 dB (3 dB steps) |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 12 V DC |
| Current consumption | 350 mA |
| Dimensions | Approx. 202 x 212 x 43 mm |
| Weight | Approx. 980 g |
| SKM 500 G4 Handheld Transmitter | |
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | Aw+: 470 - 558 MHz Gw1: 558 - 608 MHz |
| Transmission frequencies | Max. 2880 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels |
| Switching bandwidth | up to 72 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Frequency stability | ±15 ppm |
| RF output power at 50 | switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | 80 Ð 18,000 Hz |
| Signal-to-noise ratio (1 mV, peak deviation) | 115 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| Setting range for input sensitivity | 48 dB, adjustable in 6 dB steps |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 180 mA with transmitter switched off: 25 A |
| Operating time | Typically 8 h |
| Dimensions | Approx. ¯ 50 x 265 mm |
| Weight (incl. batteries) | approx. 450 g |
