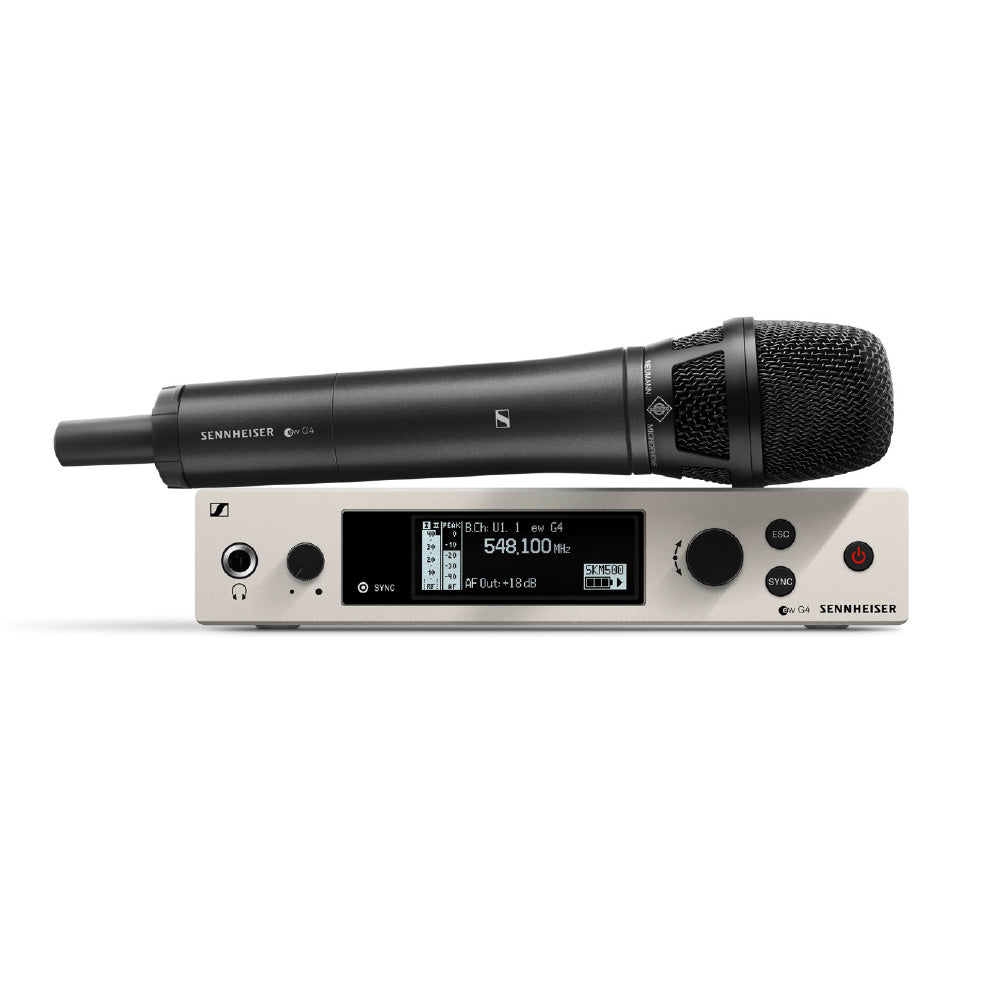

Sennheiser ew 500 G4-KK205 Handheld Wireless System with Neumann KK 205 Capsule (GW1 Band / 558-608 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Evolution Wireless G4 greatly expanded the power and flexibility of the evolution wireless series. ew 500 G4 wireless systems now feature up to 50 mW of RF power, up to 88 MHz of frequency bandwidth, as well as compatibility with the Neumann KK 205 capsule. Previously, Neumann capsules required the use of 2000, Digital 6000 or Digital 9000 Series wireless systems. Now, with the ew 500 G4-KK205 special edition vocal set, renowned Neumann sound is available to a much wider audience.
The KK 205 capsule head is based on Neumann’s award-winning KMS series of wired stage microphones, featuring a true condenser capsule that delivers the exceptional clarity that made Neumann famous. Engineered for stage use, the KK 205 accomodates sound pressure levels up to 150 dB without clipping, while its tight, frequency-independent super-cardioid pattern ensures high gain before feedback. With it’s smooth frequency response, airy top, and superior transient response, the KK 205 delivers an immediate, emotional vocal sound.
Evolution 500 G4 Series Features:
- True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
What's In The Box:
- EM 300-500 G4 true diversity receiver
- SKM 500 G4 handheld transmitter
- KK 205 microphone head
- MZQ 1 microphone clamp
- 2 AA batteries
- power supply
- GA 3 rackmount set
- 2 rod antennas
- quick guide
- safety guide
- manufacturer declaration sheet
| Frequency range | Aw+: 470 - 558 MHz Gw1: 558 - 608 MHz |
| Dimensions | Approx. 202 x 212 x 43 mm |
| Compander | Sennheiser HDX |
| THD, total harmonic distortion | ² 0.9 % |
| Weight | Approx. 980 g |
| Audio output | 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu |
| Signal-to-noise ratio | ³ 115 dBA |
| Switching bandwidth | up to 88 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| Modulation | Wideband FM |
| Power supply | 12 V DC |
| Antenna connector | 2 BNC sockets |
| Current consumption | 350 mA |
| Adjacent channel rejection | Typically ³ 75 dB |
| Intermodulation attenuation | Typically ³ 70 dB |
| Receiving frequency | Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels |
| RF sensitivity | < 2.5 _V for 52 dBA eff S/N |
| Squelch | 5 to 25 dB_V in steps of 2 dB |
| Equalizer | Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz) |
| Temperature Range | -10 ¡C to +55 ¡C |
| Receiver Principle | True diversity |
| Blocking | ³ 75 dB |
| SKM 500 G4 | |
| Dimensions | Approx. ¯ 50 x 265 mm |
| Compander | Sennheiser HDX |
| THD, total harmonic distortion | ² 0.9 % |
| Weight (incl. batteries) | approx. 450 g |
| Signal-to-noise ratio | ³ 115 dBA |
| RF output power | switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW |
| Switching bandwidth | up to 88 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| Operating time | Typically 8 h |
| Modulation | Wideband FM |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Current consumption | at nominal voltage: typ. 180 mA with transmitter switched off: ² 25 µA |
| Powering | 3 V battery / 2.4 V rechargeable battery |
| Transmission frequency | Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels |
| AF frequency response | 80 Ð 18,000 Hz |
| Temperature Range | -10 ¡C to +55 ¡C |
| Frequency stability | ² ±15 ppm |
Evolution Wireless G4 greatly expanded the power and flexibility of the evolution wireless series. ew 500 G4 wireless systems now feature up to 50 mW of RF power, up to 88 MHz of frequency bandwidth, as well as compatibility with the Neumann KK 205 capsule. Previously, Neumann capsules required the use of 2000, Digital 6000 or Digital 9000 Series wireless systems. Now, with the ew 500 G4-KK205 special edition vocal set, renowned Neumann sound is available to a much wider audience.
The KK 205 capsule head is based on Neumann’s award-winning KMS series of wired stage microphones, featuring a true condenser capsule that delivers the exceptional clarity that made Neumann famous. Engineered for stage use, the KK 205 accomodates sound pressure levels up to 150 dB without clipping, while its tight, frequency-independent super-cardioid pattern ensures high gain before feedback. With it’s smooth frequency response, airy top, and superior transient response, the KK 205 delivers an immediate, emotional vocal sound.
Evolution 500 G4 Series Features:
- True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
What's In The Box:
- EM 300-500 G4 true diversity receiver
- SKM 500 G4 handheld transmitter
- KK 205 microphone head
- MZQ 1 microphone clamp
- 2 AA batteries
- power supply
- GA 3 rackmount set
- 2 rod antennas
- quick guide
- safety guide
- manufacturer declaration sheet
| Frequency range | Aw+: 470 - 558 MHz Gw1: 558 - 608 MHz |
| Dimensions | Approx. 202 x 212 x 43 mm |
| Compander | Sennheiser HDX |
| THD, total harmonic distortion | ² 0.9 % |
| Weight | Approx. 980 g |
| Audio output | 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu |
| Signal-to-noise ratio | ³ 115 dBA |
| Switching bandwidth | up to 88 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| Modulation | Wideband FM |
| Power supply | 12 V DC |
| Antenna connector | 2 BNC sockets |
| Current consumption | 350 mA |
| Adjacent channel rejection | Typically ³ 75 dB |
| Intermodulation attenuation | Typically ³ 70 dB |
| Receiving frequency | Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels |
| RF sensitivity | < 2.5 _V for 52 dBA eff S/N |
| Squelch | 5 to 25 dB_V in steps of 2 dB |
| Equalizer | Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz) |
| Temperature Range | -10 ¡C to +55 ¡C |
| Receiver Principle | True diversity |
| Blocking | ³ 75 dB |
| SKM 500 G4 | |
| Dimensions | Approx. ¯ 50 x 265 mm |
| Compander | Sennheiser HDX |
| THD, total harmonic distortion | ² 0.9 % |
| Weight (incl. batteries) | approx. 450 g |
| Signal-to-noise ratio | ³ 115 dBA |
| RF output power | switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW |
| Switching bandwidth | up to 88 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| Operating time | Typically 8 h |
| Modulation | Wideband FM |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Current consumption | at nominal voltage: typ. 180 mA with transmitter switched off: ² 25 µA |
| Powering | 3 V battery / 2.4 V rechargeable battery |
| Transmission frequency | Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels |
| AF frequency response | 80 Ð 18,000 Hz |
| Temperature Range | -10 ¡C to +55 ¡C |
| Frequency stability | ² ±15 ppm |
