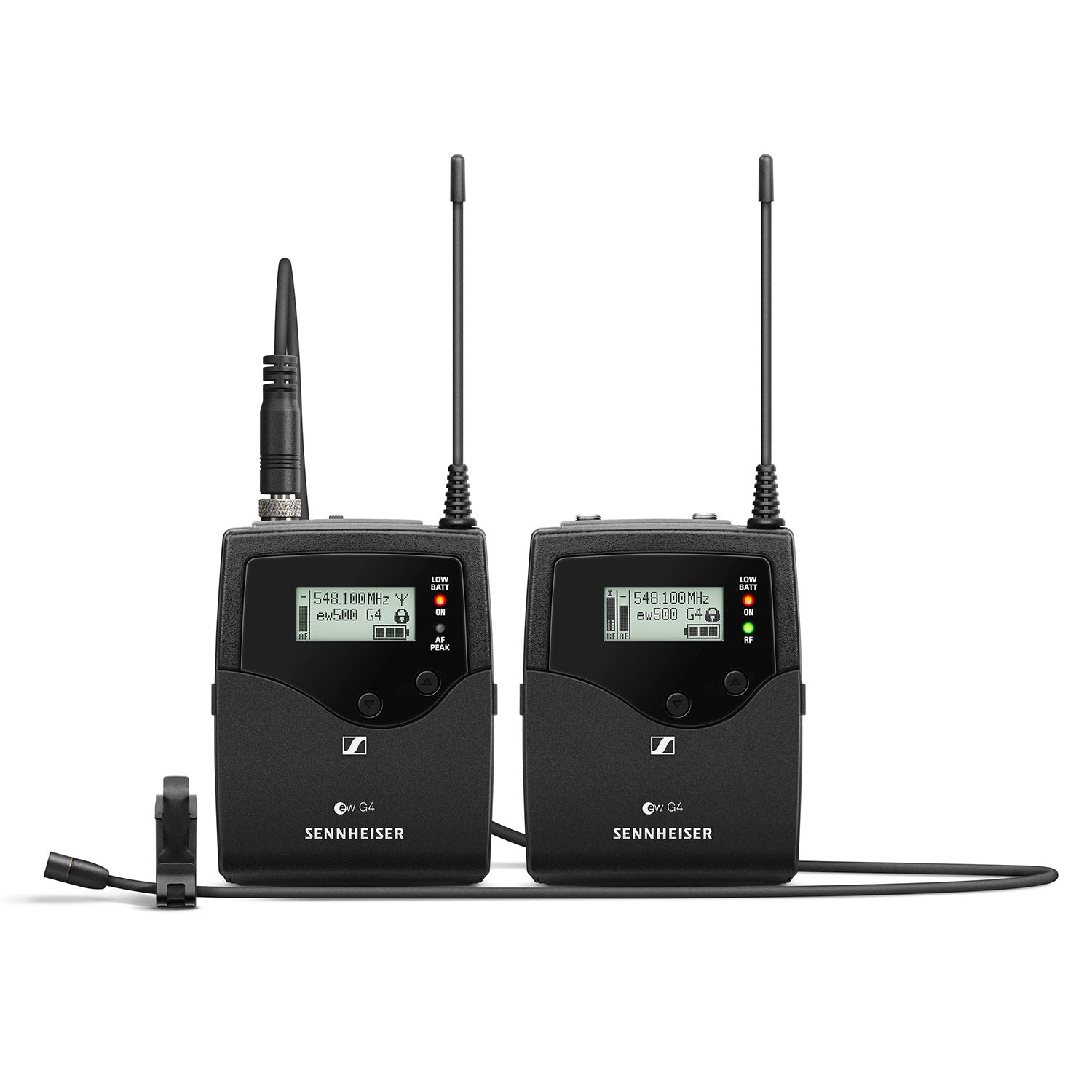

Sennheiser EW 512P G4 Evolution Camera Mount Lavalier Wireless System (AW+ Band/470-558 MHz)


  • Dale #:

    SENN-EW512PG4AWPLUS
  • Availability:

    Usually ships in 5 - 10 Days
  • This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.

Description

The professional‘s choice for broadcast quality sound. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use. Now, get impressive film sound was never that ea... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The professional‘s choice for broadcast quality sound. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use.

Now, get impressive film sound was never that easily done. The legendary MKE 2 Gold professional clip-on microphone ensures best speech intelligibility, the portable transmitter and receiver are easily mounted and ensure 8 hours of mobile operation.

Features:

  • Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
  • Professional sound and excellent construction quality
  • Easy to use and fast setup time
  • Easy and exible wireless synchronisation between transmitter and receiver via infrared
  • Up to 88 MHz bandwidth, up to 32 channels
  • Range: up to 100 meters / 330 feet
  • Increased RF output power (10/30/50 mW)
  • Up to 8 hours of operation time

What's In The Box:

  • EK 500 G4 camera receiver
  • SK 500 G4 bodypack transmitter
  • MKE 2 clip-on microphone
  • 4 AA batteries
  • CL 1 3.5 mm jack cable
  • CL 500 XLR to 3.5 mm jack adapter cable
  • CA 2 camera adapter
  • Fur windscreen for MKE 2
  • Quick guide
  • Safety guide
  • Manufacturer declaration sheet

More +

Product Specs

EK 500 G4 Camera Mount Receiver
RF characteristics
Modulation Wideband FM
Frequency ranges Aw+: 470 - 558 MHz
Gw1: 558 - 608 MHz
Receiving frequencies Max. 2880 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 32 factory-pre- set channels, no intermo- dulation
6 frequency banks with up to 32 programmable channels
Switching bandwidth up to 72 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Receiver principle Adaptive diversity
Sensitivity (with HDX, peak deviation) < 1.6 V for 52 dBA eff S/N
Adjacent channel selection Typically 65 dB
Intermodulation attenuation Typically 65 dB
Blocking 70 dB
Squelch low: 5 dB V middle: 15 dB V high: 25 dB V
Pilot tone squelch Can be switched off
AF characteristics
Compander system Sennheiser HDX
Signal-to-noise ratio (1 mV, peak deviation) Line: 110 dBA
Phones: approx. 90 dBA
Total harmonic distortion (THD) 0.9 %
AF output voltage (at peak deviation, 1 kHz AF) 3.5 mm jack socket: +17 dBu
(mono, unbalanced)
Adjustment range of audio output level 42 dB, adjustable in steps of 6 dB
Overall device
Temperature range -10 °C to +55 °C
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Nominal voltage 3 V battery / 2.4 V rechargeable battery
Current consumption at nominal voltage: typ. 140 mA
with receiver switched off: 25 A
Operating time Typically 8 h
Dimensions Approx. 82 x 64 x 24 mm
Weight (incl. batteries) approx. 130 g
SK 500 G4 Bodypack Transmitter
RF characteristics
Modulation Wideband FM
Frequency ranges Aw+: 470 - 558 MHz
Gw1: 558 - 608 MHz
Transmission frequencies Max. 2880 frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 32 factory-pre- set channels, no intermo- dulation
6 frequency banks with up to 32 programmable channels
Switching bandwidth up to 72 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Frequency stability ±15 ppm
RF output power at 50 switchable:
Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW
Pilot tone squelch Can be switched off
AF characteristics
Compander system Sennheiser HDX
AF frequency response Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation) 115 dBA
Total harmonic distortion (THD) 0.9 %
Max. microphone/line input voltage 3V
Microphone/line input impedance 40 k , unbalanced / 1 M
Input capacitance Switchable
Setting range for input sensitivity 60 dB, adjustable in 3 dB steps
Overall device
Temperature range -10 °C to +55 °C
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Nominal voltage 3 V battery / 2.4 V rechargeable battery
Current consumption at nominal voltage:
typ. 180 mA
with transmitter switched off: 25 A
Operating time Typically 8 h
Dimensions Approx. 82 x 64 x 24 mm
Weight (incl. batteries) approx. 160 g
