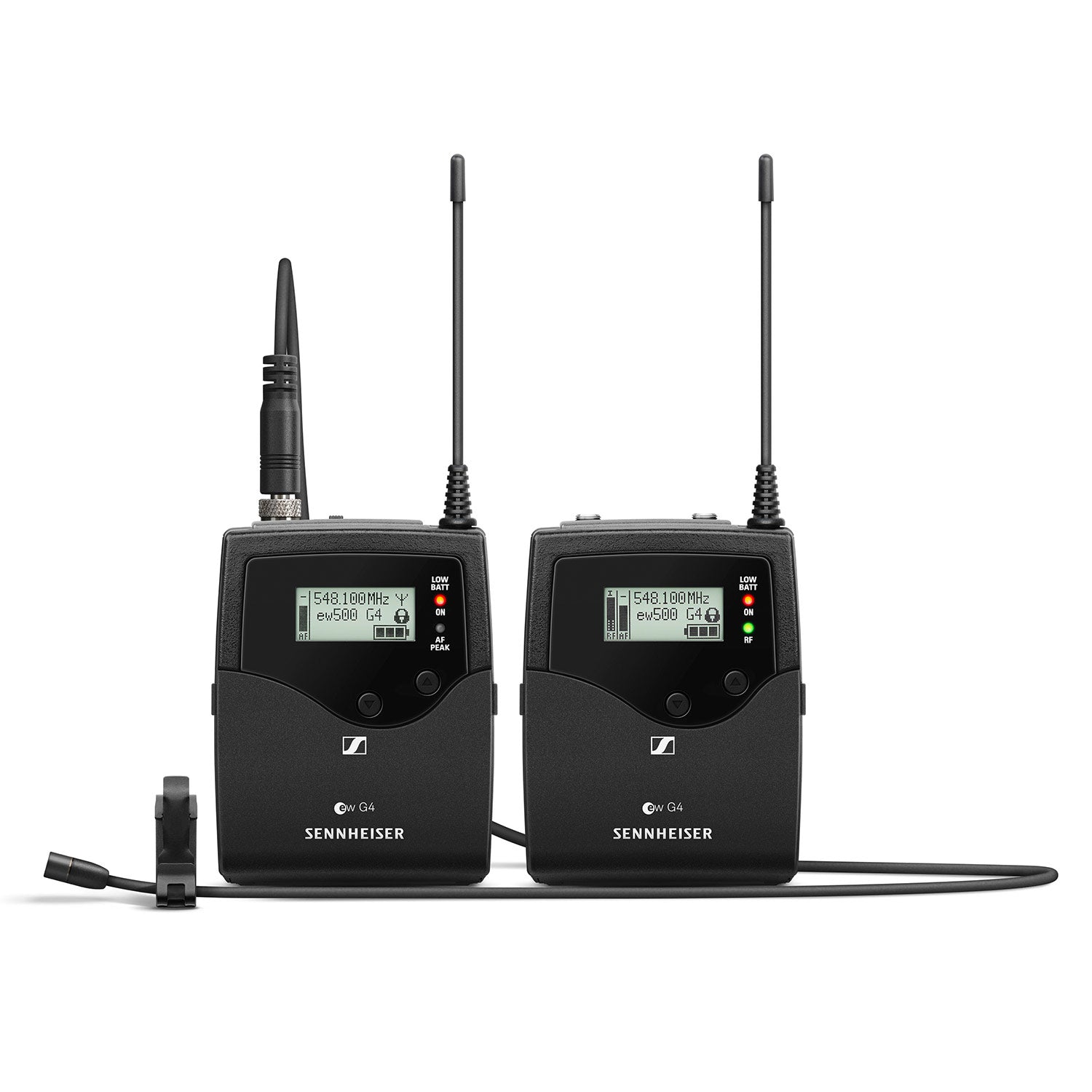

Sennheiser EW 512P G4 Evolution Camera Mount Lavalier Wireless System (GW1 Band/558-608 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Sennheiser EW 512P G4 Evolution Camera Mount Lavalier Wireless System (GW1 Band/558-608 MHz)
Sale price$1,099.00
Regular price$1,299.00
Description
The professional‘s choice for broadcast quality sound. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use.
Now, get impressive film sound was never that easily done. The legendary MKE 2 Gold professional clip-on microphone ensures best speech intelligibility, the portable transmitter and receiver are easily mounted and ensure 8 hours of mobile operation.
Features:
- Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
- Professional sound and excellent construction quality
- Easy to use and fast setup time
- Easy and exible wireless synchronisation between transmitter and receiver via infrared
- Up to 88 MHz bandwidth, up to 32 channels
- Range: up to 100 meters / 330 feet
- Increased RF output power (10/30/50 mW)
- Up to 8 hours of operation time
What's In The Box:
- EK 500 G4 camera receiver
- SK 500 G4 bodypack transmitter
- MKE 2 clip-on microphone
- 4 AA batteries
- CL 1 3.5 mm jack cable
- CL 500 XLR to 3.5 mm jack adapter cable
- CA 2 camera adapter
- Fur windscreen for MKE 2
- Quick guide
- Safety guide
- Manufacturer declaration sheet
| EK 500 G4 Camera Mount Receiver | |
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | Aw+: 470 - 558 MHz Gw1: 558 - 608 MHz |
| Receiving frequencies | Max. 2880 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-pre- set channels, no intermo- dulation 6 frequency banks with up to 32 programmable channels |
| Switching bandwidth | up to 72 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Receiver principle | Adaptive diversity |
| Sensitivity (with HDX, peak deviation) | < 1.6 V for 52 dBA eff S/N |
| Adjacent channel selection | Typically 65 dB |
| Intermodulation attenuation | Typically 65 dB |
| Blocking | 70 dB |
| Squelch | low: 5 dB V middle: 15 dB V high: 25 dB V |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| Signal-to-noise ratio (1 mV, peak deviation) | Line: 110 dBA Phones: approx. 90 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| AF output voltage (at peak deviation, 1 kHz AF) | 3.5 mm jack socket: +17 dBu (mono, unbalanced) |
| Adjustment range of audio output level | 42 dB, adjustable in steps of 6 dB |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 140 mA with receiver switched off: 25 A |
| Operating time | Typically 8 h |
| Dimensions | Approx. 82 x 64 x 24 mm |
| Weight (incl. batteries) | approx. 130 g |
| SK 500 G4 Bodypack Transmitter | |
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | Aw+: 470 - 558 MHz Gw1: 558 - 608 MHz |
| Transmission frequencies | Max. 2880 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-pre- set channels, no intermo- dulation 6 frequency banks with up to 32 programmable channels |
| Switching bandwidth | up to 72 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Frequency stability | ±15 ppm |
| RF output power at 50 | switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | Mic: 80 Ð 18,000 Hz Line: 25 Ð 18,000 Hz |
| Signal-to-noise ratio (1 mV, peak deviation) | 115 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| Max. microphone/line input voltage | 3V |
| Microphone/line input impedance | 40 k , unbalanced / 1 M |
| Input capacitance | Switchable |
| Setting range for input sensitivity | 60 dB, adjustable in 3 dB steps |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 180 mA with transmitter switched off: 25 A |
| Operating time | Typically 8 h |
| Dimensions | Approx. 82 x 64 x 24 mm |
| Weight (incl. batteries) | approx. 160 g |
