Description

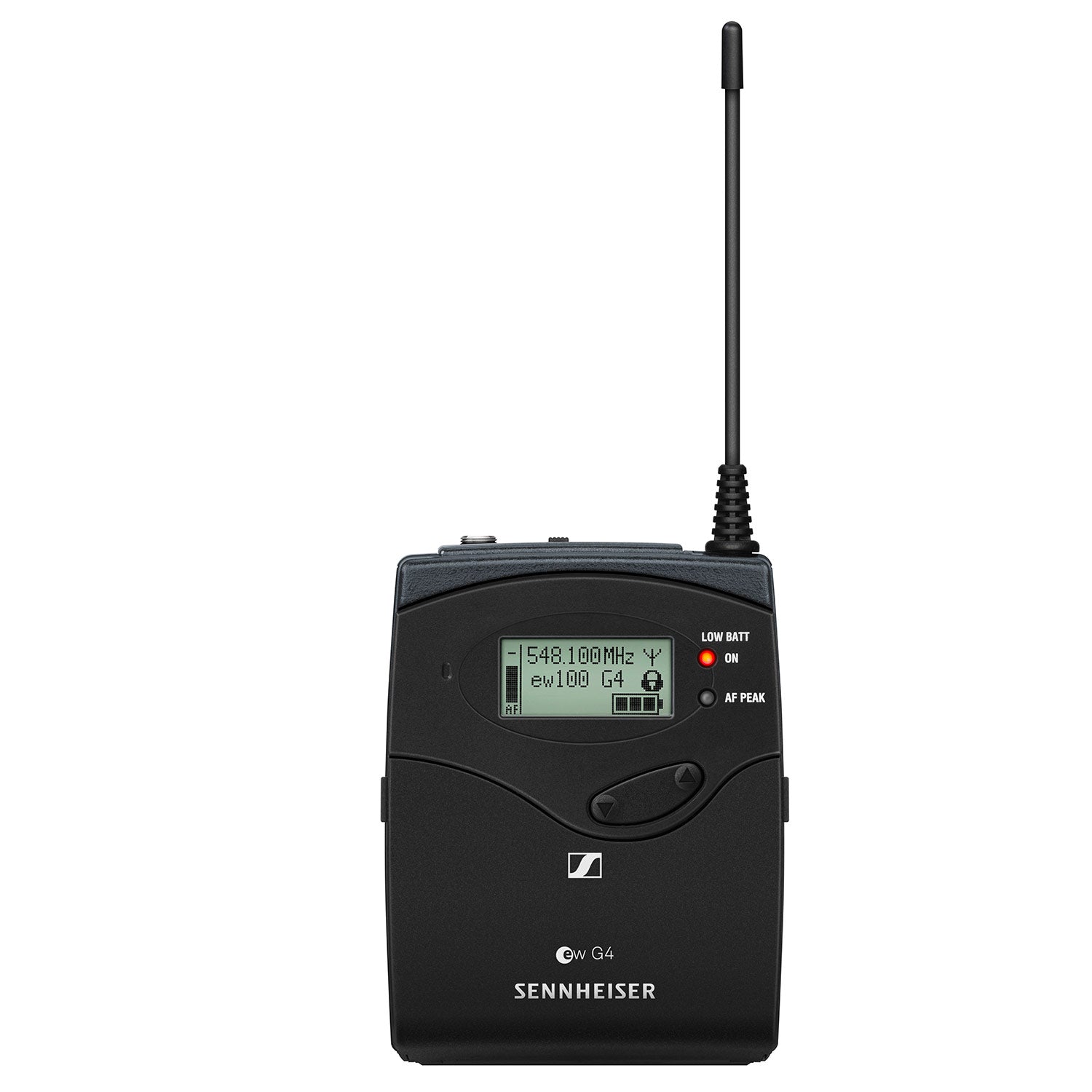

The SK 100 G4 is a robust bodypack transmitter for daily use on stage with Sennheiser evolution wireless G4 100 G4 systems.
Features:
- Robust bodypack transmitter for daily use on stage.
- Easy and exible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequen- cies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
What's In The Box:
- SK 100 G4 bodypack transmitter
- 2 AA batteries
- Quick guide
- Safety guide
- Manufacturer declaration sheet
RF characteristics | |
Modulation | Wideband FM |
Frequency ranges | A1: 470 - 516 MHz A: 516 - 558 MHz G: 566 - 608 MHz |
Transmission frequencies | Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodula- tion 1 frequency bank with up to 12 programmable channels |
Switching bandwidth | up to 42 MHz |
Nominal/peak deviation | ±24 kHz / ±48 kHz |
Frequency stability | ±15 ppm |
RF output power at 50 | Max. 30 mW |
Pilot tone squelch | Can be switched off |
AF characteristics | |
Compander system | Sennheiser HDX |
AF frequency response | Mic: 80 Ð 18,000 Hz Line: 25 Ð 18,000 Hz |
Signal-to-noise ratio (1 mV, peak deviation) | 110 dBA |
Total harmonic distortion (THD) | 0.9 % |
Max. microphone/line input voltage | 3 V |
Microphone/line input impedance | 40 k , unbalanced / 1 M |
Input capacitance | Switchable |
Setting range for input sensitivity | 60 dB, adjustable in 3 dB steps |
Overall device | |
Temperature range | -10 ¡C to +55 ¡C |
Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
Current consumption | at nominal voltage: typ. 180 mA with transmitter switched off: 25 A |
Operating time | Typically 8 h |
Dimensions | Approx. 82 x 64 x 24 mm |
Weight (incl. batteries) | approx. 160 g |
The SK 100 G4 is a robust bodypack transmitter for daily use on stage with Sennheiser evolution wireless G4 100 G4 systems.
Features:
- Robust bodypack transmitter for daily use on stage.
- Easy and exible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequen- cies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
What's In The Box:
- SK 100 G4 bodypack transmitter
- 2 AA batteries
- Quick guide
- Safety guide
- Manufacturer declaration sheet
RF characteristics | |
Modulation | Wideband FM |
Frequency ranges | A1: 470 - 516 MHz A: 516 - 558 MHz G: 566 - 608 MHz |
Transmission frequencies | Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodula- tion 1 frequency bank with up to 12 programmable channels |
Switching bandwidth | up to 42 MHz |
Nominal/peak deviation | ±24 kHz / ±48 kHz |
Frequency stability | ±15 ppm |
RF output power at 50 | Max. 30 mW |
Pilot tone squelch | Can be switched off |
AF characteristics | |
Compander system | Sennheiser HDX |
AF frequency response | Mic: 80 Ð 18,000 Hz Line: 25 Ð 18,000 Hz |
Signal-to-noise ratio (1 mV, peak deviation) | 110 dBA |
Total harmonic distortion (THD) | 0.9 % |
Max. microphone/line input voltage | 3 V |
Microphone/line input impedance | 40 k , unbalanced / 1 M |
Input capacitance | Switchable |
Setting range for input sensitivity | 60 dB, adjustable in 3 dB steps |
Overall device | |
Temperature range | -10 ¡C to +55 ¡C |
Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
Current consumption | at nominal voltage: typ. 180 mA with transmitter switched off: 25 A |
Operating time | Typically 8 h |
Dimensions | Approx. 82 x 64 x 24 mm |
Weight (incl. batteries) | approx. 160 g |
