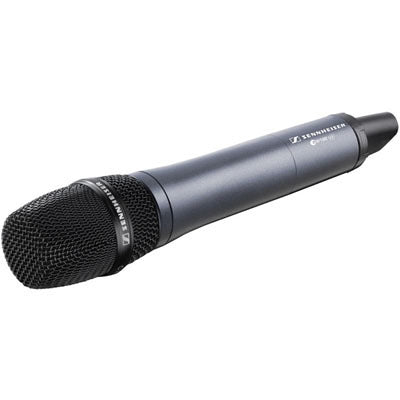

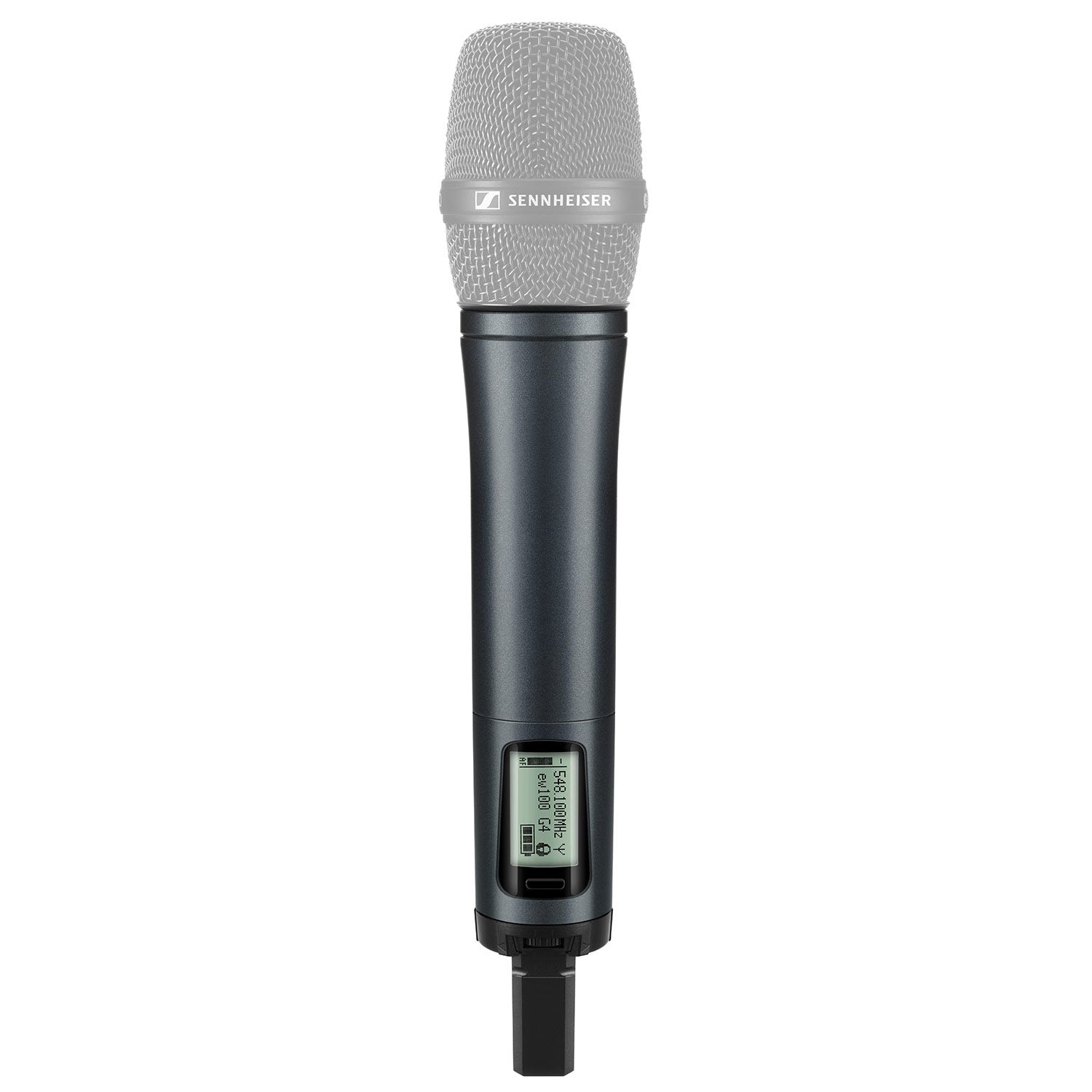

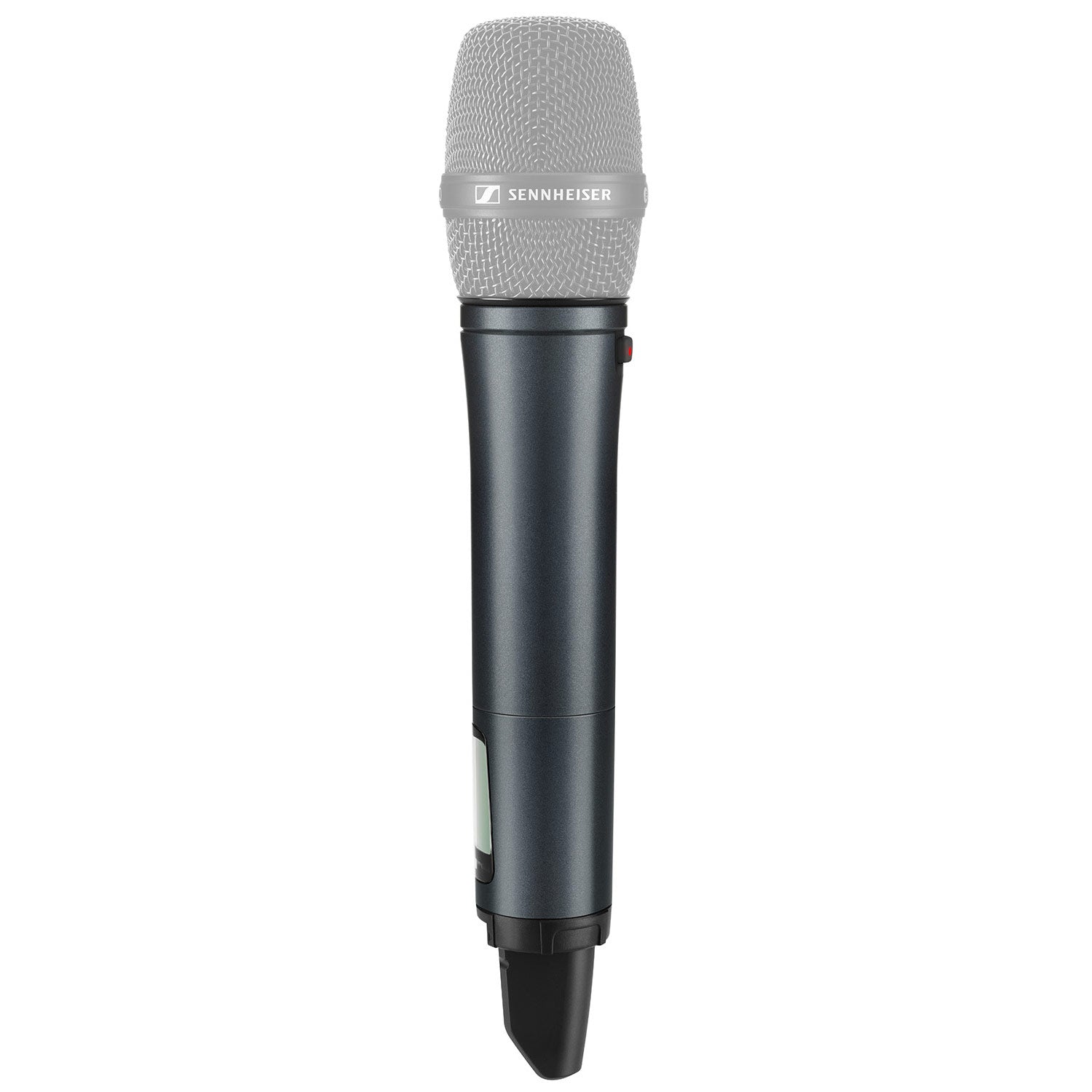

Sennheiser SKM 100 G4-S Evolution Wireless Handheld Transmitter (A1 Band/470-516 MHz)



  • Dale #:

    SENN-SKM100G4SA1

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The SKM 100 G4-S is a powerful handheld transmitter with a lightweight aluminum housing and integrated mute switch for evolution wireless G4 100 Series systems. Please note that a capsule head is NOT included with this transmitter, and is compatible with many Sennheiser threaded capsules. Feature... Read More

Retail Price: $369.95 Our Price: $299.95

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The SKM 100 G4-S is a powerful handheld transmitter with a lightweight aluminum housing and integrated mute switch for evolution wireless G4 100 Series systems.

Please note that a capsule head is NOT included with this transmitter, and is compatible with many Sennheiser threaded capsules.

Features:

  • Same as SKM 100 G4 but with integrated mute switch
  • Your choice of Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules
  • Easy and exible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequen- cies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 30 mW) depending on country regulations

What's In The Box:

  • SKM 100 G4-S handheld transmitter
  • MZQ 1 microphone clamp
  • 2 AA batteries
  • Quick guide
  • Safety guide
  • Manufacturer declaration sheet

More +

Product Specs

RF characteristics
Modulation Wideband FM
Frequency ranges A1: 470 - 516 MHz
A: 516 - 558 MHz
G: 566 - 608 MHz
Transmission frequencies Max. 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodula- tion
1 frequency bank with up to 12 programmable channels
Switching bandwidth up to 42 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Frequency stability ±15 ppm
RF output power at 50 Max. 30 mW
Pilot tone squelch Can be switched off
AF characteristics
Compander system Sennheiser HDX
AF frequency response 80 – 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation) 110 dBA
Total harmonic distortion (THD) 0.9 %
Max. input voltage 3 V
Input impedance 40 k
Input capacitance Switchable
Setting range for input sensitivity 48 dB, adjustable in 6 dB steps
Overall device
Temperature range -10 °C to +55 °C
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Nominal voltage 3 V battery / 2.4 V rechargeable battery
Current consumption at nominal voltage:
typ. 180 mA
with transmitter switched off: 25 A
Operating time Typically 8 h
Dimensions Approx. Ø 50 x 265 mm
Weight (incl. batteries) approx. 450 g

More +
