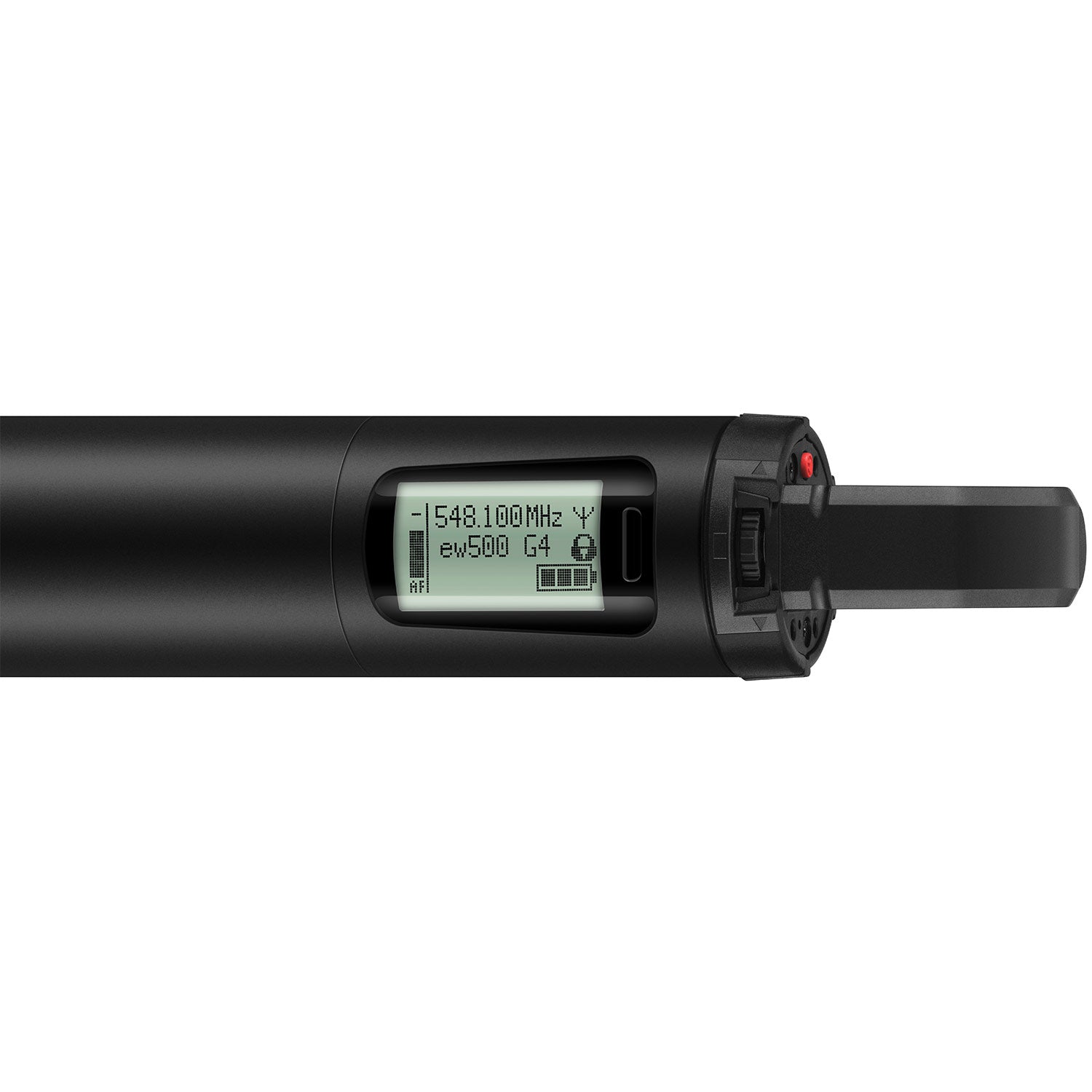

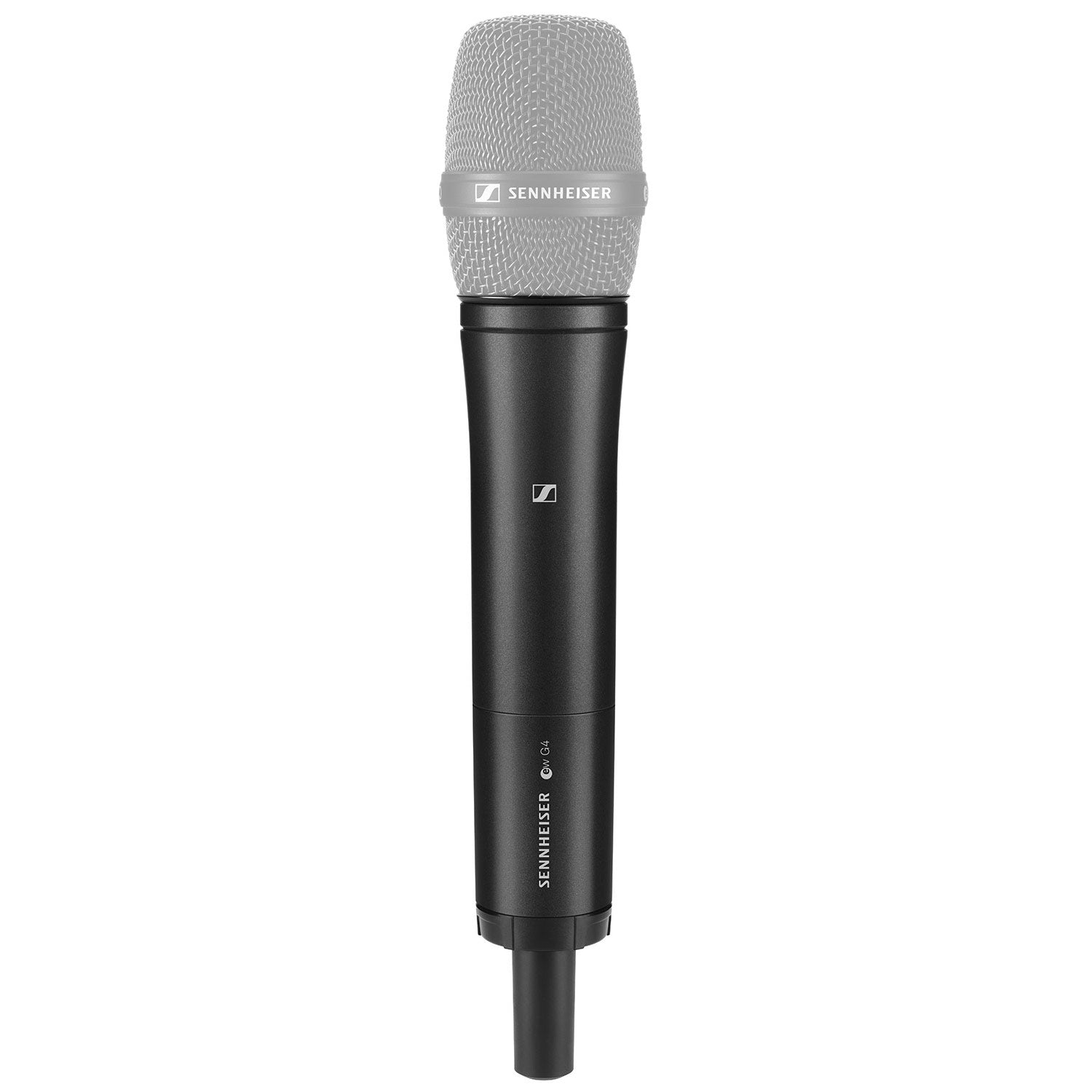

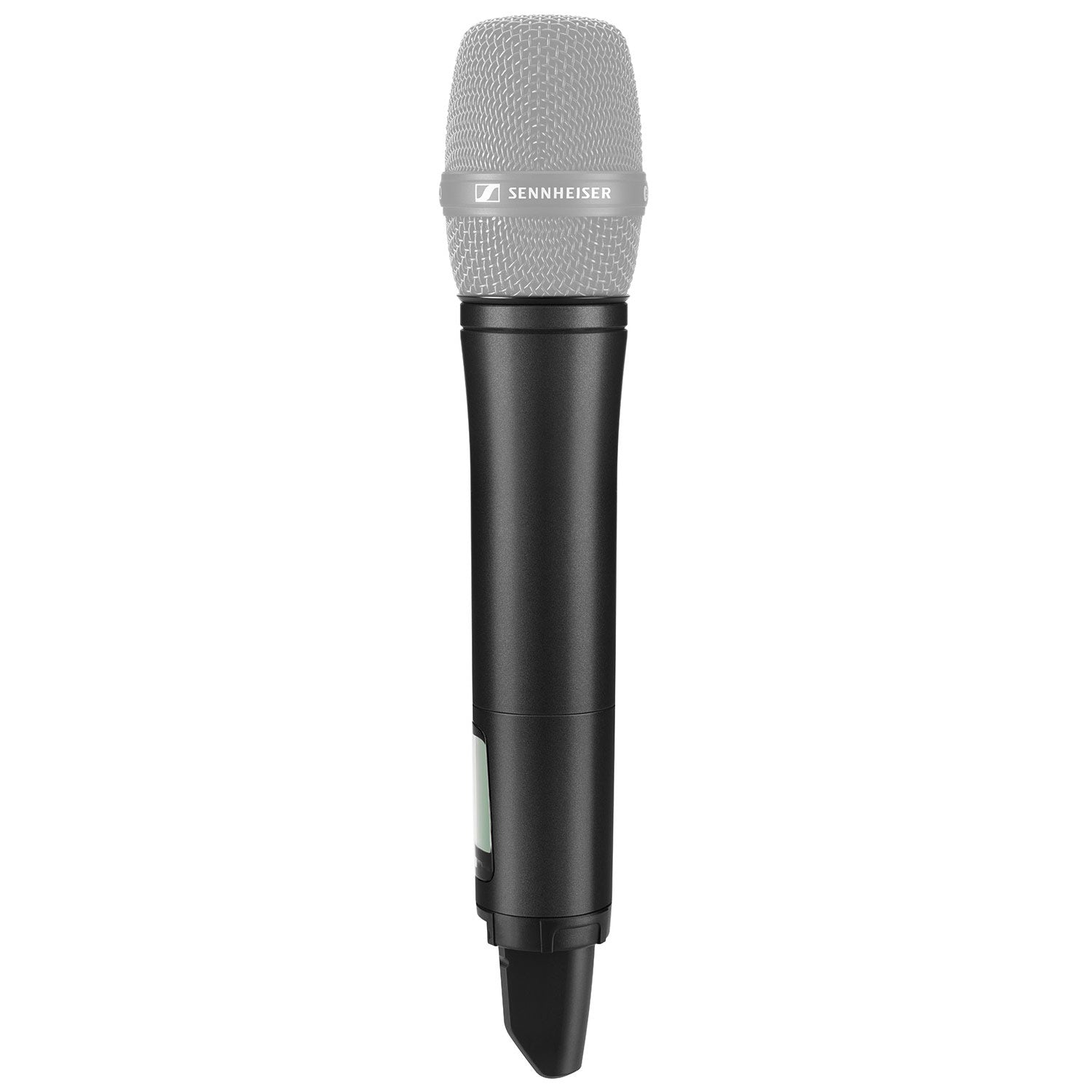

Sennheiser SKM 500 G4-S Evolution Wireless Handheld Transmitter (GW1 Band/558-608 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Sennheiser SKM 500 G4-S is a powerful handheld transmitter with a lightweight black aluminum housing, increased bandwidth and transmission power, ready to take the world’s biggest live stages. For evolution wireless G4 500 Series systems.
Please note that this does NOT include a capsule head - it is compatible with standard Senneheiser capsules such as MMD Series.
Features:
- Your choice of Sennheiser‘s renowned state-of-the-art e 935, e 945, e 965 capsules
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
What's In The Box:
- SKM 500 G4 handheld transmitter
- MZQ 1 microphone clamp
- 2 AA batteries
- Pouch
- Quick guide
- Safety guide
- Manufacturer declaration sheet
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | Aw+: 470 - 558 MHz Gw1: 558 - 608 MHz |
| Transmission frequencies | Max. 2880 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels |
| Switching bandwidth | up to 72 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Frequency stability | ±15 ppm |
| RF output power at 50 | switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | 80 Ð 18,000 Hz |
| Signal-to-noise ratio (1 mV, peak deviation) | 115 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| Setting range for input sensitivity | 48 dB, adjustable in 6 dB steps |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 180 mA with transmitter switched off: 25 A |
| Operating time | Typically 8 h |
| Dimensions | Approx. ¯ 50 x 265 mm |
| Weight (incl. batteries) | approx. 450 g |
The Sennheiser SKM 500 G4-S is a powerful handheld transmitter with a lightweight black aluminum housing, increased bandwidth and transmission power, ready to take the world’s biggest live stages. For evolution wireless G4 500 Series systems.
Please note that this does NOT include a capsule head - it is compatible with standard Senneheiser capsules such as MMD Series.
Features:
- Your choice of Sennheiser‘s renowned state-of-the-art e 935, e 945, e 965 capsules
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
What's In The Box:
- SKM 500 G4 handheld transmitter
- MZQ 1 microphone clamp
- 2 AA batteries
- Pouch
- Quick guide
- Safety guide
- Manufacturer declaration sheet
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | Aw+: 470 - 558 MHz Gw1: 558 - 608 MHz |
| Transmission frequencies | Max. 2880 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels |
| Switching bandwidth | up to 72 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Frequency stability | ±15 ppm |
| RF output power at 50 | switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | 80 Ð 18,000 Hz |
| Signal-to-noise ratio (1 mV, peak deviation) | 115 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| Setting range for input sensitivity | 48 dB, adjustable in 6 dB steps |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 180 mA with transmitter switched off: 25 A |
| Operating time | Typically 8 h |
| Dimensions | Approx. ¯ 50 x 265 mm |
| Weight (incl. batteries) | approx. 450 g |
