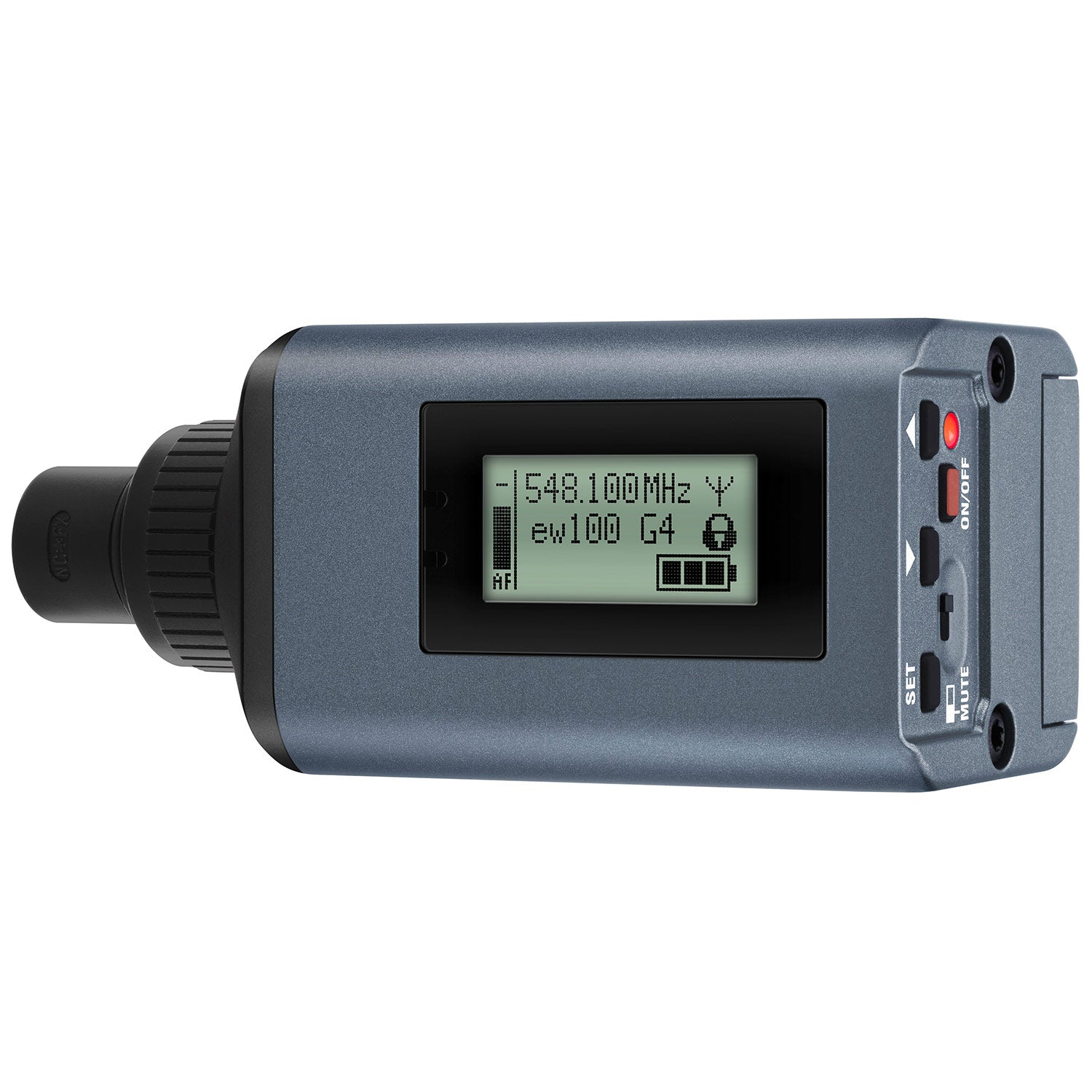

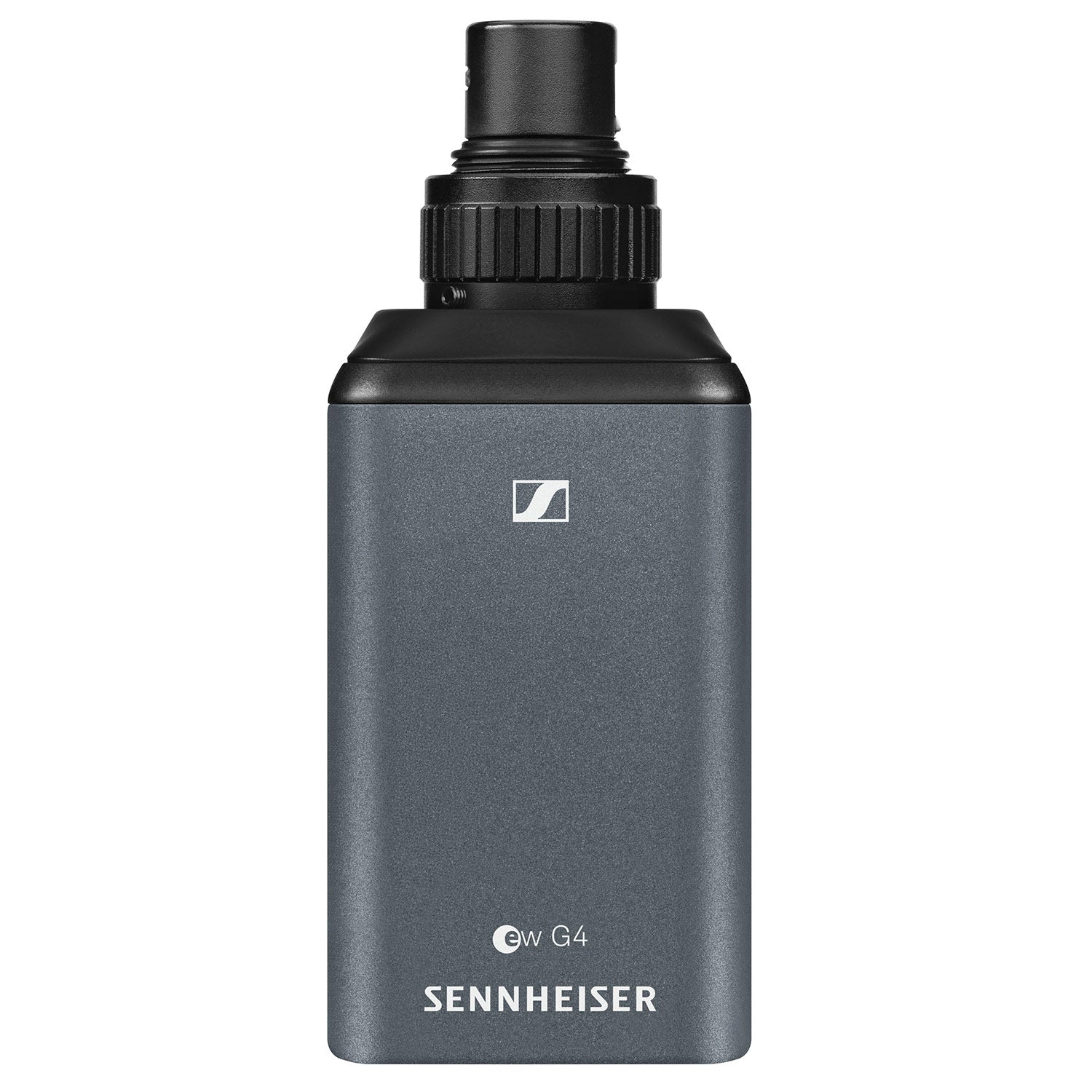

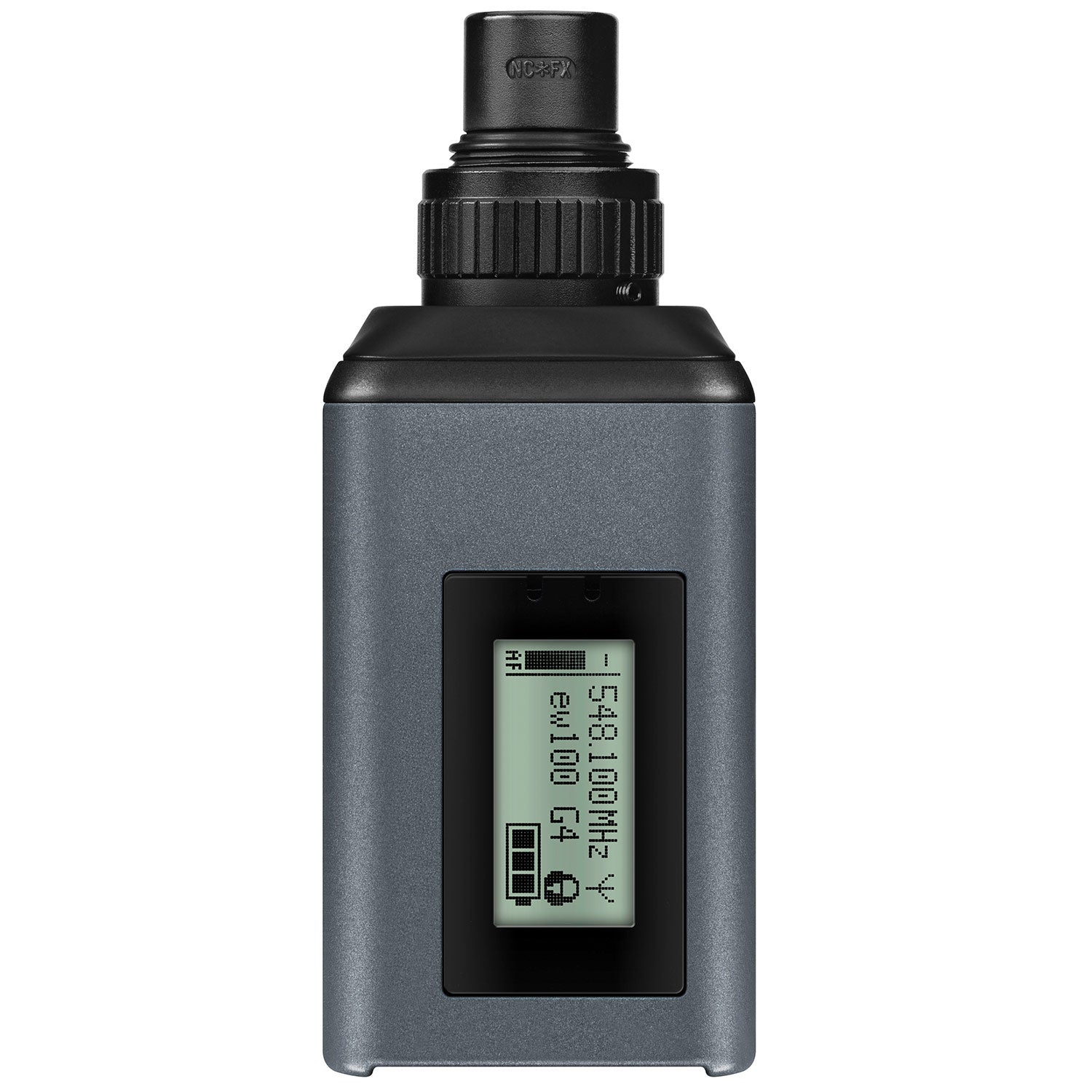

Sennheiser SKP 100 G4 Evolution Wireless Plug-On Transmitter (A Band/518-554 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Sennheiser SKP 100 G4 is a powerful plug-on transmitter that turns every wired dynamic microphone into a wireless transmitter for evolution wireless G4 100P Series systems. For documentary, mobile journalism and audio for video applications.
Features:
- Excellent sound and construction quality
- Easy to use and fast setup time
- Powerful and reliable wireless transmission
- Range: up to 100 meters / 330 feet
- Up to 8 hours of operation time
What's In The Box:
- SKP 100 G4 plug-on transmitter
- 2 AA batteries
- Quick guide
- Safety guide
- Manufacturer declaration sheet
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | A1: 470 - 516 MHz A: 516 - 558 MHz G: 566 - 608 MHz |
| Transmission frequencies | Max. 1680 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodula- tion 1 frequency bank with up to 12 programmable channels |
| Switching bandwidth | up to 42 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Frequency stability | ±15 ppm |
| RF output power at 50 | Max. 30 mW |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | 80 Ð 18,000 Hz |
| Signal-to-noise ratio (1 mV, peak deviation) | 110 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| Max. input voltage | 3.3 V |
| Input impedance | 68 k , unbalanced |
| Input capacitance | Switchable |
| Setting range for input sensitivity | 48 dB, adjustable in 6 dB steps |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 180 mA with transmitter switched off: 25 A |
| Operating time | Typically 8 h |
| Dimensions | Approx. 105 x 43 x 43 mm |
| Weight (incl. batteries) | approx. 195 g |
The Sennheiser SKP 100 G4 is a powerful plug-on transmitter that turns every wired dynamic microphone into a wireless transmitter for evolution wireless G4 100P Series systems. For documentary, mobile journalism and audio for video applications.
Features:
- Excellent sound and construction quality
- Easy to use and fast setup time
- Powerful and reliable wireless transmission
- Range: up to 100 meters / 330 feet
- Up to 8 hours of operation time
What's In The Box:
- SKP 100 G4 plug-on transmitter
- 2 AA batteries
- Quick guide
- Safety guide
- Manufacturer declaration sheet
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | A1: 470 - 516 MHz A: 516 - 558 MHz G: 566 - 608 MHz |
| Transmission frequencies | Max. 1680 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodula- tion 1 frequency bank with up to 12 programmable channels |
| Switching bandwidth | up to 42 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Frequency stability | ±15 ppm |
| RF output power at 50 | Max. 30 mW |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | 80 Ð 18,000 Hz |
| Signal-to-noise ratio (1 mV, peak deviation) | 110 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| Max. input voltage | 3.3 V |
| Input impedance | 68 k , unbalanced |
| Input capacitance | Switchable |
| Setting range for input sensitivity | 48 dB, adjustable in 6 dB steps |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 180 mA with transmitter switched off: 25 A |
| Operating time | Typically 8 h |
| Dimensions | Approx. 105 x 43 x 43 mm |
| Weight (incl. batteries) | approx. 195 g |
