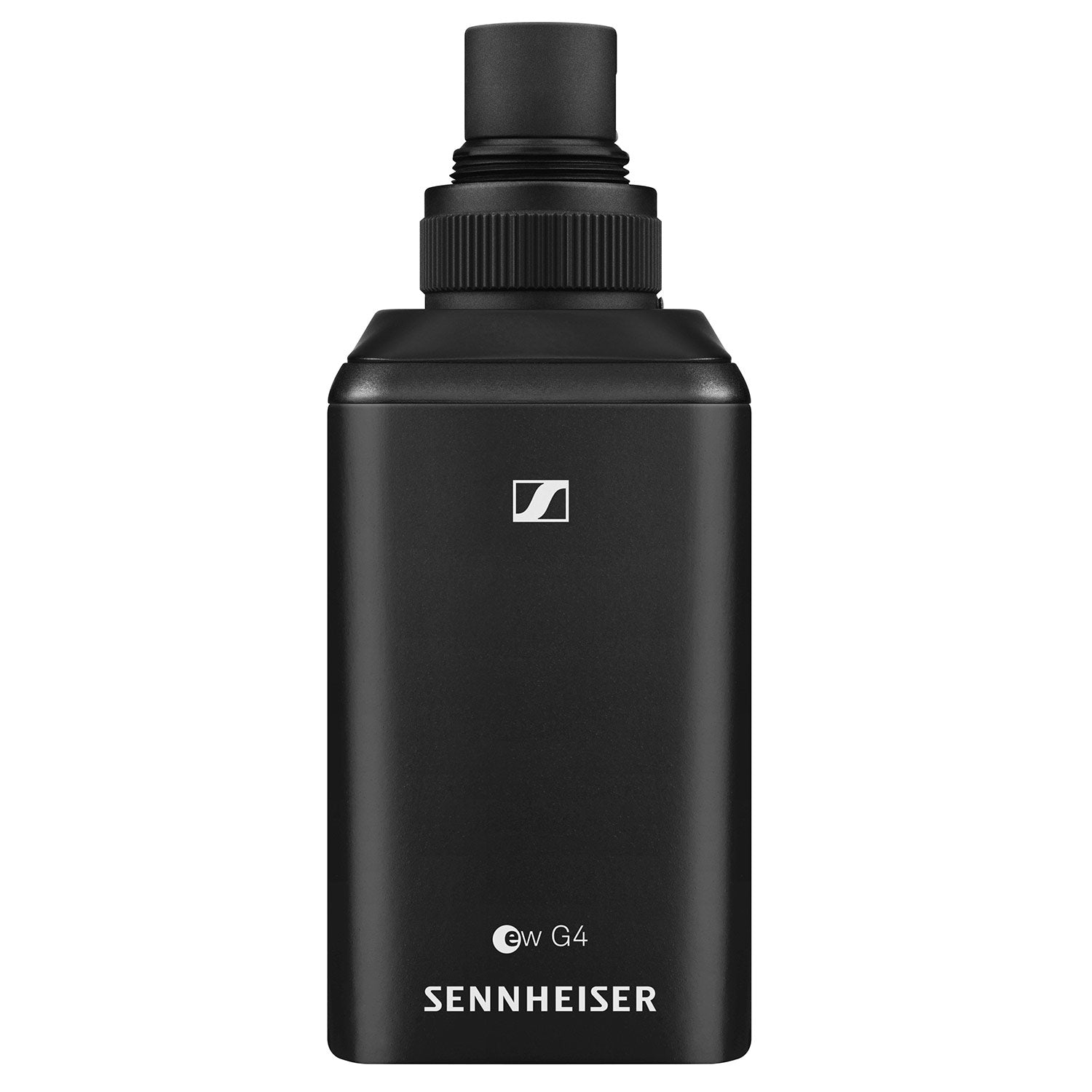

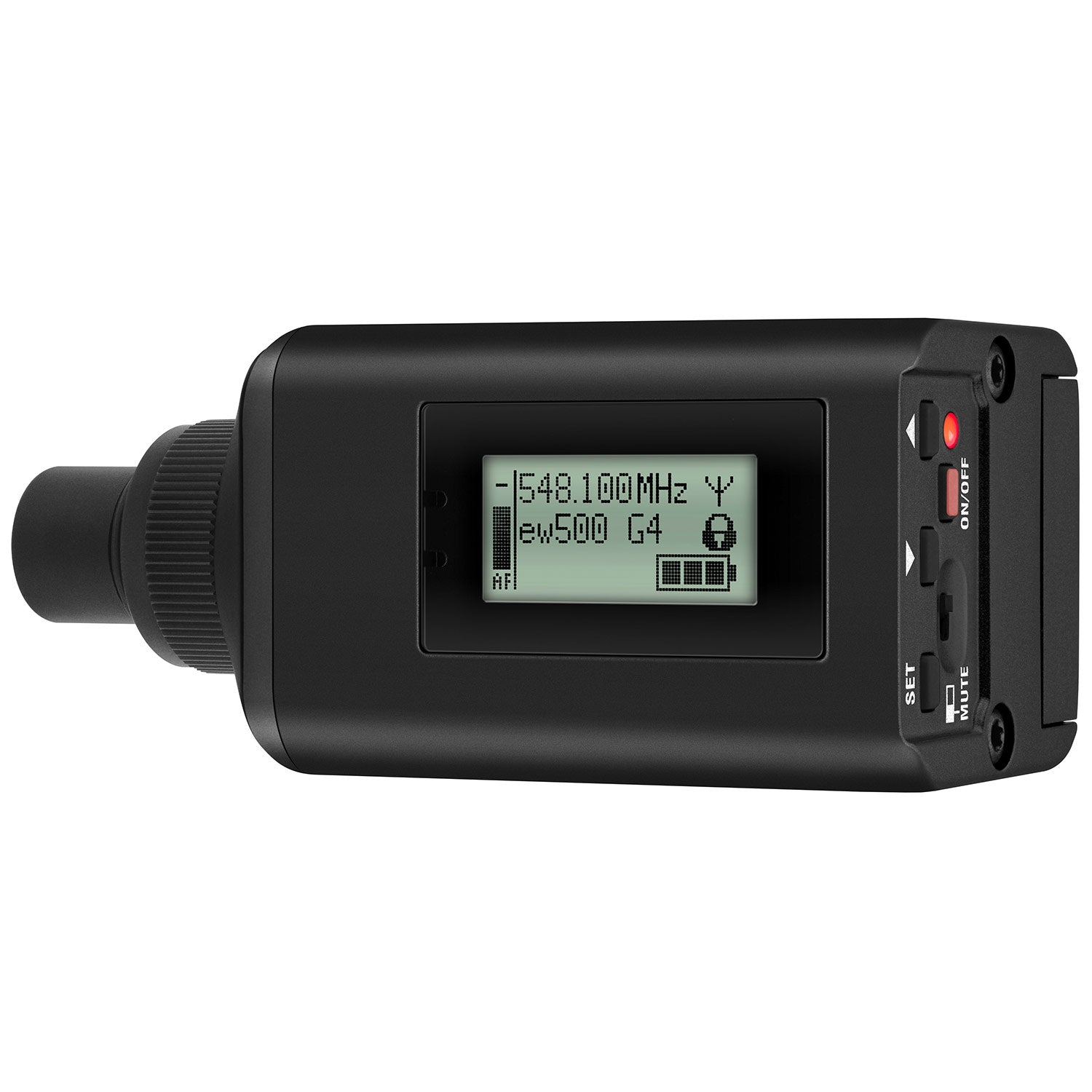

Sennheiser SKP 500 G4 Evolution Wireless Plug-On Transmitter (AW+ Band/470-558 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Sennheiser SKP 500 G4 Evolution Wireless Plug-On Transmitter (AW+ Band/470-558 MHz)
Sale price$549.00
Regular price$649.00
Description
The Sennheiser SKP 500 G4 is a powerful black plug-on transmitter with phantom power, increased bandwidth and transmission power for evolution wireless G4 500P Series systems. It's ideal for professional film productions.
Features:
- Professional sound and excellent construction quality
- Easy to use and fast setup time
- Easy and exible wireless synchronisation between transmitter and receiver via infrared
- Up to 88 MHz bandwidth, up to 32 channels
- Range: up to 100 meters / 330 feet
- Increased RF output power (10/30/50 mW)
- Up to 8 hours of operation time
What's In The Box:
- SKP 500 G4 pro plug-on transmitter
- 2 AA batteries
- POP 1 pouch with belt clip
- Quick guide
- Safety guide
- Manufacturer declaration sheet
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | Aw+: 470 - 558 MHz Gw1: 558 - 608 MHz |
| Transmission frequencies | Max. 2880 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels |
| Switching bandwidth | up to 72 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Frequency stability | ±15 ppm |
| RF output power at 50 | switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | 80 Ð 18,000 Hz |
| Signal-to-noise ratio (1 mV, peak deviation) | 120 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| Max. input voltage | 6 V |
| Input impedance | 68 k , unbalanced |
| Input capacitance | Switchable |
| Setting range for input sensitivity | 48 dB, adjustable in 6 dB steps |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 210 mA with transmitter switched off: 25 A |
| Operating time | Typically 8 h |
| Dimensions | Approx. 105 x 43 x 43 mm |
| Weight (incl. batteries) | approx. 195 g |
The Sennheiser SKP 500 G4 is a powerful black plug-on transmitter with phantom power, increased bandwidth and transmission power for evolution wireless G4 500P Series systems. It's ideal for professional film productions.
Features:
- Professional sound and excellent construction quality
- Easy to use and fast setup time
- Easy and exible wireless synchronisation between transmitter and receiver via infrared
- Up to 88 MHz bandwidth, up to 32 channels
- Range: up to 100 meters / 330 feet
- Increased RF output power (10/30/50 mW)
- Up to 8 hours of operation time
What's In The Box:
- SKP 500 G4 pro plug-on transmitter
- 2 AA batteries
- POP 1 pouch with belt clip
- Quick guide
- Safety guide
- Manufacturer declaration sheet
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | Aw+: 470 - 558 MHz Gw1: 558 - 608 MHz |
| Transmission frequencies | Max. 2880 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels |
| Switching bandwidth | up to 72 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Frequency stability | ±15 ppm |
| RF output power at 50 | switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | 80 Ð 18,000 Hz |
| Signal-to-noise ratio (1 mV, peak deviation) | 120 dBA |
| Total harmonic distortion (THD) | 0.9 % |
| Max. input voltage | 6 V |
| Input impedance | 68 k , unbalanced |
| Input capacitance | Switchable |
| Setting range for input sensitivity | 48 dB, adjustable in 6 dB steps |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 210 mA with transmitter switched off: 25 A |
| Operating time | Typically 8 h |
| Dimensions | Approx. 105 x 43 x 43 mm |
| Weight (incl. batteries) | approx. 195 g |
