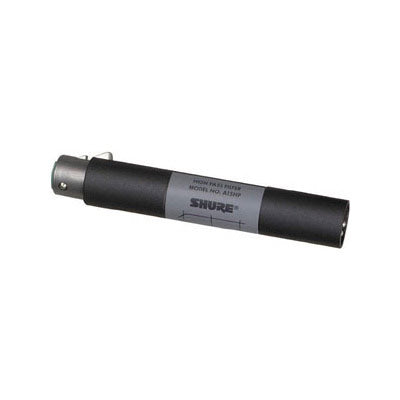

Shure A15HP In-Line XLR Barrel 100 Hz High Pass Filter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Shure A15HP In-Line XLR Barrel 100 Hz High Pass Filter
Sale price$62.00
Regular price$72.00
Description
The Shure A15HP filter rolls off low audio frequencies to reduce 60 Hz electrical hum, low-frequency wind noise, air conditioner noise, or stand- and floor-transmitted low-frequency vibrations.
Features :
- When loaded with a low-impedance microphone input (800 ohms or more), the rolloff is 12 decibels per octave below 100 Hz. When loaded with 150 ohms, the rolloff is 3 decibels at 100 Hz. The output is flat above the rolloff point (with a maximum loss of 0.5 decibels at 1 kHz).
| Frequency Response | Flat above rolloff point; -0.5 dB maximum at 1 kHz |
| Impedance | Designed for 150 ohm rated microphones and inputs |
| Distortion | 2.5% maximum (100 mV input, open circuit output) |
| Connectors | |
| Input | 3-socket XLR connector |
| Output | 3-pin XLR connector |
| Case | Full magnetic shield, steel with gray enamel finish |
| Dimensions | 19 mm (3/4 in.) diameter; 114 mm (4 1/2 in.) long |
The Shure A15HP filter rolls off low audio frequencies to reduce 60 Hz electrical hum, low-frequency wind noise, air conditioner noise, or stand- and floor-transmitted low-frequency vibrations.
Features :
- When loaded with a low-impedance microphone input (800 ohms or more), the rolloff is 12 decibels per octave below 100 Hz. When loaded with 150 ohms, the rolloff is 3 decibels at 100 Hz. The output is flat above the rolloff point (with a maximum loss of 0.5 decibels at 1 kHz).
| Frequency Response | Flat above rolloff point; -0.5 dB maximum at 1 kHz |
| Impedance | Designed for 150 ohm rated microphones and inputs |
| Distortion | 2.5% maximum (100 mV input, open circuit output) |
| Connectors | |
| Input | 3-socket XLR connector |
| Output | 3-pin XLR connector |
| Case | Full magnetic shield, steel with gray enamel finish |
| Dimensions | 19 mm (3/4 in.) diameter; 114 mm (4 1/2 in.) long |
