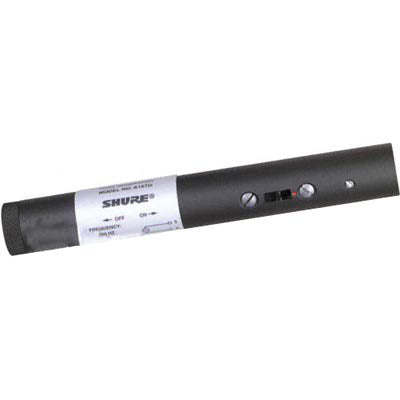

Shure A15TG Battery Operated 700 Hz In-Line Tone Generator with XLR Connector
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Shure A15TG Tone Generator is a battery-powered 700 Hz signal source that can be used to troubleshoot low-impedance, balanced-line microphone inputs.
The A15TG includes a recessed On-Off switch and a three-pin XLR audio connector. A removable end cap allows easy battery installation and removal. The A15TG can also tolerate the presence of phantom power, or a short circuit in the line it is driving. Built-in short circuit protection allows normal operation to resume after a short is removed.
The A15TG can operate continuously for approximately 1000 hours on one 1.5V alkaline battery. To conserve battery power, make sure the On-Off switch is in the Off position when the A15TG is not in use.
Features:
- Produces a continuous 700 Hz mic-level signal capable of driving low-impedance, balanced lines.
- 1,000 hours of battery life under continuous use
- On/Off switch
- XLR male output
| Output Frequency | 700 Hz +- 20%, when terminated with 150 ohms |
| Output Level | -41.5 +- 4.5 dBV (8.4 mV typical) when terminated with 150 ohms |
| Total Harmonic Distortion | 5% typical for any output termination greater than or equal to 150 ohms |
| Output Impedance | <15 ohms |
| Battery Type | 1.5 V alkaline |
| Temperature Range | Operating: -12 to 50 degrees C (10 to 130 degrees F) Storage: -29 to 74 degrees C (-20 to 165 degrees F) |
| Case | Steel with gray enamel finish |
| Dimensions | 19 mm (3/4 in.) diameter; 141 mm (5 17/32 in.) long |
The Shure A15TG Tone Generator is a battery-powered 700 Hz signal source that can be used to troubleshoot low-impedance, balanced-line microphone inputs.
The A15TG includes a recessed On-Off switch and a three-pin XLR audio connector. A removable end cap allows easy battery installation and removal. The A15TG can also tolerate the presence of phantom power, or a short circuit in the line it is driving. Built-in short circuit protection allows normal operation to resume after a short is removed.
The A15TG can operate continuously for approximately 1000 hours on one 1.5V alkaline battery. To conserve battery power, make sure the On-Off switch is in the Off position when the A15TG is not in use.
Features:
- Produces a continuous 700 Hz mic-level signal capable of driving low-impedance, balanced lines.
- 1,000 hours of battery life under continuous use
- On/Off switch
- XLR male output
| Output Frequency | 700 Hz +- 20%, when terminated with 150 ohms |
| Output Level | -41.5 +- 4.5 dBV (8.4 mV typical) when terminated with 150 ohms |
| Total Harmonic Distortion | 5% typical for any output termination greater than or equal to 150 ohms |
| Output Impedance | <15 ohms |
| Battery Type | 1.5 V alkaline |
| Temperature Range | Operating: -12 to 50 degrees C (10 to 130 degrees F) Storage: -29 to 74 degrees C (-20 to 165 degrees F) |
| Case | Steel with gray enamel finish |
| Dimensions | 19 mm (3/4 in.) diameter; 141 mm (5 17/32 in.) long |
