Description
Dual channel receiver with redundant DC power-input modification.
Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio.

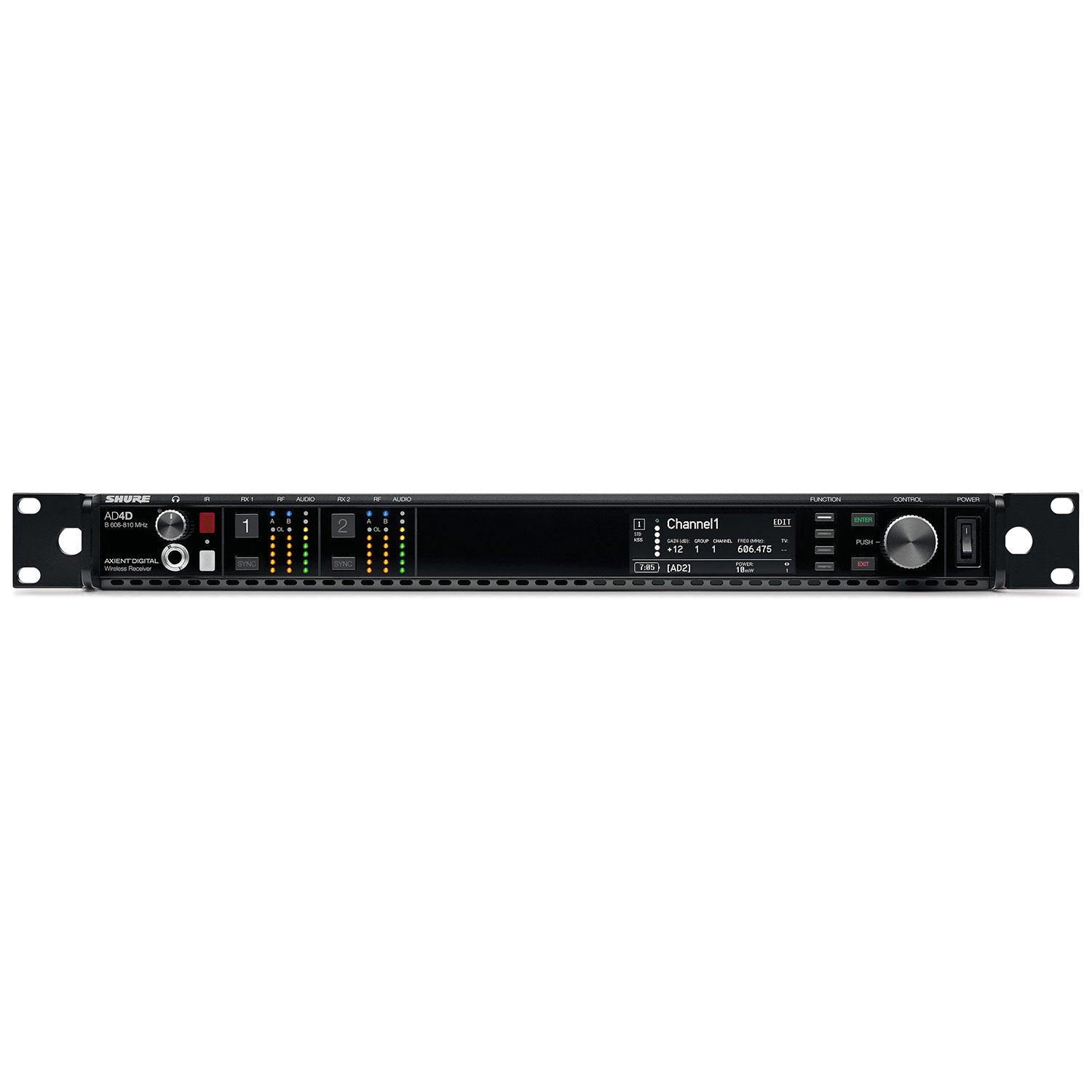

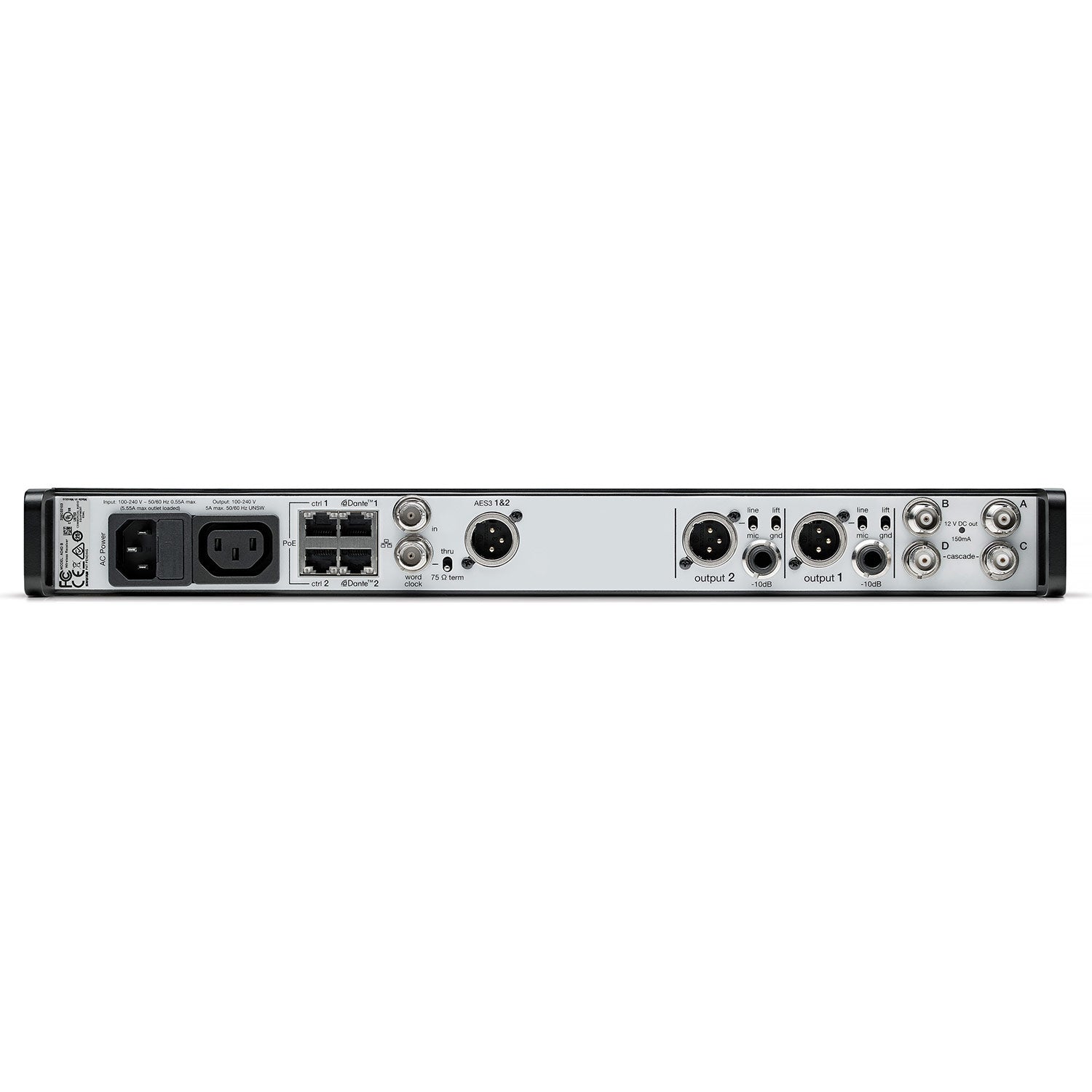

The AD4D Two-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environments. Networked control and signal routing options bring a new level of management and flexibility to your entire workflow.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:
- Wide tuning range up to 184 MHz
- True digital diversity reception per channel for drop-out resistance
- Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
- Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
- Configurable Ethernet switch for redundant Dante or AES67 digital output
- AES3 output
- Channel Quality meter displays RF signal-to-noise
- Locking AC connectors
- DC module version available to support redundant power
Dimensions | 44 mm _ 483 mm _ 333 mm (1.7 in. _ 19.0 in. _ 13.1 in.), H _ W _ D |
Weight | 4.6 kg (10.1 lbs), without antennas |
Housing | Steel; Extruded aluminum |
Power Requirements | 100 to 240 V AC, 50Ð60 Hz; 0.26 A max. |
Thermal Dissipation | Maximum: 23 W (78 BTU/hr) Idle: 15 W (52 BTU/hr) |
DC Input Voltage Range | 10.9Ð14.8 V DC |
Maxiumum DC Input Current | AD4D: 3.3 A |
Protection Modes | Overvoltage, Undervoltage, Reverse Polarity |

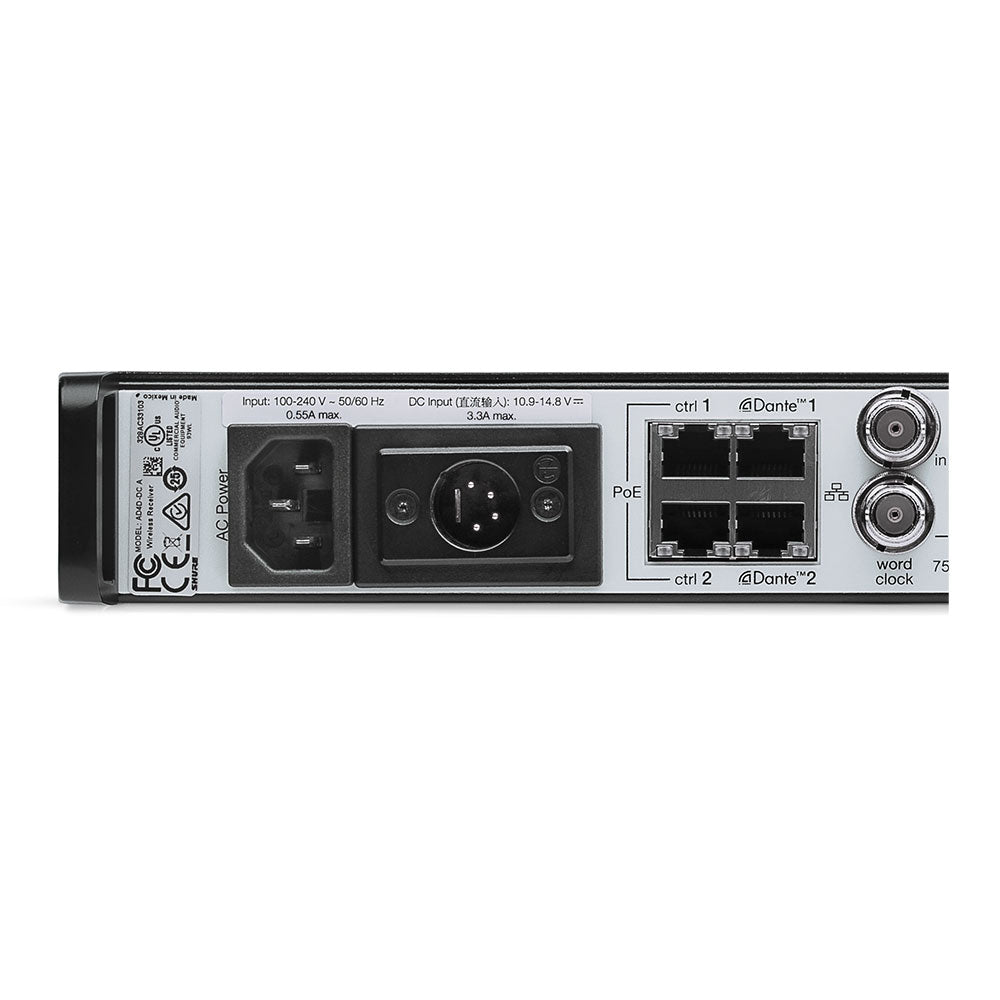

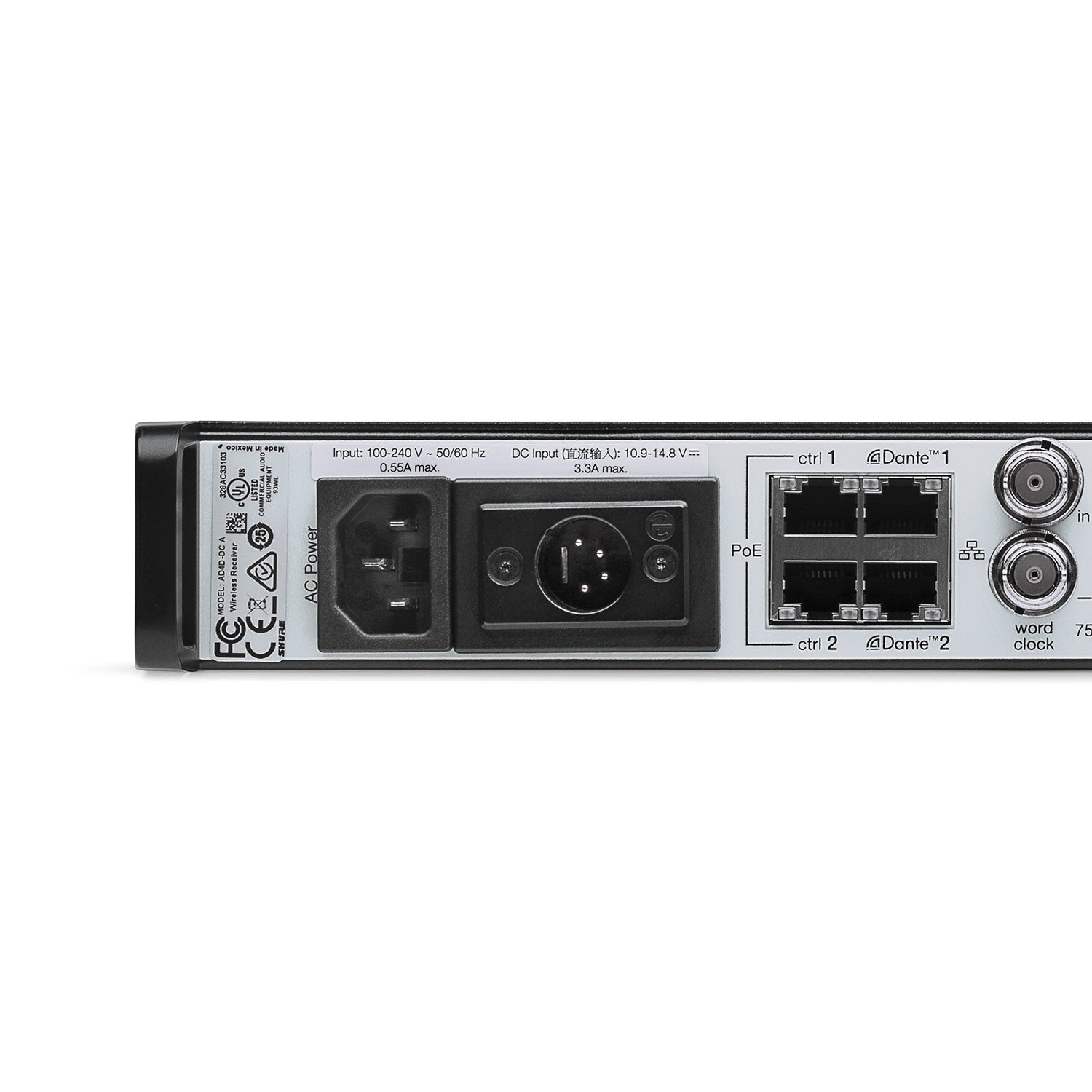

4-Pin XLR | Pin 1: Negative; Pin 2: No Connection; Pin 3: No Connection; Pin 4: Positive |
Audio Output | |
Gain Adjustment Range | Ð18 to +42 dB in 1 dB steps (plus Mute setting) |
Configuration | 1/4" (6.35 mm): Transformer-coupled Balanced (Tip=audio, Ring=no audio, Sleeve=ground) XLR: Transformer-coupled Balanced (1=ground, 2=audio +, 3=audio -) |
Impedance | Typical, XLR Line out 100½ |
Full Scale Output 200 k½ load |
1/4" (6.35 mm): +8 dBV XLR: LINE setting= +18 dBV, MIC setting= Ð12 dBV |
Mic/Line Switch | 30 dB pad |
Phantom Power Protection | Yes |
Networking | |
Network Interface | 10/100 Mbps, 1 Gbps, Dante Digital Audio |
Network Addressing Capability | DHCP or Manual IP address |
Maximum Ethernet Cable Length | 100 m (328 ft) |
Cascade output | |
Connector Type | BNC Note: For connection of one additional receiver in the same band |
Configuration | Unbalanced, passive |
Impedance | 50 ½ |
Insertion Loss | 0 dB, typical |
RF Input | |
Spurious Rejection | >80 dB, typical |
Connector Type | BNC |
Impedance | 50 ½ |
Bias Voltage | 12Ð13.5 V DC, 150 mA maximum, per antenna, switchable on/off |
RF Carrier Frequency Range | AD4D=A: 470Ð636 MHz AD4D=B: 606Ð810 MHz AD4D=C: 750Ð960 MHz |
