SHUR-AD4DDCCAvailability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description
Dual channel receiver with redundant DC power-input modification. Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio. The AD4D Two-Channel Digital Receiver sets a new standard in spectral e... Read MoreRetail Price: $4,870.00 Our Price: $3,896.00
Free Shipping (Continental US)
Suggested Accessories
Description

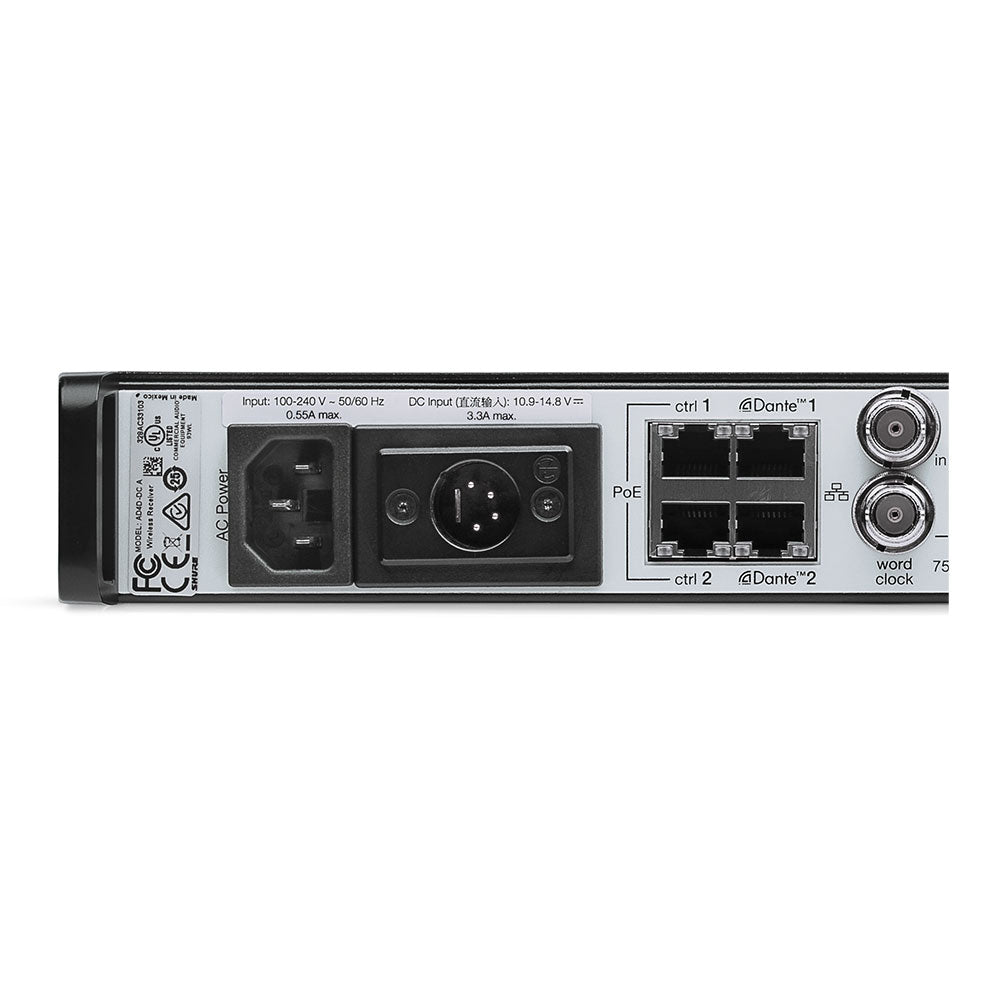

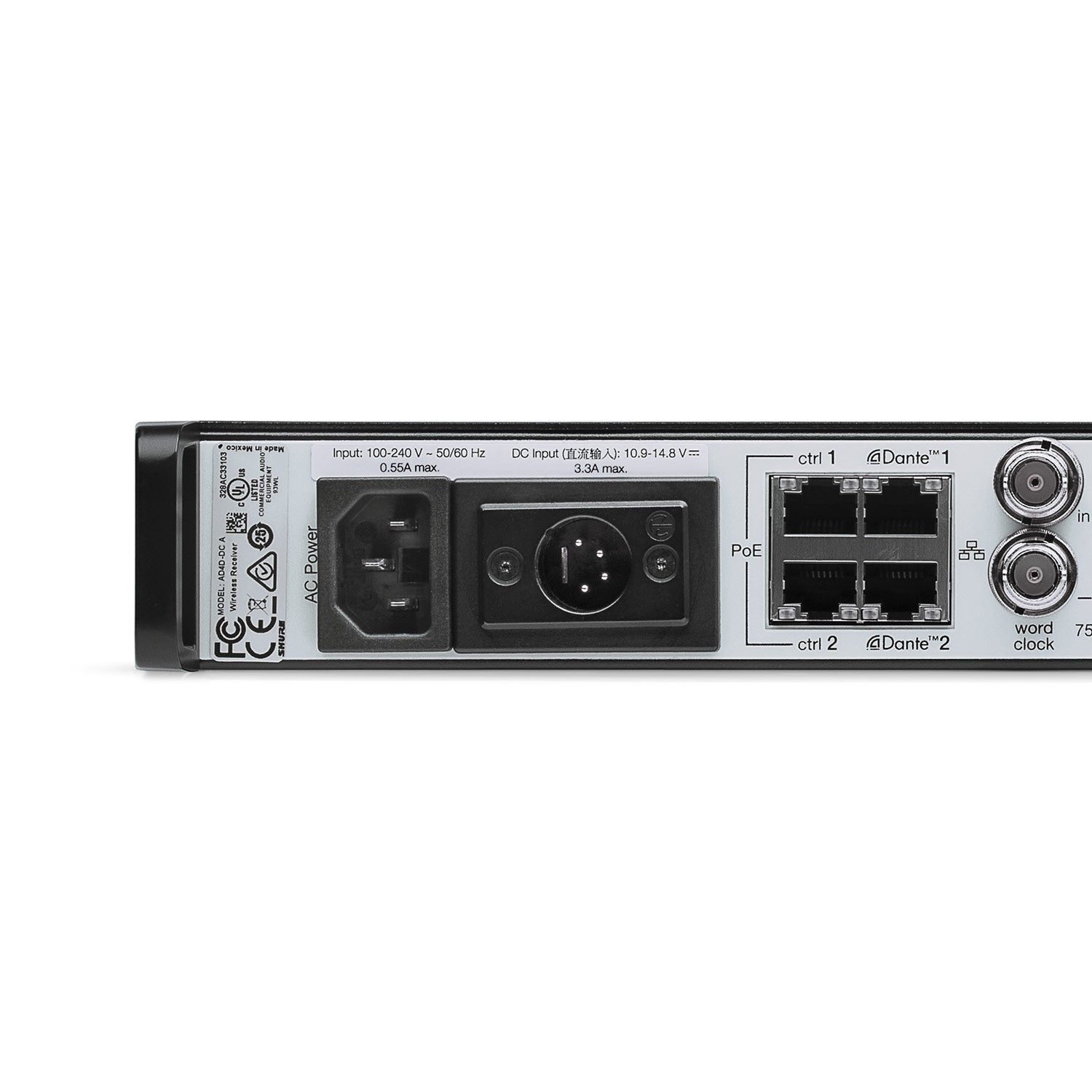

Dual channel receiver with redundant DC power-input modification.
Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio.

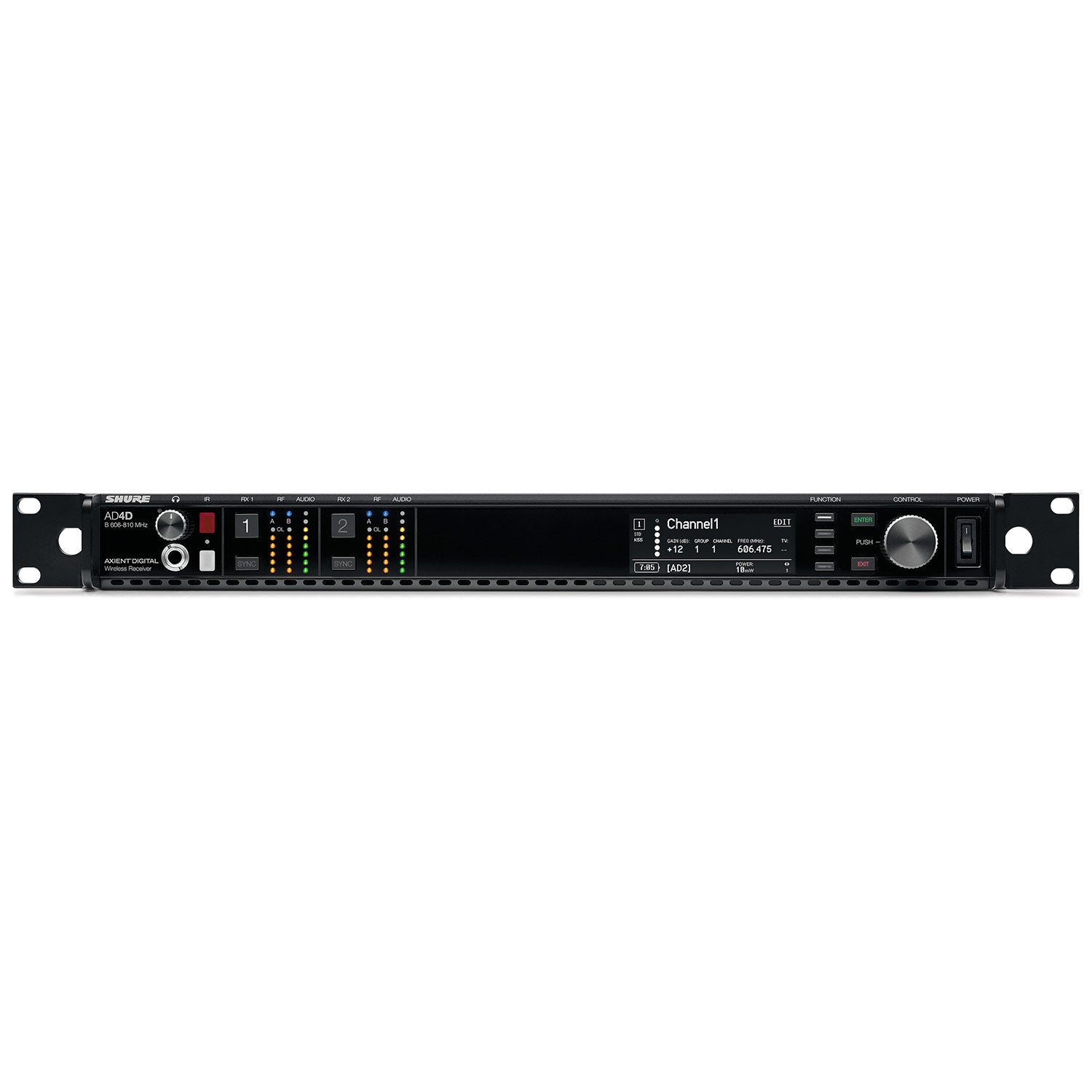

The AD4D Two-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environments. Networked control and signal routing options bring a new level of management and flexibility to your entire workflow.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:
More +
Product Specs
Dimensions | 44 mm × 483 mm × 333 mm (1.7 in. × 19.0 in. × 13.1 in.), H × W × D |
Weight | 4.6 kg (10.1 lbs), without antennas |
Housing | Steel; Extruded aluminum |
Power Requirements | 100 to 240 V AC, 50–60 Hz; 0.26 A max. |
Thermal Dissipation | Maximum: 23 W (78 BTU/hr) Idle: 15 W (52 BTU/hr) |
DC Input Voltage Range | 10.9–14.8 V DC |
Maxiumum DC Input Current | AD4D: 3.3 A |
Protection Modes | Overvoltage, Undervoltage, Reverse Polarity |
4-Pin XLR | Pin 1: Negative; Pin 2: No Connection; Pin 3: No Connection; Pin 4: Positive |
Audio Output | |
Gain Adjustment Range | –18 to +42 dB in 1 dB steps (plus Mute setting) |
Configuration | 1/4" (6.35 mm): Transformer-coupled Balanced (Tip=audio, Ring=no audio, Sleeve=ground) XLR: Transformer-coupled Balanced (1=ground, 2=audio +, 3=audio -) |
Impedance | Typical, XLR Line out 100Ω |
Full Scale Output 200 kΩ load |
1/4" (6.35 mm): +8 dBV XLR: LINE setting= +18 dBV, MIC setting= –12 dBV |
Mic/Line Switch | 30 dB pad |
Phantom Power Protection | Yes |
Networking | |
Network Interface | 10/100 Mbps, 1 Gbps, Dante Digital Audio |
Network Addressing Capability | DHCP or Manual IP address |
Maximum Ethernet Cable Length | 100 m (328 ft) |
Cascade output | |
Connector Type | BNC Note: For connection of one additional receiver in the same band |
Configuration | Unbalanced, passive |
Impedance | 50 Ω |
Insertion Loss | 0 dB, typical |
RF Input | |
Spurious Rejection | >80 dB, typical |
Connector Type | BNC |
Impedance | 50 Ω |
Bias Voltage | 12–13.5 V DC, 150 mA maximum, per antenna, switchable on/off |
RF Carrier Frequency Range | AD4D=A: 470–636 MHz AD4D=B: 606–810 MHz AD4D=C: 750–960 MHz |
