DALE SKU # SHUR-AD4QDCC

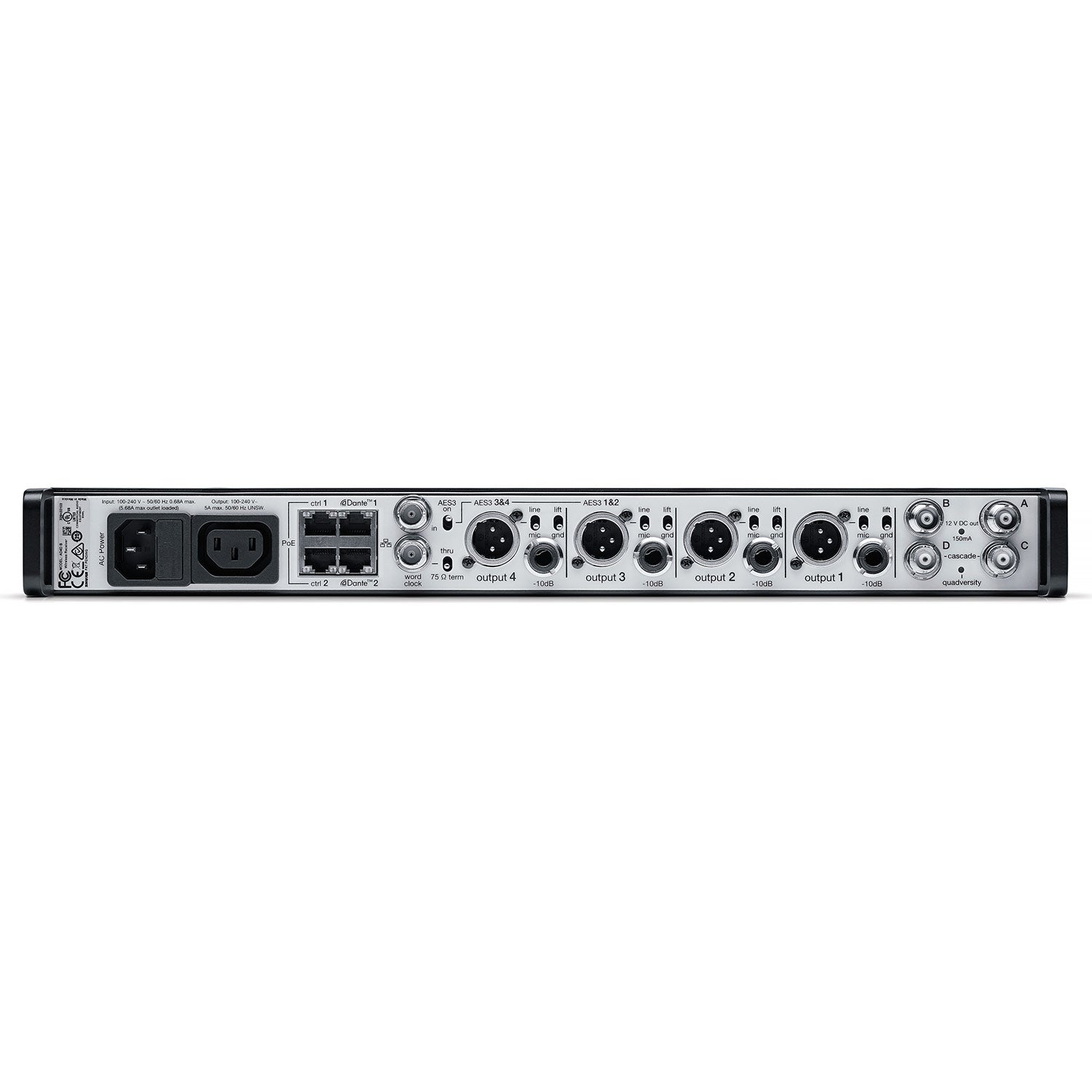

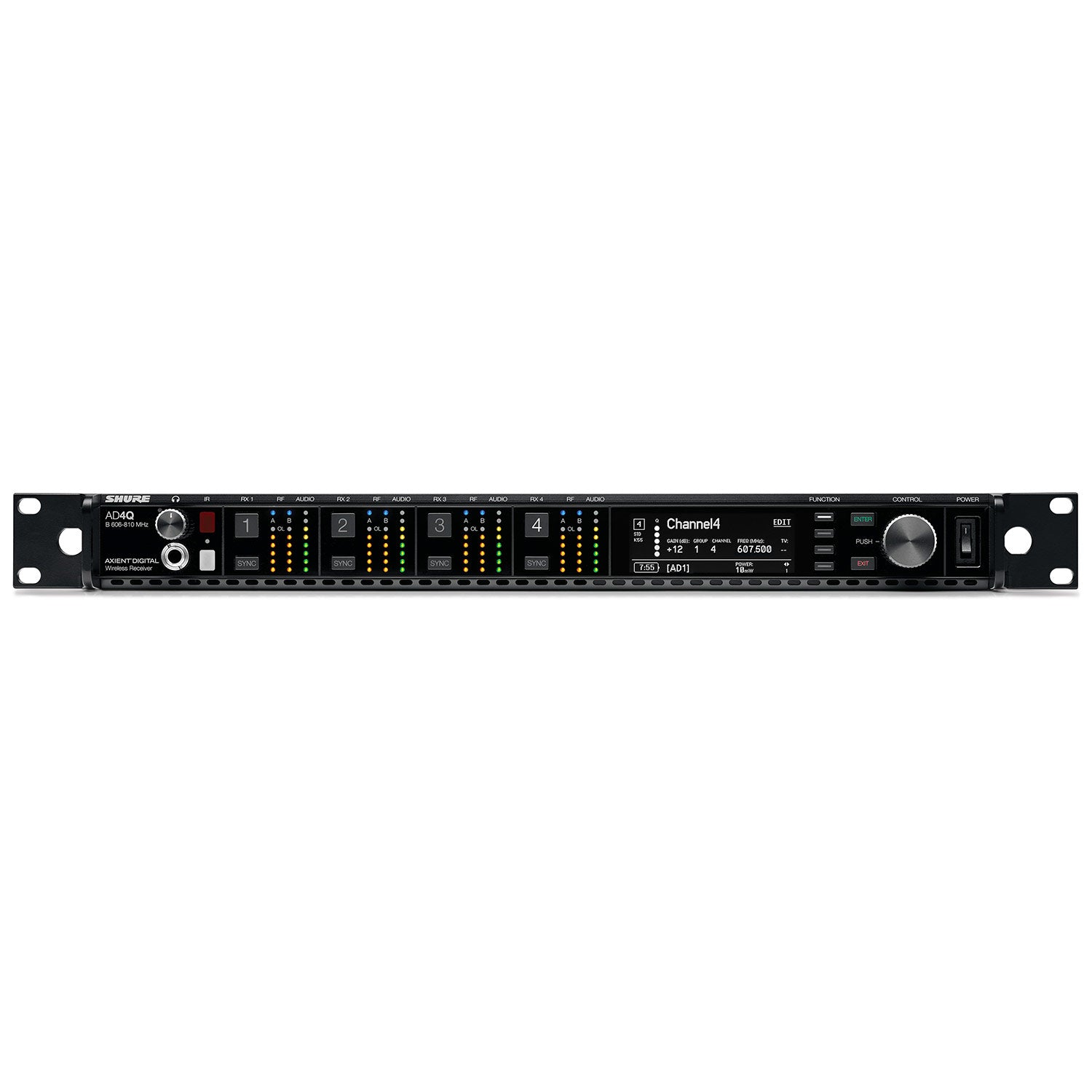

Shure AD4Q-DC Axient Digital Quad-Channel Receiver (C Band 750-960 MHz)

Sale price$8,221.00 Regular price$10,277.00
Save $2,056.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

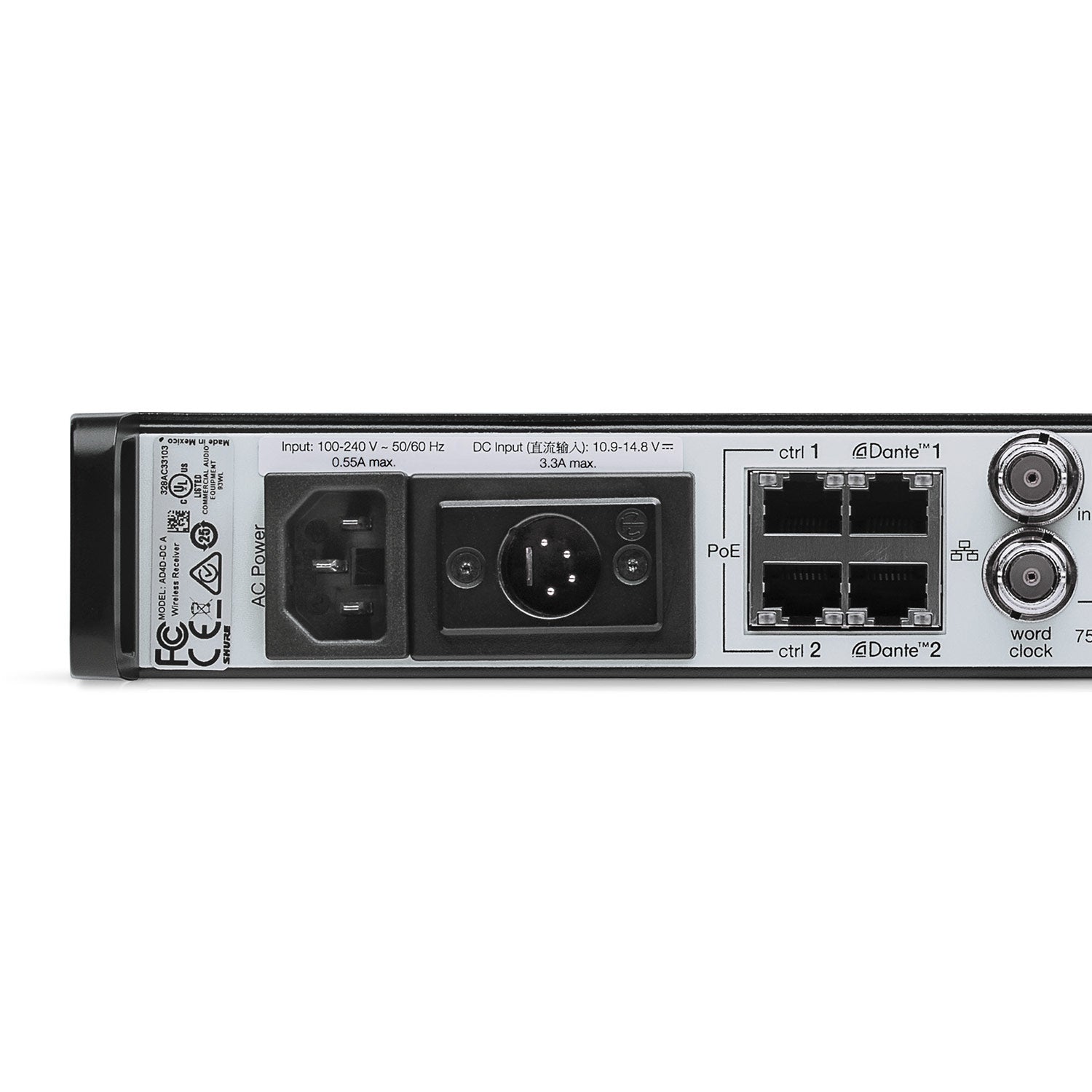

    Quad channel receiver with redundant DC power-input modification.

    Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio.

    The AD4Q Four-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, High Density (HD) mode, and Quadversity, ensuring solid performance in the most challenging RF environments. Networked control, AES3 + AES67 + Dante™ output, and signal routing options bring a new level of management and flexibility to your entire workflow.

    Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

    Features:

    • Wide tuning range up to 184 MHz
    • True digital diversity reception per channel for drop-out resistance
    • Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
    • Quadversity mode for extended antenna coverage and improved RF signal-to-noise
    • Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
    • Configurable Ethernet switch for redundant Dante or AES67 digital output
    • Switchable XLR and AES3 outputs
    • Channel Quality meter displays RF signal-to-noise
    • Locking AC connectors
    • DC module version available to support redundant power
    Dimensions 44 mm _ 483 mm _ 333 mm (1.7 in. _ 19.0 in. _ 13.1 in.), H _ W _ D
    Weight 4.8 kg (10.6 lbs), without antennas
    Housing Steel; Extruded aluminum
    Power Requirements 100 to 240 V AC, 50Ð60 Hz; 0.68 A max.
    Thermal Dissipation Maximum: 31 W (106 BTU/hr)
    Idle: 21 W (72 BTU/hr)
    DC Input Voltage Range 10.9Ð14.8 V DC
    Maxiumum DC Input Current AD4Q: 4.0 A
    Protection Modes Overvoltage, Undervoltage, Reverse Polarity
    4-Pin XLR Pin 1: Negative; Pin 2: No Connection; Pin 3: No Connection; Pin 4: Positive
    Audio Output
    Gain Adjustment Range Ð18 to +42 dB in 1 dB steps (plus Mute setting)
    Configuration 1/4" (6.35 mm): Transformer-coupled Balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    XLR: Transformer-coupled Balanced (1=ground, 2=audio +, 3=audio -)
    Impedance Typical, XLR Line out 100½
    Full Scale Output
    200 k½ load
    1/4" (6.35 mm): +8 dBV
    XLR: LINE setting= +18 dBV, MIC setting= Ð12 dBV
    Mic/Line Switch 30 dB pad
    Phantom Power Protection Yes
    Networking
    Network Interface 10/100 Mbps, 1 Gbps, Dante Digital Audio
    Network Addressing Capability DHCP or Manual IP address
    Maximum Ethernet Cable Length 100 m (328 ft)
    Cascade output
    Connector Type BNC
    Note: For connection of one additional receiver in the same band
    Configuration Unbalanced, passive
    Impedance 50 ½
    Insertion Loss 0 dB, typical
    RF Input
    Spurious Rejection >80 dB, typical
    Connector Type BNC
    Impedance 50 ½
    Bias Voltage 12Ð13.5 V DC, 150 mA maximum, per antenna, switchable on/off
    RF Carrier Frequency Range AD4Q=A: 470Ð636 MHz
    AD4Q=B: 606Ð810 MHz
    AD4Q=C: 750Ð960 MHz
