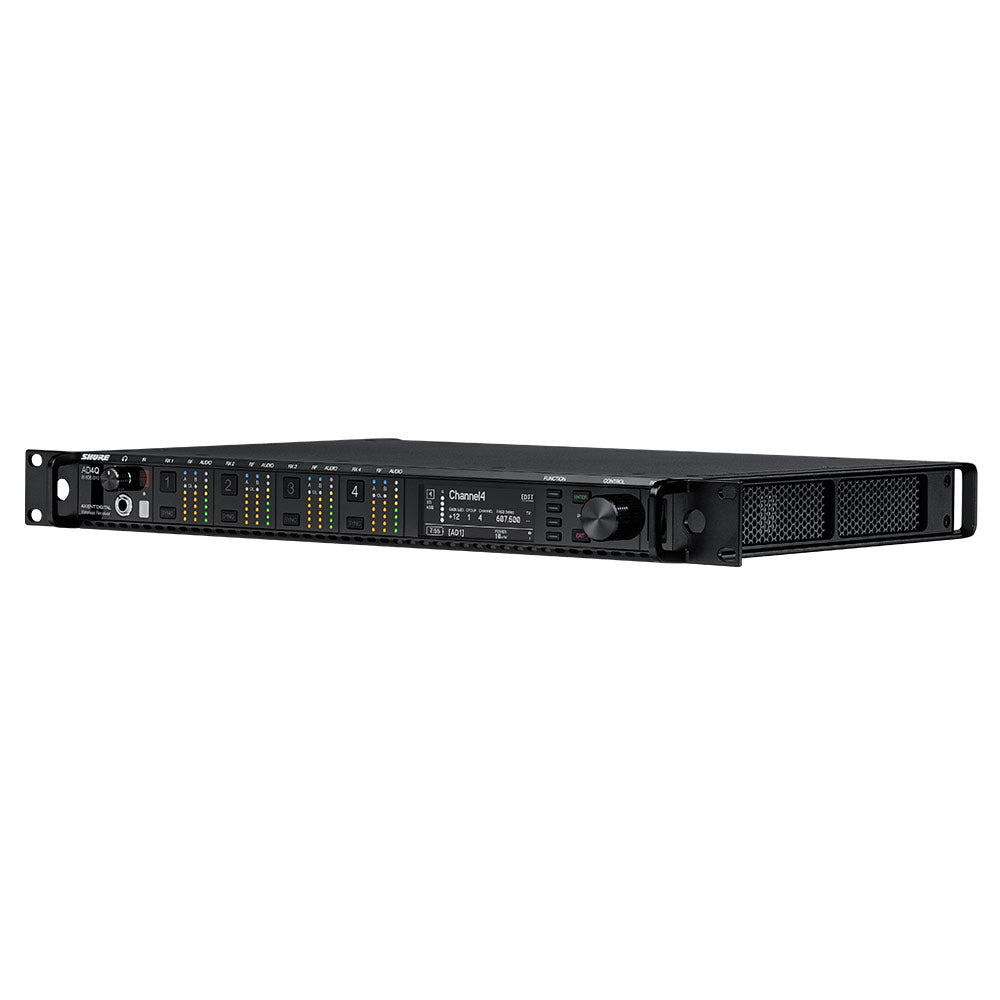

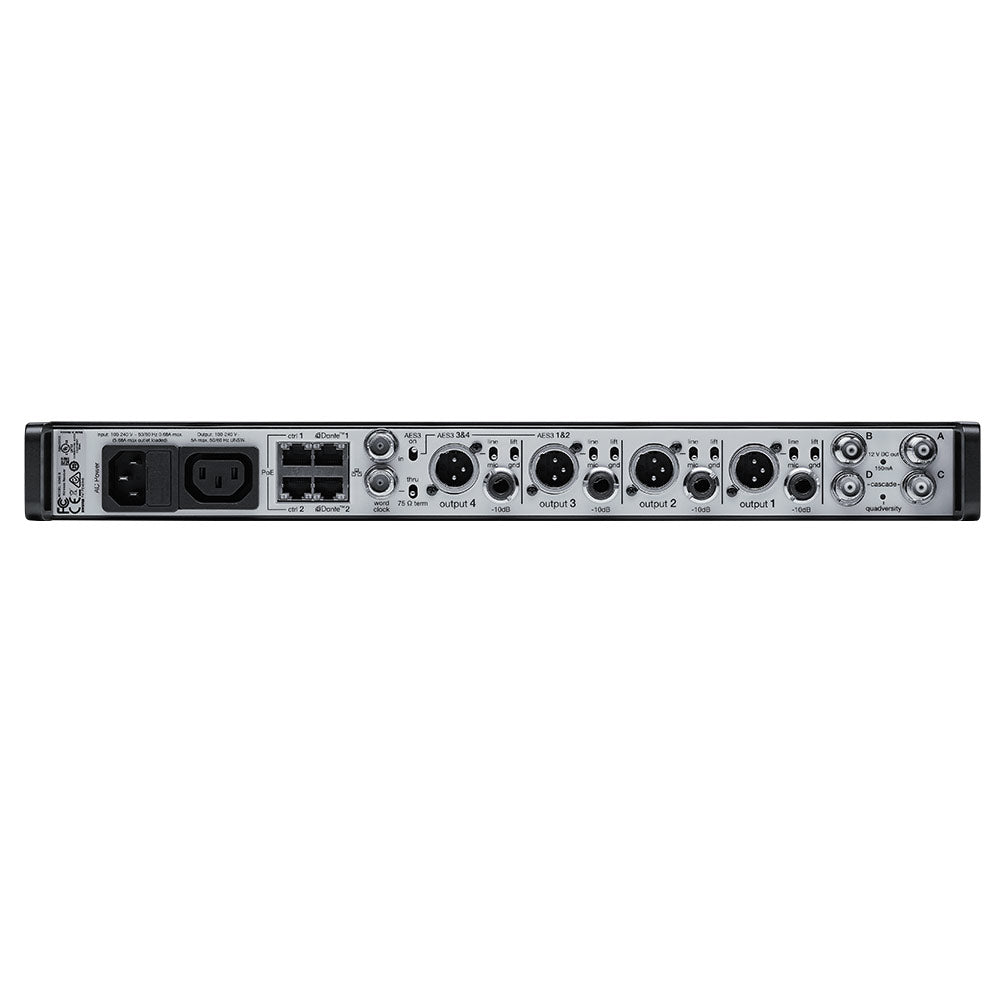

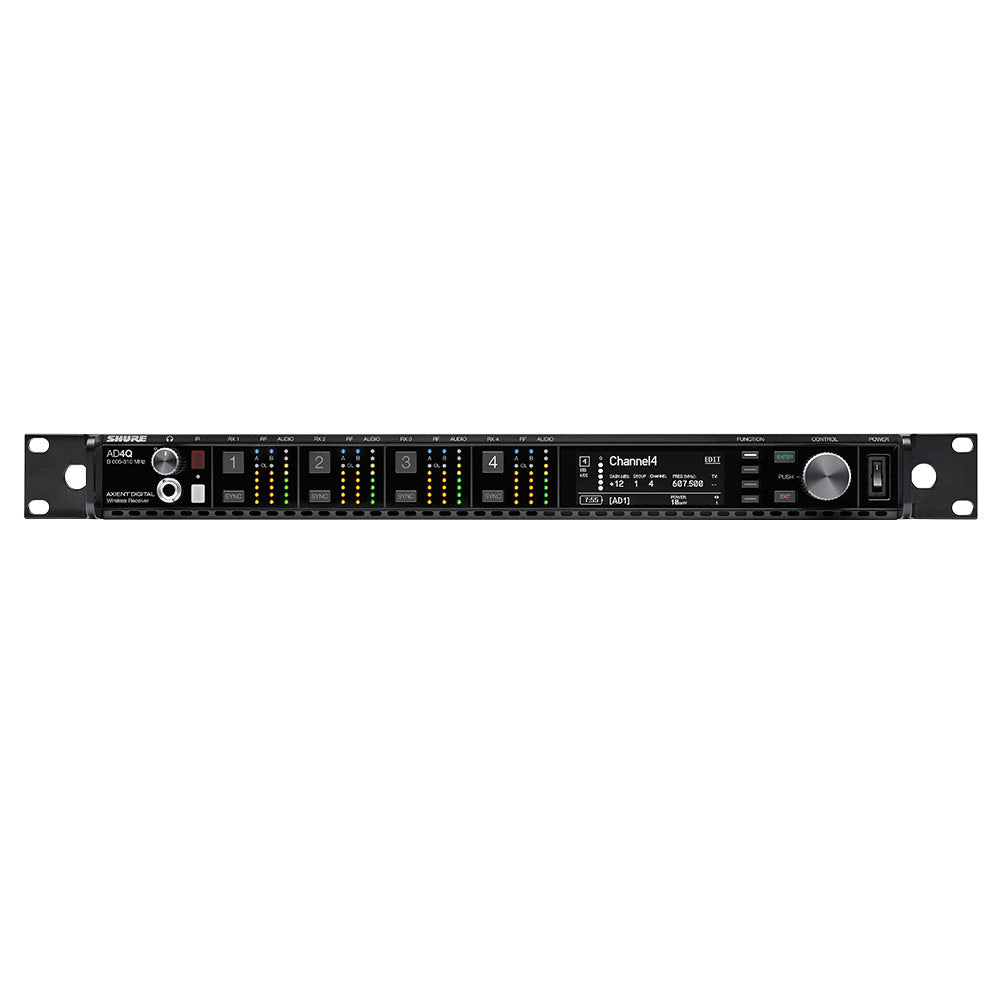

Shure AD4QNP Quad Channel Axient Digital Receiver (B Band/608-810 MHz)

  • Dale #:

    SHUR-AD4QNPB
  • Availability:

    Usually ships in 5 - 10 Days
  • This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.

Description

Quad-channel receiver without power and RF accessories included. Dual and quad receiver options open the gateway to the full range of features, from high-performance RF and transparent digital audio to software control. Features: Wide tuning range up to 184 MHz True digital diversity recepti... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Description

Quad-channel receiver without power and RF accessories included.

Dual and quad receiver options open the gateway to the full range of features, from high-performance RF and transparent digital audio to software control.

Features:

  • Wide tuning range up to 184 MHz
  • True digital diversity reception per channel for drop-out resistance
  • Networked control with Wireless Workbench software and ShurePlus Channels app
  • Optional DC module available to support redundant power
  • Front panel headphone jack enables Dante Cue and Dante Browse monitoring
  • ocking AC connectors
  • 3Configurable Ethernet switch for redundant Dante digital output
  • AES3 output
  • Switchable XLR and AES3 outputs
  • Channel Quality meter displays RF signal-to-noise


Axient® Digital makes everything perfectly clear.
Incorporating the most innovative wireless audio technology in the world, Axient Digital was engineered from the ground up for professional productions that demand flawless execution.

With an unprecedented level of signal stability and audio clarity, plus flexible hardware options, advanced connectivity, and comprehensive control, it’s a wireless system built to take on the challenges of today—and tomorrow.

One System. Powerful Possibilities.
Both AD series and ADX series transmitters are compatible with a shared Axient Digital receiver platform. This scalable wireless system includes a groundbreaking micro-bodypack and provides incomparable sound for a wide range of applications and settings.

Reliability Is In The Air.
With outstanding signal quality in even the most complex, crowded environments, Axient Digital ensures maximum stability, range, and clarity for uncompromising audio you can trust — anywhere, every time.

  • Next-Gen Digital Radio
    A high-performance modulation scheme provides maximum signal stability.
  • Wide Tuning
    Up to 184 MHz across all receivers and transmitters for broad strategic spectrum coverage.
  • Spectral Efficiency
    A robust High Density mode dramatically increases system channel count.
  • Frequency Diversity
    Two identical signals transmit on independent frequencies, with one taking over automatically should the other degrade.

The Sound Of Quality.
Axient Digital defies limitations for both RF and audio quality. With industry-leading low latency, transparent frequency response, and wide dynamic range, Axient Digital lets nothing get in the way of true, pure sound. No matter the setting, you'll hear Shure audio quality you can count on.

See Through The Noise.
ShowLink® remote control, Shure Wireless Workbench® software, the ShurePlus™ Channels app, and networked battery monitoring provide unmatched control and insight for seamless performance.

  • ShowLink
    Real-time remote control of ADX transmitter parameters so settings can be changed right from the control booth.
  • Wireless Workbench
    Robust control software with advanced RF spectrum and Timeline plotting, frequency coordination, and live monitoring.
  • ShurePlus Channels
    Convenient mobile monitoring and control for iOS devices.
  • Networked Charging
    Smart batteries and chargers provide remote monitoring of critical parameters.

Right Sized Receiver Options.
Dual and quad receiver options open the gateway to the full range of features, from high-performance RF and transparent digital audio to software control. With Quadversity™, the AD4Q can assign four antennas to a single channel for greater coverage and signal quality.

More +

Product Specs

Dimensions 44 mm × 483 mm × 333 mm (1.7 in. × 19.0 in. × 13.1 in.), H × W × D
Weight 4.8 kg (10.6 lbs), without antennas
Housing Steel; Extruded aluminum
Power Requirements 100 to 240 V AC, 50–60 Hz; 0.68 A max
Thermal Dissipation Maximum: 31 W (106 BTU/hr)
Idle: 21 W (72 BTU/hr)
Audio Output
Gain Adjustment Range –18 to +42 dB in 1 dB steps (plus Mute setting)
Configuration 1/4" (6.35 mm): Transformer-coupled Balanced (Tip=audio, Ring=no audio, Sleeve=ground)
XLR: Transformer-coupled Balanced (1=ground, 2=audio +, 3=audio -)
Impedance Typical, XLR Line out 100Ω
Full Scale Output
200 kΩ load
1/4" (6.35 mm): +8 dBV
XLR: LINE setting= +18 dBV, MIC setting= –12 dBV
Mic/Line Switch 30 dB pad
Phantom Power Protection Yes
Networking
Network Interface 10/100 Mbps, 1 Gbps, Dante Digital Audio
Network Addressing Capability DHCP or Manual IP address
Maximum Ethernet Cable Length 100 m (328 ft)
Cascade output
Connector Type BNC
Note: For connection of one additional receiver in the same band
Configuration Unbalanced, passive
Impedance 50 Ω
Insertion Loss 0 dB, typical
RF Input
Spurious Rejection >80 dB, typical
Connector Type BNC
Impedance 50 Ω
Bias Voltage 12–13.5 V DC, 150 mA maximum, per antenna, switchable on/off
RF Carrier Frequency Range AD4Q=A: 470–636 MHz
AD4Q=B: 606–810 MHz
AD4Q=C: 750–960 MHz
