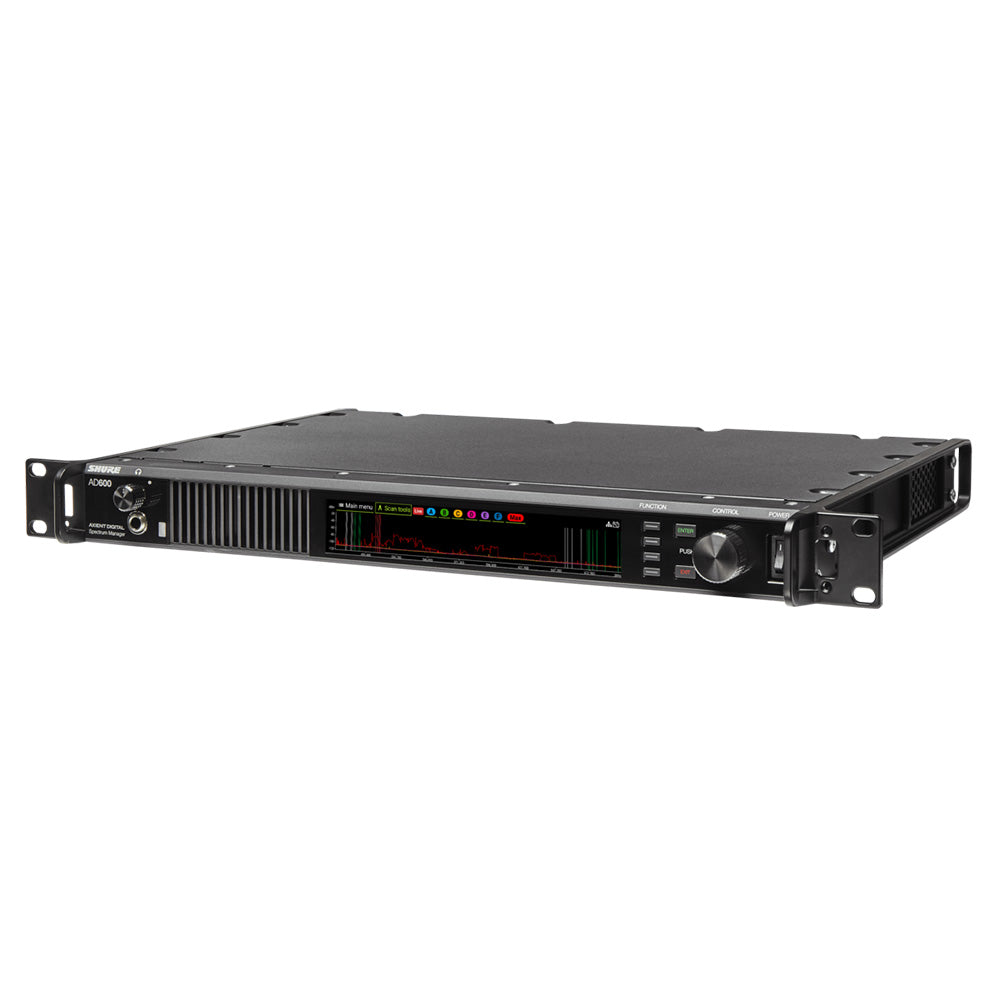

Shure AD600 - Axient Digital Spectrum Manager
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Shure AD600 Digital Spectrum Manager is a powerful tool for planning and managing frequency coordination. Use the guided coordination features to plan, scan, and deploy frequencies to your entire system. Additional tools are available to analyze the spectrum, capture data, and monitor audio from compatible devices on your network. The AD600 is a single-tool solution to manage the RF spectrum.
Features:
- Advanced, comprehensive frequency coordination for your network
- Fast, real-time scanning to find available frequencies and monitor RF activity

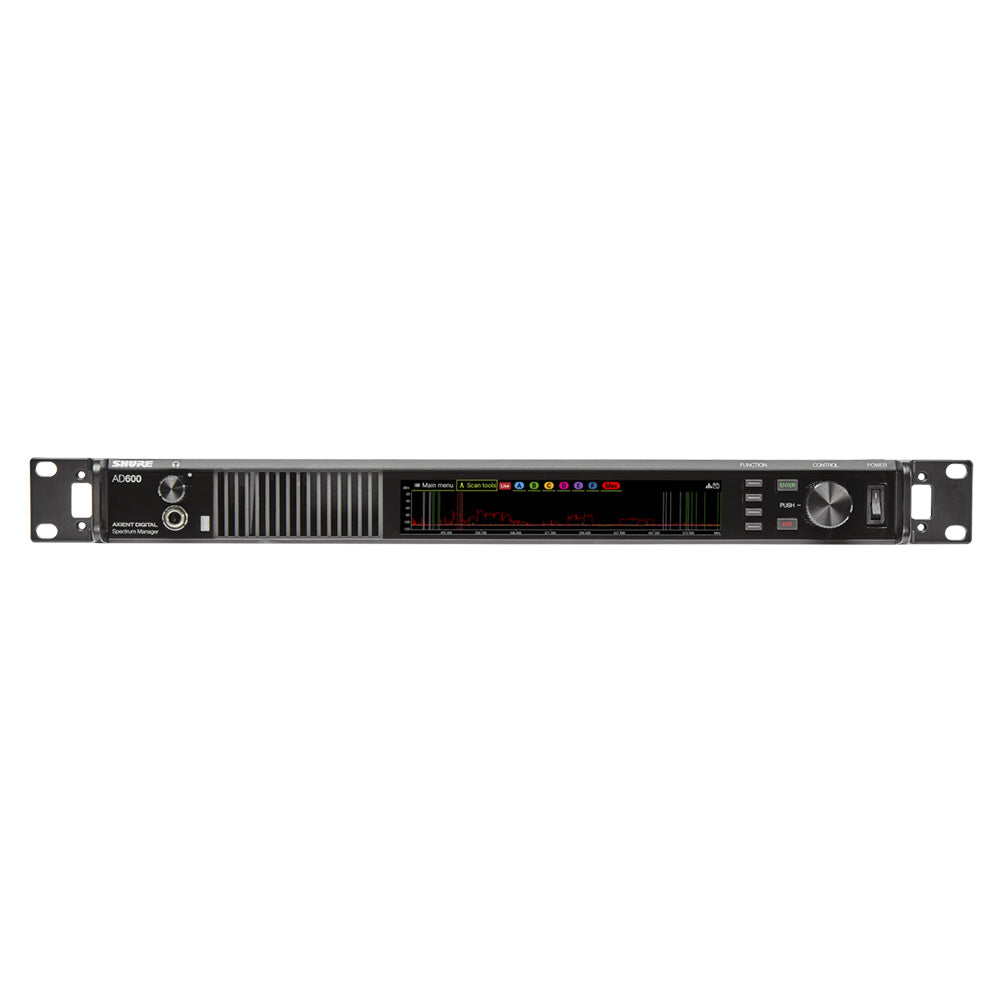

- Large, 6.6-inch (16.75 cm) color display for viewing and analyzing the RF spectrum
- Guided RF coordination to save time and effort in challenging RF environments
- Tools for viewing, analyzing, and listening to frequency activity
- Tuning Range: 174 MHz to 2 GHz for support of multiple frequency bands

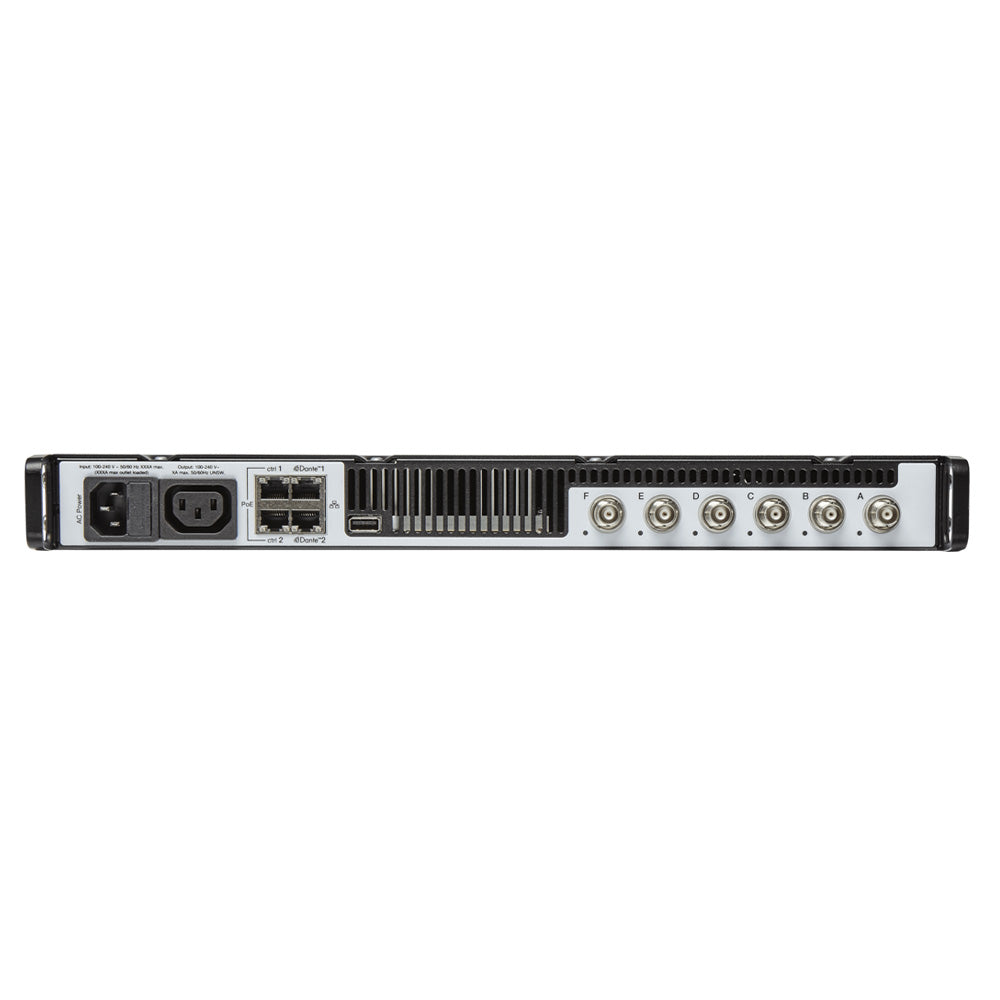

- 6 antenna connections to support multiple devices and increase coverage options
- Data capture and storage to archive RF information for analysis
- Network enabled for large-scale system deployments
- USB connection for external data storage of scans, event logs, and other data
- Dante enabled for advanced audio monitoring of your network
- Compatible with Wireless Workbench to extend control and monitoring options
| RF Tuning Frequency Range | 174Ð2000 MHz |
| RF Tuning Step Size | 25 / 200 kHz |
| Noise Floor | -154 dBm/Hz |
| Image Rejection | >90 dB |
| Spurious Response | <-100 dBm |
| Dimensions (H _ W _ D) | 1.7 _ 19.0 _ 11.25 in (43 _ 482 _ 285.7 mm) |
| Weight | 8.15 lbs (3.7 kg) |
| Housing | Steel |
| Power Requirements | 110 to 240 VAC, 50Ð60 Hz |
| Current Drain | 1.2 A |
| Operating Temperature Range | 0 to 122 ¡F (Ð18 to 50 ¡C) |
| Storage Temperature Range | -20 to 165 ¡F (-29 to 74 ¡C) |
| RF INPUT | |
| Connector Type | BNC |
| Impedance | 50 ½ |
| Maxiumum Input Level | +10 dBm |
| Bias Voltage | 12Ð13.5 VDC |
| HEADPHONE MONITOR AUDIO OUTPUT | |
| Audio Frequency Response | 20 Hz Ð 20 kHz, ± 3 dB |
| Configuration | 1/4" (6.3 mm) connector; unbalanced stereo |
| Impedance | 63 ½ |
| Maxiumum Signal Level | 300 mW |
| Pin Assignments | Tip: Audio +, Left Ring: Audio +, Right Sleeve: Ground |
| NETWORKING | |
| Network Interface | Quad Port Ethernet 10/100/1000 Mbps Redundant Dante Support PoE supported on the control ports |
| Network Addressing Capability | DHCP or Manual IP Address |
