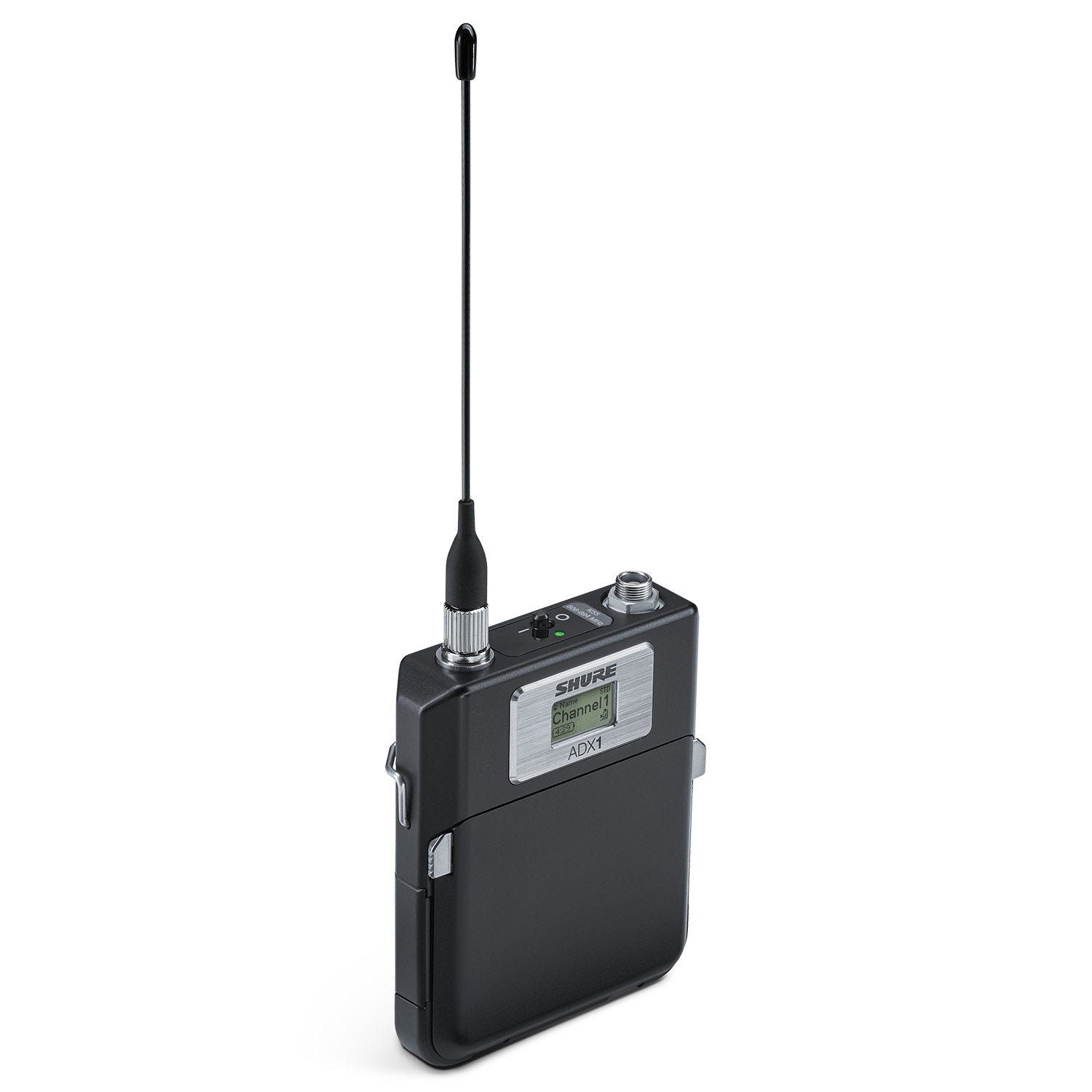

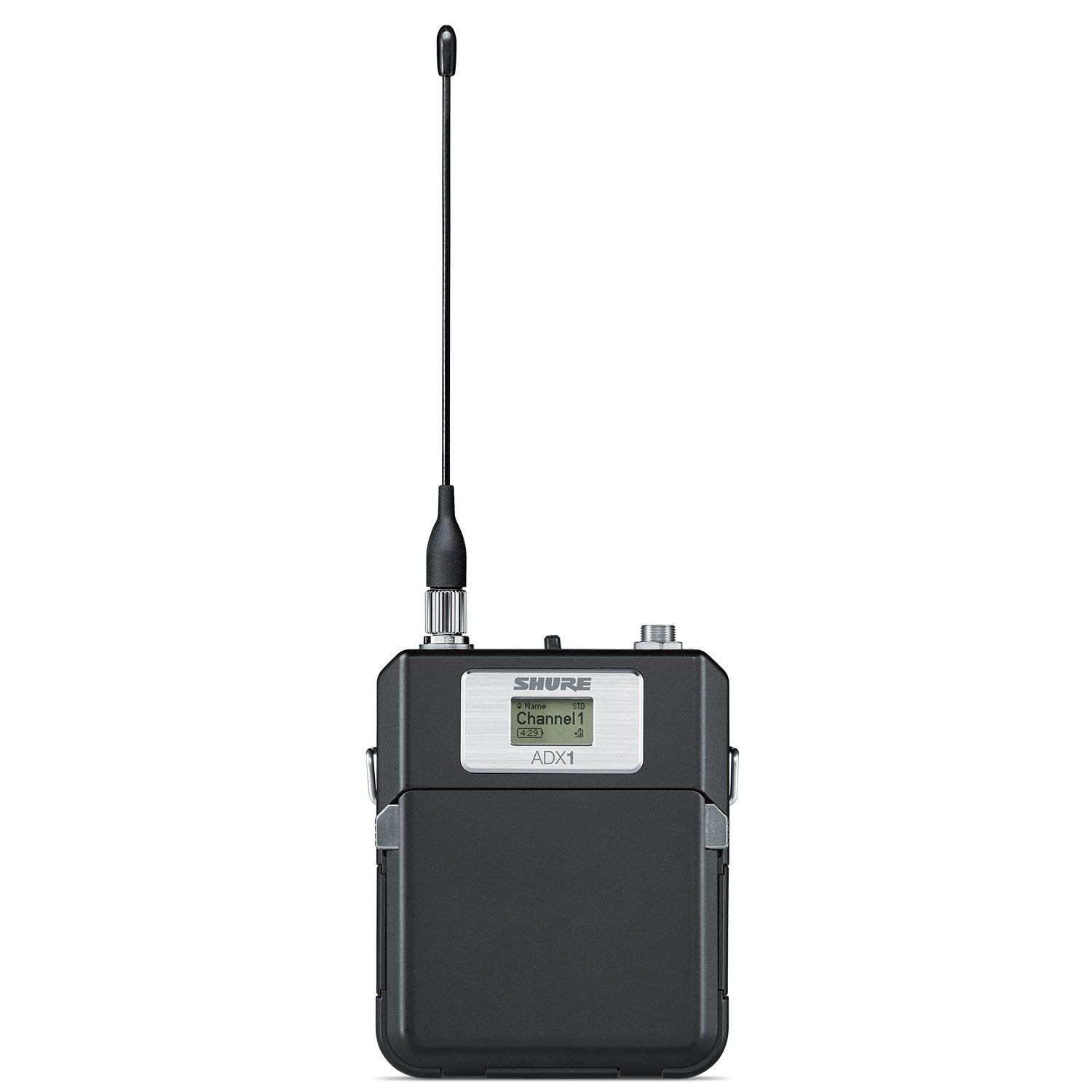

Shure ADX1 Axient Digital Bodypack Transmitter (G57 Band / 470-616 MHz / 3-Pin Lemo)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Shure ADX1 Axient Digital Bodypack Transmitter (G57 Band / 470-616 MHz / 3-Pin Lemo)
Sale price$1,958.00
Regular price$2,448.00
Description
The ADX1 is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:
- Removable antenna and fully concealed buttons and switch
- Two connector options: TA4 and LEMO3
- Advanced control menu with powerful features
- Durable, moisture-resistant, lightweight metal case
- Up to 10 hours of runtime with SB910 rechargeable battery
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- External contacts for docked charging
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
| Gain Offset Range | Ð12 to 21 dB (in 1 dB steps) |
| Battery Type | Shure SB910 Rechargeable Li-Ion |
| Battery Runtime @ 10 mW | SB910: up to 10 hours |
| Dimensions | 91 mm _ 68 mm _ 19 mm (3.6 in. _ 2.7 in. _ 0.8 in.) H _ W _ D |
| Weight | 142g (5.0 oz.), without battery |
| Housing | Aluminum |
| Audio Input | |
| Connector | 4-pin Male Mini TQG (TA4M) Connector LEM03 connector |
| Configuration | Unbalanced |
| Impedance | TA4M: 1 M? LEMO: 8.2 M? |
| Maximum Input Level 1 kHz at 1% THD |
Pad Off: 8.5 dBV (7.5 Vpp) Pad On: 20.5 dBV (30 Vpp) |
| Preamplifier Equivalent Input Noise (EIN) System Gain Setting ? +20 |
Ð120 dBV, A-weighted, typical |
| RF Output | |
| Connector | SMA |
| Antenna Type | UHF _ Wave |
| Impedance | 50 ? |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Axient Digital Proprietary |
| Power | 2 mW, 10 mW, 20 mW, 40mW Varies by Region; See Available Frequency Bands and Ouput Power table. |
| ShowLink¨ | |
| Network Type | IEEE 802.15.4 |
| Antenna Type | ZigBee Dual Conformal |
| Frequency Range | 2.40 to 2.4835 GHz (24 Channels) |
| RF Output Power | Varies by Region 10 dBm (ERP) |
