DescriptionThe ADX1 is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems. Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation. Features: Removable antenna and fully concealed buttons and switch Two c... Read More
Retail Price: $2,085.00 Our Price: $1,668.00
Free Shipping (Continental US)

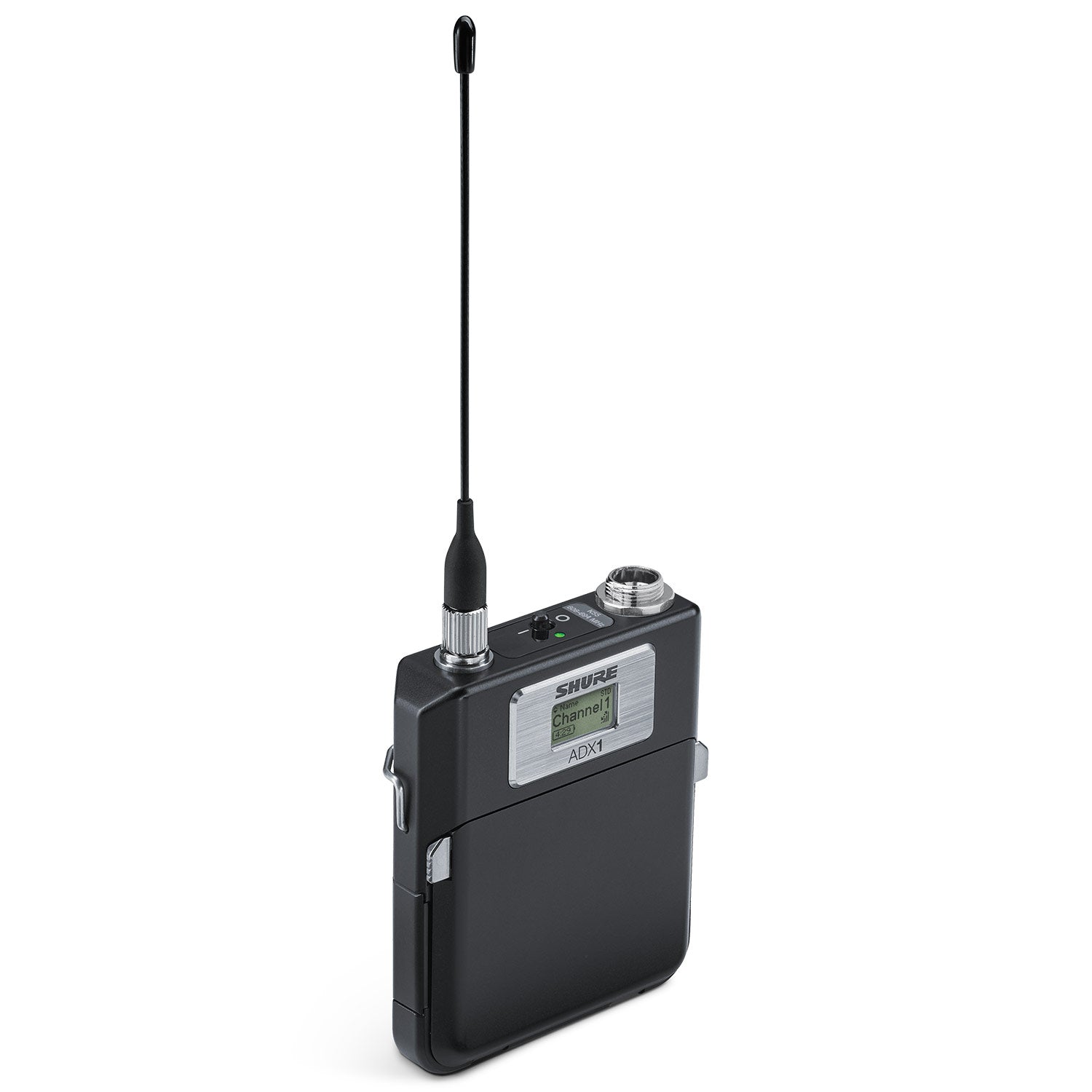

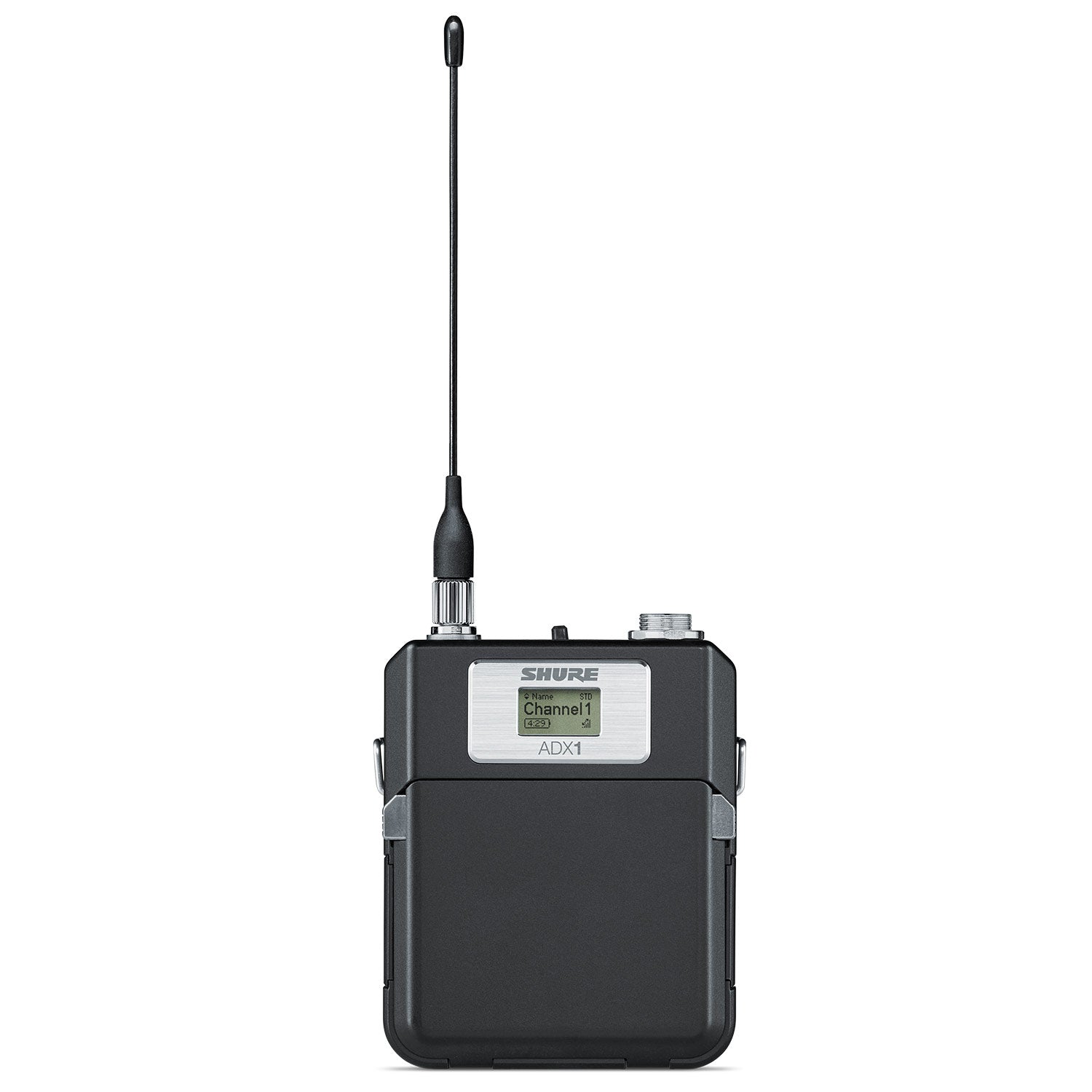

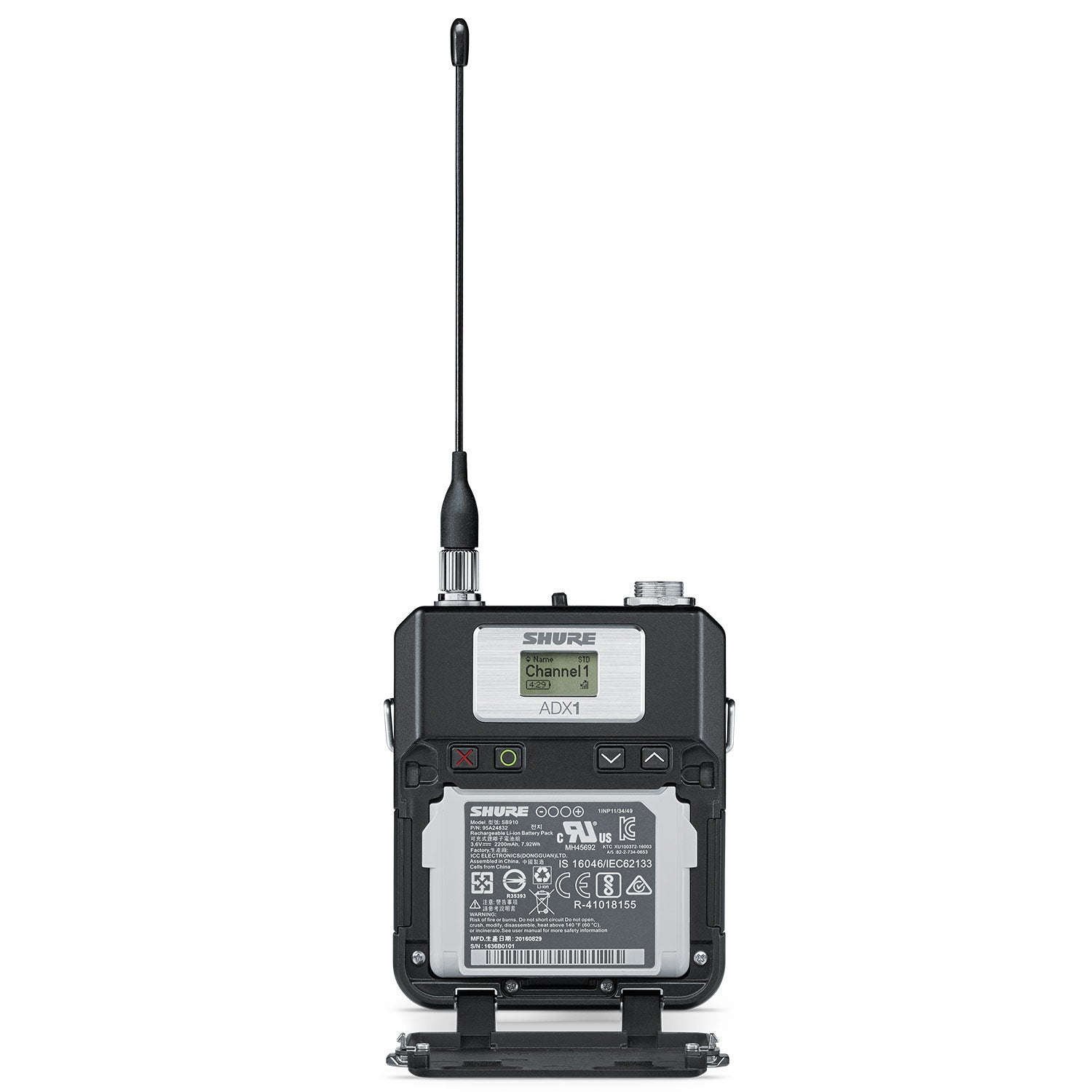

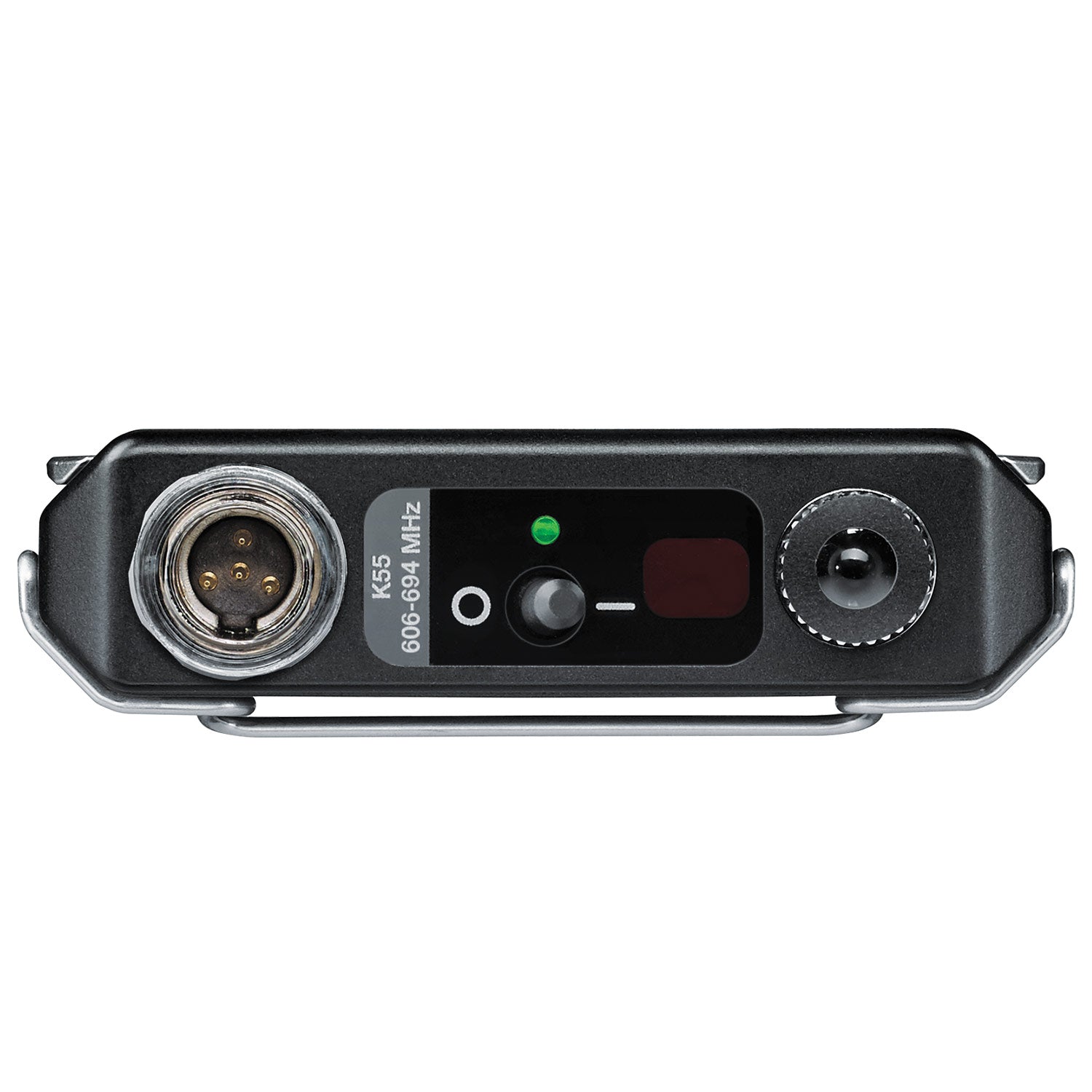

The ADX1 is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
|Gain Offset Range||–12 to 21 dB (in 1 dB steps)|
|Battery Type||Shure SB910 Rechargeable Li-Ion|
|Battery Runtime @ 10 mW||SB910: up to 10 hours|
|Dimensions||91 mm × 68 mm × 19 mm (3.6 in. × 2.7 in. × 0.8 in.) H × W × D|
|Weight||142g (5.0 oz.), without battery|
|Connector||4-pin Male Mini TQG (TA4M) Connector
|Impedance||TA4M: 1 M?
LEMO: 8.2 M?
|Maximum Input Level
1 kHz at 1% THD
|Pad Off: 8.5 dBV (7.5 Vpp)
Pad On: 20.5 dBV (30 Vpp)
|Preamplifier Equivalent Input Noise (EIN)
System Gain Setting ? +20
|–120 dBV, A-weighted, typical|
|Antenna Type||UHF ¼ Wave|
|Occupied Bandwidth||<200 kHz|
|Modulation Type||Shure Axient Digital Proprietary|
|Power||2 mW, 10 mW, 20 mW, 40mW
Varies by Region; See Available Frequency Bands and Ouput Power table.
|Network Type||IEEE 802.15.4|
|Antenna Type||ZigBee Dual Conformal|
|Frequency Range||2.40 to 2.4835 GHz (24 Channels)|
|RF Output Power||Varies by Region 10 dBm (ERP)|
