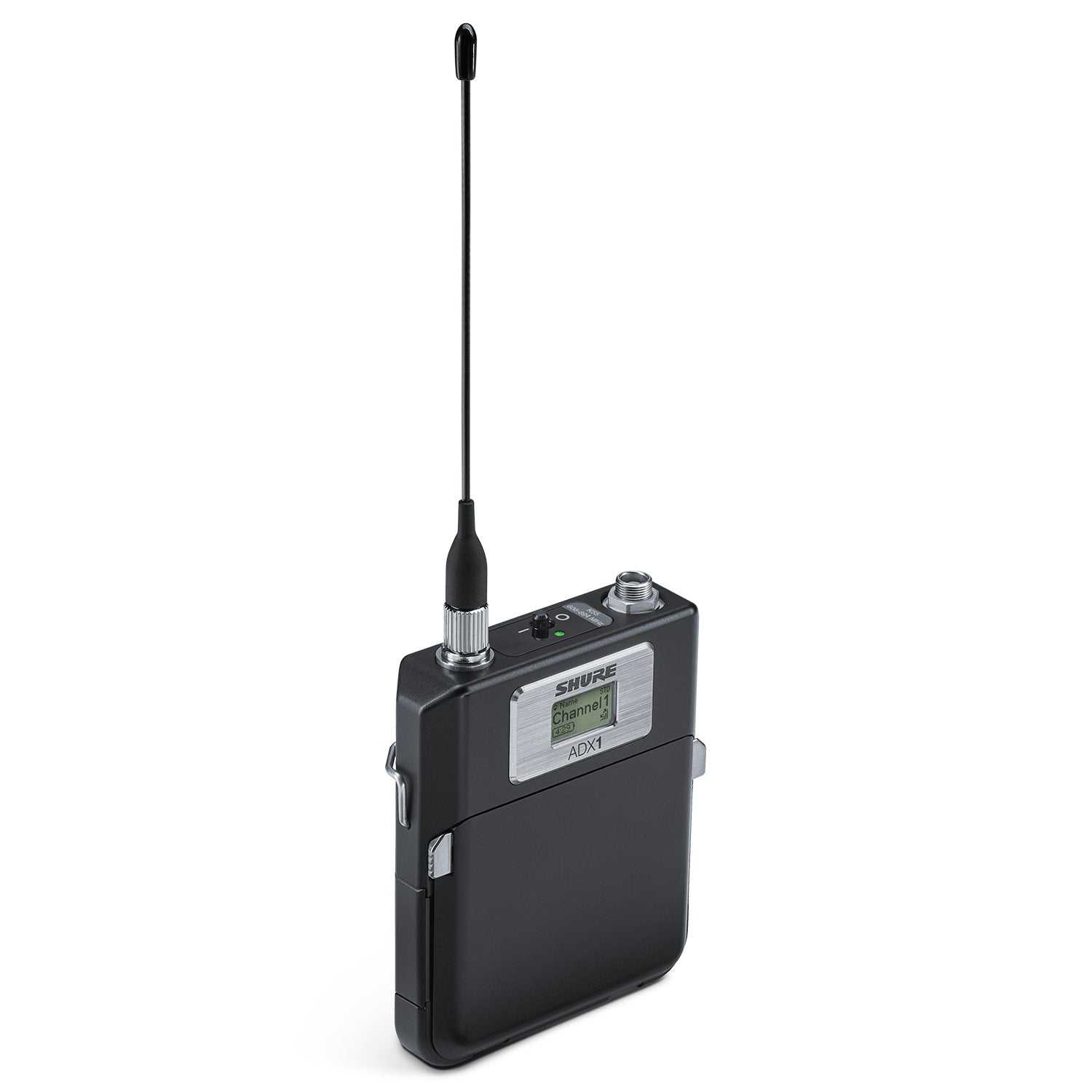

Shure ADX1 Axient Digital Bodypack Transmitter (K54 Band / 606-663 MHz / 3-Pin Lemo)

  • Dale #:

    SHUR-ADX1LEMO3K54
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The ADX1 is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems. Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation. Features: Removable antenna and fully concealed buttons and switch Two connec... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

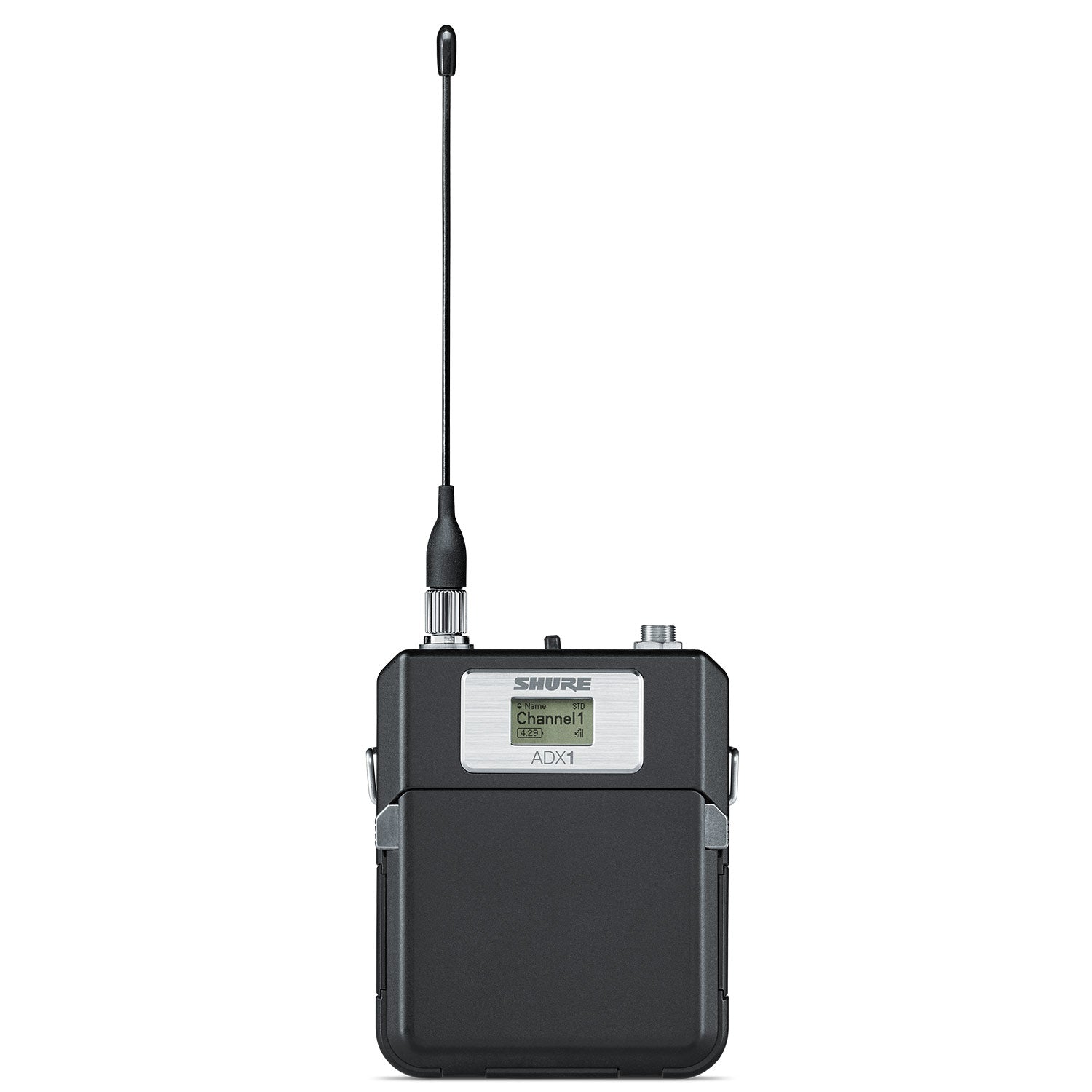

The ADX1 is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features:

  • Removable antenna and fully concealed buttons and switch
  • Two connector options: TA4 and LEMO3
  • Advanced control menu with powerful features
  • Durable, moisture-resistant, lightweight metal case
  • Up to 10 hours of runtime with SB910 rechargeable battery
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • External contacts for docked charging
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission

More +

Product Specs

Gain Offset Range –12 to 21 dB (in 1 dB steps)
Battery Type Shure SB910 Rechargeable Li-Ion
Battery Runtime @ 10 mW SB910: up to 10 hours
Dimensions 91 mm × 68 mm × 19 mm (3.6 in. × 2.7 in. × 0.8 in.) H × W × D
Weight 142g (5.0 oz.), without battery
Housing Aluminum
Audio Input
Connector 4-pin Male Mini TQG (TA4M) Connector
LEM03 connector
Configuration Unbalanced
Impedance TA4M: 1 M?
LEMO: 8.2 M?
Maximum Input Level
1 kHz at 1% THD
Pad Off: 8.5 dBV (7.5 Vpp)
Pad On: 20.5 dBV (30 Vpp)
Preamplifier Equivalent Input Noise (EIN)
System Gain Setting ? +20
–120 dBV, A-weighted, typical
RF Output
Connector SMA
Antenna Type UHF ¼ Wave
Impedance 50 ?
Occupied Bandwidth <200 kHz
Modulation Type Shure Axient Digital Proprietary
Power 2 mW, 10 mW, 20 mW, 40mW
Varies by Region; See Available Frequency Bands and Ouput Power table.
ShowLink®
Network Type IEEE 802.15.4
Antenna Type ZigBee Dual Conformal
Frequency Range 2.40 to 2.4835 GHz (24 Channels)
RF Output Power Varies by Region 10 dBm (ERP)
