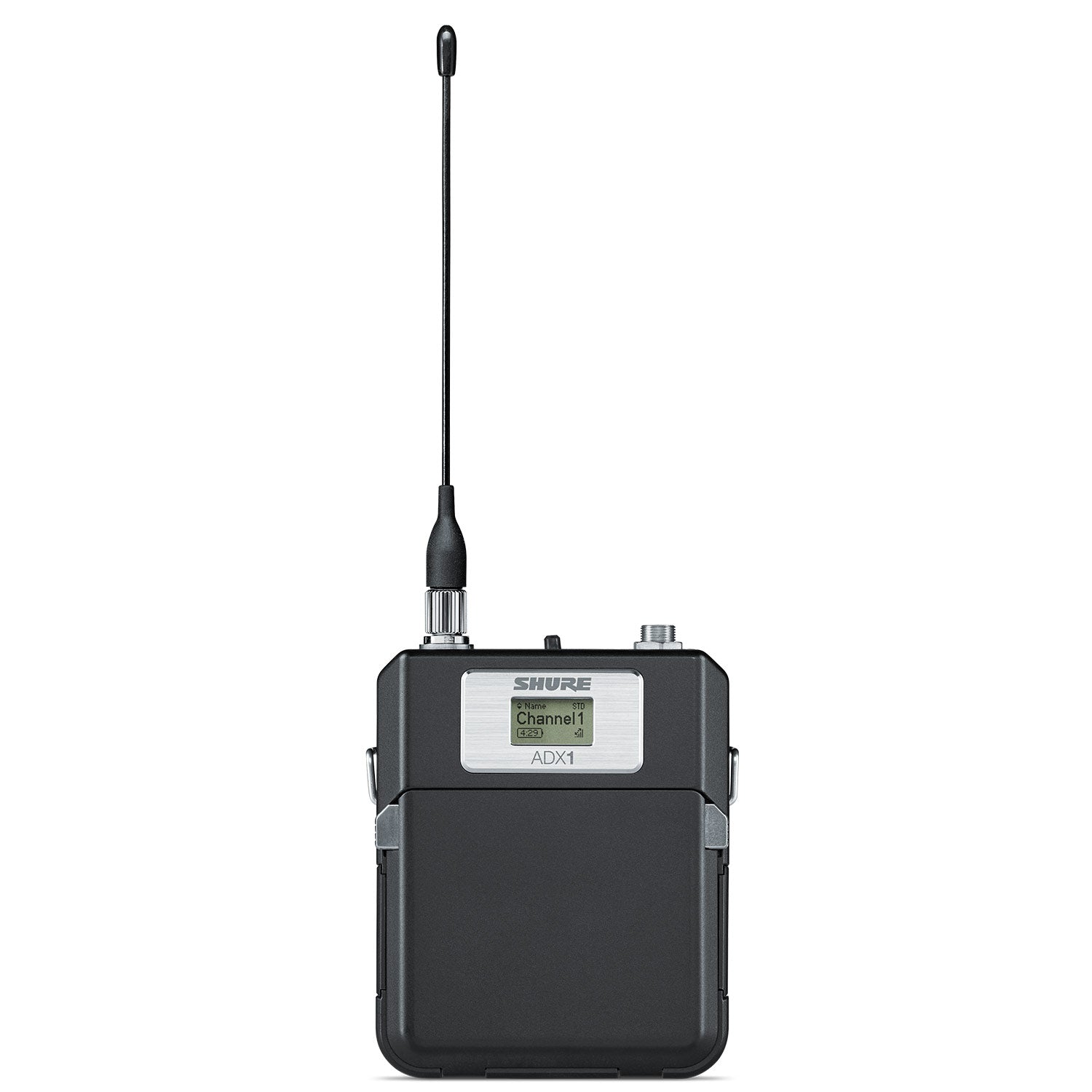

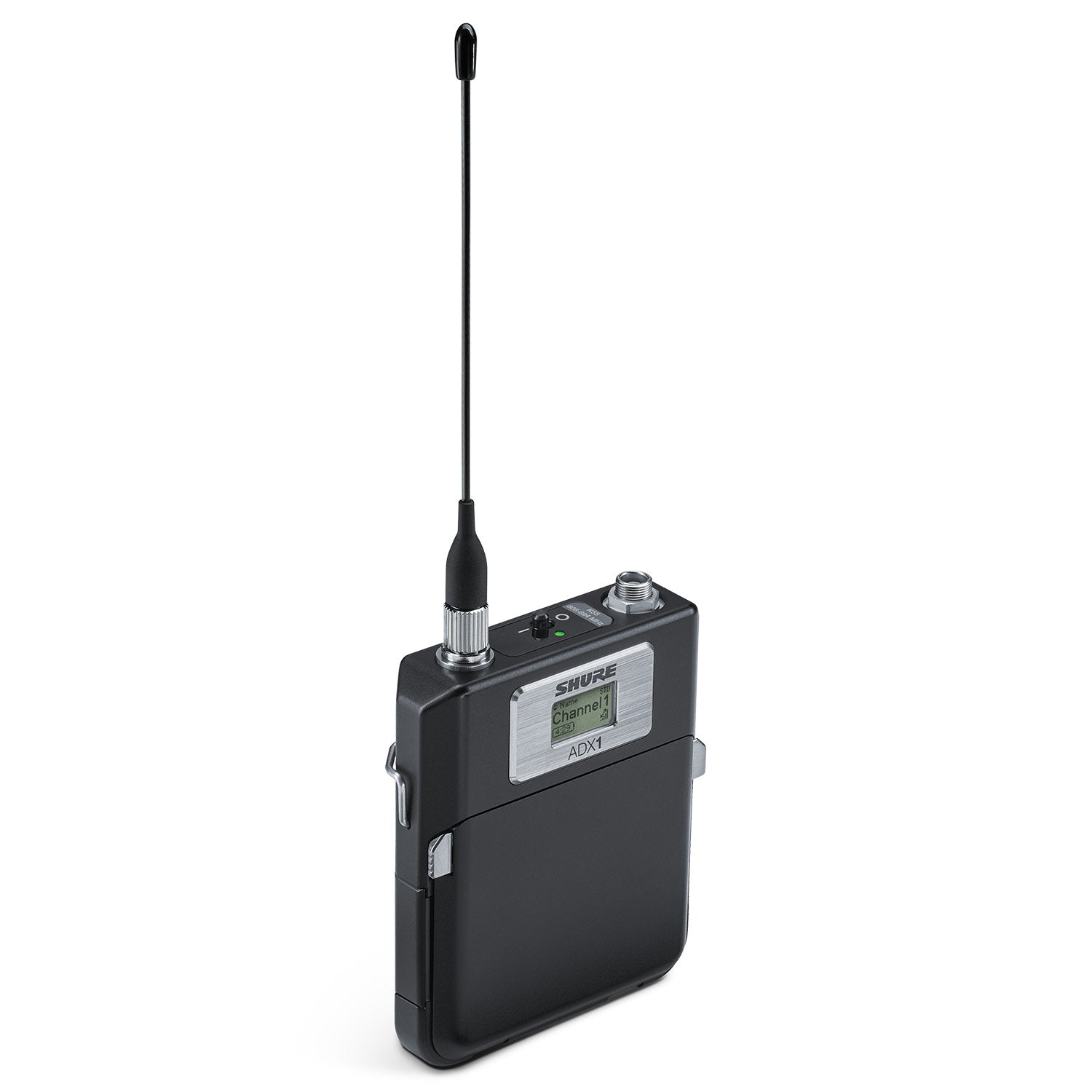

Shure ADX1 Axient Digital Bodypack Transmitter (X55 Band / 941-960 MHz / 3-Pin Lemo)

  • Dale #:

    SHUR-ADX1LEMO3X55
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The ADX1 is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems. Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation. Features: Removable antenna and fully concealed buttons and switch Two connec... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The ADX1 is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features:

  • Removable antenna and fully concealed buttons and switch
  • Two connector options: TA4 and LEMO3
  • Advanced control menu with powerful features
  • Durable, moisture-resistant, lightweight metal case
  • Up to 10 hours of runtime with SB910 rechargeable battery
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • External contacts for docked charging
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission

More +

Product Specs

Gain Offset Range –12 to 21 dB (in 1 dB steps)
Battery Type Shure SB910 Rechargeable Li-Ion
Battery Runtime @ 10 mW SB910: up to 10 hours
Dimensions 91 mm × 68 mm × 19 mm (3.6 in. × 2.7 in. × 0.8 in.) H × W × D
Weight 142g (5.0 oz.), without battery
Housing Aluminum
Audio Input
Connector 4-pin Male Mini TQG (TA4M) Connector

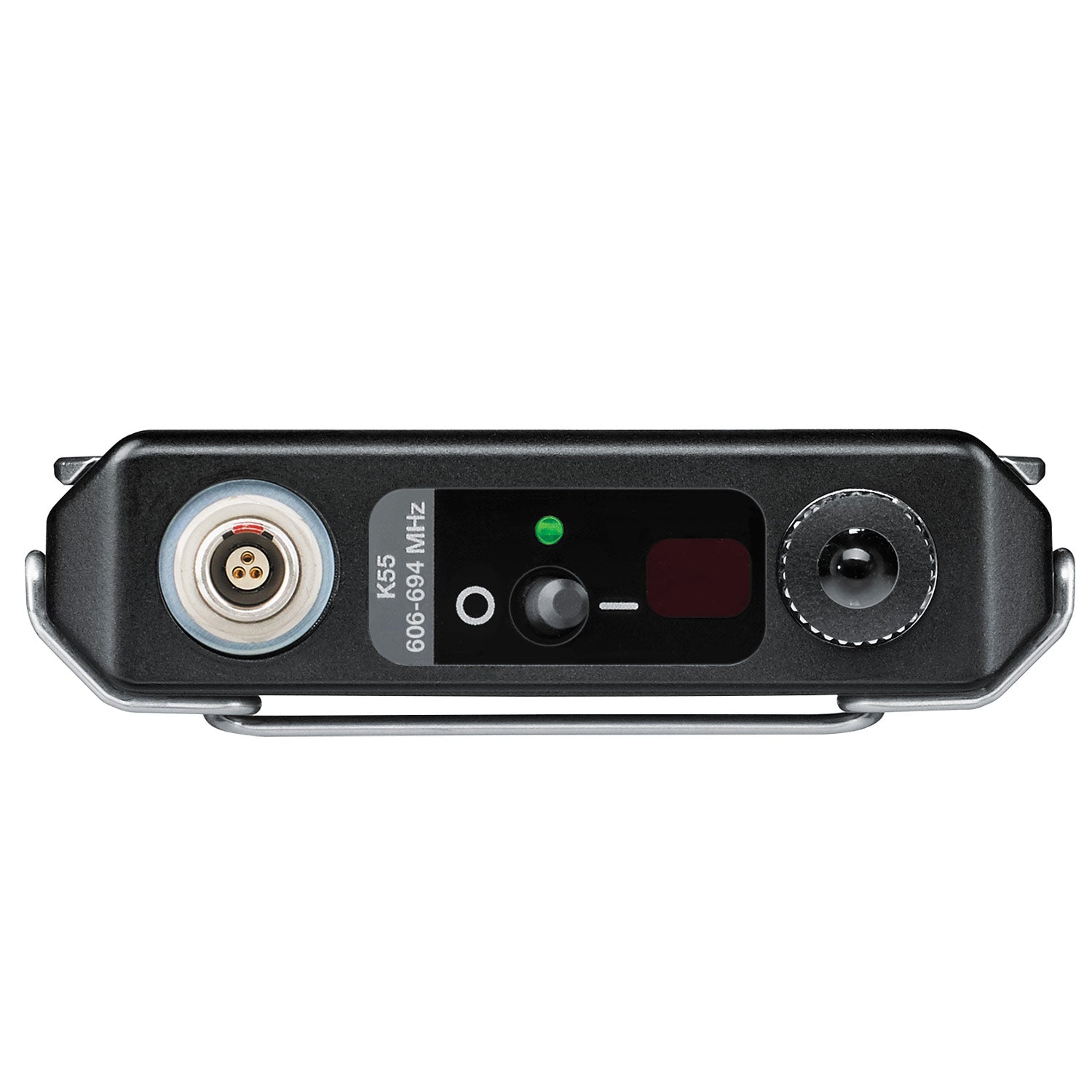

LEM03 connector
Configuration Unbalanced
Impedance TA4M: 1 M?
LEMO: 8.2 M?
Maximum Input Level
1 kHz at 1% THD
Pad Off: 8.5 dBV (7.5 Vpp)
Pad On: 20.5 dBV (30 Vpp)
Preamplifier Equivalent Input Noise (EIN)
System Gain Setting ? +20
–120 dBV, A-weighted, typical
RF Output
Connector SMA
Antenna Type UHF ¼ Wave
Impedance 50 ?
Occupied Bandwidth <200 kHz
Modulation Type Shure Axient Digital Proprietary
Power 2 mW, 10 mW, 20 mW, 40mW
Varies by Region; See Available Frequency Bands and Ouput Power table.
ShowLink®
Network Type IEEE 802.15.4
Antenna Type ZigBee Dual Conformal
Frequency Range 2.40 to 2.4835 GHz (24 Channels)
RF Output Power Varies by Region 10 dBm (ERP)
