Description
The ADX1 is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems. Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation. Features: Removable antenna and fully concealed buttons and switch Two c... Read MoreRetail Price: $2,085.00 Our Price: $1,668.00
Free Shipping (Continental US)
Suggested Accessories
Description

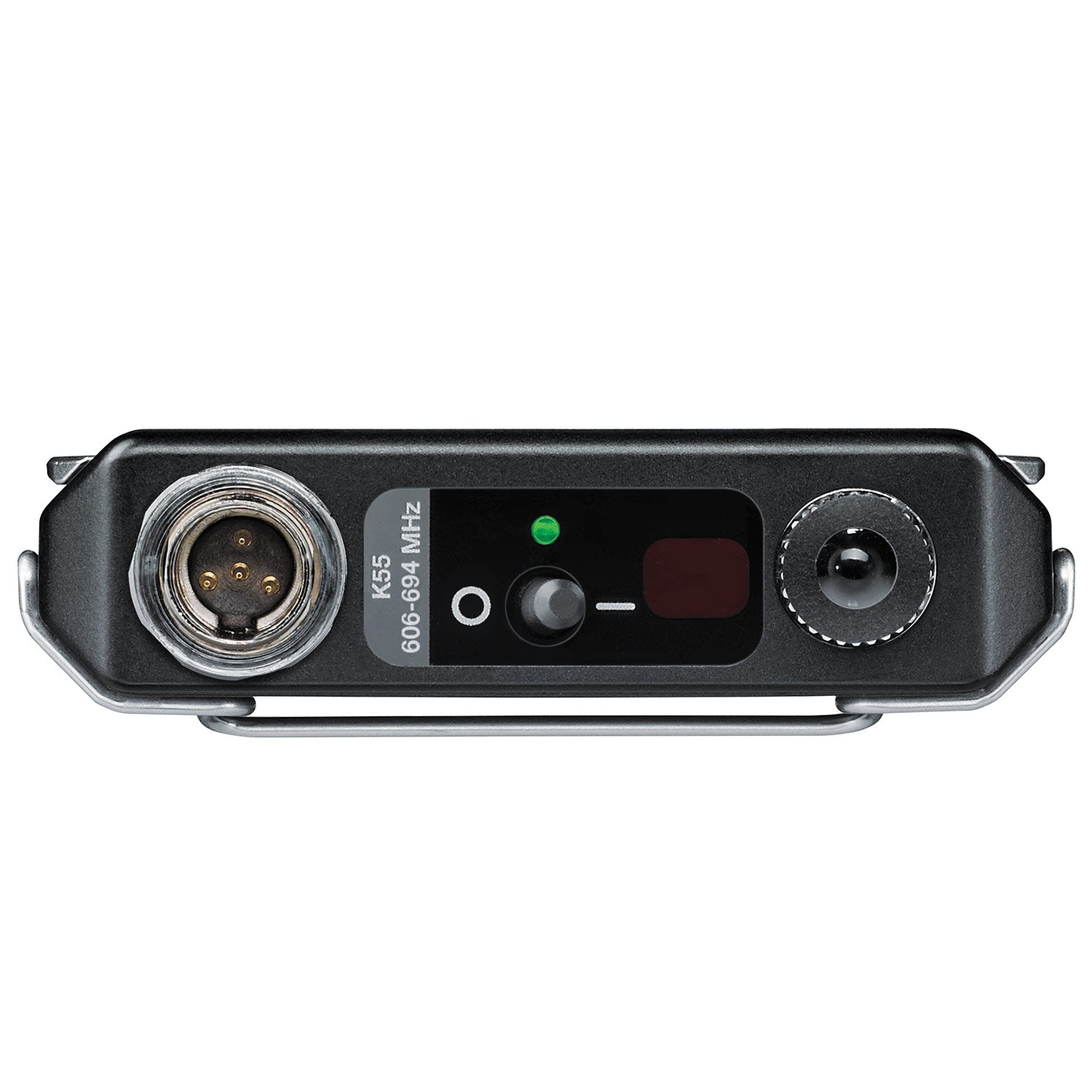

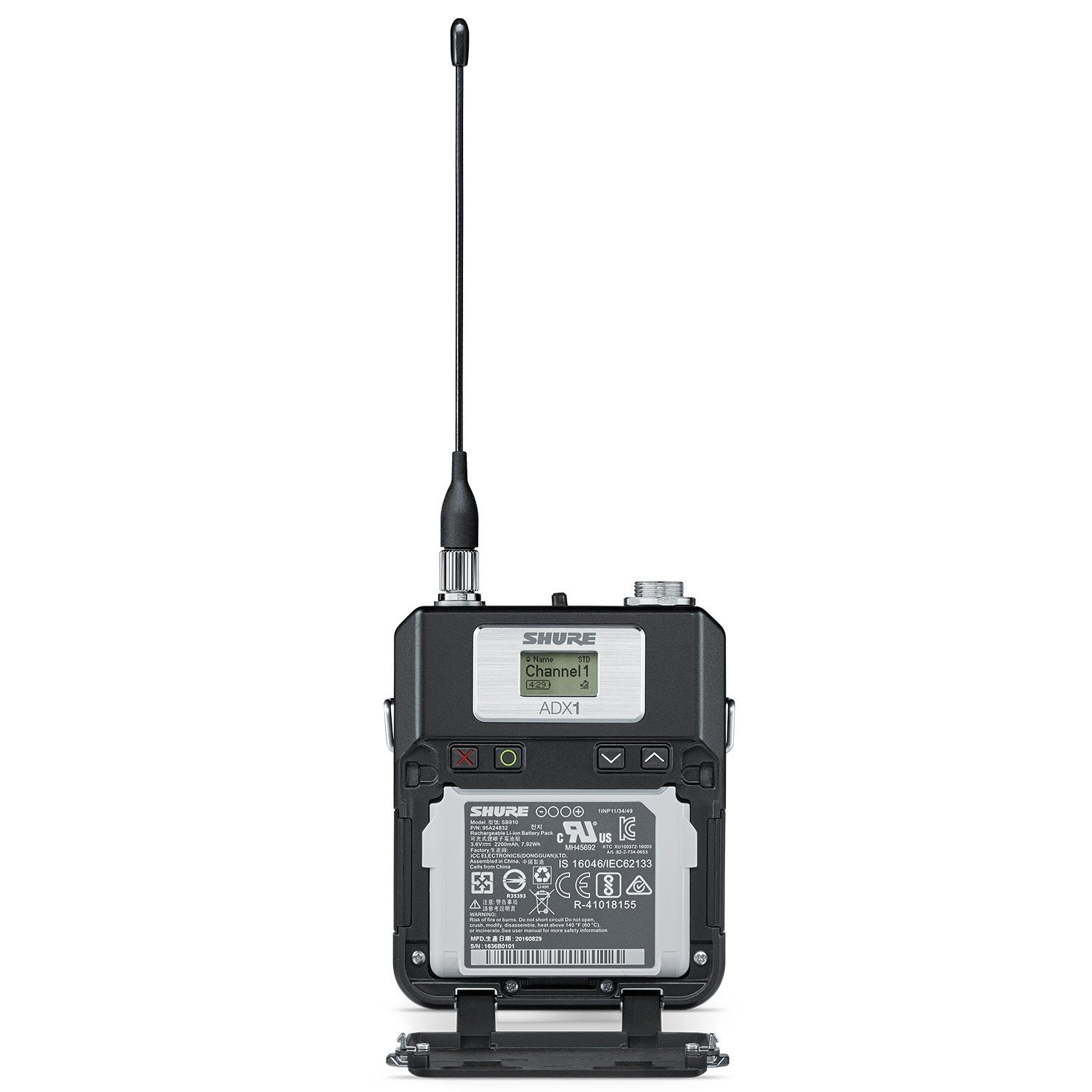

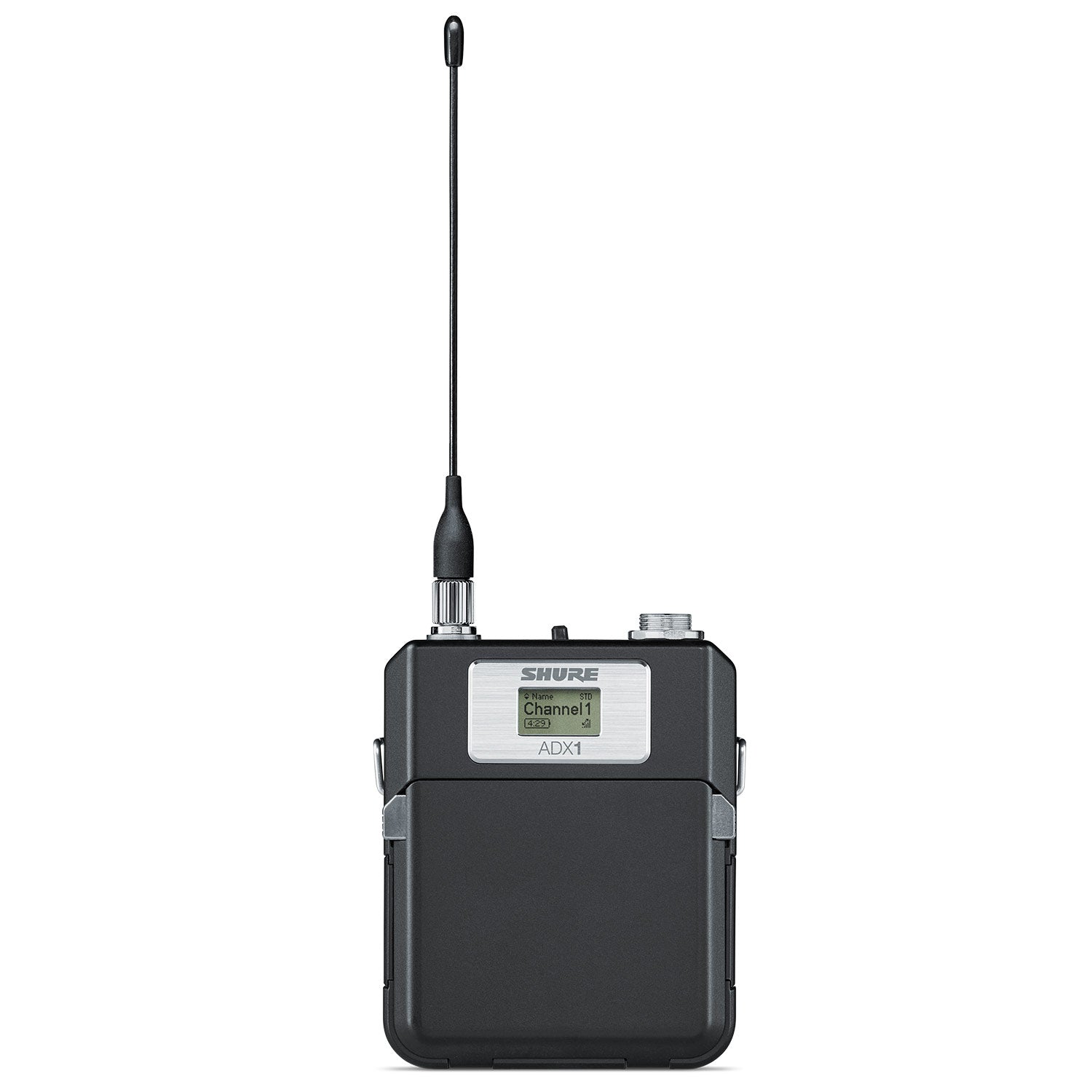

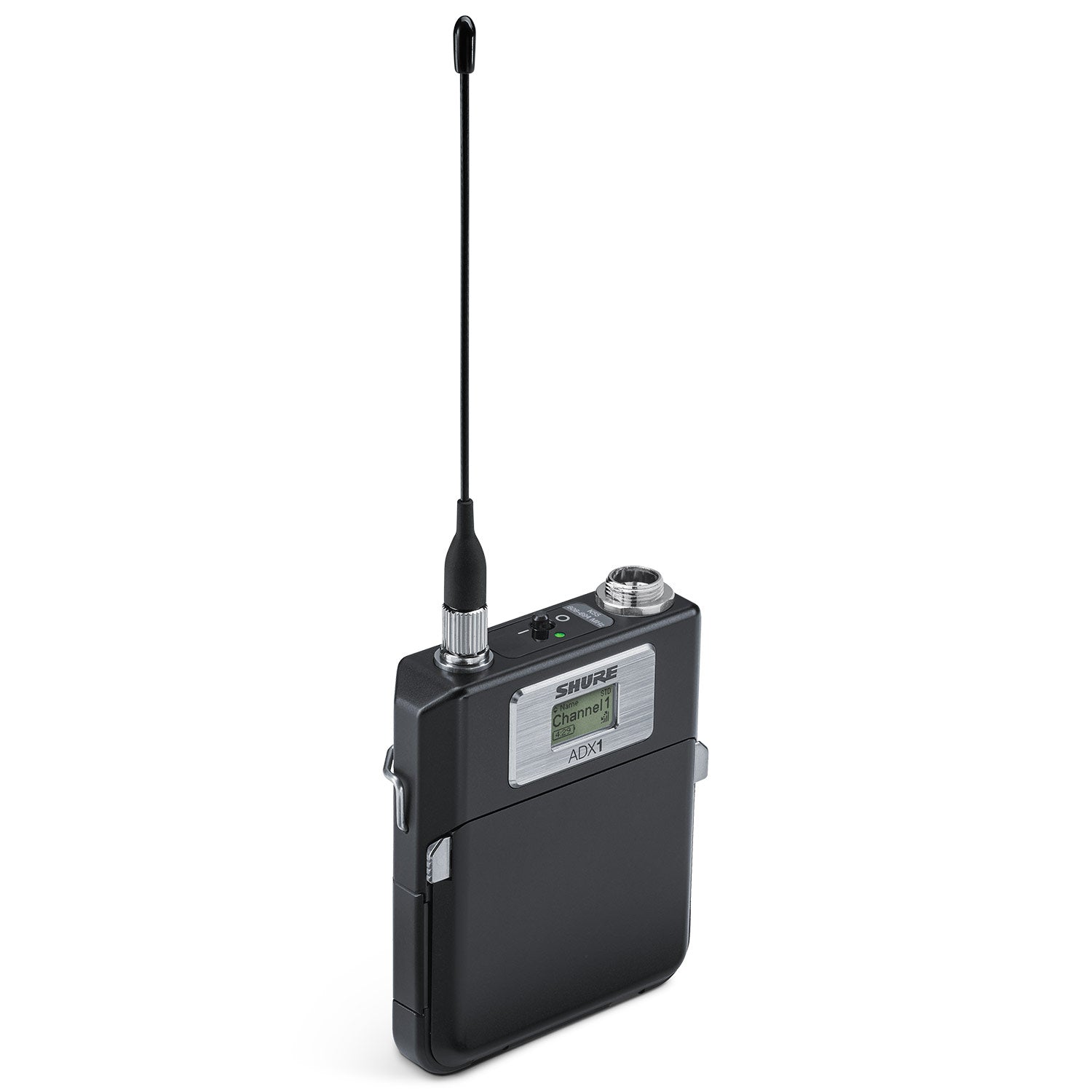

The ADX1 is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:
More +
Product Specs
Gain Offset Range | –12 to 21 dB (in 1 dB steps) |
Battery Type | Shure SB910 Rechargeable Li-Ion |
Battery Runtime @ 10 mW | SB910: up to 10 hours |
Dimensions | 91 mm × 68 mm × 19 mm (3.6 in. × 2.7 in. × 0.8 in.) H × W × D |
Weight | 142g (5.0 oz.), without battery |
Housing | Aluminum |
Audio Input | |
Connector | 4-pin Male Mini TQG (TA4M) Connector LEM03 connector |
Configuration | Unbalanced |
Impedance | TA4M: 1 M? LEMO: 8.2 M? |
Maximum Input Level 1 kHz at 1% THD |
Pad Off: 8.5 dBV (7.5 Vpp) Pad On: 20.5 dBV (30 Vpp) |
Preamplifier Equivalent Input Noise (EIN) System Gain Setting ? +20 |
–120 dBV, A-weighted, typical |
RF Output | |
Connector | SMA |
Antenna Type | UHF ¼ Wave |
Impedance | 50 ? |
Occupied Bandwidth | <200 kHz |
Modulation Type | Shure Axient Digital Proprietary |
Power | 2 mW, 10 mW, 20 mW, 40mW Varies by Region; See Available Frequency Bands and Ouput Power table. |
ShowLink® | |
Network Type | IEEE 802.15.4 |
Antenna Type | ZigBee Dual Conformal |
Frequency Range | 2.40 to 2.4835 GHz (24 Channels) |
RF Output Power | Varies by Region 10 dBm (ERP) |
