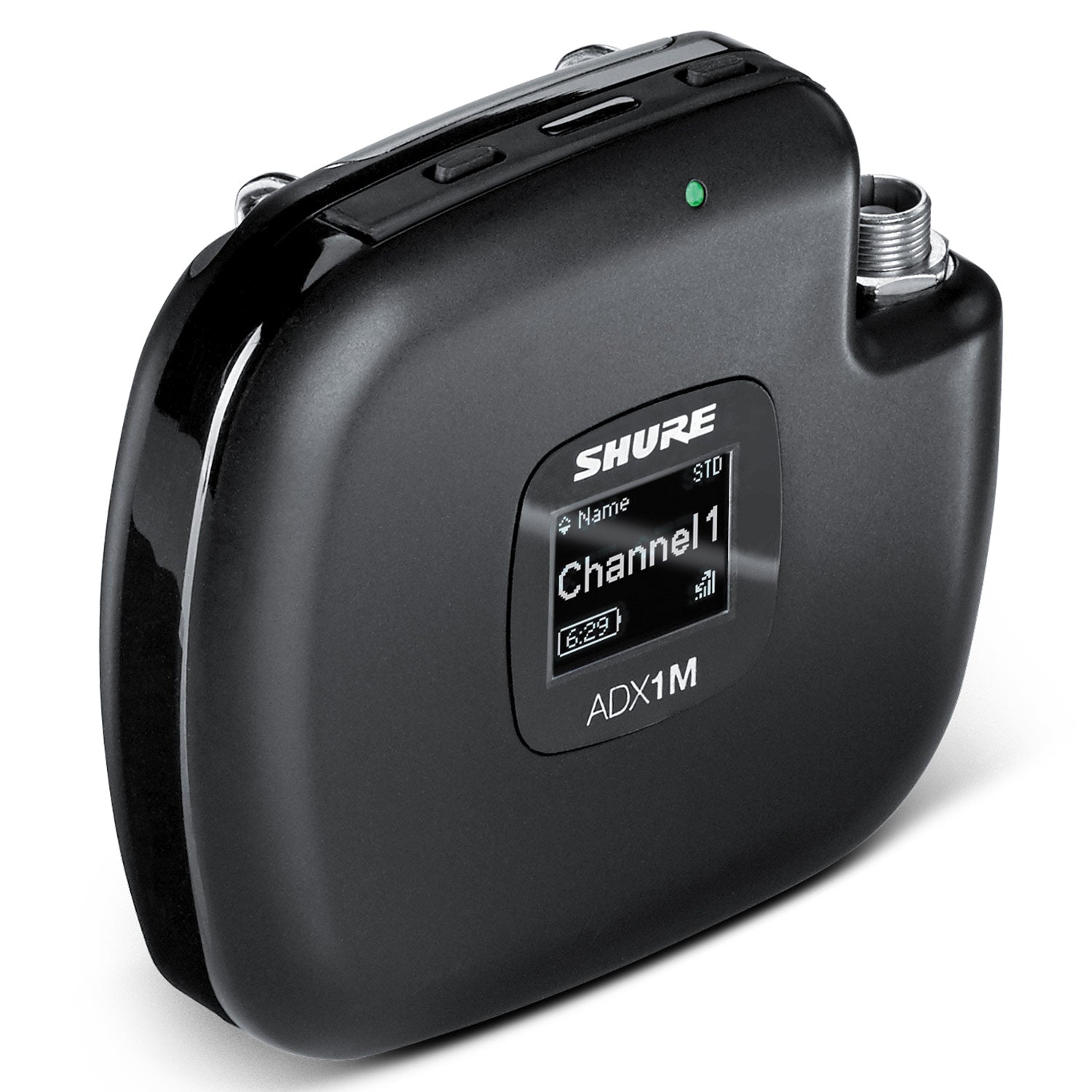

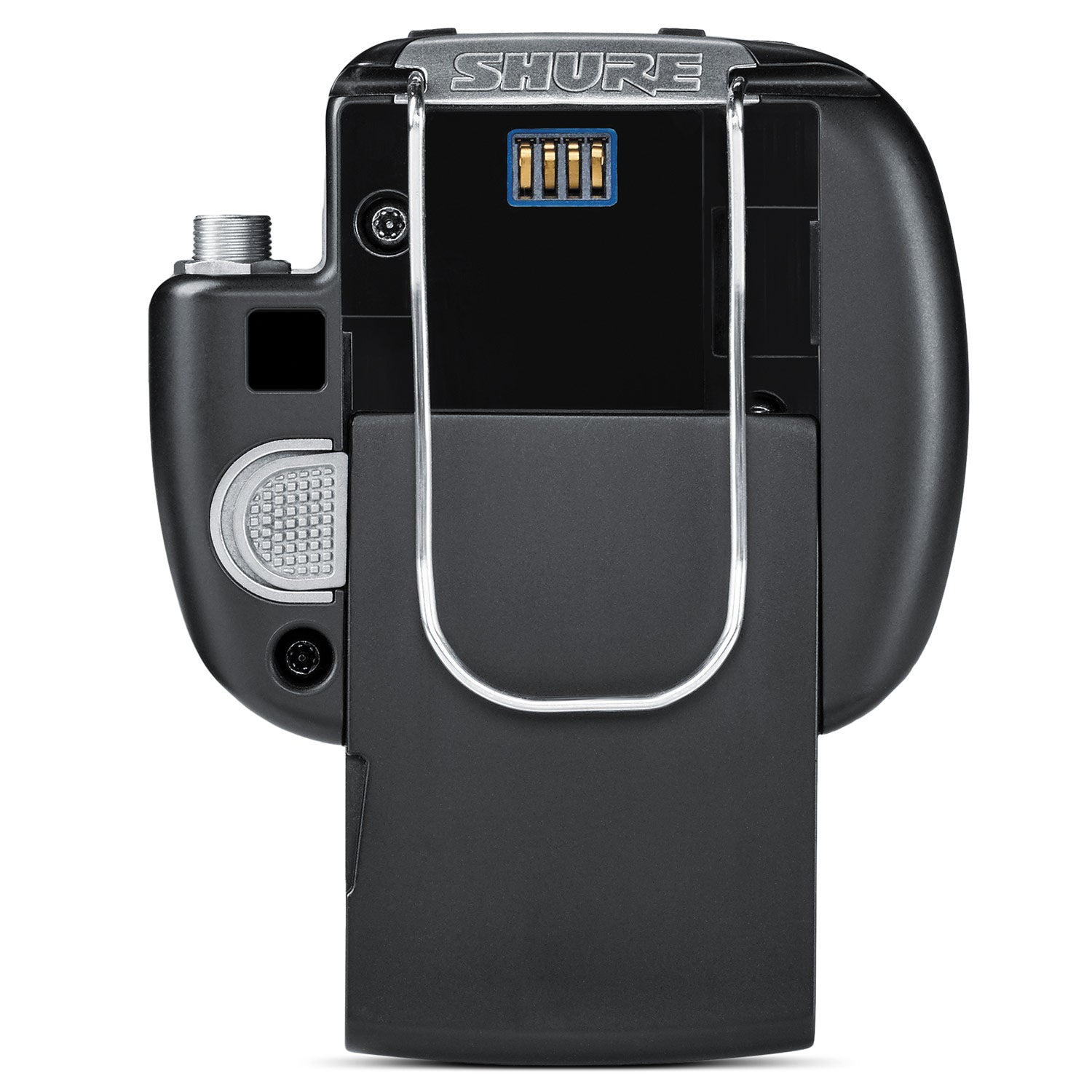

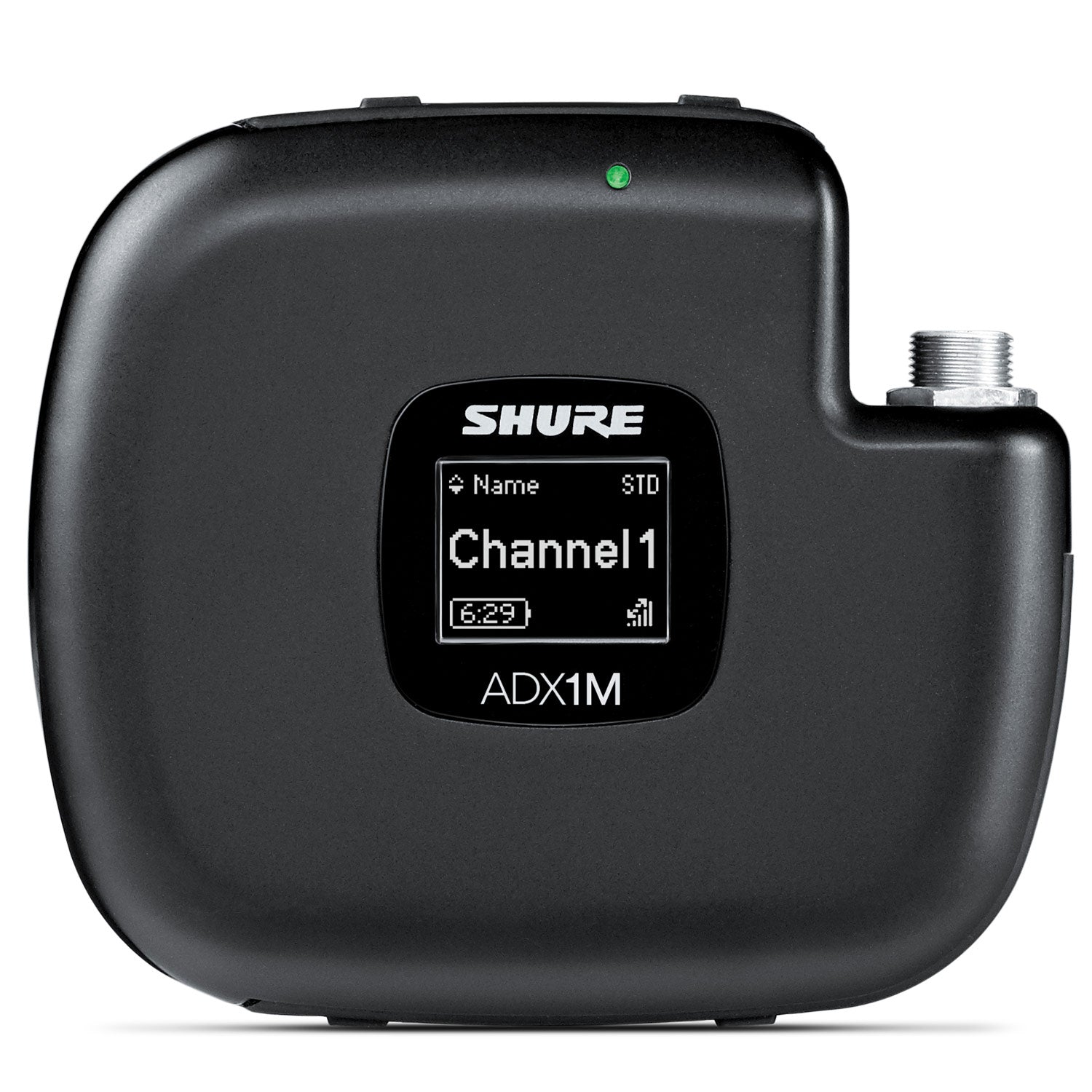

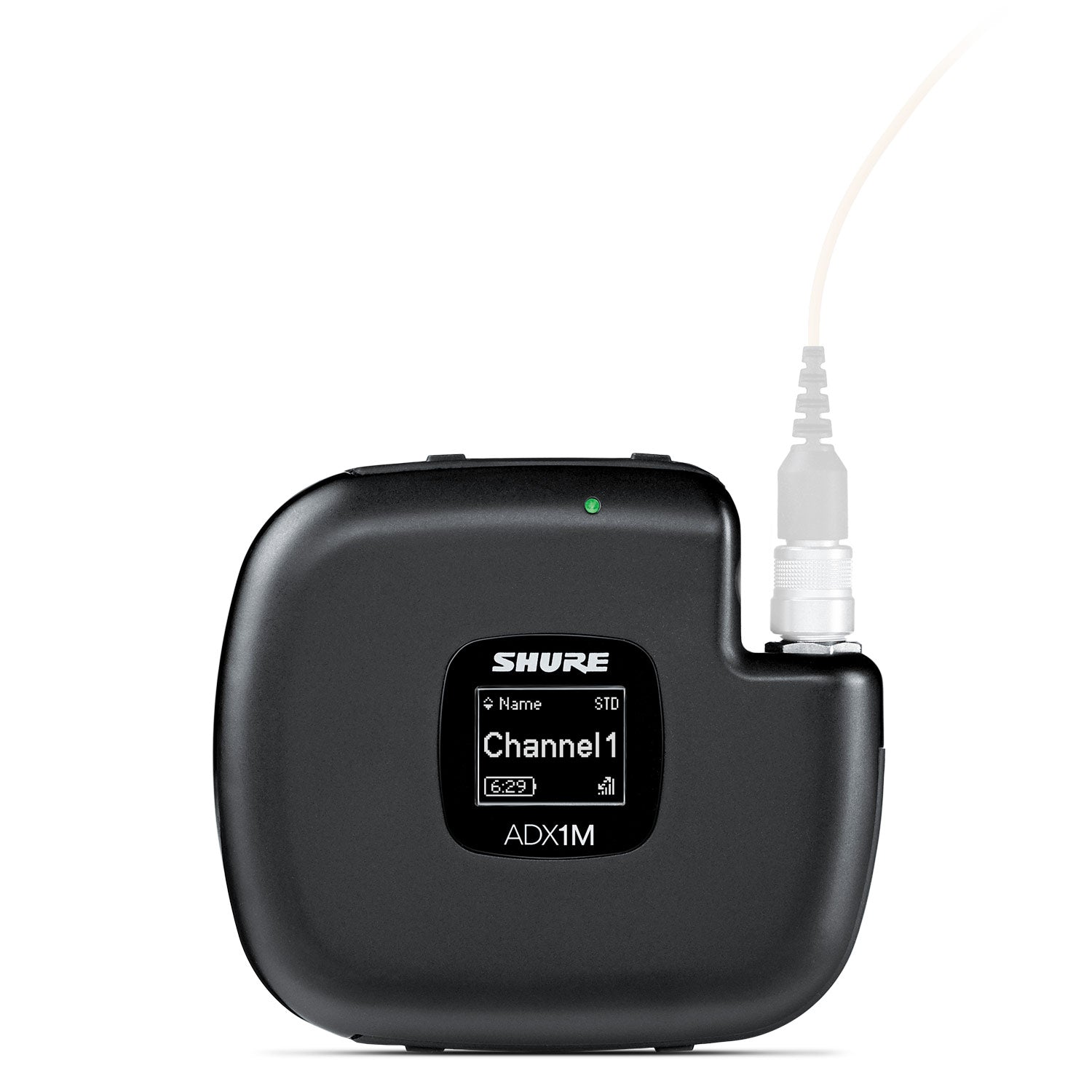

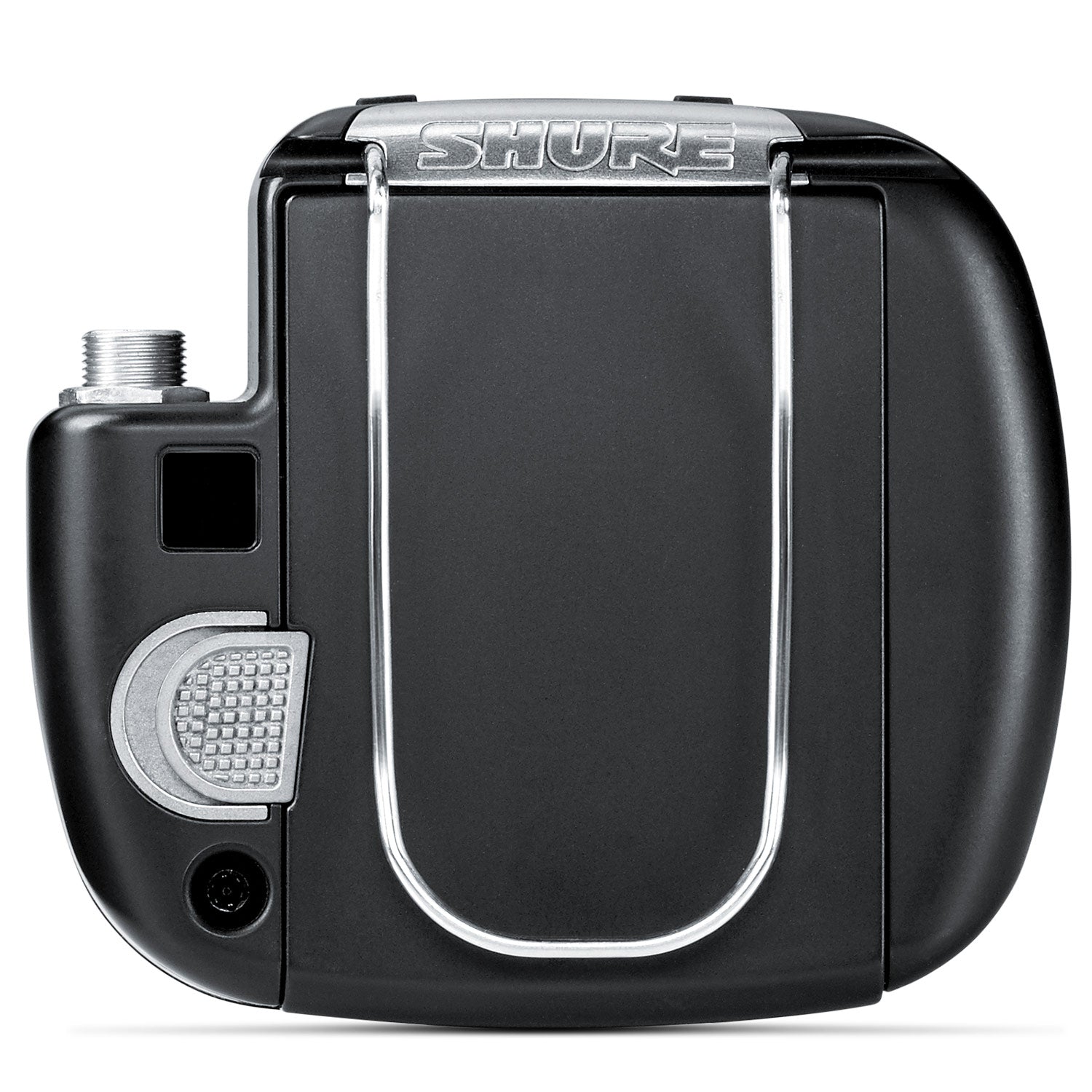

Shure ADX1M Axient Digital Micro Bodypack Transmitter (G57 Band / 470-616 MHz / 3-Pin Lemo)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
ADX1M delivers impeccable audio quality and RF performance, and is equipped with ShowLink® remote control for real-time parameter adjustments and interference avoidance. The contoured form factor and lightweight PEI construction offer both comfort and heat resistance. This transmitter features wide tuning, High Density (HD) mode, encryption, and advanced rechargeability. Sealed switches and LEMO connector protect against moisture, while the OLED display provides excellent visibility in low-light environments. Includes two SB910M rechargeable batteries.
ADX transmitters set the stage for exceptional performance, featuring wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:
- Small and streamlined design for better concealment and wear (68mm × 60mm × 18mm)
- High-contrast OLED display
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Patent-pending internal adaptive antenna for optimized signal when ADX1M is worn against the body
- Ultem®PEI construction for heat resistance and durability
- Recessed LEMO connector
- Sealed buttons and LEMO connection for protection against sweat and moisture ingress
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
- Up to 7 hours of runtime with SB910M rechargeable battery
- Detachable belt clip
| Gain Offset Range | Ð12 to 21 dB (in 1 dB steps) |
| Battery Type | Shure SB910M Rechargeable Li-Ion |
| Battery Runtime @ 10 mW | SB910M: up to 7 hours |
| Dimensions | 60.4 mm _ 68.0 mm _ 22.1 mm (2.4 in. _ 2.7 in. _ 0.9 in.) H _ W _ D |
| Weight | 53 g (1.9 oz.), without battery |
| Housing | Ultem¨ (PEI) |
| Audio Input | |
| Connector | LEM03 connector |
| Configuration | Unbalanced |
| Impedance | 8.2 M? |
| Maximum Input Level 1 kHz at 1% THD |
Pad Off: 8.5 dBV (7.5 Vpp) Pad On: 20.5 dBV (30 Vpp) |
| Preamplifier Equivalent Input Noise (EIN) System Gain Setting ? +20 |
Ð120 dBV, A-weighted, typical |
| RF Output | |
| Antenna Type | Integrated Helical |
| Impedance | 50 ? |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Axient Digital Proprietary |
| Power | 2 mW, 10 mW, 20 mW Varies by Region; See Available Frequency Bands and Ouput Power table. |
| ShowLink¨ | |
| Network Type | IEEE 802.15.4 |
| Antenna Type | ZigBee Dual Conformal |
| Frequency Range | 2.40 to 2.4835 GHz (24 Channels) |
| RF Output Power | Varies by Region 10 dBm (ERP) |
ADX1M delivers impeccable audio quality and RF performance, and is equipped with ShowLink® remote control for real-time parameter adjustments and interference avoidance. The contoured form factor and lightweight PEI construction offer both comfort and heat resistance. This transmitter features wide tuning, High Density (HD) mode, encryption, and advanced rechargeability. Sealed switches and LEMO connector protect against moisture, while the OLED display provides excellent visibility in low-light environments. Includes two SB910M rechargeable batteries.
ADX transmitters set the stage for exceptional performance, featuring wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:
- Small and streamlined design for better concealment and wear (68mm × 60mm × 18mm)
- High-contrast OLED display
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Patent-pending internal adaptive antenna for optimized signal when ADX1M is worn against the body
- Ultem®PEI construction for heat resistance and durability
- Recessed LEMO connector
- Sealed buttons and LEMO connection for protection against sweat and moisture ingress
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
- Up to 7 hours of runtime with SB910M rechargeable battery
- Detachable belt clip
| Gain Offset Range | Ð12 to 21 dB (in 1 dB steps) |
| Battery Type | Shure SB910M Rechargeable Li-Ion |
| Battery Runtime @ 10 mW | SB910M: up to 7 hours |
| Dimensions | 60.4 mm _ 68.0 mm _ 22.1 mm (2.4 in. _ 2.7 in. _ 0.9 in.) H _ W _ D |
| Weight | 53 g (1.9 oz.), without battery |
| Housing | Ultem¨ (PEI) |
| Audio Input | |
| Connector | LEM03 connector |
| Configuration | Unbalanced |
| Impedance | 8.2 M? |
| Maximum Input Level 1 kHz at 1% THD |
Pad Off: 8.5 dBV (7.5 Vpp) Pad On: 20.5 dBV (30 Vpp) |
| Preamplifier Equivalent Input Noise (EIN) System Gain Setting ? +20 |
Ð120 dBV, A-weighted, typical |
| RF Output | |
| Antenna Type | Integrated Helical |
| Impedance | 50 ? |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Axient Digital Proprietary |
| Power | 2 mW, 10 mW, 20 mW Varies by Region; See Available Frequency Bands and Ouput Power table. |
| ShowLink¨ | |
| Network Type | IEEE 802.15.4 |
| Antenna Type | ZigBee Dual Conformal |
| Frequency Range | 2.40 to 2.4835 GHz (24 Channels) |
| RF Output Power | Varies by Region 10 dBm (ERP) |
