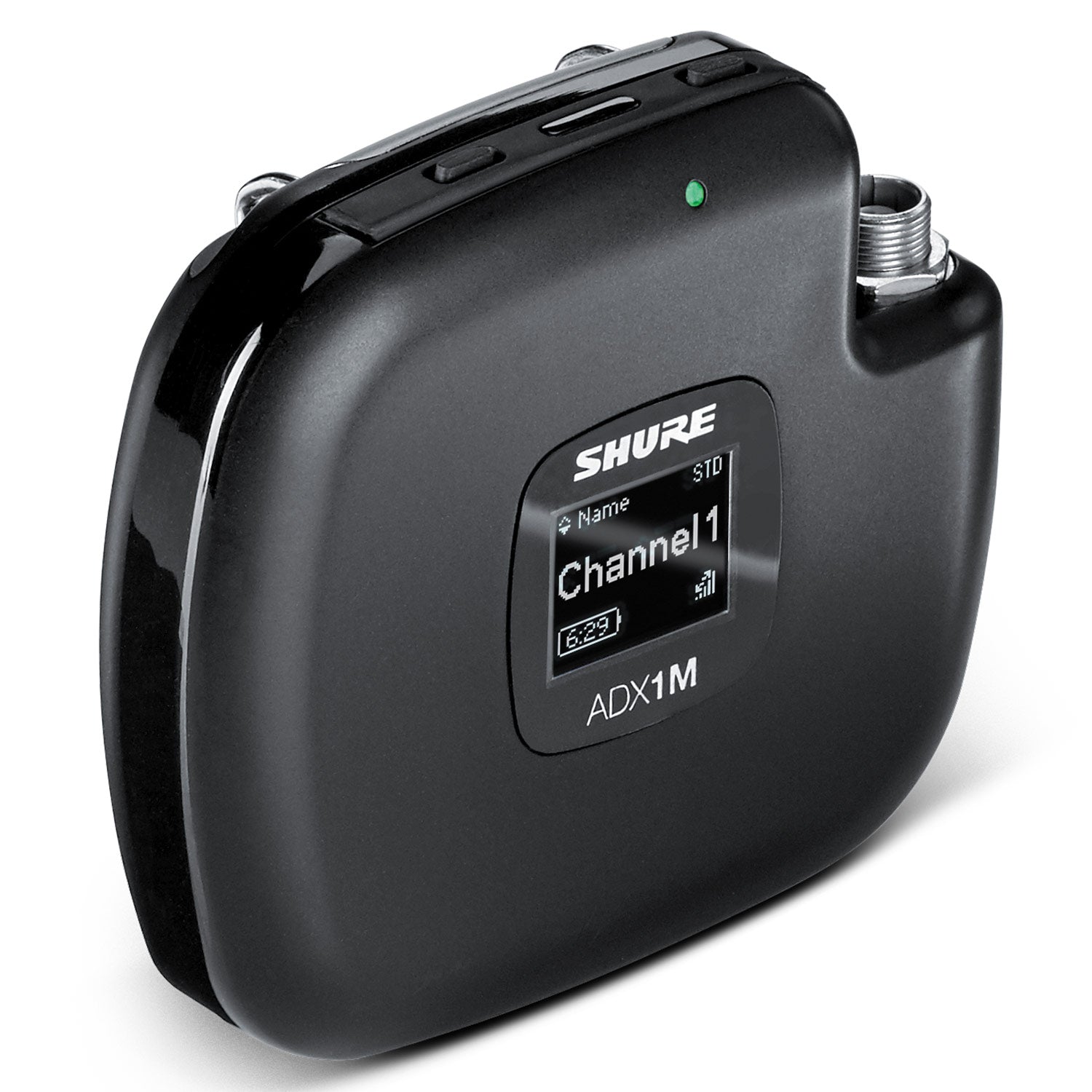

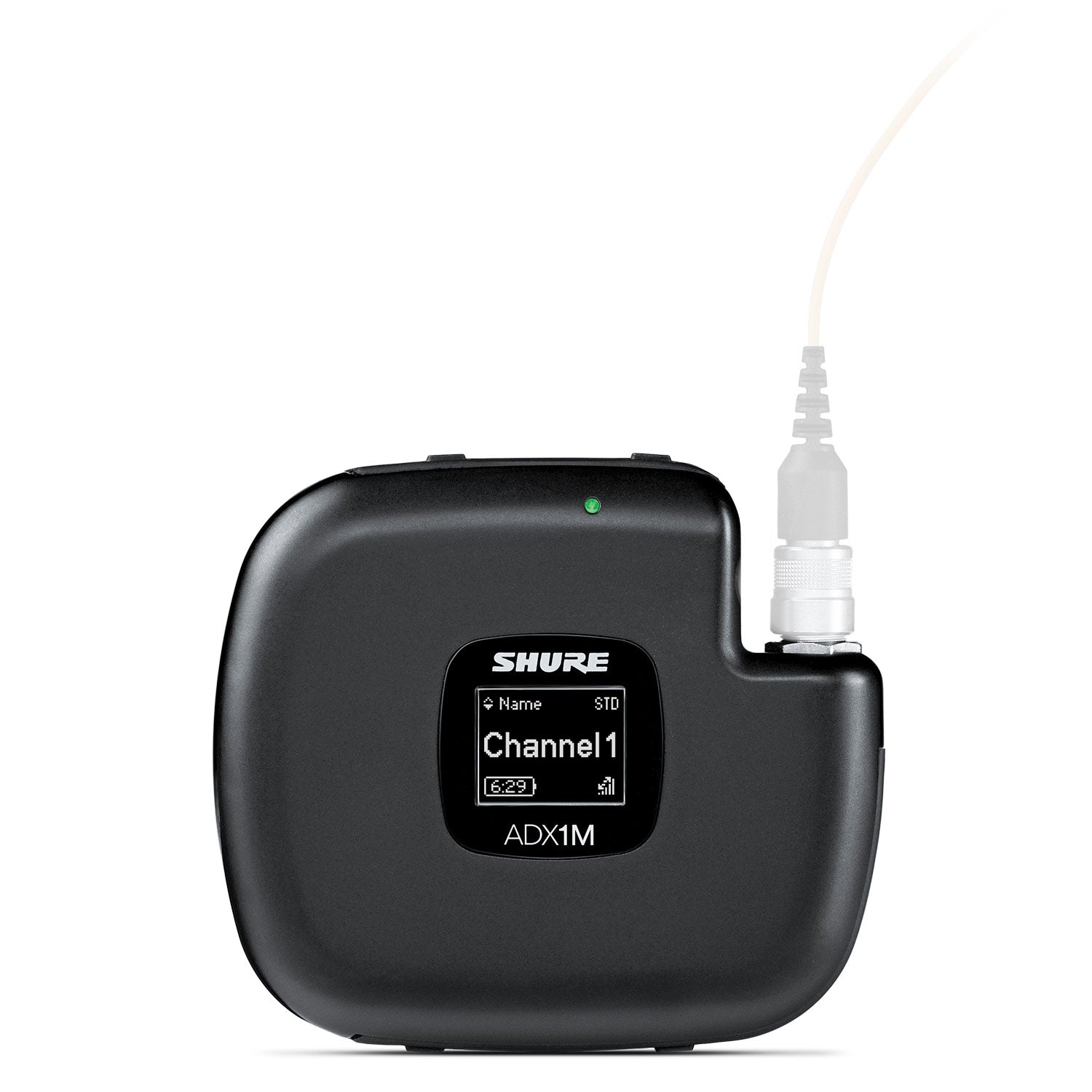

Shure ADX1M Axient Digital Micro Bodypack Transmitter (X55 Band / 941-960 MHz / 3-Pin Lemo)

  • Dale #:

    SHUR-ADX1MX55
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

ADX1M delivers impeccable audio quality and RF performance, and is equipped with ShowLink® remote control for real-time parameter adjustments and interference avoidance. The contoured form factor and lightweight PEI construction offer both comfort and heat resistance. This transmitter features wi... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

ADX1M delivers impeccable audio quality and RF performance, and is equipped with ShowLink® remote control for real-time parameter adjustments and interference avoidance. The contoured form factor and lightweight PEI construction offer both comfort and heat resistance. This transmitter features wide tuning, High Density (HD) mode, encryption, and advanced rechargeability. Sealed switches and LEMO connector protect against moisture, while the OLED display provides excellent visibility in low-light environments. Includes two SB910M rechargeable batteries.

ADX transmitters set the stage for exceptional performance, featuring wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features:

  • Small and streamlined design for better concealment and wear (68mm × 60mm × 18mm)

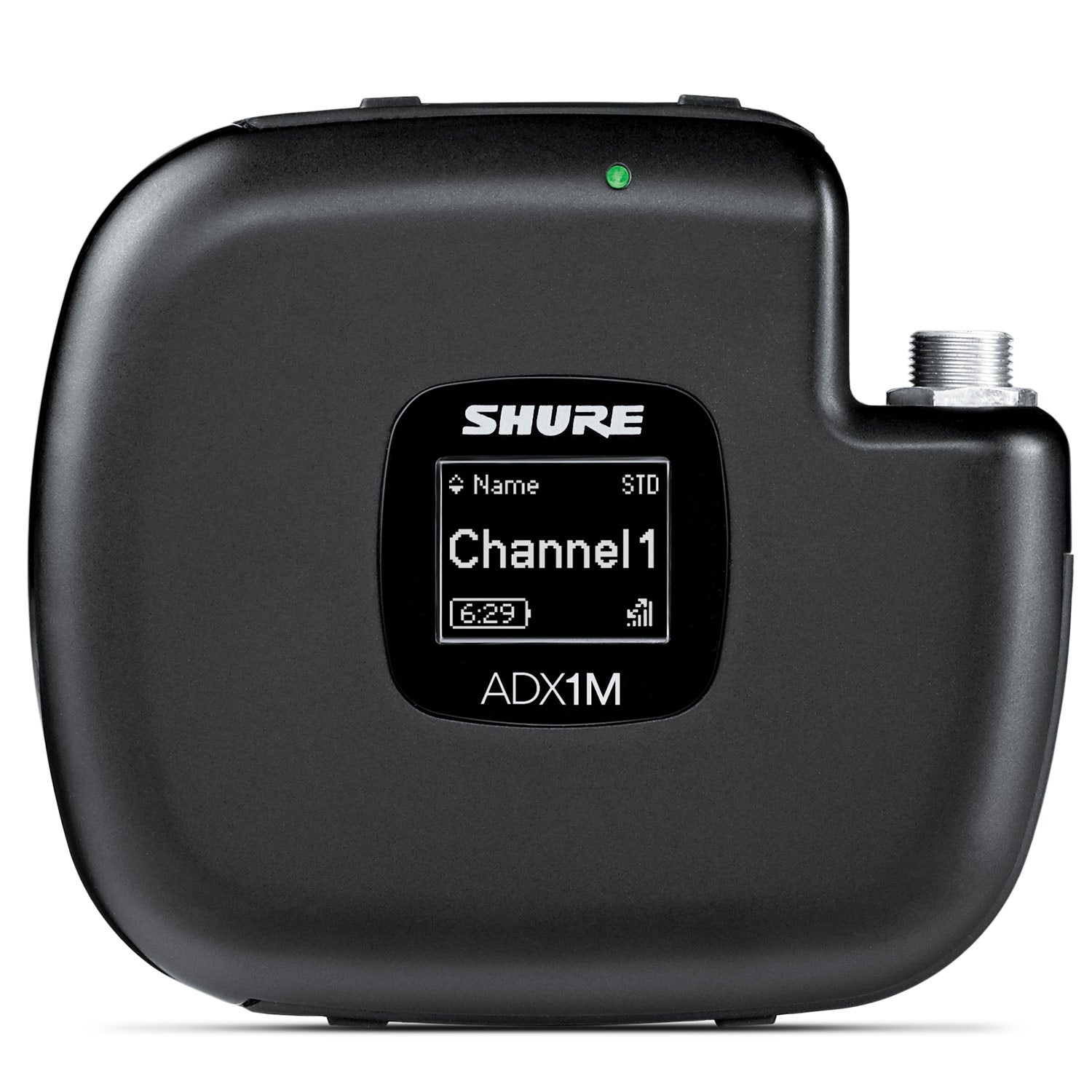

  • High-contrast OLED display
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Patent-pending internal adaptive antenna for optimized signal when ADX1M is worn against the body
  • Ultem®PEI construction for heat resistance and durability
  • Recessed LEMO connector
  • Sealed buttons and LEMO connection for protection against sweat and moisture ingress
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission
  • Up to 7 hours of runtime with SB910M rechargeable battery

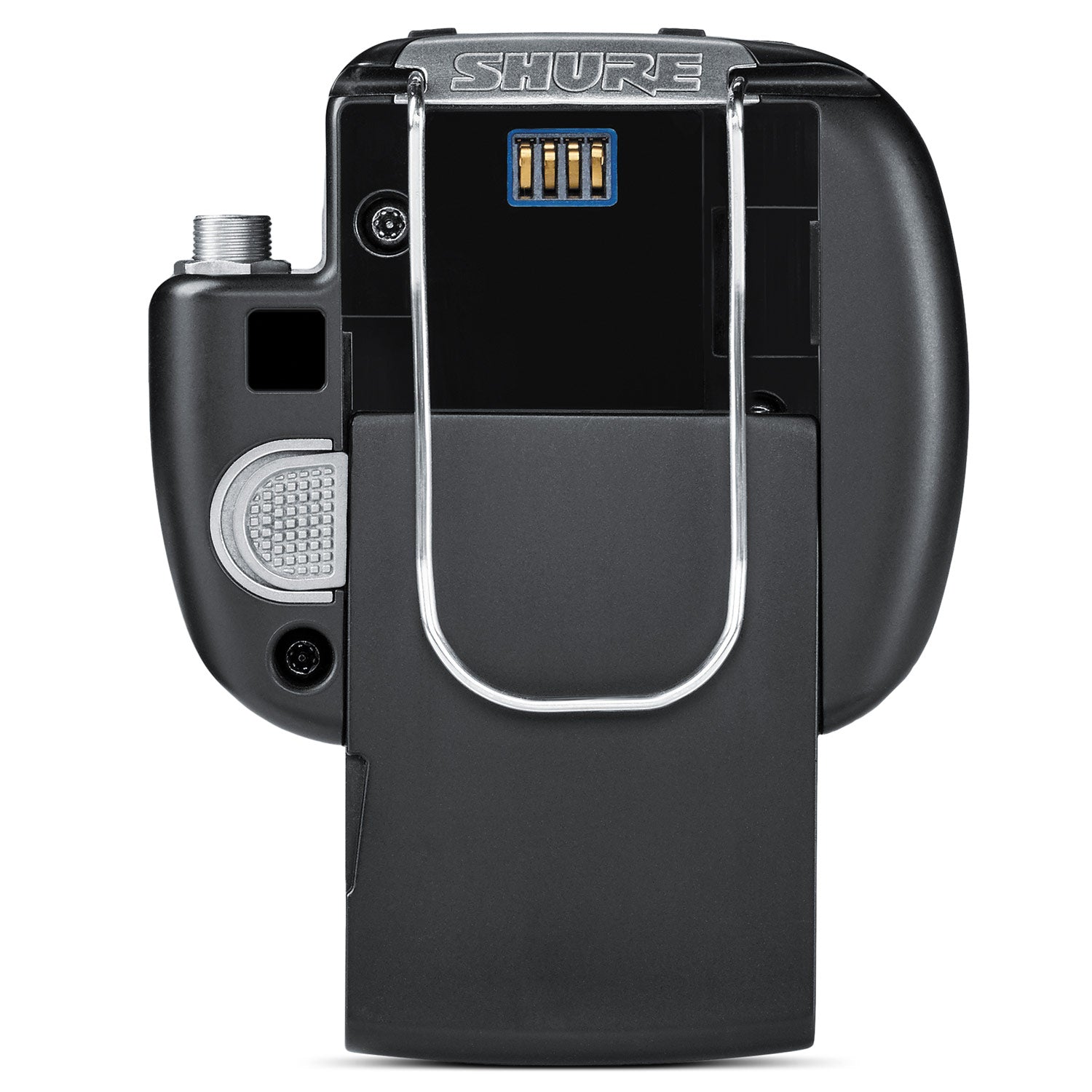

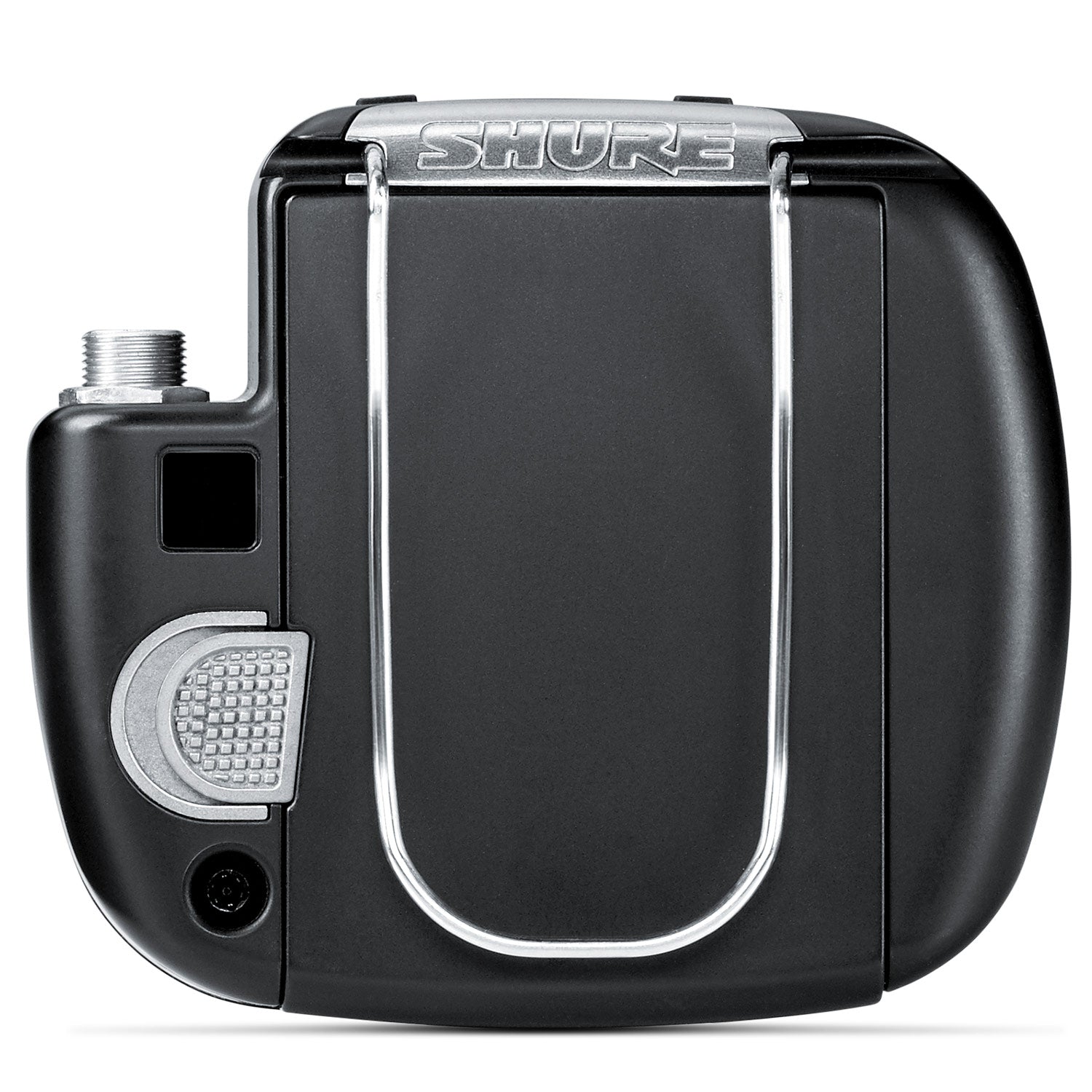

  • Detachable belt clip

More +

Product Specs

Gain Offset Range –12 to 21 dB (in 1 dB steps)
Battery Type Shure SB910M Rechargeable Li-Ion
Battery Runtime @ 10 mW SB910M: up to 7 hours
Dimensions 60.4 mm × 68.0 mm × 22.1 mm (2.4 in. × 2.7 in. × 0.9 in.) H × W × D
Weight 53 g (1.9 oz.), without battery
Housing Ultem® (PEI)
Audio Input
Connector LEM03 connector
Configuration Unbalanced
Impedance 8.2 M?
Maximum Input Level
1 kHz at 1% THD
Pad Off: 8.5 dBV (7.5 Vpp)
Pad On: 20.5 dBV (30 Vpp)
Preamplifier Equivalent Input Noise (EIN)
System Gain Setting ? +20
–120 dBV, A-weighted, typical
RF Output
Antenna Type Integrated Helical
Impedance 50 ?
Occupied Bandwidth <200 kHz
Modulation Type Shure Axient Digital Proprietary
Power 2 mW, 10 mW, 20 mW
Varies by Region; See Available Frequency Bands and Ouput Power table.
ShowLink®
Network Type IEEE 802.15.4
Antenna Type ZigBee Dual Conformal
Frequency Range 2.40 to 2.4835 GHz (24 Channels)
RF Output Power Varies by Region 10 dBm (ERP)

More +
