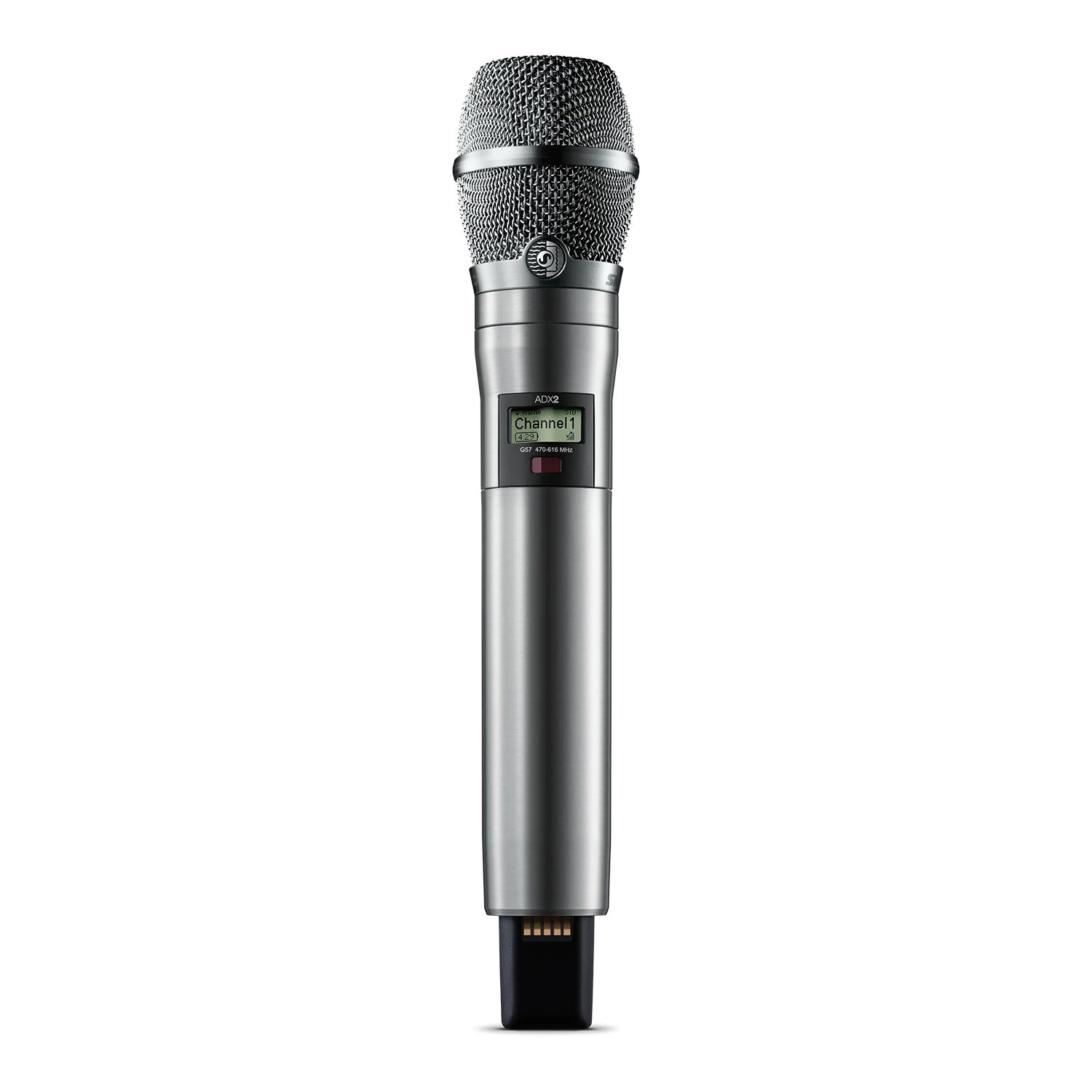

Shure ADX2/K11 - Axient Digital Handheld Transmitter (Nickel / G57 Band / 470-616 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
ADX2/K11 features the prized combination of full lows, clear mids and high-end of the KSM11 Cardioid Condenser Microphone. Combined with ADX transmitters this combination sets the stage for exceptional performance. With wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
The ADX2/K11 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:
- Durable, moisture-resistant, lightweight metal case in black finish
- Up to 9 hours of runtime with SB920 rechargeable battery
- External contacts for docked charging with optional fully covered radome
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
- Works with Axient® Digital Wireless Systems
- Includes two SB920 rechargeable batteries
| Mic Offset Range | Ð12 to 21 dB (in 3 dB steps) |
| Battery Type | Shure SB920 Rechargeable Li-Ion |
| Battery Runtime @ 10 mW | Shure SB920: Up to 9 hours |
| Dimensions | 254 mm _ 51 mm (10.0 in. _ 2.0 in.) L _ Dia. |
| Weight | 179 g (6.3 oz.), without battery |
| Housing | Cast Aluminum |
| Audio Input | |
| Configuration | Unbalanced |
| Maximum Input Level 1 kHz at 1% THD |
145 dB SPL, typical (SM58) Note: dependent on microphone type |
| RF Output | |
| Antenna Type | Dual-Band Helical |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Axient Digital Proprietary |
| Power | 2 mW, 10 mW, 20 mW, 40mW Varies by Region; See Available Frequency Bands and Ouput Power table. |
| ShowLink¨ | |
| Network Type | IEEE 802.15.4 |
| Antenna Type | ZigBee Dual Conformal |
| Frequency Range | 2.40 to 2.4835 GHz (24 Channels) |
| RF Output Power | Varies by Region 10 dBm (ERP) |
ADX2/K11 features the prized combination of full lows, clear mids and high-end of the KSM11 Cardioid Condenser Microphone. Combined with ADX transmitters this combination sets the stage for exceptional performance. With wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
The ADX2/K11 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:
- Durable, moisture-resistant, lightweight metal case in black finish
- Up to 9 hours of runtime with SB920 rechargeable battery
- External contacts for docked charging with optional fully covered radome
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
- Works with Axient® Digital Wireless Systems
- Includes two SB920 rechargeable batteries
| Mic Offset Range | Ð12 to 21 dB (in 3 dB steps) |
| Battery Type | Shure SB920 Rechargeable Li-Ion |
| Battery Runtime @ 10 mW | Shure SB920: Up to 9 hours |
| Dimensions | 254 mm _ 51 mm (10.0 in. _ 2.0 in.) L _ Dia. |
| Weight | 179 g (6.3 oz.), without battery |
| Housing | Cast Aluminum |
| Audio Input | |
| Configuration | Unbalanced |
| Maximum Input Level 1 kHz at 1% THD |
145 dB SPL, typical (SM58) Note: dependent on microphone type |
| RF Output | |
| Antenna Type | Dual-Band Helical |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Axient Digital Proprietary |
| Power | 2 mW, 10 mW, 20 mW, 40mW Varies by Region; See Available Frequency Bands and Ouput Power table. |
| ShowLink¨ | |
| Network Type | IEEE 802.15.4 |
| Antenna Type | ZigBee Dual Conformal |
| Frequency Range | 2.40 to 2.4835 GHz (24 Channels) |
| RF Output Power | Varies by Region 10 dBm (ERP) |
