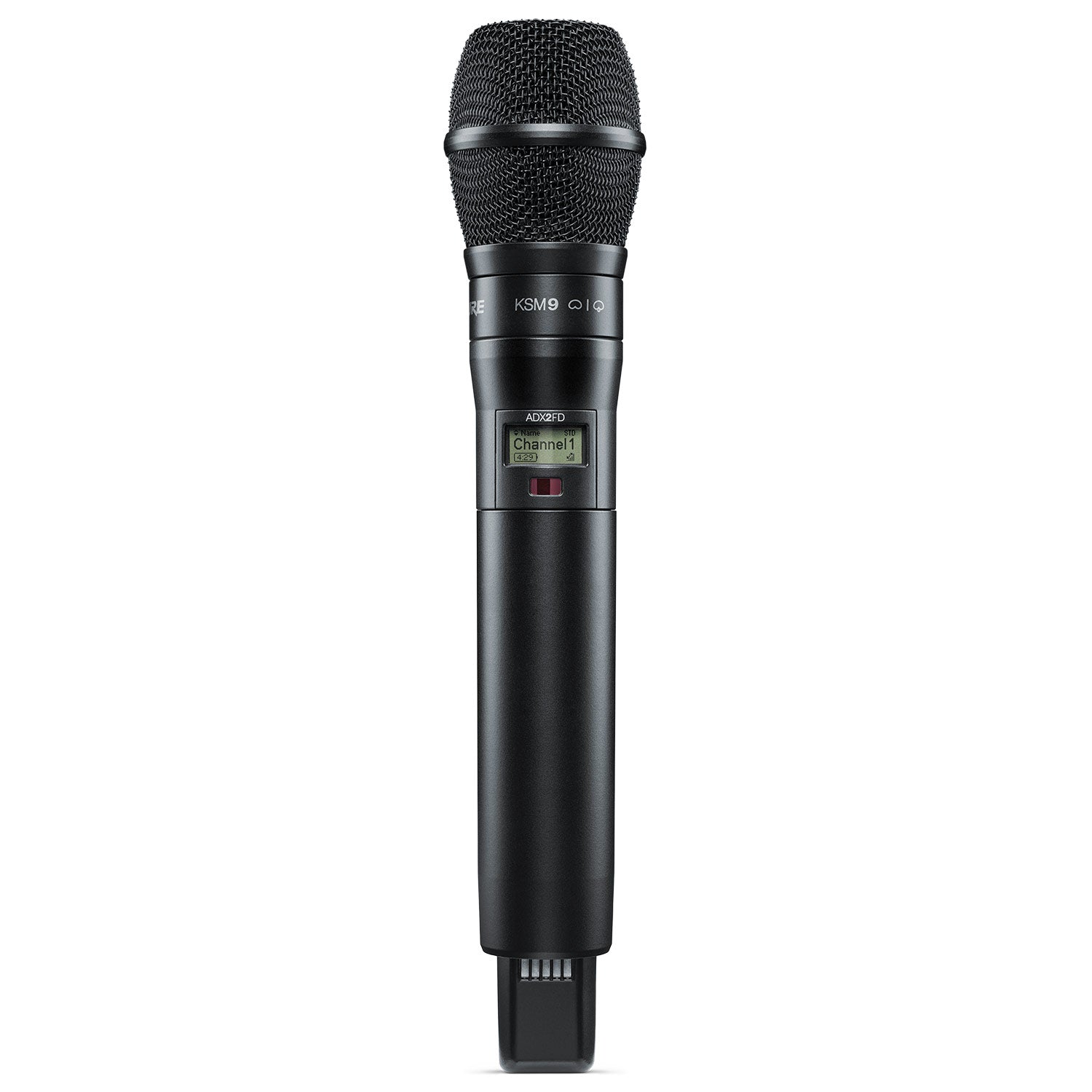

Shure ADX2/K9B Axient Digital Handheld Transmitter (K54 Band / 606-663 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
ADX2/K9, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
The ADX2/K9 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:
- Durable, moisture-resistant, lightweight metal case in black or nickel finish
- Up to 9 hours of runtime with SB920 rechargeable battery
- External contacts for docked charging with optional fully covered radome
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
- KSM9 premium microphone cartridge
- Matte black or nickel finish
| Mic Offset Range | Ð12 to 21 dB (in 3 dB steps) |
| Battery Type | Shure SB920 Rechargeable Li-Ion |
| Battery Runtime @ 10 mW | Shure SB920: Up to 9 hours |
| Dimensions | 254 mm _ 51 mm (10.0 in. _ 2.0 in.) L _ Dia. |
| Weight | 179 g (6.3 oz.), without battery |
| Housing | Cast Aluminum |
| Audio Input | |
| Configuration | Unbalanced |
| Maximum Input Level 1 kHz at 1% THD |
145 dB SPL, typical (SM58) Note: dependent on microphone type |
| RF Output | |
| Antenna Type | Dual-Band Helical |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Axient Digital Proprietary |
| Power | 2 mW, 10 mW, 20 mW, 40mW Varies by Region; See Available Frequency Bands and Ouput Power table. |
| ShowLink¨ | |
| Network Type | IEEE 802.15.4 |
| Antenna Type | ZigBee Dual Conformal |
| Frequency Range | 2.40 to 2.4835 GHz (24 Channels) |
| RF Output Power | Varies by Region 10 dBm (ERP) |
ADX2/K9, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
The ADX2/K9 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:
- Durable, moisture-resistant, lightweight metal case in black or nickel finish
- Up to 9 hours of runtime with SB920 rechargeable battery
- External contacts for docked charging with optional fully covered radome
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
- KSM9 premium microphone cartridge
- Matte black or nickel finish
| Mic Offset Range | Ð12 to 21 dB (in 3 dB steps) |
| Battery Type | Shure SB920 Rechargeable Li-Ion |
| Battery Runtime @ 10 mW | Shure SB920: Up to 9 hours |
| Dimensions | 254 mm _ 51 mm (10.0 in. _ 2.0 in.) L _ Dia. |
| Weight | 179 g (6.3 oz.), without battery |
| Housing | Cast Aluminum |
| Audio Input | |
| Configuration | Unbalanced |
| Maximum Input Level 1 kHz at 1% THD |
145 dB SPL, typical (SM58) Note: dependent on microphone type |
| RF Output | |
| Antenna Type | Dual-Band Helical |
| Occupied Bandwidth | <200 kHz |
| Modulation Type | Shure Axient Digital Proprietary |
| Power | 2 mW, 10 mW, 20 mW, 40mW Varies by Region; See Available Frequency Bands and Ouput Power table. |
| ShowLink¨ | |
| Network Type | IEEE 802.15.4 |
| Antenna Type | ZigBee Dual Conformal |
| Frequency Range | 2.40 to 2.4835 GHz (24 Channels) |
| RF Output Power | Varies by Region 10 dBm (ERP) |
