Description

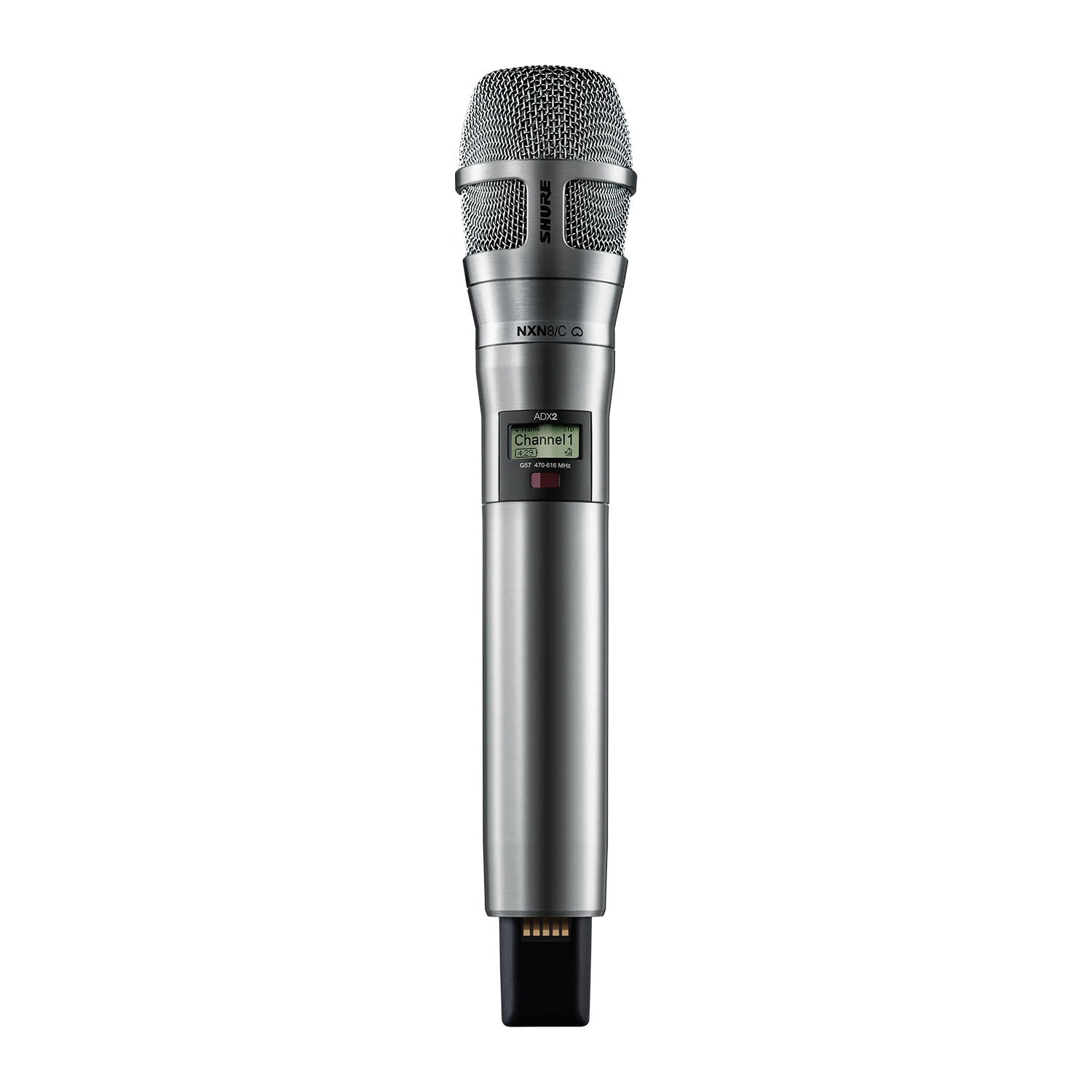

Equipped with N8 cardioid capsule, nickel body.
ADX2FD/N8, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
The ADX2FD/N8 is a handheld wireless microphone transmitter compatible with Axient¨ Digital Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:
- Ability to transmit RF signal on two discrete carriers
- Optional 50mW High Power mode for driving increased power on a single frequency
- Durable, moisture-resistant, lightweight metal case in black finish
- Up to 6.5 hours of runtime with SB920 rechargeable battery when transmitting on two RF carriers (up to 9 hours battery life when transmitting on a single RF carrier)
- External contacts for docked charging with optional fully covered radome
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
- Works with Axient¨ Digital Wireless Systems
- Ability to transmit RF signal on two discrete carriers for improved signal stability
- Features the N8 cartridge
- Includes two SB920 rechargeable batteries
Mic Offset Range | _12 to 21 dB (in 3 dB steps) |
Battery Type | Shure SB920 Rechargeable Li-Ion |
Battery Runtime @ 10 mW | Single Carrier Mode: Up to 9 hours Frequency Diversity: Up to 6.5 hours |
Dimensions | 254 mm _ 51 mm (10.0 in. _ 2.0 in.) L _ Dia. |
Weight | 179 g (6.3 oz.), without battery |
Housing | Cast Aluminum |
Audio Input | |
Configuration | Unbalanced |
Maximum Input Level 1 kHz at 1% THD |
145 dB SPL, typical (SM58) Note: dependent on microphone type |
RF Output | |
Antenna Type | Integrated Dual-Band Helical |
Occupied Bandwidth | <200 kHz |
Channel-to-Channel Spacing | Standard Mode: 350 kHz High-Density Mode: 125 kHz |
Modulation Type | Shure Axient Digital Proprietary |
Power | Single Carrier Mode: 2 mW, 10 mW, 20 mW, 50 mW Frequency Diversity Mode: 2 _ 20 mW Varies by Region; See Available Frequency Bands and Ouput Power table. |
ShowLink¬ | |
Network Type | IEEE 802.15.4 |
Antenna Type | ZigBee Dual Conformal |
Frequency Range | 2.40 to 2.4835 GHz (24 Channels) |
RF Output Power | Varies by Region 10 dBm (ERP) |
