Availability:Not in Stock - Reserve Yours
This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
DescriptionADX2FD/B58, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth. The ADX2FD/B58 is a handh... Read More
Retail Price: $3,408.00 Our Price: $2,726.00
Free Shipping (Continental US)
ADX2FD/B58, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

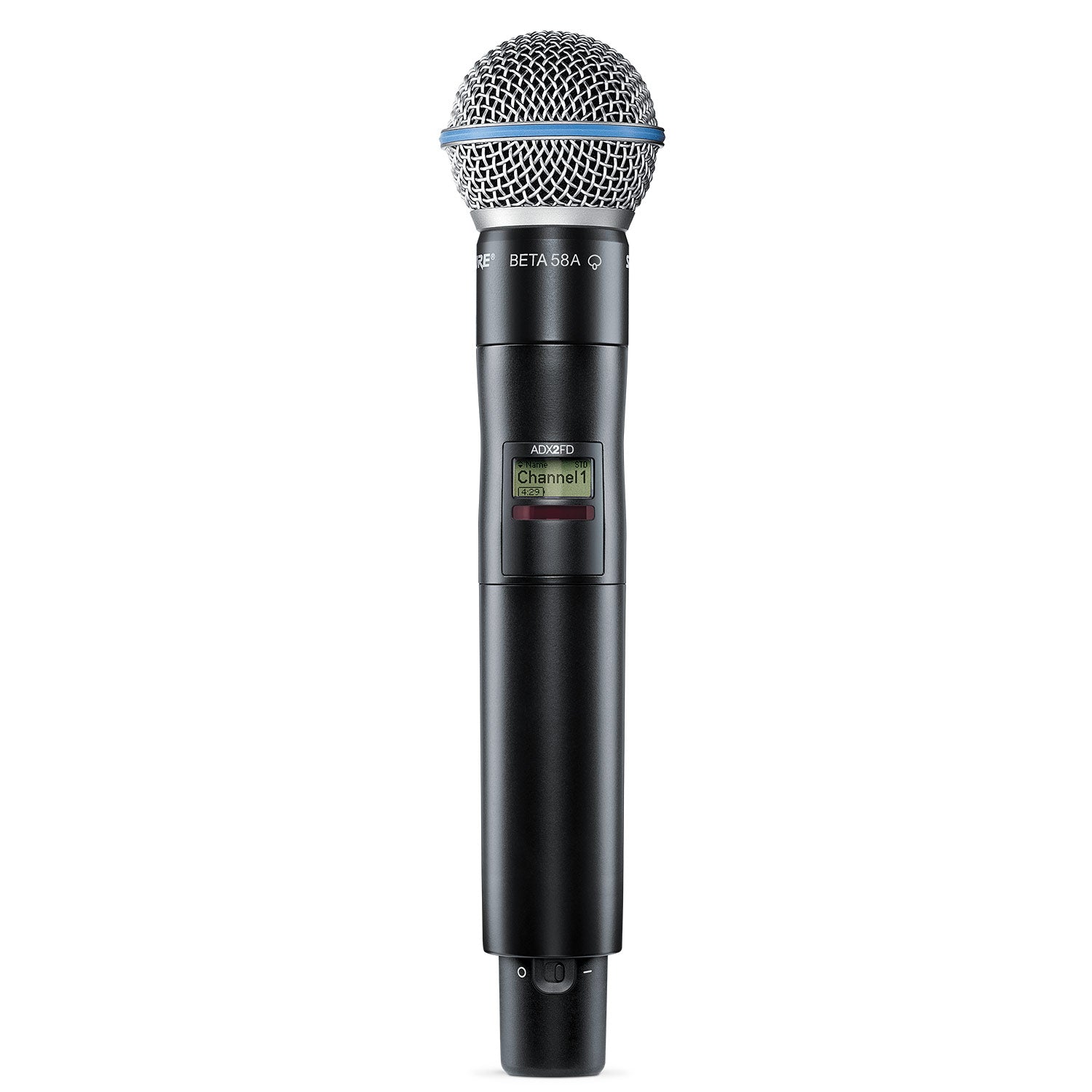

The ADX2FD/B58 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
|Mic Offset Range||–12 to 21 dB (in 3 dB steps)|
|Battery Type||Shure SB920 Rechargeable Li-Ion|
|Battery Runtime @ 10 mW||Single Carrier Mode: Up to 9 hours
Frequency Diversity: Up to 6.5 hours
|Dimensions||254 mm × 51 mm (10.0 in. × 2.0 in.) L × Dia.|
|Weight||179 g (6.3 oz.), without battery|
|Maximum Input Level
1 kHz at 1% THD
|145 dB SPL, typical (SM58)
Note: dependent on microphone type
|Antenna Type||Integrated Dual-Band Helical|
|Occupied Bandwidth||<200 kHz|
|Channel-to-Channel Spacing||Standard Mode: 350 kHz
High-Density Mode: 125 kHz
|Modulation Type||Shure Axient Digital Proprietary|
|Power||Single Carrier Mode: 2 mW, 10 mW, 20 mW, 50 mW
Frequency Diversity Mode: 2 × 20 mW
Varies by Region; See Available Frequency Bands and Ouput Power table.
|Network Type||IEEE 802.15.4|
|Antenna Type||ZigBee Dual Conformal|
|Frequency Range||2.40 to 2.4835 GHz (24 Channels)|
|RF Output Power||Varies by Region 10 dBm (ERP)|
