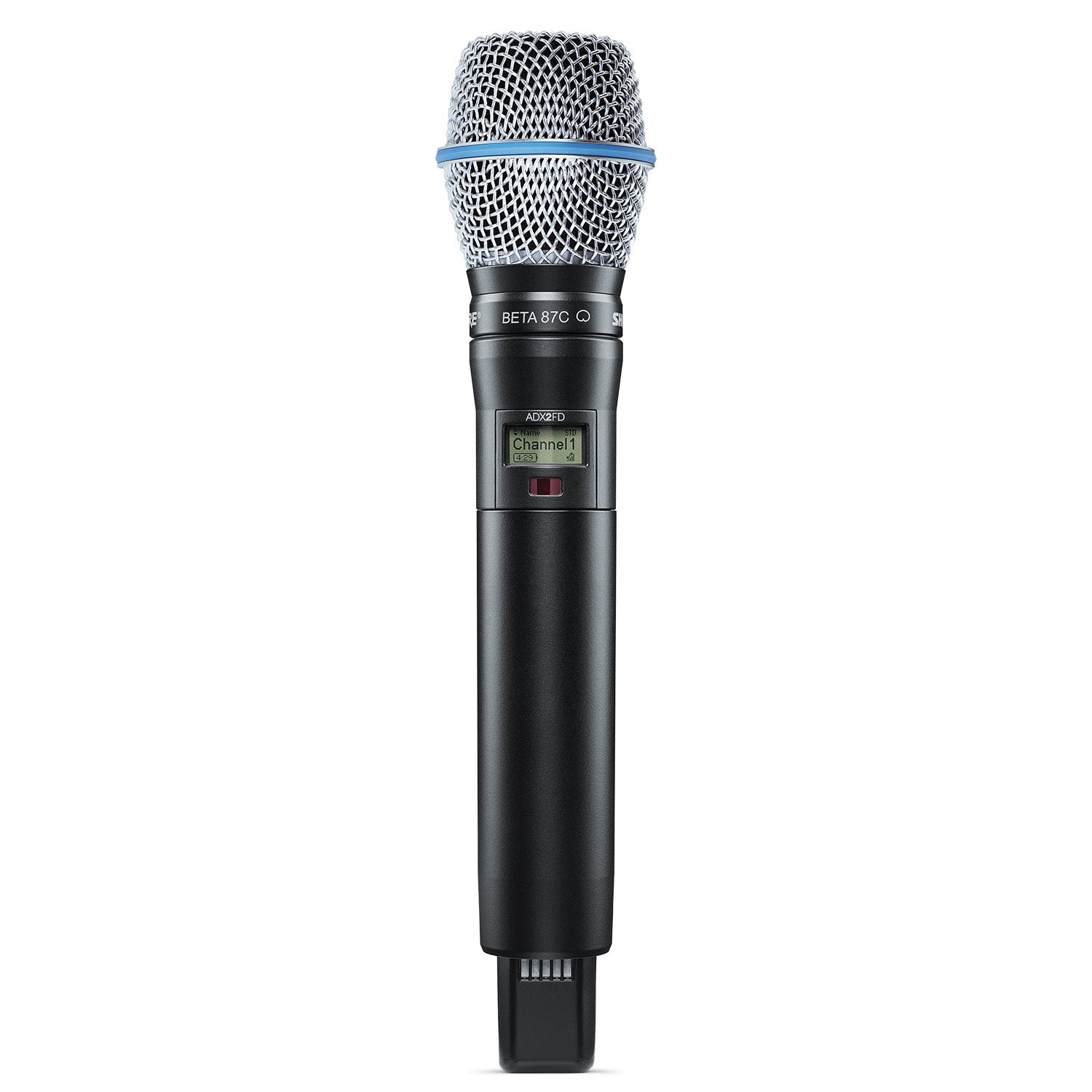

Shure ADX2FD/B87C Axient Digital Handheld Transmitter (G57 Band / 470-616 MHz)


  • Dale #:

    SHUR-ADX2FDB87CG57
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

ADX2FD/B87, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth. The ADX2FD/B87 is a handh... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

ADX2FD/B87, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

The ADX2FD/B87 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features:

  • Ability to transmit RF signal on two discrete carriers
  • Optional 50mW High Power mode for driving increased power on a single frequency
  • Durable, moisture-resistant, lightweight metal case in black finish
  • Up to 6.5 hours of runtime with SB920 rechargeable battery when transmitting on two RF carriers (up to 9 hours battery life when transmitting on a single RF carrier)
  • External contacts for docked charging with optional fully covered radome
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission
  • Choose from Beta87A (supercardioid) or Beta87C (cardioid) cartridge

More +

Product Specs

Mic Offset Range –12 to 21 dB (in 3 dB steps)
Battery Type Shure SB920 Rechargeable Li-Ion
Battery Runtime @ 10 mW Single Carrier Mode: Up to 9 hours
Frequency Diversity: Up to 6.5 hours
Dimensions 254 mm × 51 mm (10.0 in. × 2.0 in.) L × Dia.
Weight 179 g (6.3 oz.), without battery
Housing Cast Aluminum
Audio Input
Configuration Unbalanced
Maximum Input Level
1 kHz at 1% THD
145 dB SPL, typical (SM58)
Note: dependent on microphone type
RF Output
Antenna Type Integrated Dual-Band Helical
Occupied Bandwidth <200 kHz
Channel-to-Channel Spacing Standard Mode: 350 kHz
High-Density Mode: 125 kHz
Modulation Type Shure Axient Digital Proprietary
Power Single Carrier Mode: 2 mW, 10 mW, 20 mW, 50 mW
Frequency Diversity Mode: 2 × 20 mW
Varies by Region; See Available Frequency Bands and Ouput Power table.
ShowLink®
Network Type IEEE 802.15.4
Antenna Type ZigBee Dual Conformal
Frequency Range 2.40 to 2.4835 GHz (24 Channels)
RF Output Power Varies by Region 10 dBm (ERP)

More +
