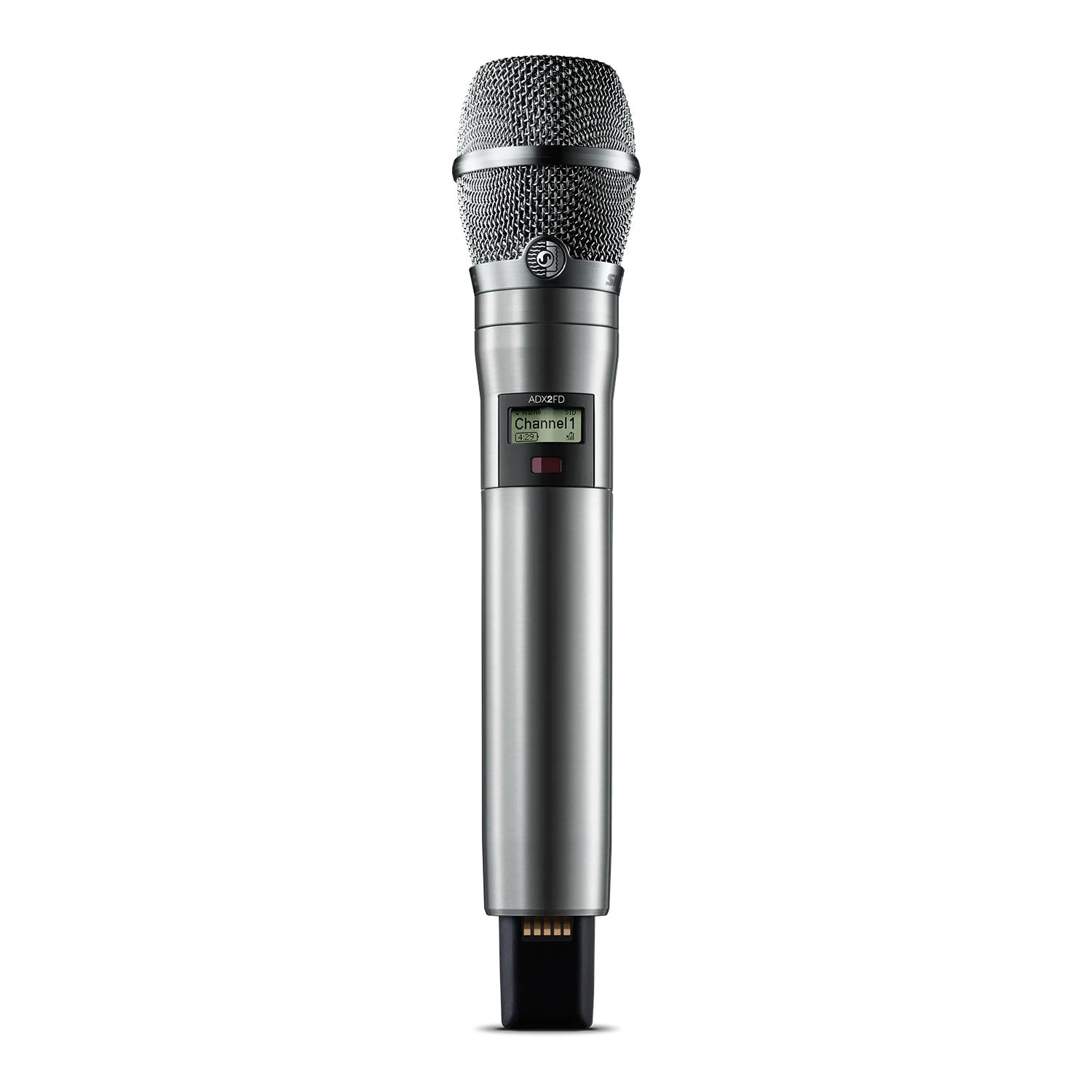

Shure ADX2FD/K11 - Axient Digital Handheld Transmitter (Nickel / G57 Band / 470-616 MHz)
Dale #:
SHUR-ADX2FDK11NG57Availability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description
ADX2FD/K11 features the prized combination of full lows, clear mids and high-end of the KSM11 Cardioid Condenser Microphone. Combined with ADX transmitters this combination sets the stage for exceptional performance. Frequency Diversity with wide tuning up to 184 MHz, interference protection, adv... Read MoreRetail Price: $4,311.00 Our Price: $3,449.00
Free Shipping (Continental US)
Suggested Accessories
Description
ADX2FD/K11 features the prized combination of full lows, clear mids and high-end of the KSM11 Cardioid Condenser Microphone. Combined with ADX transmitters this combination sets the stage for exceptional performance. Frequency Diversity with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
The ADX2FD/K11 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:
- Ability to transmit RF signal on two discrete carriers
- Optional 50mW High Power mode for driving increased power on a single frequency
- Durable, moisture-resistant, lightweight metal case in black finish
- Up to 6.5 hours of runtime with SB920 rechargeable battery when transmitting on two RF carriers (up to 9 hours battery life when transmitting on a single RF carrier)
- External contacts for docked charging with optional fully covered radome
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
- Works with Axient® Digital Wireless Systems
- Ability to transmit RF signal on two discrete carriers for improved signal stability
- Features the KSM11 cartridge
- Includes two SB920 rechargeable batteries
More +
Product Specs
| Mic Offset Range | –12 to 21 dB (in 3 dB steps) |
| Battery Type | Shure SB920 Rechargeable Li-Ion |
| Battery Runtime @ 10 mW | Single Carrier Mode: Up to 9 hours Frequency Diversity: Up to 6.5 hours |
| Dimensions | 254 mm × 51 mm (10.0 in. × 2.0 in.) L × Dia. |
| Weight | 179 g (6.3 oz.), without battery |
| Housing | Cast Aluminum |
| Audio Input | |
| Configuration | Unbalanced |
| Maximum Input Level 1 kHz at 1% THD |
145 dB SPL, typical (SM58) Note: dependent on microphone type |
| RF Output | |
| Antenna Type | Integrated Dual-Band Helical |
| Occupied Bandwidth | <200 kHz |
| Channel-to-Channel Spacing | Standard Mode: 350 kHz High-Density Mode: 125 kHz |
| Modulation Type | Shure Axient Digital Proprietary |
| Power | Single Carrier Mode: 2 mW, 10 mW, 20 mW, 50 mW Frequency Diversity Mode: 2 × 20 mW Varies by Region; See Available Frequency Bands and Ouput Power table. |
| ShowLink® | |
| Network Type | IEEE 802.15.4 |
| Antenna Type | ZigBee Dual Conformal |
| Frequency Range | 2.40 to 2.4835 GHz (24 Channels) |
| RF Output Power | Varies by Region 10 dBm (ERP) |
