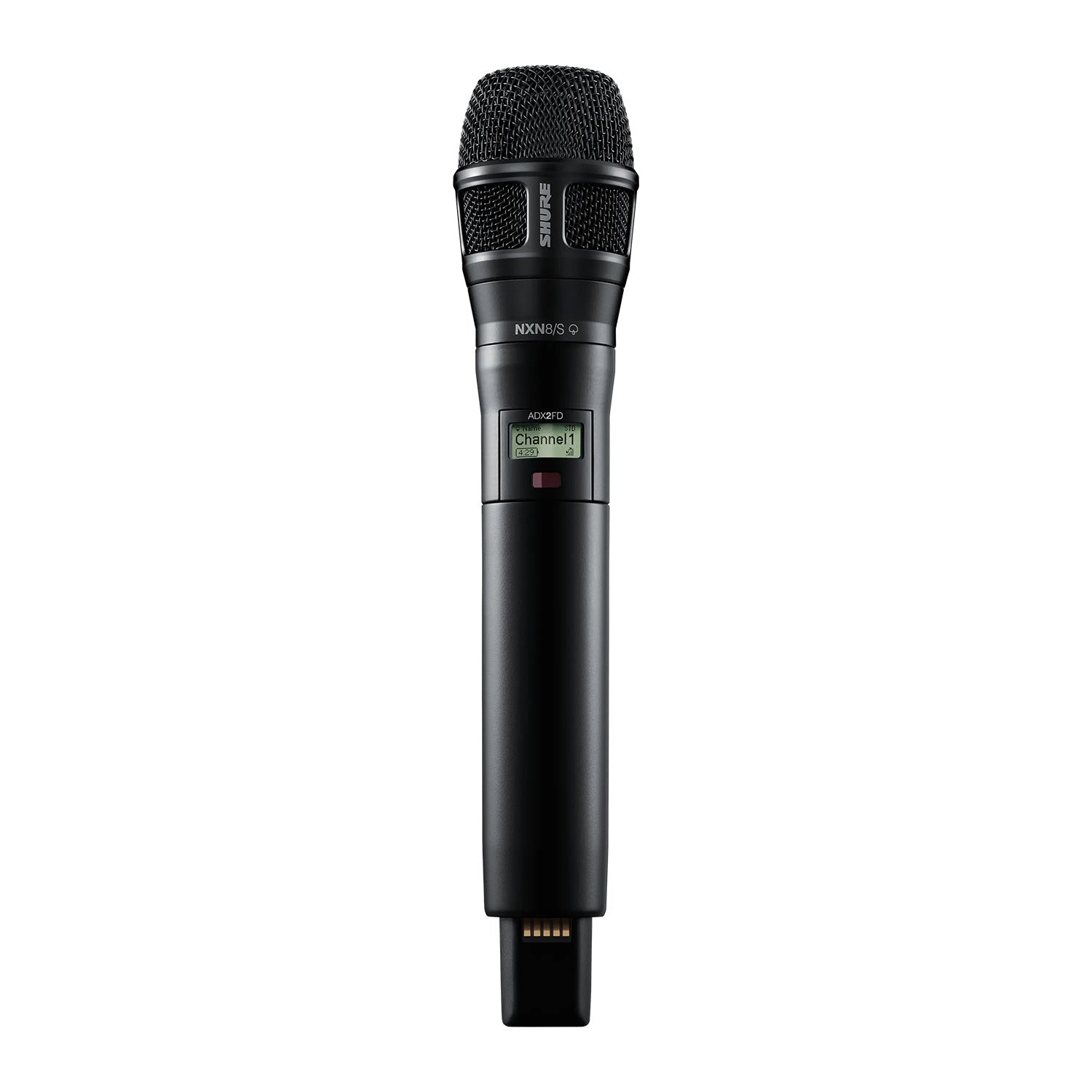

Shure ADX2FD/N8SB - Axient Digital Handheld Transmitter (G57 Band / 470-616 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Equipped with N8 supercardioid capsule, black body.
ADX2FD/N8, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
The ADX2FD/N8 is a handheld wireless microphone transmitter compatible with Axient¨ Digital Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:
- Ability to transmit RF signal on two discrete carriers
- Optional 50mW High Power mode for driving increased power on a single frequency
- Durable, moisture-resistant, lightweight metal case in black finish
- Up to 6.5 hours of runtime with SB920 rechargeable battery when transmitting on two RF carriers (up to 9 hours battery life when transmitting on a single RF carrier)
- External contacts for docked charging with optional fully covered radome
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
- Works with Axient¨ Digital Wireless Systems
- Ability to transmit RF signal on two discrete carriers for improved signal stability
- Features the N8 cartridge
- Includes two SB920 rechargeable batteries
| Mic Offset Range | _12 to 21 dB (in 3 dB steps) |
| Battery Type | Shure SB920 Rechargeable Li-Ion |
| Battery Runtime @ 10 mW | Single Carrier Mode: Up to 9 hours Frequency Diversity: Up to 6.5 hours |
| Dimensions | 254 mm _ 51 mm (10.0 in. _ 2.0 in.) L _ Dia. |
| Weight | 179 g (6.3 oz.), without battery |
| Housing | Cast Aluminum |
| Audio Input | |
| Configuration | Unbalanced |
| Maximum Input Level 1 kHz at 1% THD |
145 dB SPL, typical (SM58) Note: dependent on microphone type |
| RF Output | |
| Antenna Type | Integrated Dual-Band Helical |
| Occupied Bandwidth | <200 kHz |
| Channel-to-Channel Spacing | Standard Mode: 350 kHz High-Density Mode: 125 kHz |
| Modulation Type | Shure Axient Digital Proprietary |
| Power | Single Carrier Mode: 2 mW, 10 mW, 20 mW, 50 mW Frequency Diversity Mode: 2 _ 20 mW Varies by Region; See Available Frequency Bands and Ouput Power table. |
| ShowLink¬ | |
| Network Type | IEEE 802.15.4 |
| Antenna Type | ZigBee Dual Conformal |
| Frequency Range | 2.40 to 2.4835 GHz (24 Channels) |
| RF Output Power | Varies by Region 10 dBm (ERP) |
