Shure ADX3 - Plug-On Transmitter for Axient Digital Wireless (G57 Band / 470-616 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.

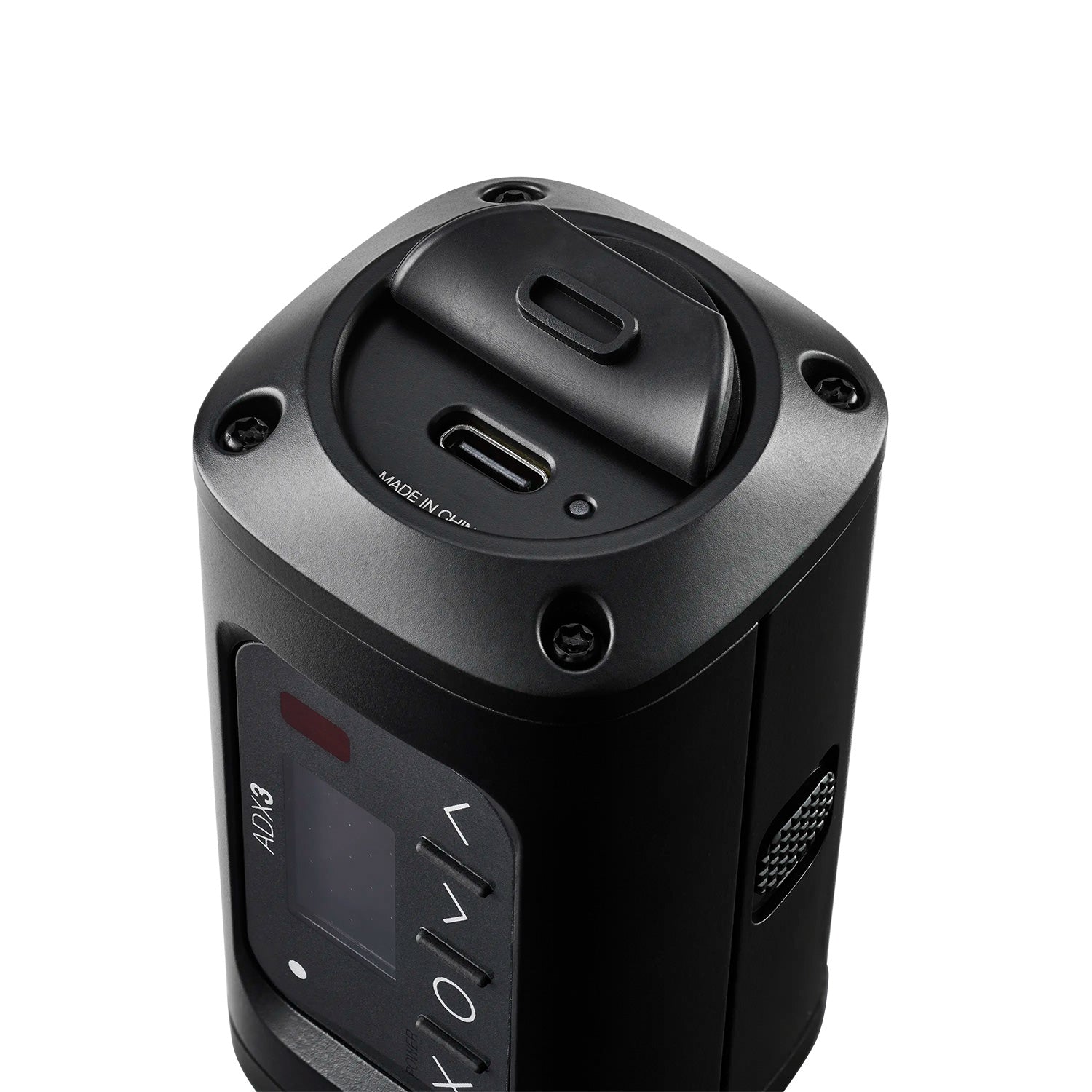

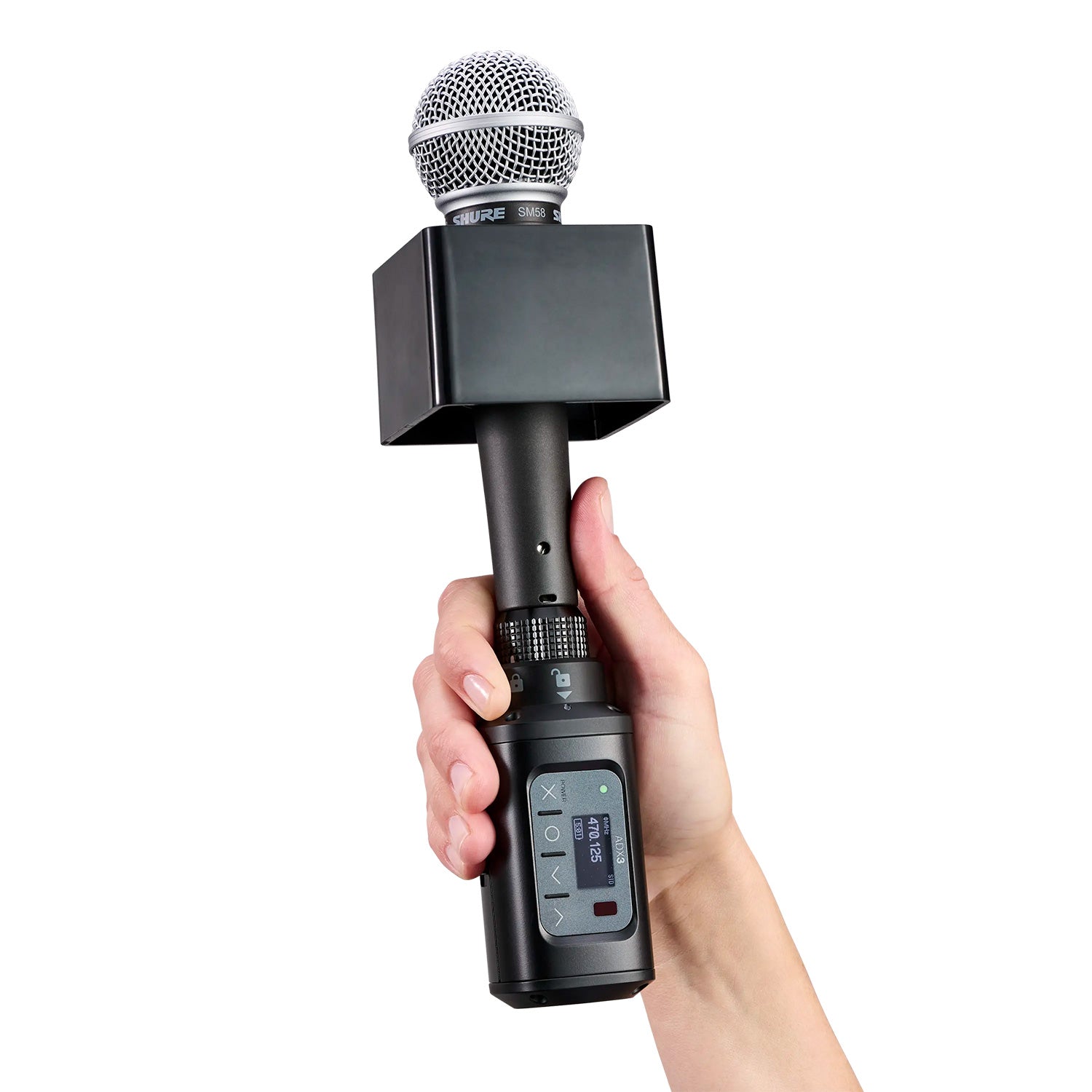

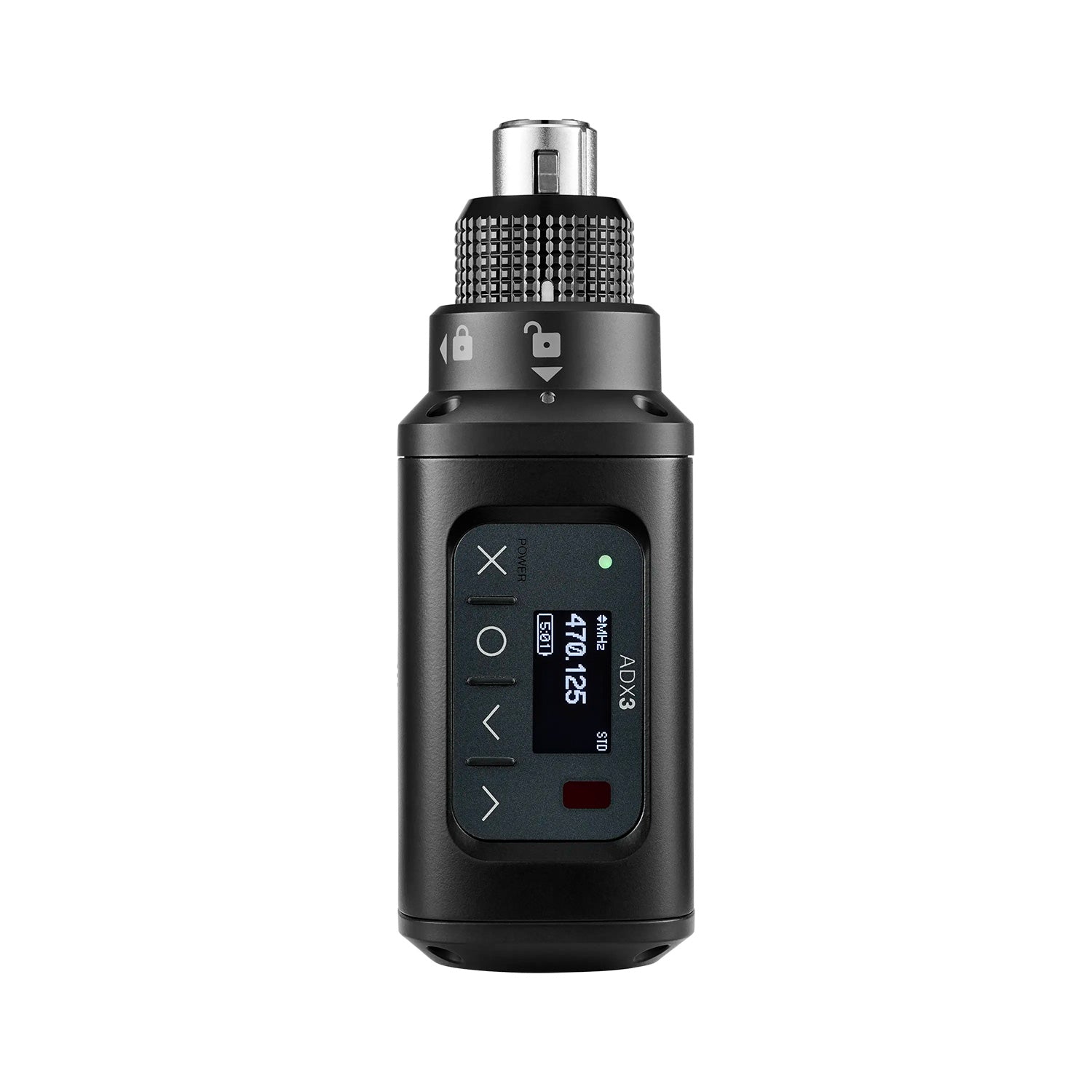

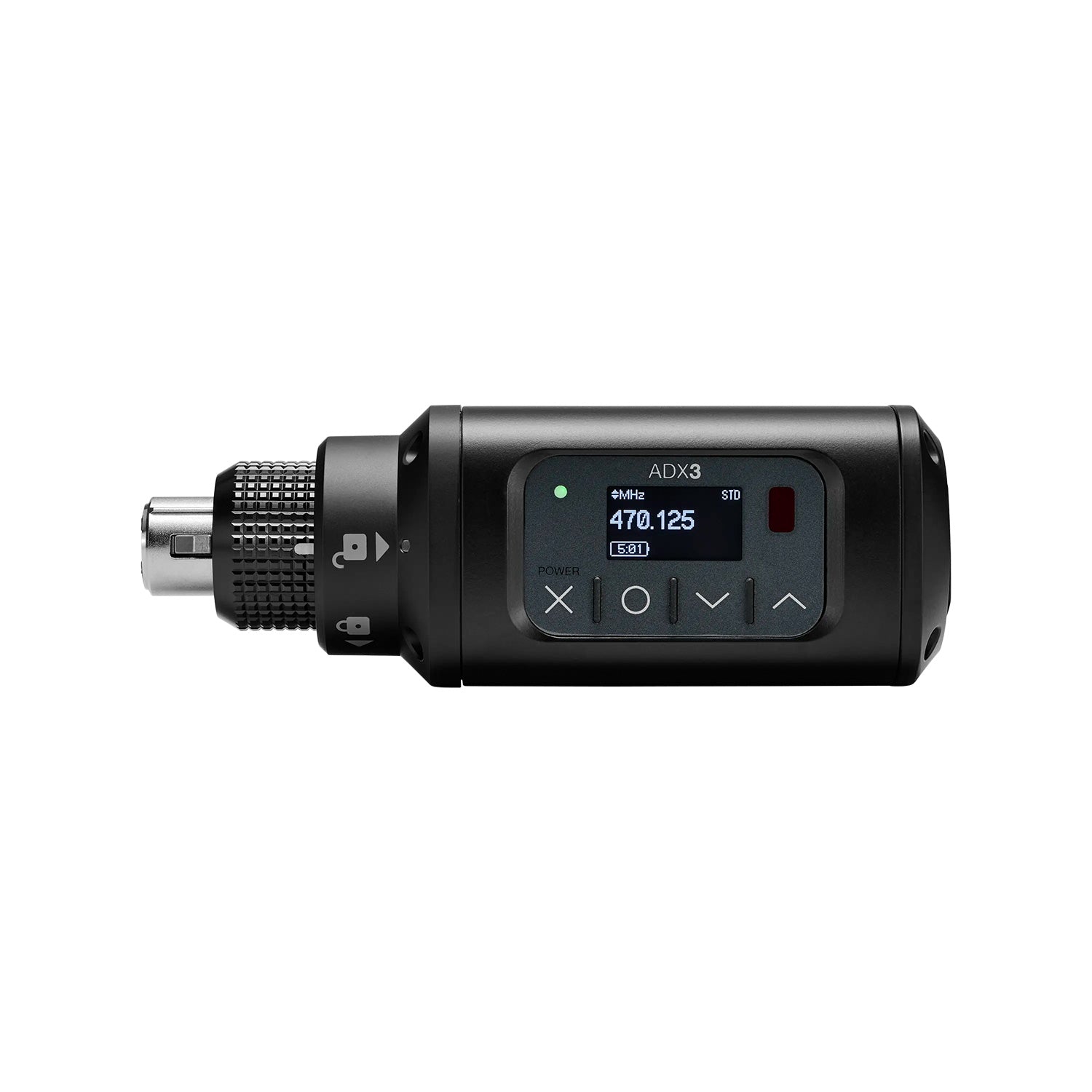

Shure ADX3 - Plug-On Transmitter for Axient Digital Wireless (G57 Band / 470-616 MHz)
Sale price$1,539.00
Regular price$1,924.00
Description

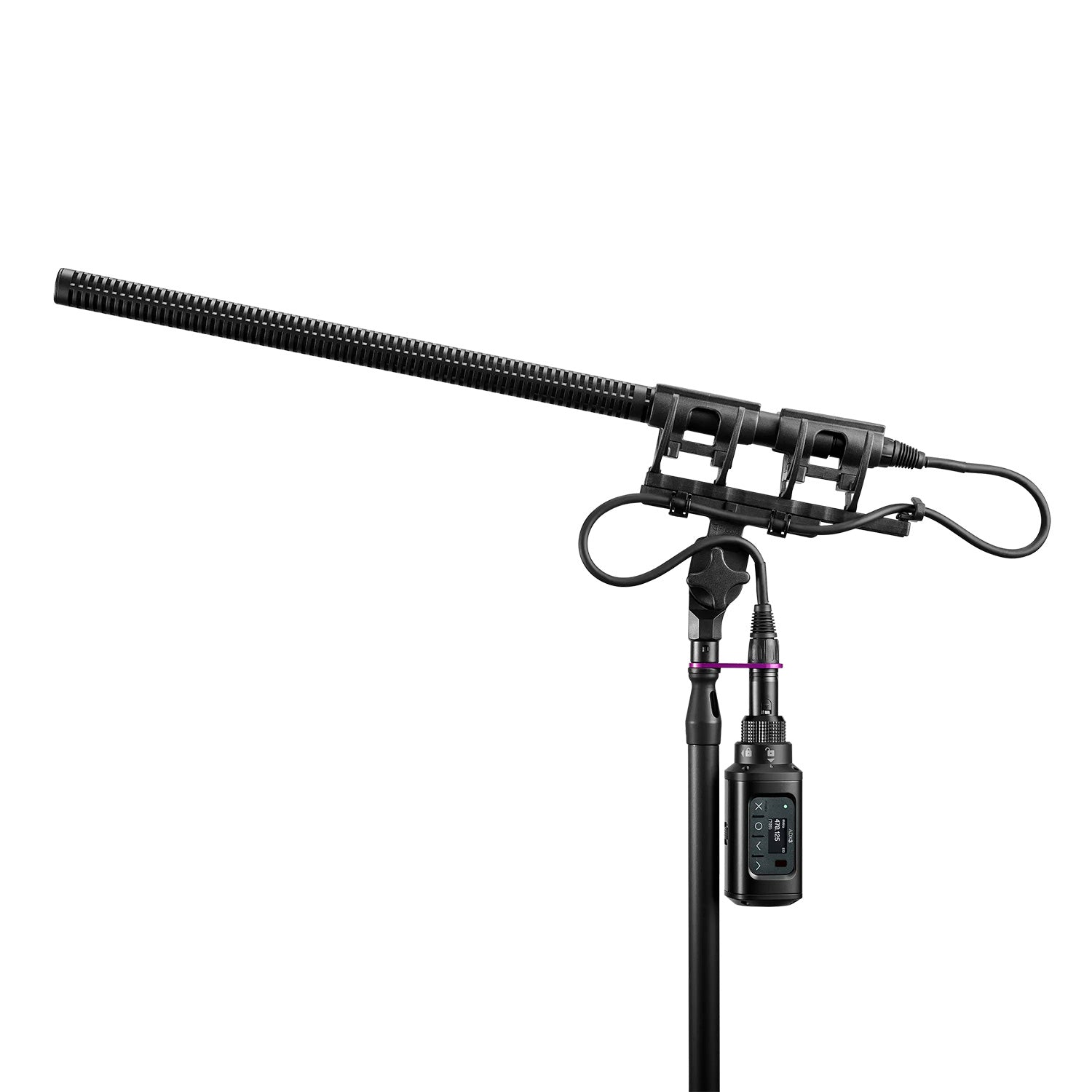

Leave the boom mic, plant mic, and interview mic exactly where they are and make necessary transmitter adjustments from the convenience of your cart, bag, camera, or truck. Axient Digital ADX3 plug-on transmitter with ShowLink provides comprehensive, real-time control of all transmitter parameters from the mix position. ADX3 plug-on transmitter features a secure XLR connector design, support for both Shure SB900-series rechargeable and AA batteries, and simple, user-friendly controls and menus.
Features:
- Axient Digital ADX Series wireless plug-on transmitter
- ShowLink enabled for comprehensive, real-time control of all Axient Digital transmitter parameters from the mix position
- Patented locking mechanism for secure, wobble-free connection
- OLED display with easy-to-navigate menu and controls
- Rugged metal construction that is resistant to dust and moisture
- Automatic input staging optimizes gain setting
- AES 256-bit encryption-enabled for secure transmission
- 300 feet (100 meter) line-of-sight operating range
- Selectable modulation modes optimize performance for spectral efficiency:
- Standard – Optimal coverage, low latency
- High density – Dramatic increase in max system channel count
- Switchable power levels (2/10/35 mW, region dependent)

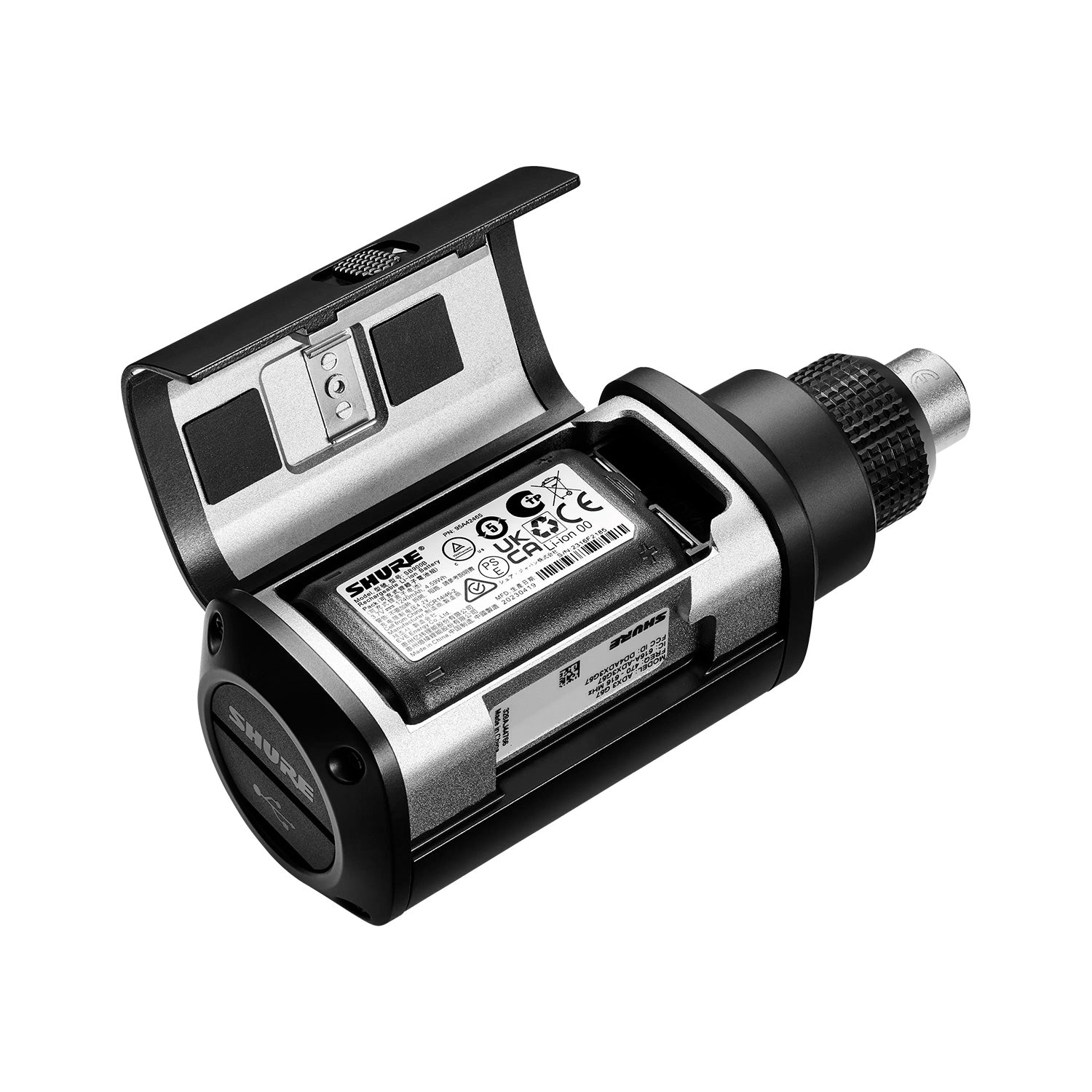

- Shure SB900 rechargeable battery (included) or AA battery (sold separately) options
- Shure SB900 lithium-ion rechargeable battery option provides up to 8 hours of continuous use, precision metering, and zero memory effect
- External power and charging option over USB-C port

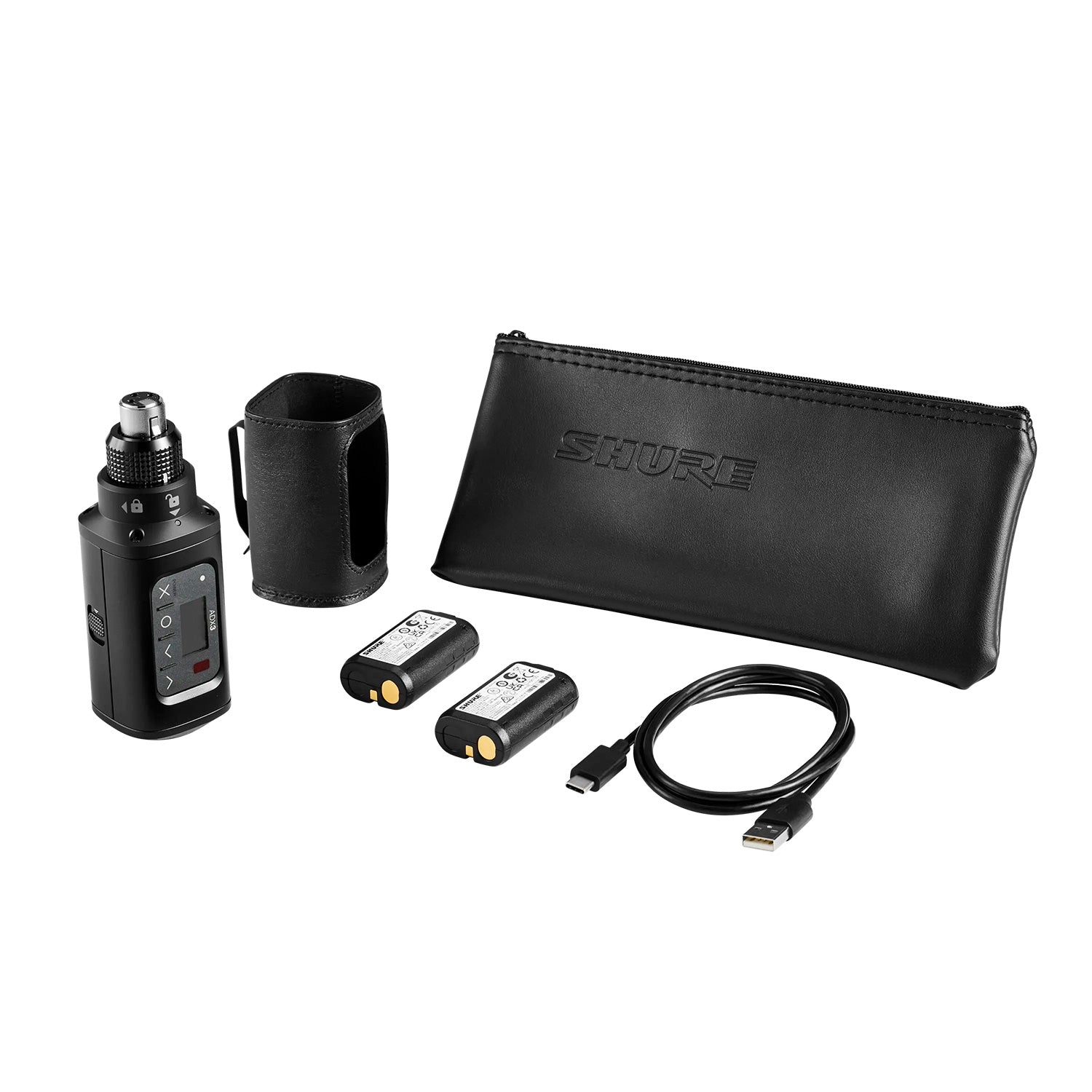

- Included: 2 x SB900B batteries, USB-A to USB-C cable, belt clip/pouch, and zippered bag for storage
| Mic Offset Range | -12 to 21 dB (in 1 dB steps) |
| Battery Type | Shure SB900-series rechargeable li-ion or LR6 AA batteries 1.5 V |
| Battery Runtime @ 10 mW | Shure SB900B:>6 hours Alkaline:>5 hours |
| Dimensions | 5.0 x 1.8 x 1.8 in. (126 x 44.5 x 44.5 mm) |
| Weight | 240 g (8.0 oz), without batteries 263 g (9.2 oz), with AA Batteries 280 g (9.8 oz), with SB900B |
| Housing | Cast metal |
| Operating Temperature Range | -14 to 122 ¡F (-10 to 50 ¡C) Note: battery characteristics may limit this range |
| Storage Temperature Range | -40 to 165 ¡F (-40 to 74 ¡C) Note: battery characteristics may limit this range |
| AUDIO INPUT | |
| Connector | 3-pin female XLR |
| Configuration | balanced |
| Impedance | Pad (-12 dB): 26.64 k½ 0 dB: 6.64 k½ Boost (12 dB): 6.64 k½ |
| Maximum input Level 1 kHz at 1% THD |
Pad (-12 dB): 21 dBV 0 dB: 9 dBV Boost (12 dB): -3 dBV |
| Preamplifier Equivalent Input Noise System Gain Setting ³+20 |
-115 dBV A-weighted, typical |
| Phantom Power | +48 V (7 mA maximum) +12 V (15 mA maximum) |
| High Pass Filter | Two-pole (12 dB per octave), cutoff frequency selectable from 40 to 240 Hz in 20 Hz increments |
| RF OUTPUT | |
| Antenna Type | Dipole |
| Impedance | 50 ½ |
| Occupied Bandwidth | <200 kHz |
| Channel-to-Channel Spacing | Standard Mode: 350 kHz High Density Mode: 125 kHz |
| Modulation Type | Shure Axient Digital Propietary |
| Power | 2 mW, 10 mW, 35 mW Varies by region. See Frequency Range and Output Power Table. |
| Specific Absorption Rate (SAR) | <0.1 W/kg |
| SHOWLINK¨ | |
| Network Type | IEEE 802.15.4 |
| Antenna Type | Dipole |
| Frequency Range | 2.4000 to 2.4835 GHz (16 Channels) |
| RF output Power | 10 dBm (ERP) Varies by region |
| IN THE BOX | |
| Accessories | 2 SB900B Batteries 1 USB-A to USB-C Cable 1 Belt Clip/Pouch 1 Zippered Storage Bag |
Leave the boom mic, plant mic, and interview mic exactly where they are and make necessary transmitter adjustments from the convenience of your cart, bag, camera, or truck. Axient Digital ADX3 plug-on transmitter with ShowLink provides comprehensive, real-time control of all transmitter parameters from the mix position. ADX3 plug-on transmitter features a secure XLR connector design, support for both Shure SB900-series rechargeable and AA batteries, and simple, user-friendly controls and menus.
Features:
- Axient Digital ADX Series wireless plug-on transmitter
- ShowLink enabled for comprehensive, real-time control of all Axient Digital transmitter parameters from the mix position
- Patented locking mechanism for secure, wobble-free connection
- OLED display with easy-to-navigate menu and controls
- Rugged metal construction that is resistant to dust and moisture
- Automatic input staging optimizes gain setting
- AES 256-bit encryption-enabled for secure transmission
- 300 feet (100 meter) line-of-sight operating range
- Selectable modulation modes optimize performance for spectral efficiency:
- Standard – Optimal coverage, low latency
- High density – Dramatic increase in max system channel count
- Switchable power levels (2/10/35 mW, region dependent)
- Shure SB900 rechargeable battery (included) or AA battery (sold separately) options
- Shure SB900 lithium-ion rechargeable battery option provides up to 8 hours of continuous use, precision metering, and zero memory effect
- External power and charging option over USB-C port
- Included: 2 x SB900B batteries, USB-A to USB-C cable, belt clip/pouch, and zippered bag for storage
| Mic Offset Range | -12 to 21 dB (in 1 dB steps) |
| Battery Type | Shure SB900-series rechargeable li-ion or LR6 AA batteries 1.5 V |
| Battery Runtime @ 10 mW | Shure SB900B:>6 hours Alkaline:>5 hours |
| Dimensions | 5.0 x 1.8 x 1.8 in. (126 x 44.5 x 44.5 mm) |
| Weight | 240 g (8.0 oz), without batteries 263 g (9.2 oz), with AA Batteries 280 g (9.8 oz), with SB900B |
| Housing | Cast metal |
| Operating Temperature Range | -14 to 122 ¡F (-10 to 50 ¡C) Note: battery characteristics may limit this range |
| Storage Temperature Range | -40 to 165 ¡F (-40 to 74 ¡C) Note: battery characteristics may limit this range |
| AUDIO INPUT | |
| Connector | 3-pin female XLR |
| Configuration | balanced |
| Impedance | Pad (-12 dB): 26.64 k½ 0 dB: 6.64 k½ Boost (12 dB): 6.64 k½ |
| Maximum input Level 1 kHz at 1% THD |
Pad (-12 dB): 21 dBV 0 dB: 9 dBV Boost (12 dB): -3 dBV |
| Preamplifier Equivalent Input Noise System Gain Setting ³+20 |
-115 dBV A-weighted, typical |
| Phantom Power | +48 V (7 mA maximum) +12 V (15 mA maximum) |
| High Pass Filter | Two-pole (12 dB per octave), cutoff frequency selectable from 40 to 240 Hz in 20 Hz increments |
| RF OUTPUT | |
| Antenna Type | Dipole |
| Impedance | 50 ½ |
| Occupied Bandwidth | <200 kHz |
| Channel-to-Channel Spacing | Standard Mode: 350 kHz High Density Mode: 125 kHz |
| Modulation Type | Shure Axient Digital Propietary |
| Power | 2 mW, 10 mW, 35 mW Varies by region. See Frequency Range and Output Power Table. |
| Specific Absorption Rate (SAR) | <0.1 W/kg |
| SHOWLINK¨ | |
| Network Type | IEEE 802.15.4 |
| Antenna Type | Dipole |
| Frequency Range | 2.4000 to 2.4835 GHz (16 Channels) |
| RF output Power | 10 dBm (ERP) Varies by region |
| IN THE BOX | |
| Accessories | 2 SB900B Batteries 1 USB-A to USB-C Cable 1 Belt Clip/Pouch 1 Zippered Storage Bag |
