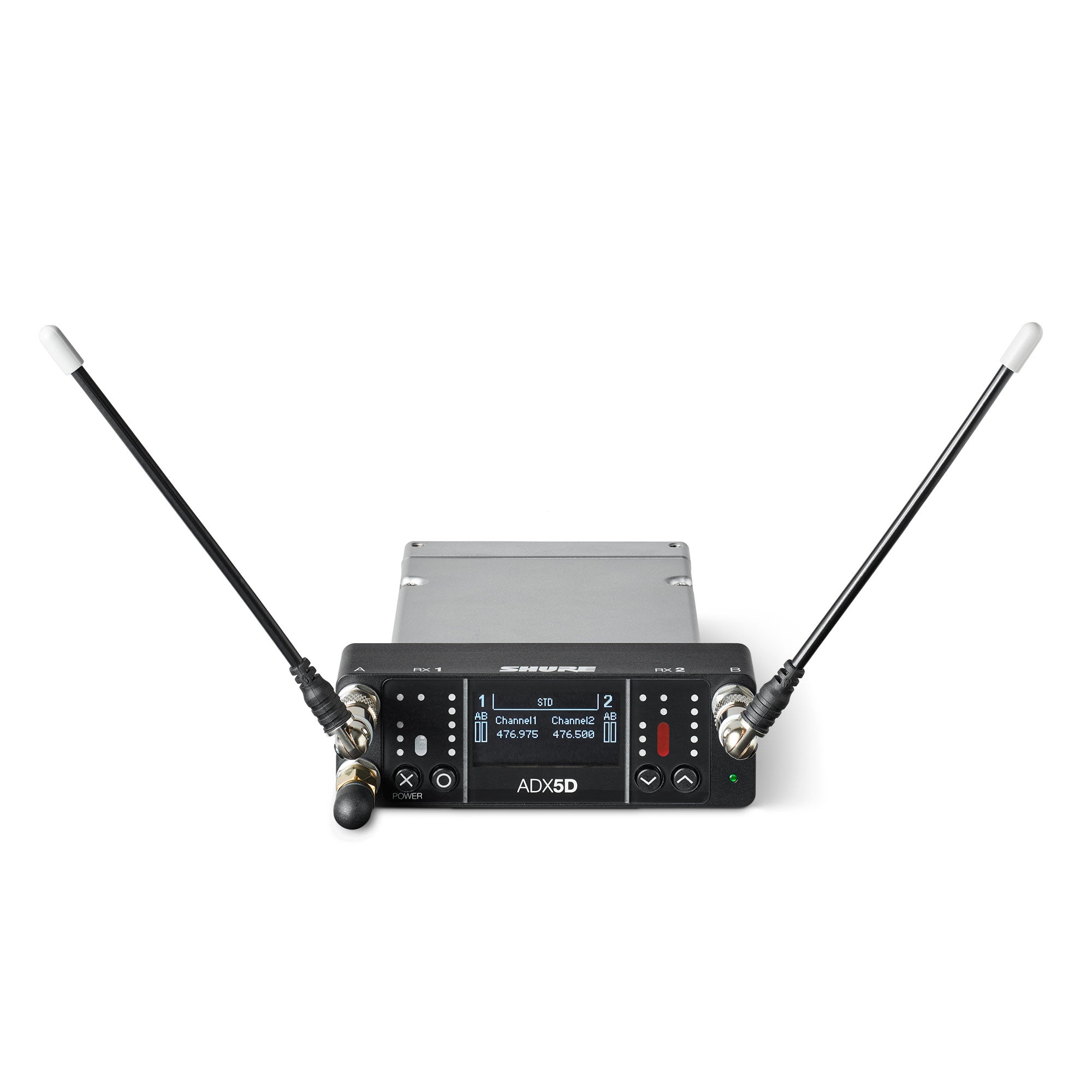

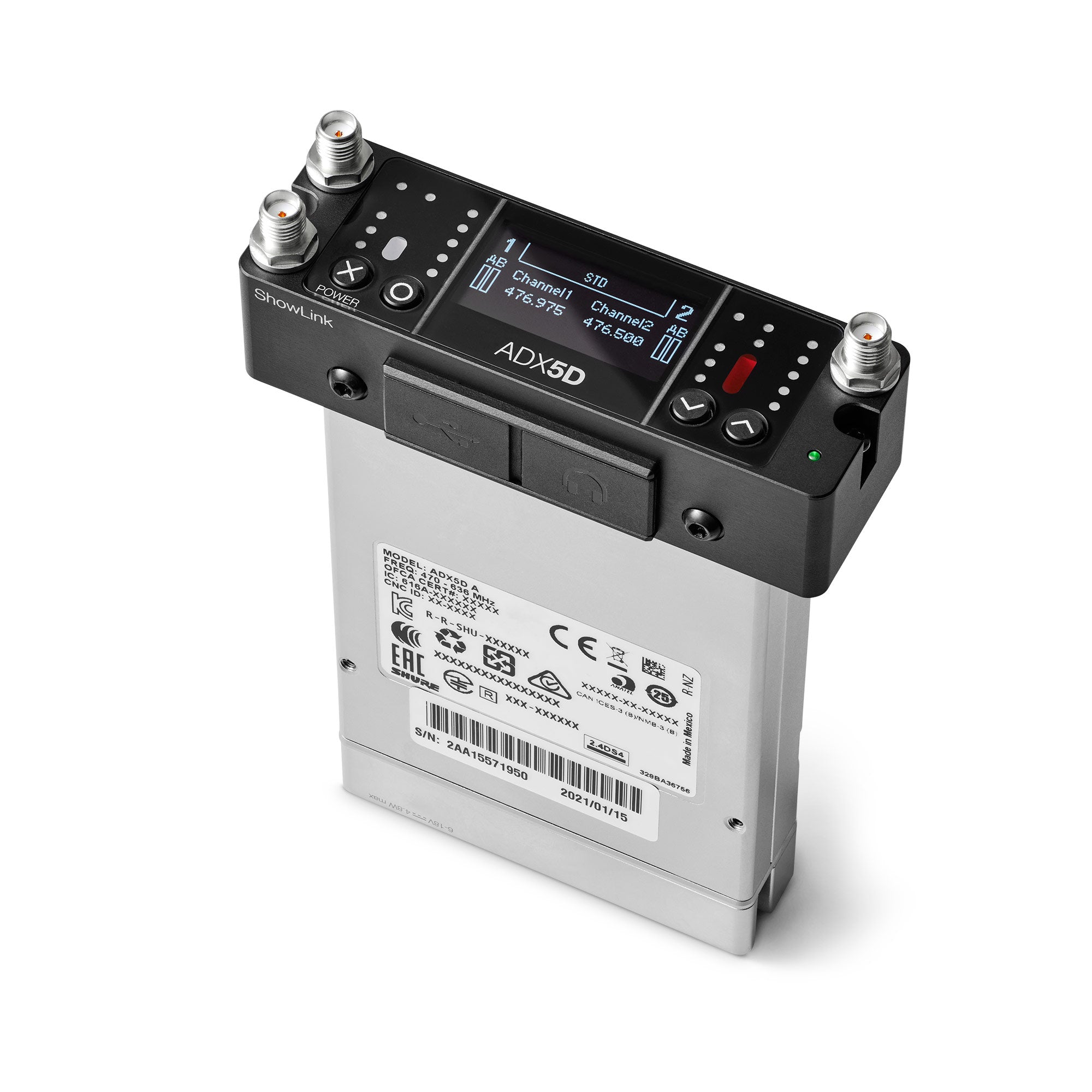

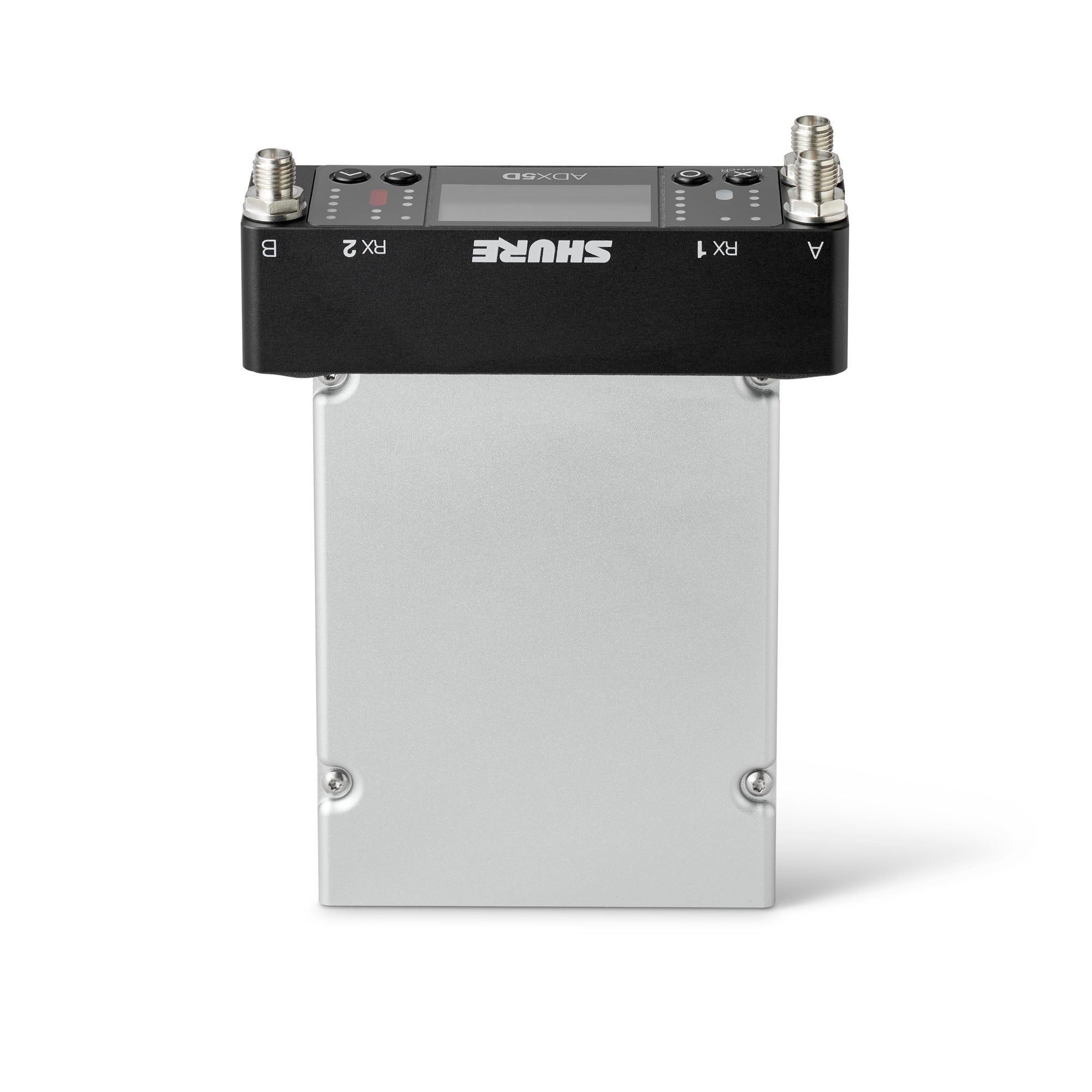

Shure ADX5D - Axient Digital Camera Mount Wireless Receiver (B Band / 606-810 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Axient Digital ADX5D dual-channel wireless receiver delivers superior RF performance, spectral efficiency, and transparent audio quality in a portable, slot-in form. As an Axient Digital ADX Series wireless receiver, the ADX5D features ShowLink Direct Mode that allows remote control of Axient Digital transmitters without the need of external equipment.* Robust RF. Impeccable audio. Axient Digital quality and performance. All in a portable, slot-in design.
Features:
- Dual-channel slot-in form wireless receiver
- Wide tuning range up to 184 MHz (region dependent)
- High spectral efficiency due to advanced digital modulation scheme offers more wireless channels in available RF space
- High Density (HD) mode provides even higher spectral efficiency (application dependent)
- True digital diversity reception per channel for drop-out resistance and excellent range
- Impeccable audio quality
- Networked control with Wireless Workbench software and ShurePlus Channels app
- 5-segment Channel Quality meters displays per-channel RF link quality
- ADX series receiver with ShowLink Direct Mode allows remote control of Axient Digital transmitters without the need of external equipment*

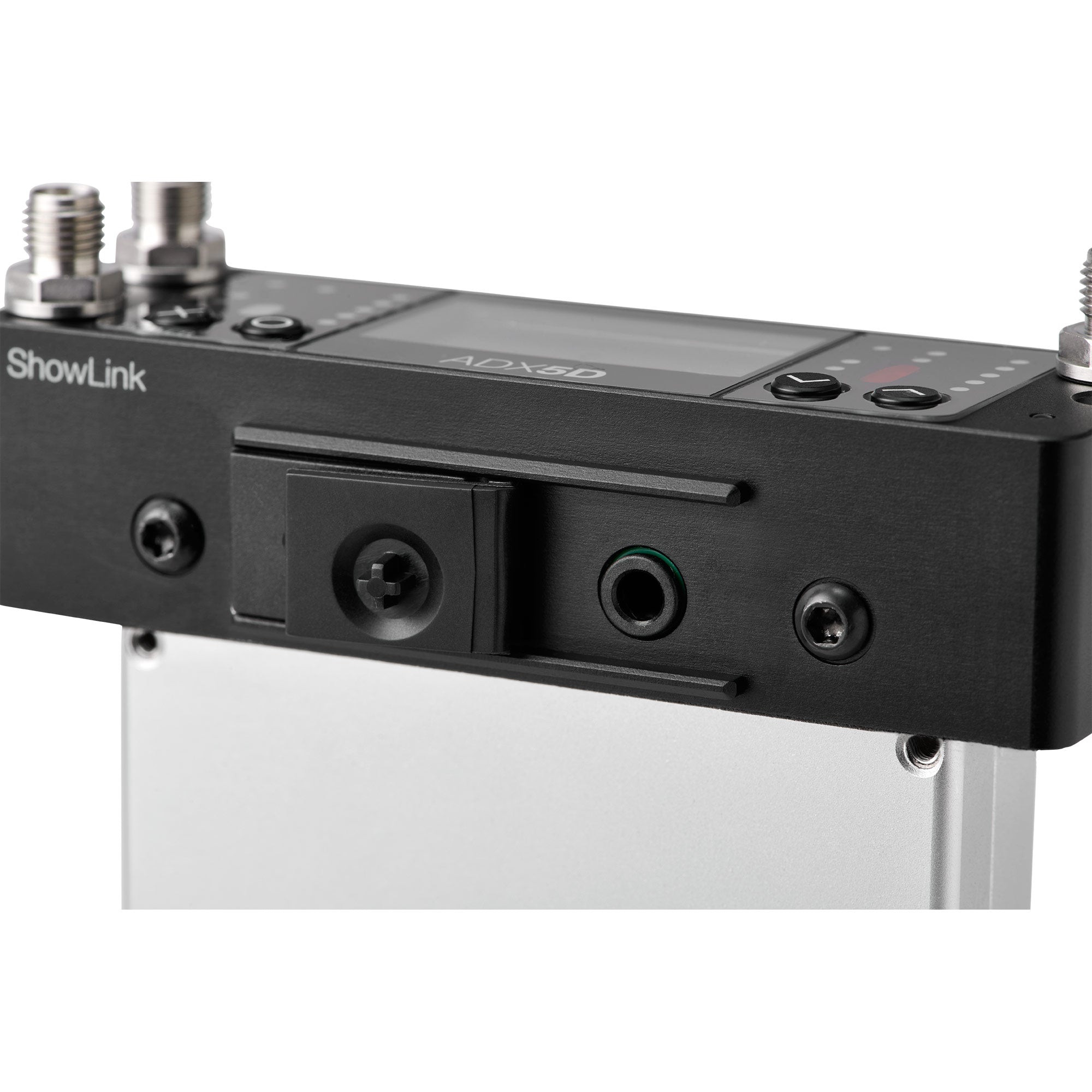

- Aux 3.5mm audio output provide connection to headphones or to a balanced line level input
- Three backplate connector options to suit various applications and connector types** (sold separately)
- Accessory Mount with cold shoe adapter (sold separately)
- Removable antennas with standard SMA connectors

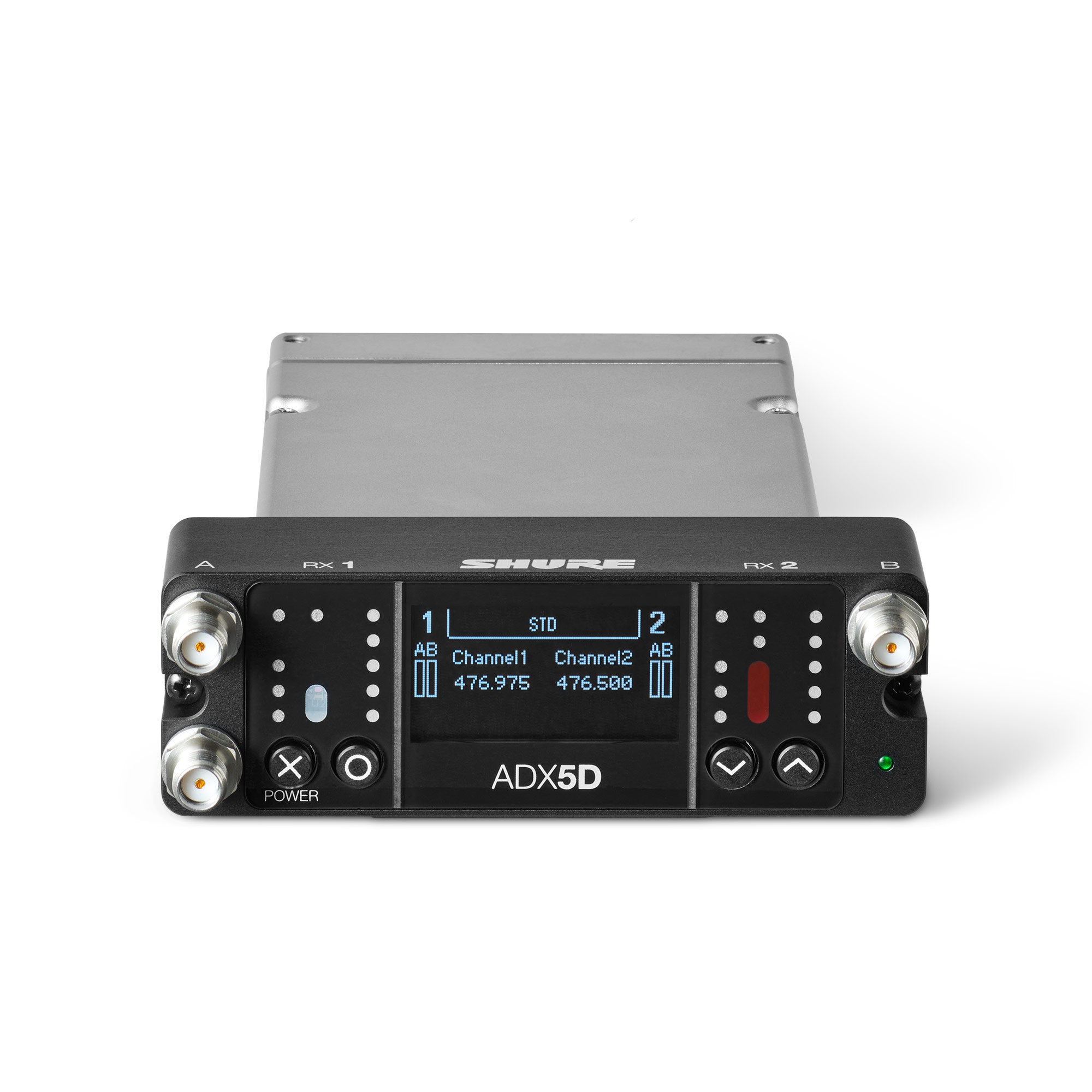

- High-resolution OLED display

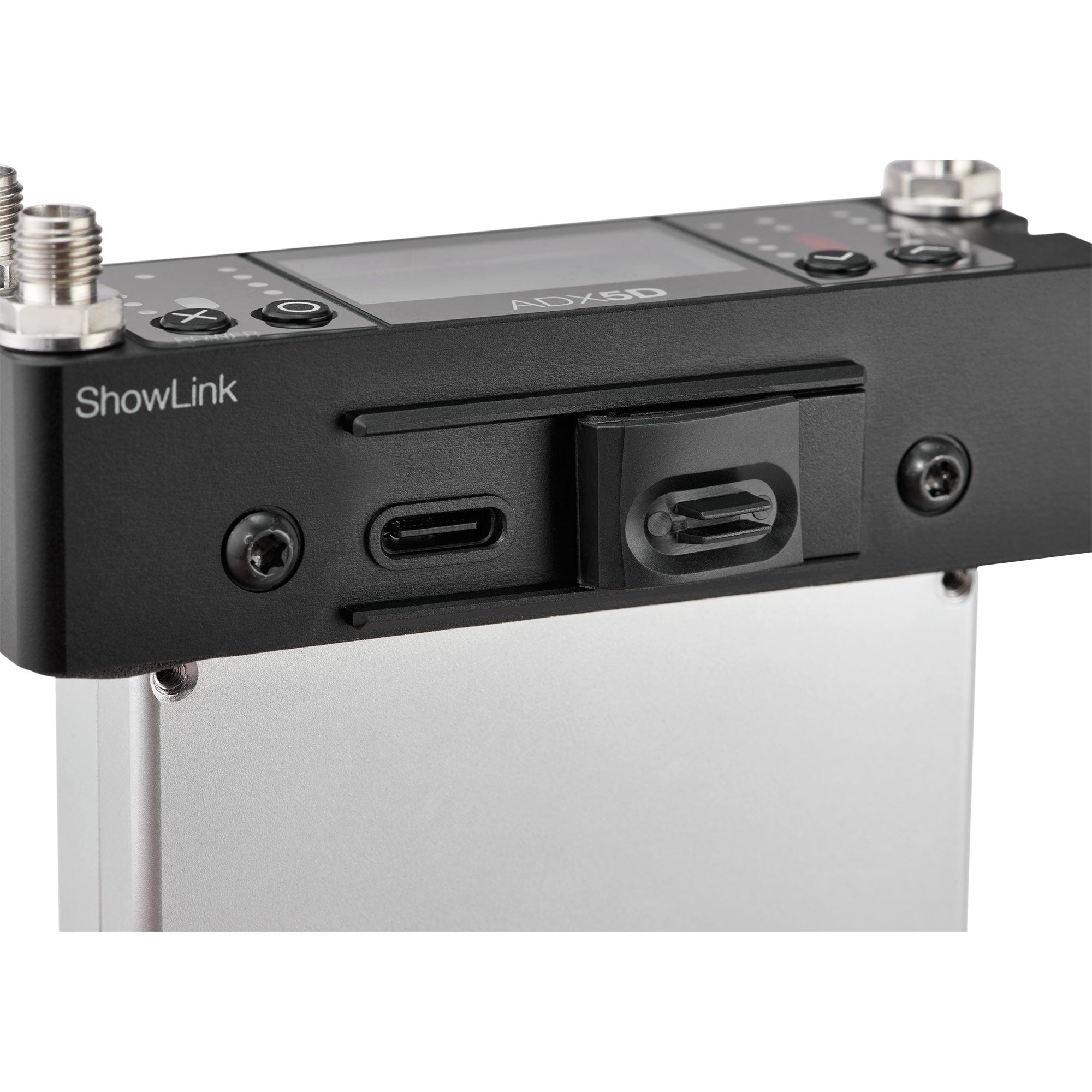

- USB-C port for firmware upgrades
- Streamline user interface
- Low latency, down to 2 milliseconds
* ShowLink functionality is not available when integrated with third party control devices in United States models.
** Interference avoidance functionality is limited to MANUAL mode when using DB15 or DB25 backplates with United States models.
| UHF | |
| RF Carrier Frequency Range | 470 - 1000 MHz Varies by region |
| Working Range | SD Mode: 246 ft (75 m) HD Mode: 131 ft (40 m) Note: Actual range depends on RF signal absorption, reflection and interference. |
| RF Sensitivity | -90 dBm @ 10-5 BER |
| Spurious Rejection | over 80 dB typical |
| Connector Type | SMA (Shell=Ground, Center=Signal) |
| Impedance | 50 ? |
| AUDIO OUTPUT | |
| Gain Adjustment Range | -18 to +42 dB, in 1 dB steps (plus Mute setting) |
| Impedance | 66 ? Typical, TA3 Out |
| Full Scale Output | +9 dBV, 200 k? load |
| Phantom Power Protection | Yes 3.5 mm output does not have Phantom Power Protection |
| Audio Frequency Response | 20 Hz to 20 kHz Dependent on Microphone Type |
| Dynamic Range | 129 dB |
| Total Harmonic Distortion | 0.0006% at -6 dBFS, 1 kHz |
| System Audio Polarity | Positive pressure on diaphragm produces positive voltage on Audio_ with respect to Audio?. |
| Analog Output Latency | SD Mode: 2.08 ms HD Mode: 2.96 ms |
| USB INPUT | |
| Connector Type | USB-C |
| USB Protocol | USB 2.0 |
| USB Role | Peripheral (upstream-facing port) |
| USB Power Delivery | None |
| POWER | |
| DC Power Requirements | 6 to 18 VDC |
| Thermal Power Dissipation | Max: 4.8 W (78 BTU/hr) Nominal: 4.2 W (51 BTU/hr) Min: 2.3 W (X BTU/hr) |
| MECHANICAL | |
| Dimensions (H •À_ W •À_ D) | 1.1 •À_ 3.4 •À_ 4.25 in (29 •À_ 88 •À_ 108 mm) |
| Weight | 0.53 lbs (0.24 kg) without antennas or backplate |
| Housing | Machined Aluminum |
| SHOWLINK•À_ | |
| Frequency Range | 2.40 to 2.4835 GHz (16 Channels) |
| Working Range | 100 ft (30 m) Note: Actual range depends on RF signal absorption, reflection and interference. |
| Connector Type | SMA (Shell=Ground, Center=Signal) |
| Impedance | 50 ? |
| ShowLink•À_ Antenna Power | 2.5 dBm EIRP |
| Antenna Type | 1 Omni 2.4 GHz |
| Network Type | IEEE 801.15.4 |
