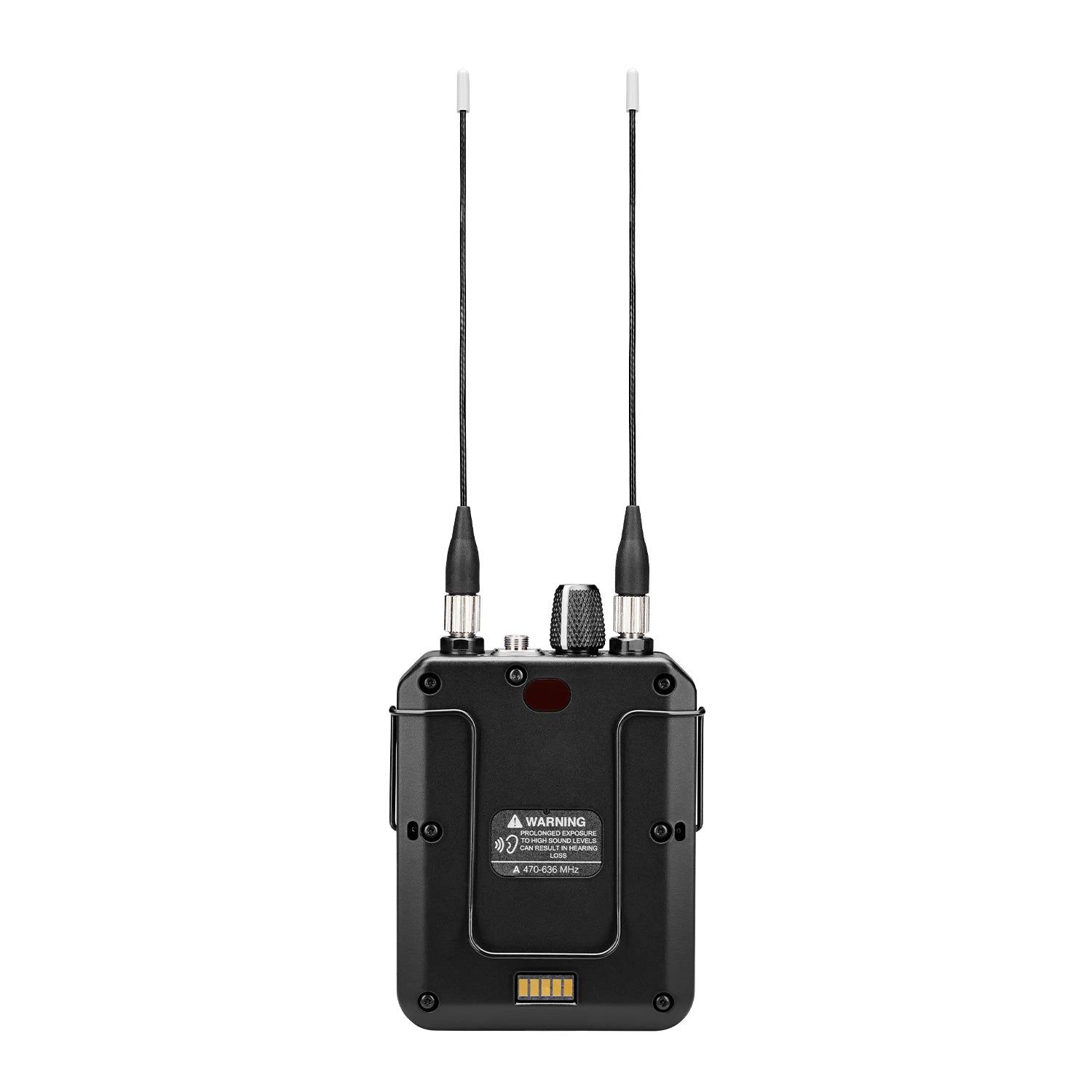

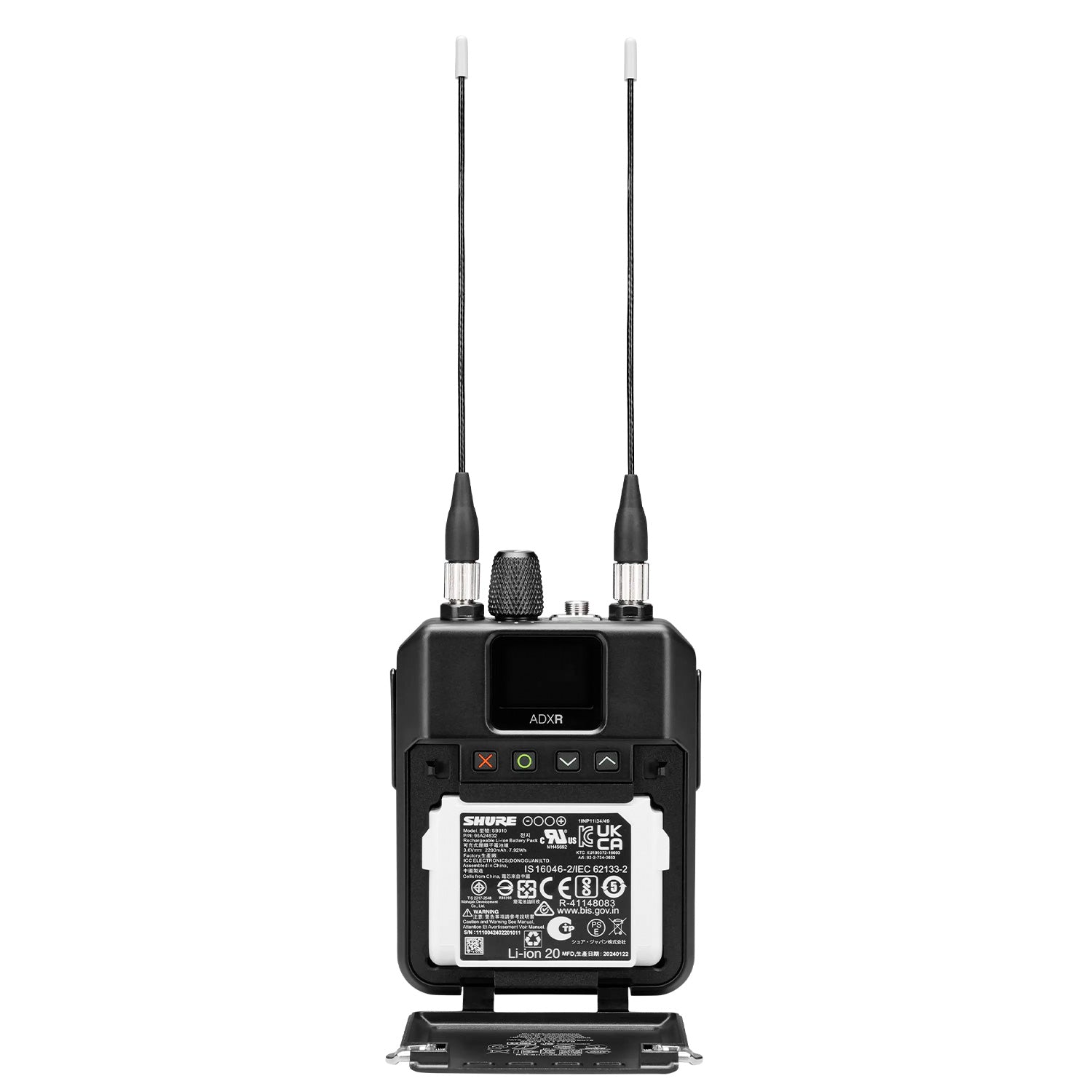

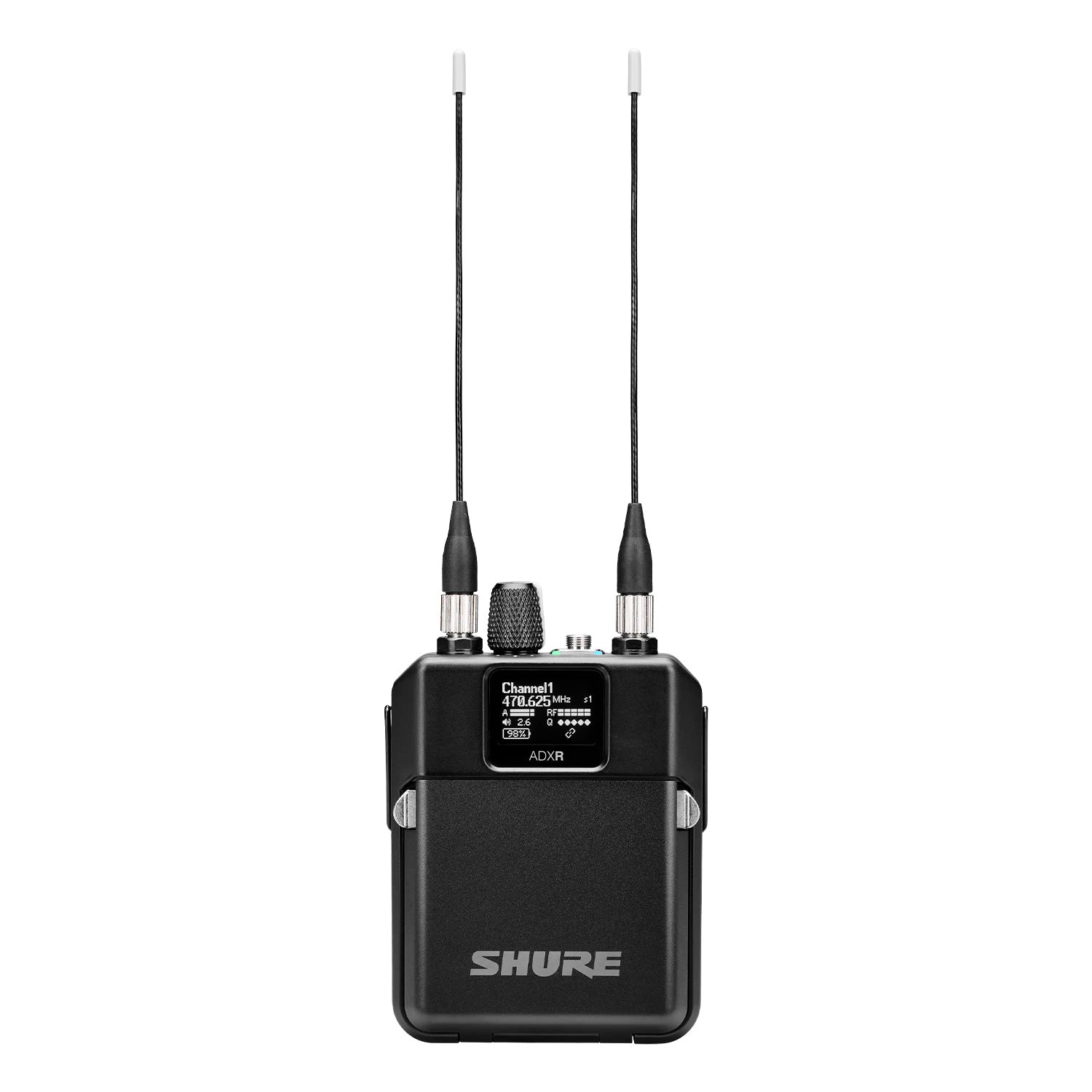

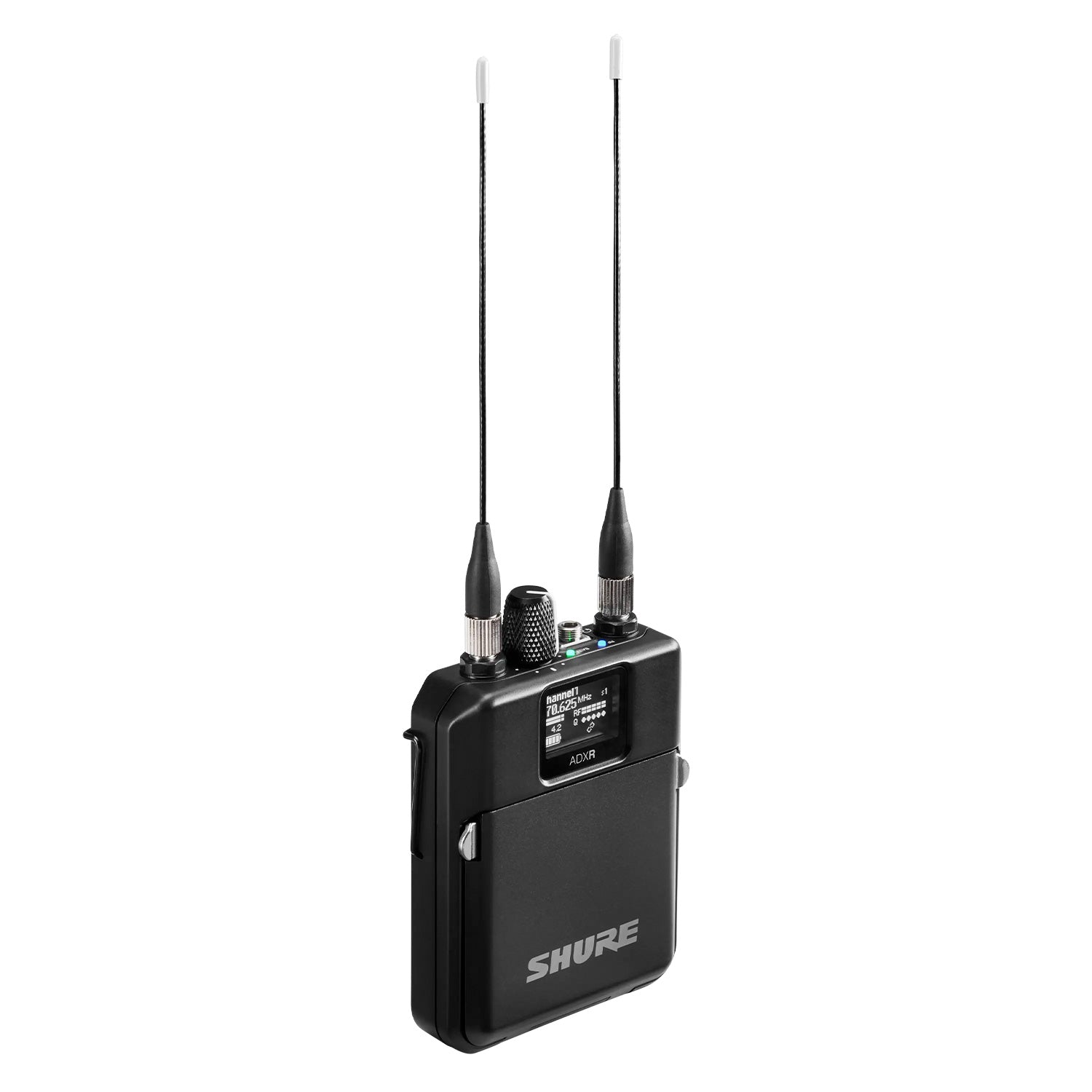

Shure ADXR - Axient Digital PSM Wireless Bodypack Receiver (A Band / 470-636 MHz)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The ADXR Wireless Bodypack Receiver for Axient Digital PSM delivers the highest quality personal monitoring experience for performances on the biggest stages and most prestigious arenas. Tour-grade features include True Digital Diversity that combines two discrete RF signals for greater RF quality and range, ShowLink® that provides engineers with comprehensive real-time remote control of all the ADXR parameters, and CueMode that allows engineers to easily monitor up to 64 encrypted stage mixes from a single pack. Superior stereo separation, crisp, clear digital audio, and Automatic Impedance Detection that allows ADXR to pair with any professional in-ear monitors brings unprecedented clarity and simplicity to global artists everywhere. Axient Digital PSM ADXR is compatible with the Axient Digital PSM ADTQ and ADTD wireless transmitters.
Features:
- Axient Digital PSM wireless bodypack receiver for onstage in-ear monitoring and broadcast IFB
- ShowLink technology delivers real-time remote control of all ADXR bodypack wireless receiver parameters from the monitor mix position and elsewhere
- True Digital Diversity reception combines two discrete RF signals, dramatically improving signal reception and range
- Superior stereo separation
- Wide tuning range to cover more cities, festivals, and events on tour
- CueMode with encryption supports monitoring of different stage mixes and storing of up to 64 separate channels on one bodypack for quick and easy reference
- Durable, moisture-resistant design with lightweight hybrid aluminum/polymer enclosure

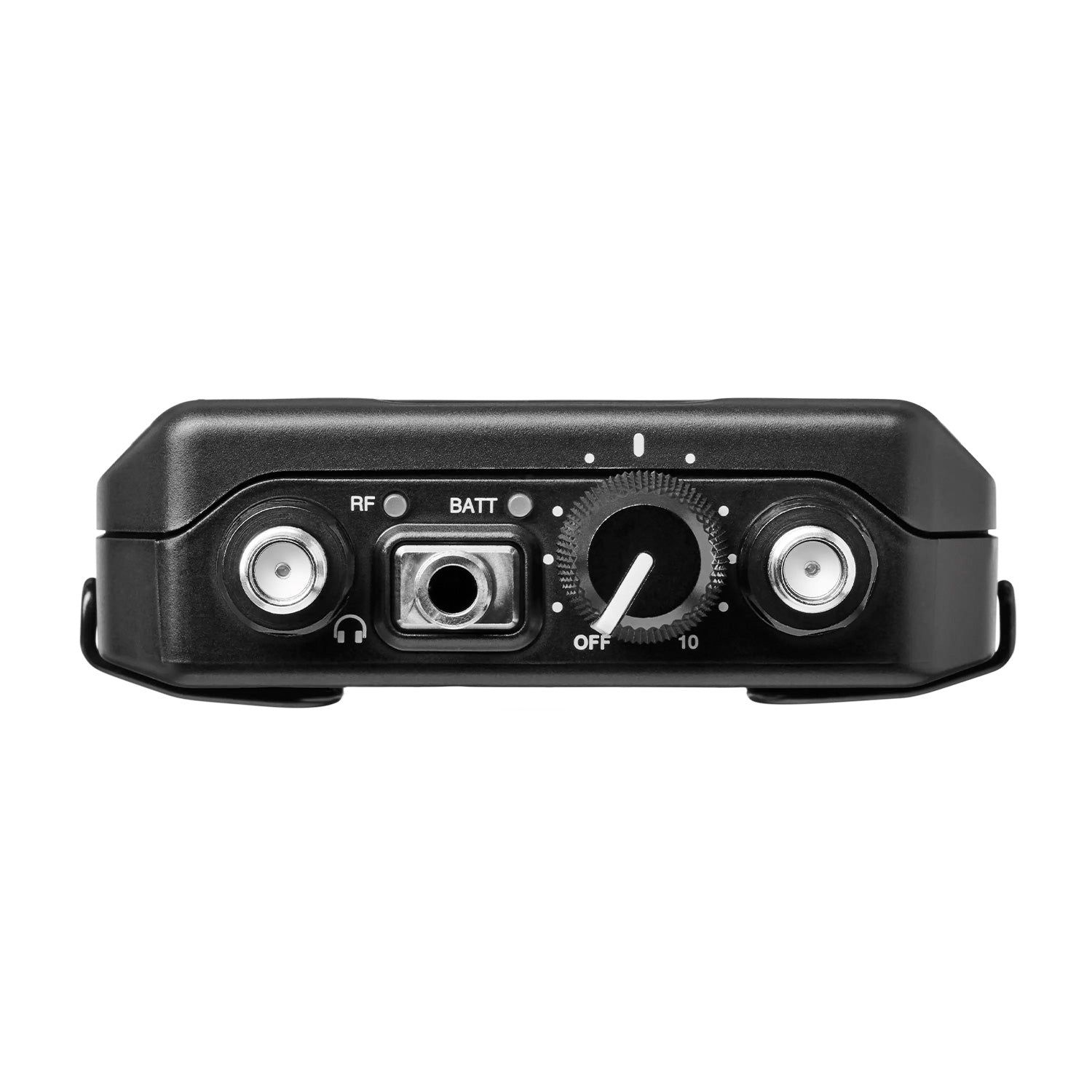

- Threaded headphone connector for added protection against sweat and moisture
- External charging contacts for convenient docked charging
- Includes 2 x SB910 lithium-ion rechargeable batteries
| System Specifications | |
| RF Carrier Frequency Range | 470 to 1260 MHz, varies by region (see frequency tables) |
| Working Range | 100 m (330 ft) Note: Actual range depends on RF signal absorption, reflection and interference. |
| RF Tuning Step Size | 25 kHz (typical) |
| Sensitivity | Analog FM -94 dBm (typical) at 27 dB SINAD Digital -93 dBm (typical) at 10e-5 BER |
| Latency (Analog Input) | Analog FM 1.29 ms Digital ²2.8 ms |
| Audio Frequency Response | 20 Hz _ 15 kHz (±1 dB) |
| Signal-to-Noise Ratio | Digital: 110 dB (typical) |
| Total Harmonic Distortion | Analog FM < 0.5% (typical)Ref. at ±34 kHz deviation @1 kHz Ref. at ±34 kHz deviation @1 kHz Digital < 0.01% (typical)Ref. at ±18 dBv, 1 kHz, digital gain @ 0 dB Ref. at ±18 dBv, 1 kHz, digital gain @ 0 dB |
| MPX Pilot Tone (Analog FM) | 19 kHz |
| System Audio Polarity | Not inverted |
| ADXR Wireless Bodypack Receiver | |
| Dimensions | 102 mm _ 68 mm _ 21.5 mm (4.0 in. x 2.7 in. x 0.85 in.) H x W x D |
| Weight | 124 g (4.4 oz.), without battery |
| Housing | Aluminum 6061-T6, PC/ABS |
| Battery Type | Shure SB910 Rechargeable Li-Ion, or _3 AAA batteries via SB913A battery sled |
| Operating Temperature Range | -18¡C (0¡F) to 50¡C (122¡F) Note: Battery characteristics may limit this range. |
| Storage Temperature Range | -29¡C (-20¡F) to 74¡C (165¡F) Note: Battery characteristics may limit this range. |
| Battery Runtime | Up to 5.25 hours in True Digital Diversity |
| Audio Connector | Locking 3.5mm (_") TRS |
| Minimum Load Impedance | 2 ½ |
| Output Impedance | <1 ½ |
| Audio Output Power | 100 mW @ 32 ½ |
| L/R Stereo Separation | 300 ½>75 dB 600 ½>90 dB 1 k½>100 dB |
| Dynamic Range | 110 dB, A-weighted |
| RF Input Antenna Type | _ wave Varies by hardware variant |
| Connector Type | SMA |
| Impedance | 50 ½ |
| Spurious Rejection | >80 dB (typical) |
| Image Rejection | >80 dB |
| Squelch Threshold | 22 dB SINAD (±3 dB) in Analog FM mode |
| ShowLink | |
| Network Type | IEEE 802.15.4 |
| Antenna Type | Zigbee Dual Conformal |
| Frequency Range | 2.40 to 2.4835 GHz (16 channels) |
| RF Output Power | 10 dBm (ERP) varies by region |
| Receiver Frequency Bands | |
| A (470 to 636 MHz) | G53 470 to 510 G54 479 to 565 G55 470 to 636* G56/G56J/G56K 470 to 636 G57 470 to 608 G63 487 to 636 H54 520 to 636 |
| B (606 to 810 MHz) | K54 606 to 663** K55 606 to 694 K56 606 to 714 K58 622 to 698 K60 614 to 703 L60 630 to 698 **includes duplex gap |
| C (925 to 960 MHz) | X51 925 to 937.5 X55 941 to 960 |
The ADXR Wireless Bodypack Receiver for Axient Digital PSM delivers the highest quality personal monitoring experience for performances on the biggest stages and most prestigious arenas. Tour-grade features include True Digital Diversity that combines two discrete RF signals for greater RF quality and range, ShowLink® that provides engineers with comprehensive real-time remote control of all the ADXR parameters, and CueMode that allows engineers to easily monitor up to 64 encrypted stage mixes from a single pack. Superior stereo separation, crisp, clear digital audio, and Automatic Impedance Detection that allows ADXR to pair with any professional in-ear monitors brings unprecedented clarity and simplicity to global artists everywhere. Axient Digital PSM ADXR is compatible with the Axient Digital PSM ADTQ and ADTD wireless transmitters.
