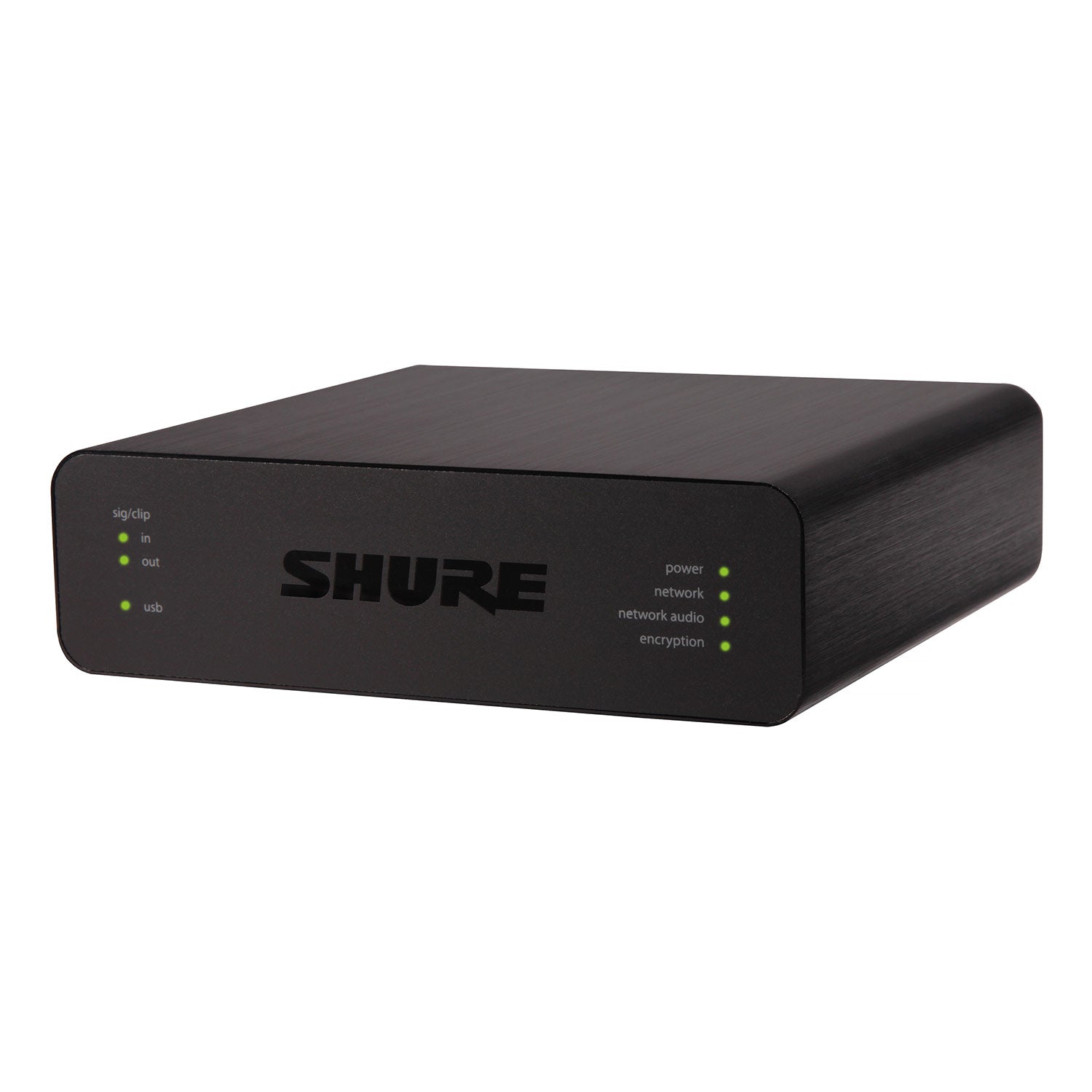

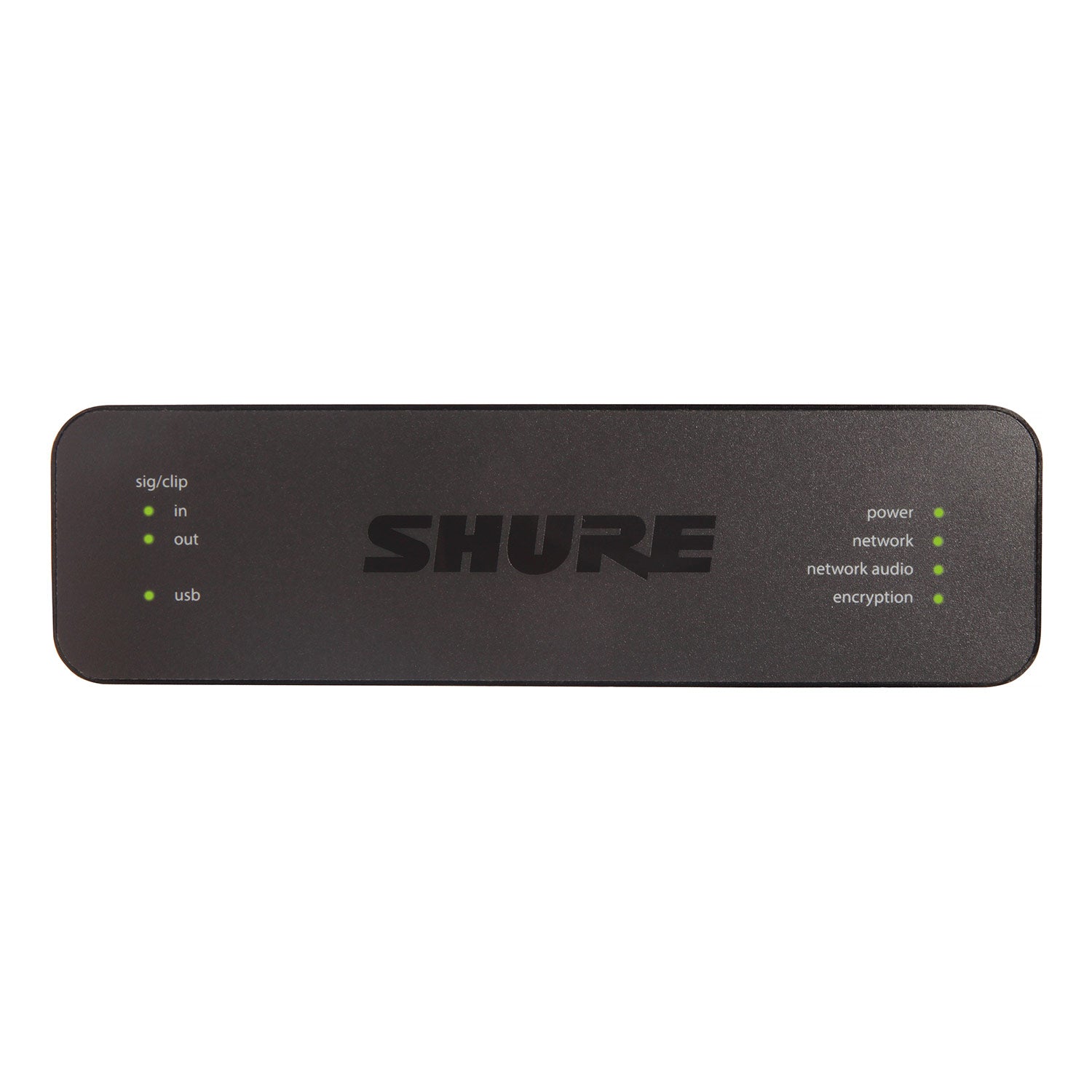

Shure ANIUSB-MATRIX USB Audio Network Interface with Matrix Mixing
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Audio network interface connects up to 4 Dante channels and 1 analog output to a room's audio and video conferencing system via USB connection. Internal matrix mixer offers flexible routing, allowing users to route any input to any output.
Features:
- Connects 4 Dante audio inputs and 1 analog input to an A / V conferencing system or a PC-based videoconferencing application
- Flexible signal routing and connectivity: analog audio (1 block in / 1 block out) to room A / V conferencing system; USB (1 in / out) to connect to laptop or room PC
- Power-over-Ethernet (PoE) eliminates the need for an outboard power supply
- Compact form factor is easy to mount without equipment rack
The ANIUSB-MATRIX USB Audio Network Interface complements the existing ANI4IN, ANI4OUT, and ANI22 products. It offers the ideal performance, connectivity, and affordability for audio/video conferencing installations in small and medium-size meeting rooms when a premium microphone solution is desired, and acoustic echo cancellation of an A / V conferencing codec will be used.
The ANIUSB-MATRIX connects 4 Microflex® Advance™ or Microflex® Wireless microphone channels via Dante (4 in / 2 out), and provides analog connectivity (1 block in / 1 block out) to a room audio / video conferencing system or a PC-based A / V conferencing application via USB (1 in / out).
An internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analog and USB outputs.

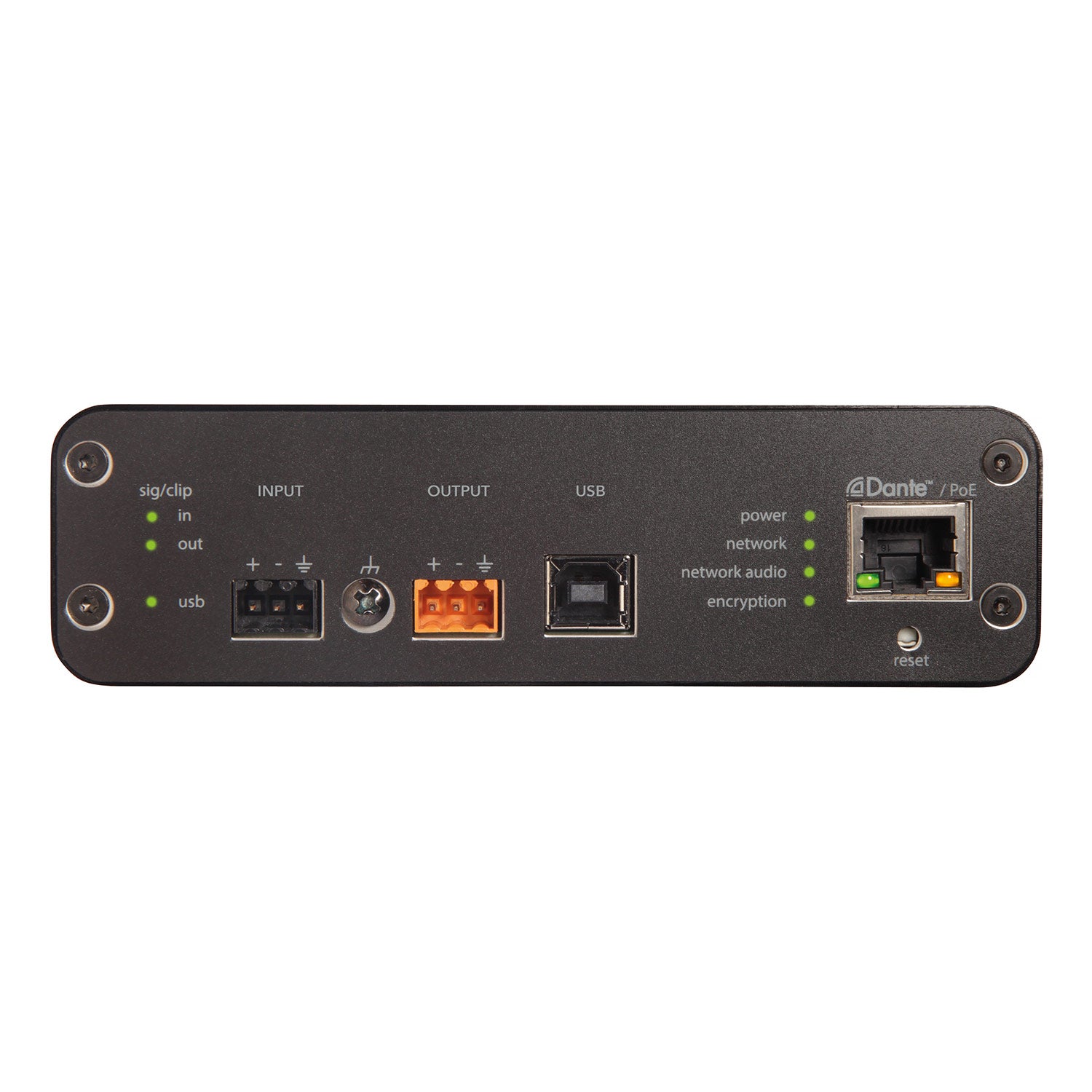

| Analog Connections | Input | (1) 3-pin block connector (Active Balanced) | ||
| Output | (1) 3-pin block connector (Impedance Balanced) | |||
| USB Connections (1) USB 2.0, Type B | Single port carries 1 input and 1 output channel (Summed mono) | |||
| Network Connections (Dante Digital Audio) (1) RJ45 | 4 input channels, 2 output channels | |||
| Polarity | Non-inverting, any input to any output | |||
| Power Requirements | Power over Ethernet (PoE), Class 0. (PoE Plus compatible). | |||
| Power Consumption | 6.5W, maximum | |||
| Weight | 668 g (1.5 lbs) | |||
| Dimensions H x W x D | 4 x 14 x 12.8 cm (1.6 x 5.5 x 5.0 in.) | |||
| control application | HTML5 Browser-based | |||
| Operating Temperature Range | ?6.7¡C (20¡F) to 40¡C (104¡F) | |||
| Storage Temperature Range | ?29¡C (-20¡F) to 74¡C (165¡F) | |||
| Thermal Power Dissipation | Maximum | 6.8W (23.0BTU/hr) | ||
| typical | 6.0W (20.8BTU/hr) | |||
| Audio | ||||
| Frequency Response +1, -1.5 dB | 20 to 20,000 Hz | |||
| Dante Digital Audio | Sampling Rate | 48 kHz | ||
| Bit Depth | 24 | |||
| USB Audio | Sampling Rate | 44.1, 48 kHz | ||
| Bit Depth | 16, 24 | |||
| Latency | Does not include Dante latency | Analog to Analog | 0.98 ms | |
| Analog to Dante | 0.39 ms | |||
| Dante to Analog | 0.72 ms | |||
| Dante to Dante | 0.14 ms | |||
| Dynamic Range 20 Hz to 20 kHz, A-weighted, typical | Analog-to-Dante | 113 dB | ||
| Dante-to-Analog | 117 dB | |||
| Equivalent Input Noise 20 Hz to 20 kHz, A-weighted, input terminated with 150? | Line | -86 dBV | ||
| Aux | -98 dBV | |||
| Total Harmonic Distortion @ 1 kHz, 0 dBV Input, 0 dB analog gain | <0.05% | |||
| Common Mode Rejection Ratio 150? balanced source @ 1 kHz | >70 dB | |||
| Impedance | 10.6 k? | |||
| Input Clipping Level | Line | +27 dBV | ||
| Aux | +15 dBV | |||
| Output Clipping Level | Line | +20 dBV | ||
| Aux | +0 dBV | |||
| Mic | -26 dBV | |||
| Built-in Digital Signal Processing | Per Channel | Equalizer (4-band Parametric, Analog and USB output channels only), Mute, Limiter, Gain (140 dB range) | ||
| System | Matrix mixer | |||
| Networking | ||||
| Cable Requirements | Cat 5e or higher (shielded cable recommended) | |||
