Shure ANX4 - Scalable Wireless Receiver for Axient Digital and ULX-D Systems
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ultimate high-tier, high-channel count wireless receiver, Shure ANX4 receives up to 16 channels of Shure Axient® Digital or 24 channels of Shure ULX-D® in a single rack space.
Delivering maximum flexibility, ANX4 does not ship preconfigured with active wireless channels but allows you to purchase channels in single- and four-channel increments and activate the exact number of channels you need*. Purchase ANX4 channel licenses separately and manage them via your ShureCloud user account.
Whether you operate ANX4 in Axient Digital or ULX-D transmission mode, ANX4 maximizes your budget, rack space, and antenna configuration.
Shure ANX4. Scalable wireless that adapts to your needs.
Features:
- Scalable wireless receiver for use with Axient® Digital and ULX-D® wireless systems
- Receives up to 16 channels of Axient® Digital or 24 channels of ULX-D® in a single rack space
- Channel licenses are available in single- and four-channel options (sold separately)*
- Wide tuning range covers 174 MHz to 2 GHz, covering all Axient® Digital and ULX-D® options (except for the ULX-D 902 to 928 MHz band)

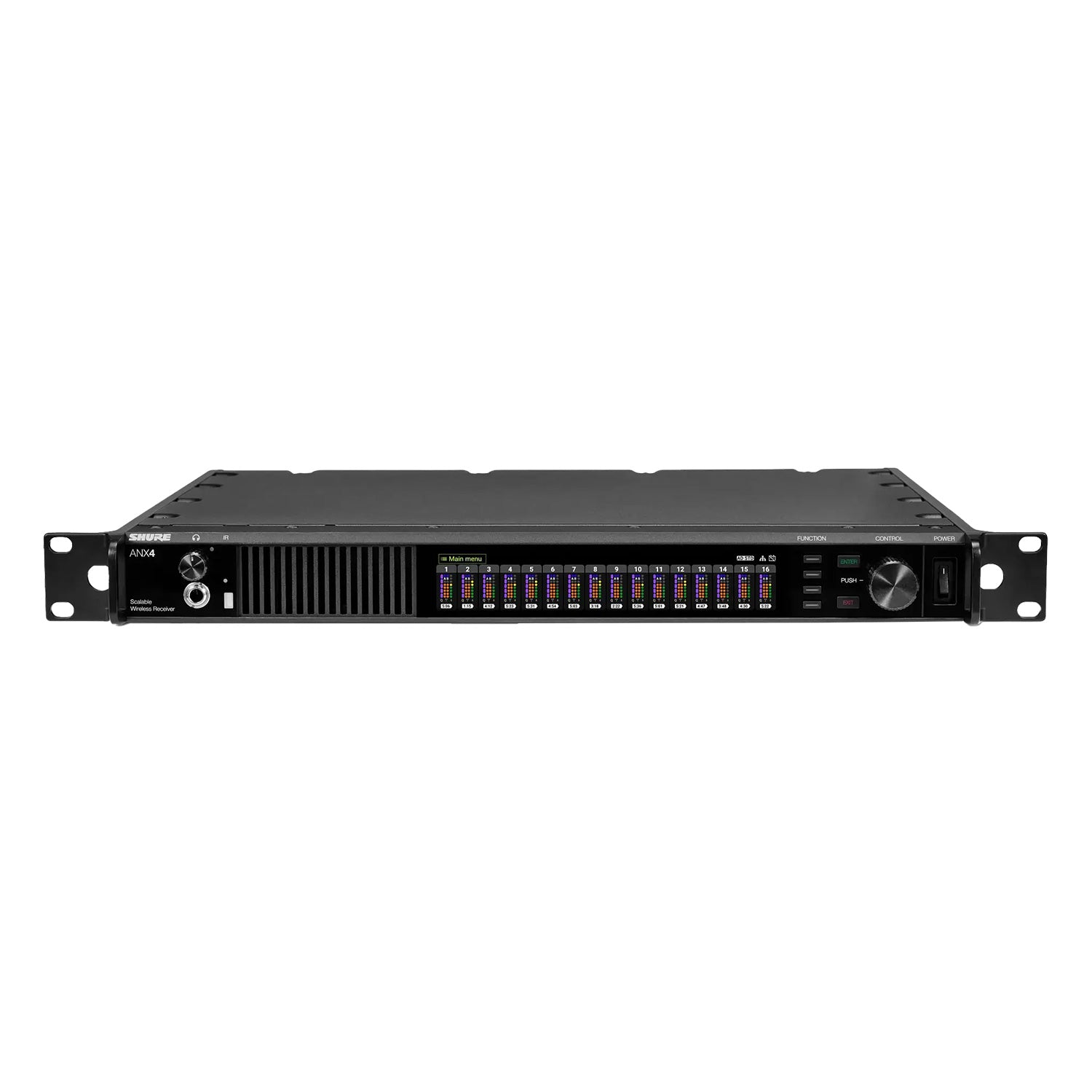

- Large, 6.6-inch front panel color display
- ¼-inch front-panel headphone connector for monitoring with Dante Browse (for both Axient® Digital and ULX-D®)
- Streamlined, cost-saving antenna setup for large-scale wireless deployments

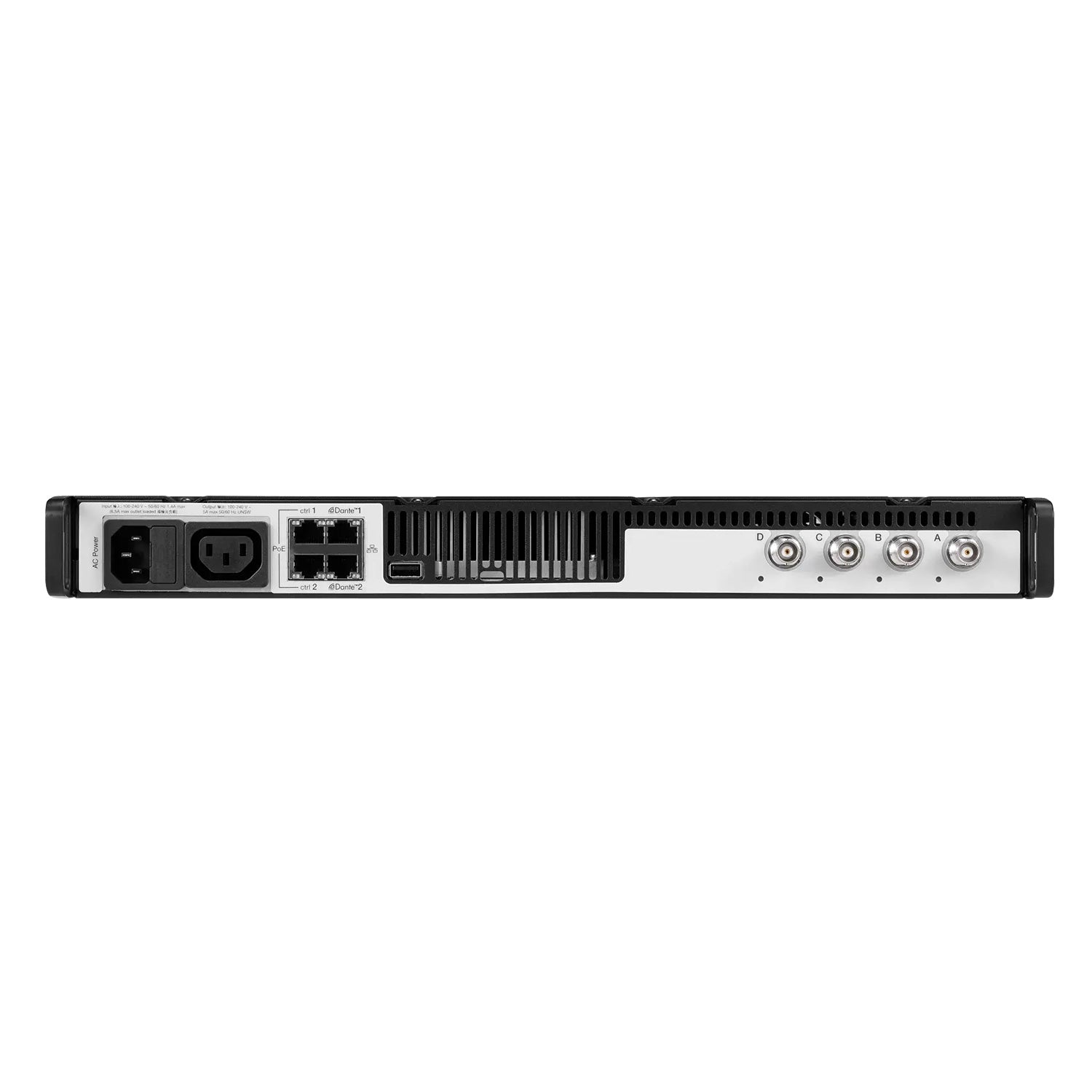

- 4 x Ethernet ports for network control and Dante/AES67 digital output options
- 4 x coaxial RF antenna input connectors support multiple frequency bands and provide greater coverage for complex setups
- Networked control with Shure Wireless Workbench for extended and enhanced RF monitoring and management
- DC module version available to support redundant power
*ANX4 receiver does not ship preconfigured with active wireless channels. Channel licenses are sold separately and required for operation.

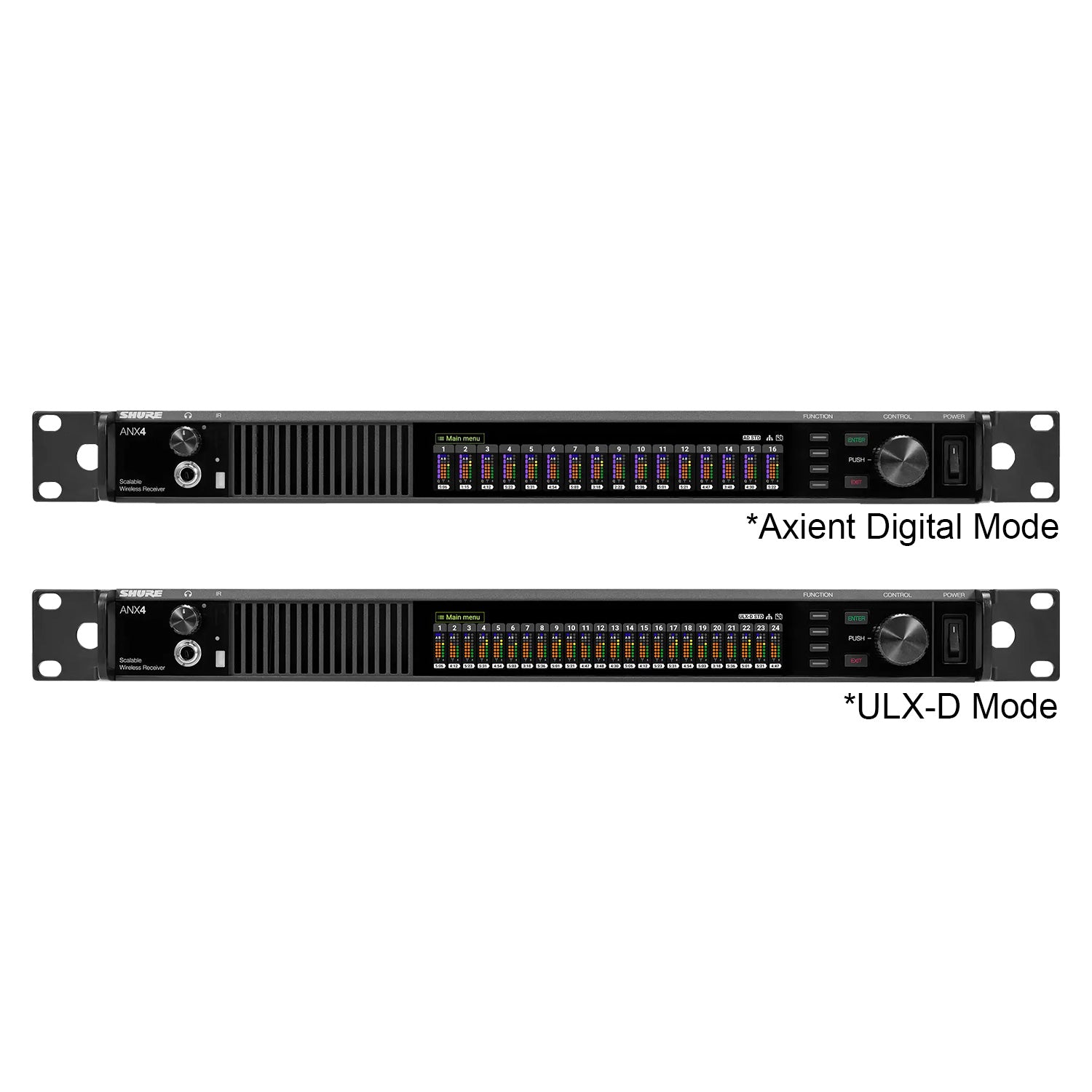

**System features are dependent upon activated transmission mode: Axient Digital or ULX-D (ANX4 does not support both systems, or both system features, at the same time).
| Mechanical | |
| Dimensions | 44 x 482 x 286 mm (1.7 x 19 x 11.3 inches), H x W x D |
| Weight | 3.89 kg (8.58 lb), without antennas |
| Housing | Steel; Extruded aluminum Case top: Aluminum |
| Operating Temperature Range | -18¡C (0¡F) to 50¡C (122¡F) |
| Storage Temperature Range | -29¡C (-20¡F) to 74¡C (165¡F) |
| Thermal Power Dissipation | Maximum 61.3 W (209.3 BTU/hr) Idle 49.2 W (167.9 BTU/hr) |
| Power Requirements | 100 to 240 V AC, 50-60 Hz, 1.4 A max. |
| Fuse | T5A |
| PoE | PoE Class 1 (IEEE 802.3af) |
| RF Input | |
| Spurious Rejection | >80 dB, typical |
| Connector Type | BNC |
| Impedance | 50 ½ |
| Configuration | Unbalanced, passive |
| Bias Voltage | 12 to 13.5 V DC, 150 mA maximum per antenna. Switchable on-off. 300 mA total per receiver |
| Insertion Loss | 0 dB, typical |
| RF and Audio Performance | |
| RF Carrier Frequency Range | 174 - 2000 MHz |
| Working Range | Note: Actual range depends on RF signal absorption, reflection and interference. 100 m (330 ft) |
| Gain Adjustment Range | _18 to +42 dB in 1 dB steps (plus Mute setting) |
| RF Tuning Step Size | 25 kHz, varies by region |
| Image Rejection | > 90 dB, typical |
| RF Sensitivity | ULX-D -95 dBm at 10-5 BER Axient Digital _93.5 dBm at 10-5 BER |
| Latency | ULX-D Standard < 2.9 ms ULX-D High Density < 3.2 ms Axient Digital Standard < 2.1 ms Axient Digital High Density < 3.0 ms |
| Audio Frequency Response | 20 Hz Ð 20 kHz (±1 dB) |
| Audio Dynamic Range typical, 20 Hz to 20 kHz, System Gain @ +12 dB |
124 dB A-weighted |
| Total Harmonic Distortion -6 dBFS, 1 kHz, System Gain @ +12 dB |
< 0.1% |
| System Audio Polarity | Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output. |
| Headphone Monitor Audio Output | |
| Audio Frequency Response | 20 Hz - 20 kHz, +/- 3 dB |
| Configuration | _" / 6.3 mm connector, unbalanced stereo |
| Impedance | 63 ½ |
| Maximum Signal Level | 350 mW |
| Pin Assignments | Tip: Audio + , Left: | , Ring: Audio + , Right: | , Sleeve: Ground |
| Networking | |
| Network Interface | 10/100 Mbps, 1 Gbps, Dante Digital Audio |
| Network Addressing Capability | DHCP or Manual IP address |
| Maximum Cable Length | 100 m (330 ft) |
The ultimate high-tier, high-channel count wireless receiver, Shure ANX4 receives up to 16 channels of Shure Axient® Digital or 24 channels of Shure ULX-D® in a single rack space.
Delivering maximum flexibility, ANX4 does not ship preconfigured with active wireless channels but allows you to purchase channels in single- and four-channel increments and activate the exact number of channels you need*. Purchase ANX4 channel licenses separately and manage them via your ShureCloud user account.
Whether you operate ANX4 in Axient Digital or ULX-D transmission mode, ANX4 maximizes your budget, rack space, and antenna configuration.
Shure ANX4. Scalable wireless that adapts to your needs.
Features:
- Scalable wireless receiver for use with Axient® Digital and ULX-D® wireless systems
- Receives up to 16 channels of Axient® Digital or 24 channels of ULX-D® in a single rack space
- Channel licenses are available in single- and four-channel options (sold separately)*
- Wide tuning range covers 174 MHz to 2 GHz, covering all Axient® Digital and ULX-D® options (except for the ULX-D 902 to 928 MHz band)
- Large, 6.6-inch front panel color display
- ¼-inch front-panel headphone connector for monitoring with Dante Browse (for both Axient® Digital and ULX-D®)
- Streamlined, cost-saving antenna setup for large-scale wireless deployments
- 4 x Ethernet ports for network control and Dante/AES67 digital output options
- 4 x coaxial RF antenna input connectors support multiple frequency bands and provide greater coverage for complex setups
- Networked control with Shure Wireless Workbench for extended and enhanced RF monitoring and management
- DC module version available to support redundant power
*ANX4 receiver does not ship preconfigured with active wireless channels. Channel licenses are sold separately and required for operation.
**System features are dependent upon activated transmission mode: Axient Digital or ULX-D (ANX4 does not support both systems, or both system features, at the same time).
| Mechanical | |
| Dimensions | 44 x 482 x 286 mm (1.7 x 19 x 11.3 inches), H x W x D |
| Weight | 3.89 kg (8.58 lb), without antennas |
| Housing | Steel; Extruded aluminum Case top: Aluminum |
| Operating Temperature Range | -18¡C (0¡F) to 50¡C (122¡F) |
| Storage Temperature Range | -29¡C (-20¡F) to 74¡C (165¡F) |
| Thermal Power Dissipation | Maximum 61.3 W (209.3 BTU/hr) Idle 49.2 W (167.9 BTU/hr) |
| Power Requirements | 100 to 240 V AC, 50-60 Hz, 1.4 A max. |
| Fuse | T5A |
| PoE | PoE Class 1 (IEEE 802.3af) |
| RF Input | |
| Spurious Rejection | >80 dB, typical |
| Connector Type | BNC |
| Impedance | 50 ½ |
| Configuration | Unbalanced, passive |
| Bias Voltage | 12 to 13.5 V DC, 150 mA maximum per antenna. Switchable on-off. 300 mA total per receiver |
| Insertion Loss | 0 dB, typical |
| RF and Audio Performance | |
| RF Carrier Frequency Range | 174 - 2000 MHz |
| Working Range | Note: Actual range depends on RF signal absorption, reflection and interference. 100 m (330 ft) |
| Gain Adjustment Range | _18 to +42 dB in 1 dB steps (plus Mute setting) |
| RF Tuning Step Size | 25 kHz, varies by region |
| Image Rejection | > 90 dB, typical |
| RF Sensitivity | ULX-D -95 dBm at 10-5 BER Axient Digital _93.5 dBm at 10-5 BER |
| Latency | ULX-D Standard < 2.9 ms ULX-D High Density < 3.2 ms Axient Digital Standard < 2.1 ms Axient Digital High Density < 3.0 ms |
| Audio Frequency Response | 20 Hz Ð 20 kHz (±1 dB) |
| Audio Dynamic Range typical, 20 Hz to 20 kHz, System Gain @ +12 dB |
124 dB A-weighted |
| Total Harmonic Distortion -6 dBFS, 1 kHz, System Gain @ +12 dB |
< 0.1% |
| System Audio Polarity | Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output. |
| Headphone Monitor Audio Output | |
| Audio Frequency Response | 20 Hz - 20 kHz, +/- 3 dB |
| Configuration | _" / 6.3 mm connector, unbalanced stereo |
| Impedance | 63 ½ |
| Maximum Signal Level | 350 mW |
| Pin Assignments | Tip: Audio + , Left: | , Ring: Audio + , Right: | , Sleeve: Ground |
| Networking | |
| Network Interface | 10/100 Mbps, 1 Gbps, Dante Digital Audio |
| Network Addressing Capability | DHCP or Manual IP address |
| Maximum Cable Length | 100 m (330 ft) |
