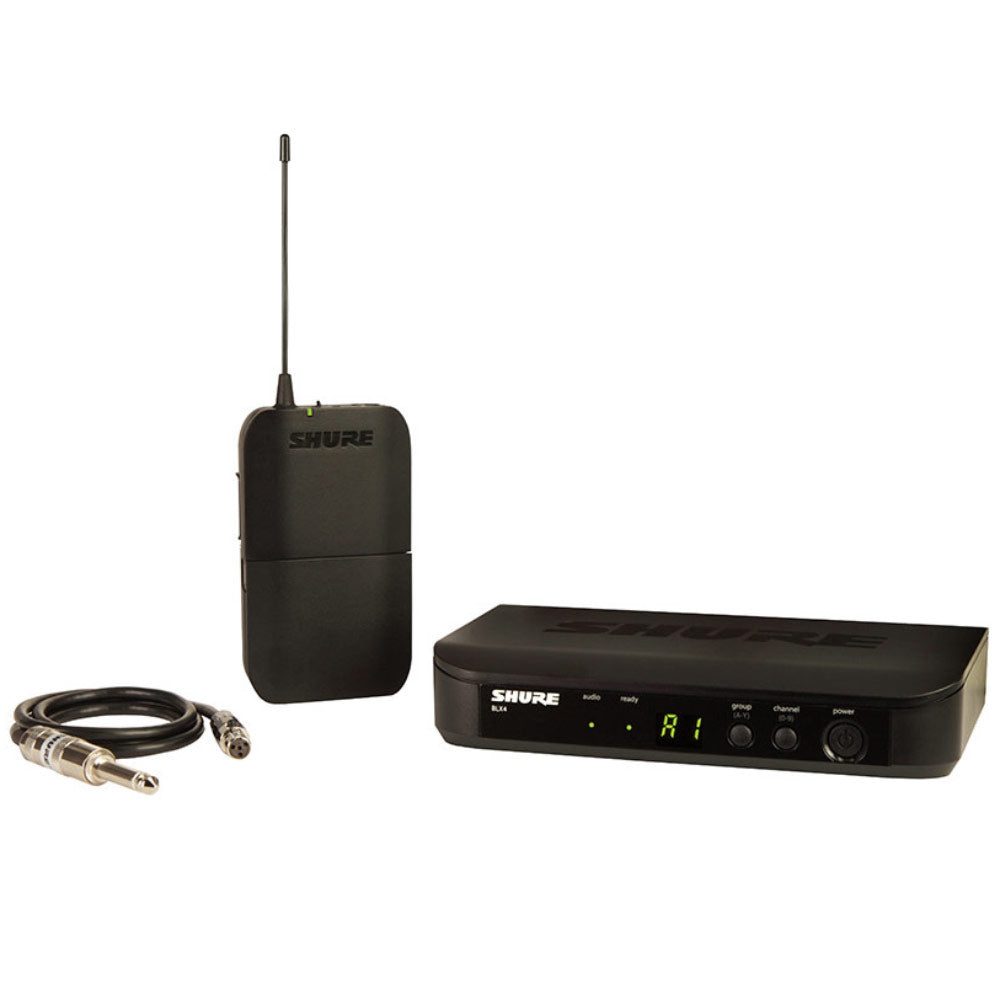

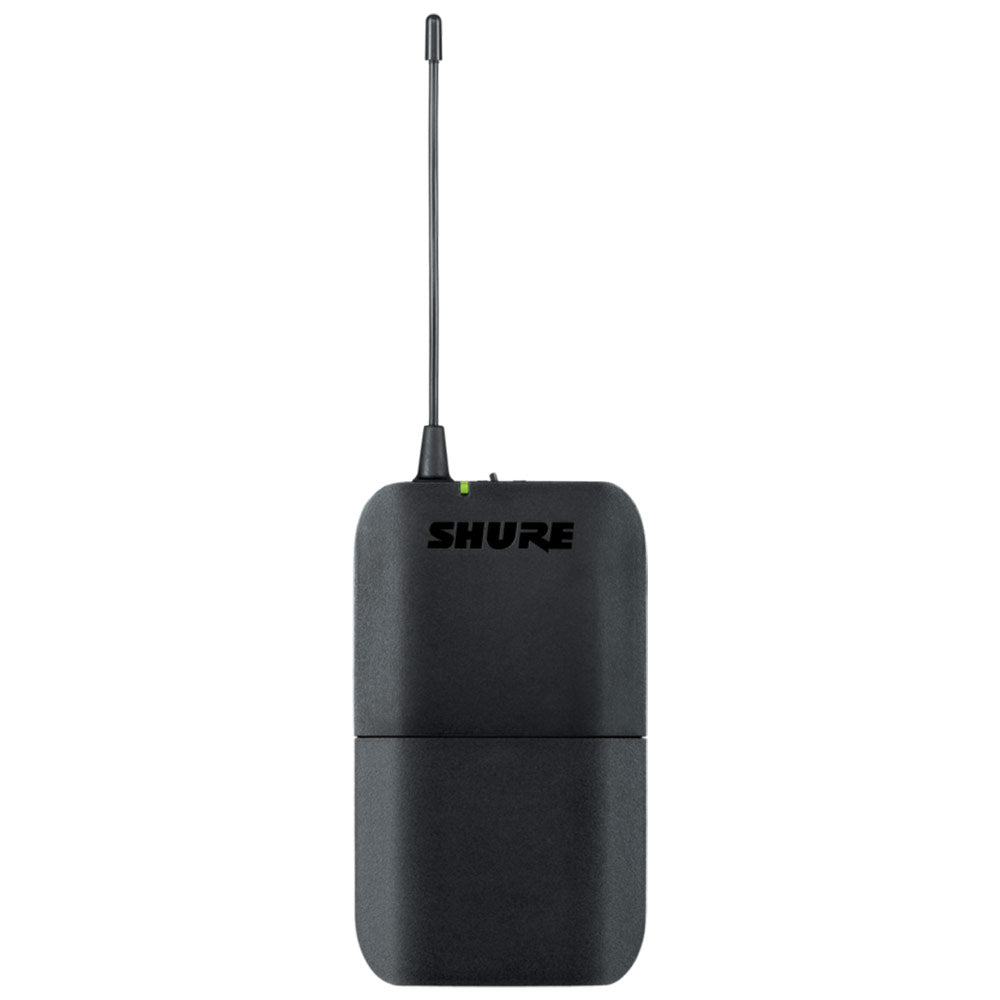

Shure BLX14 Instrument Wireless System (H11 Band - 572-596 MHz)

  • Dale #:

    SHUR-BLX14H11
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Includes: BLX4 Diversity Receiver and BLX1 Bodypack Transmitter with WA302 Cable.Making the jump to wireless should be liberating, not challenging. Shure BLX Wireless systems combine professional quality sound with simple setup and an intuitive interface, for performance you can trust right out o... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Includes: BLX4 Diversity Receiver and BLX1 Bodypack Transmitter with WA302 Cable.

Making the jump to wireless should be liberating, not challenging. Shure BLX Wireless systems combine professional quality sound with simple setup and an intuitive interface, for performance you can trust right out of the box. Precision built and available in a variety of handheld, lavalier, instrument and headset configurations, it's the most accessible way to own the stage.

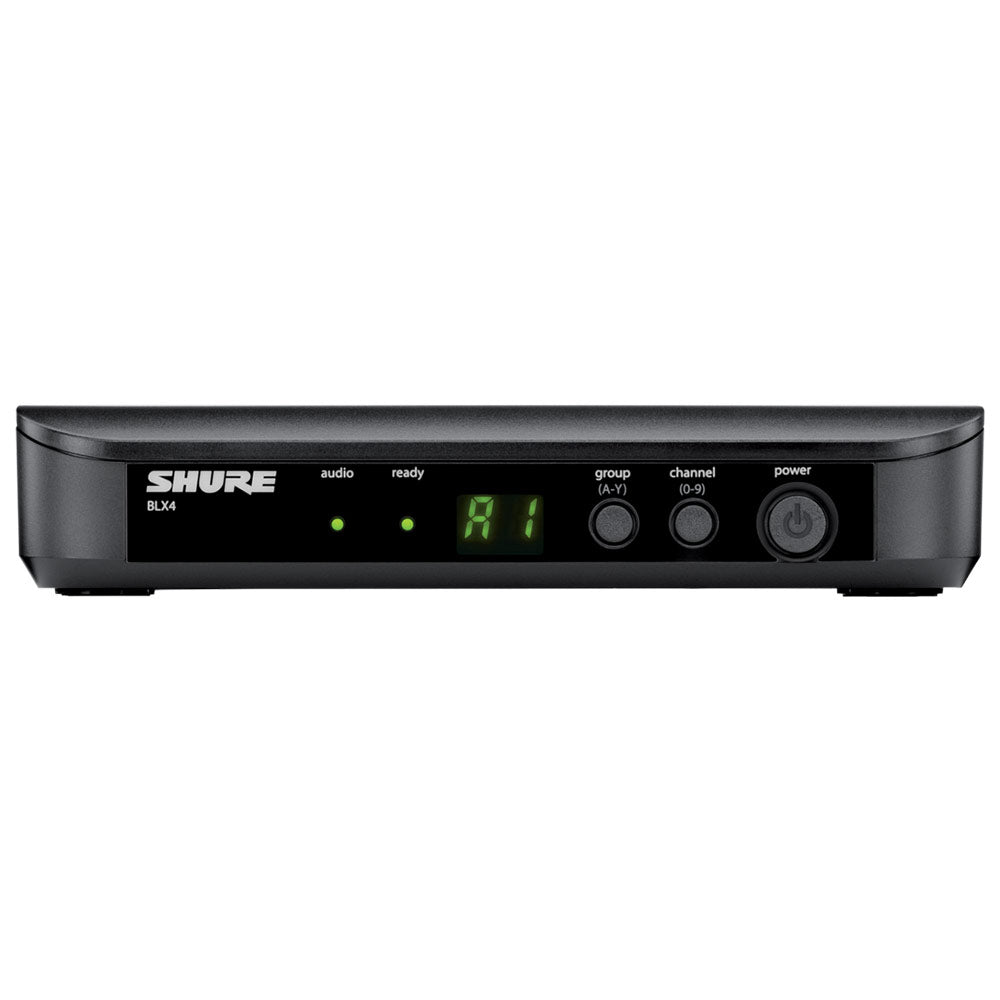

BLX4 Diversity Receiver

  • Up to 12 compatible systems per frequency band (region dependent)
  • Microprocessor-controlled internal antenna diversity
  • One-touch Quickscan frequency selection quickly locates the best frequency

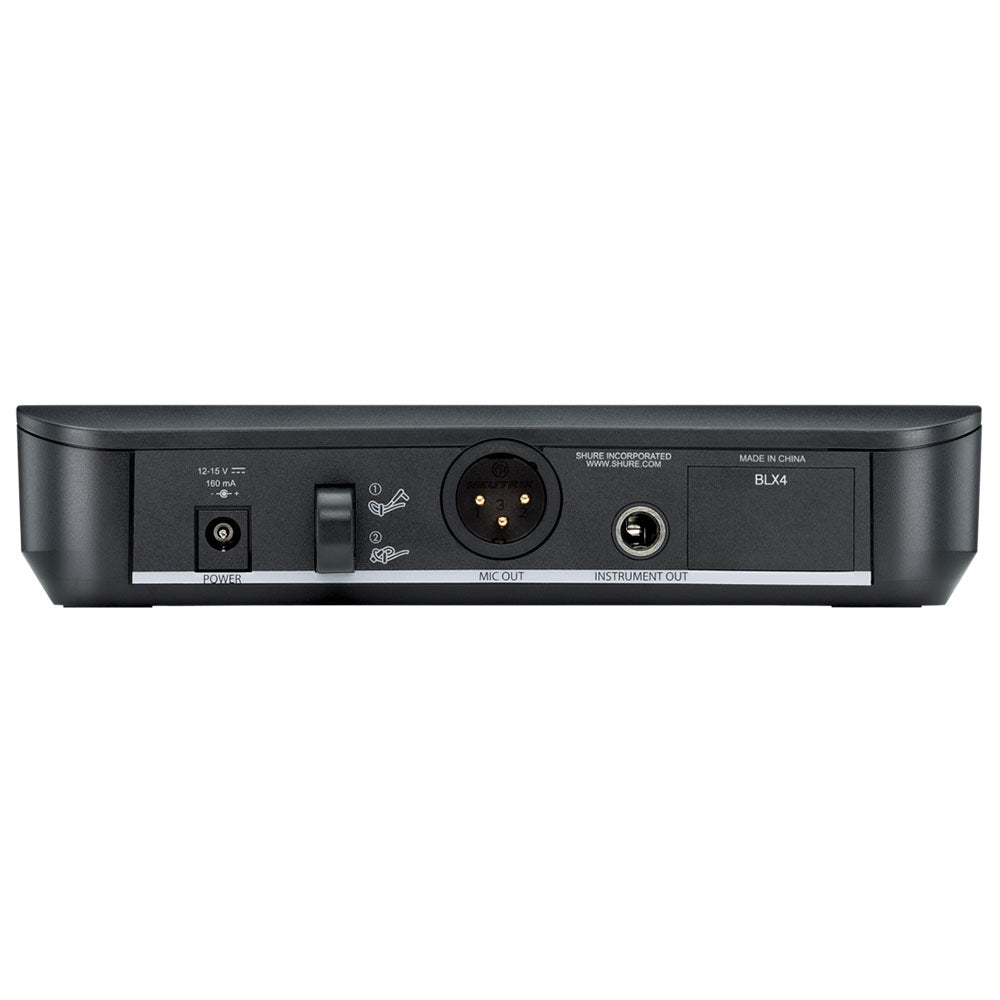

  • 1/4" and XLR audio outputs
  • Two color audio status indicator LED

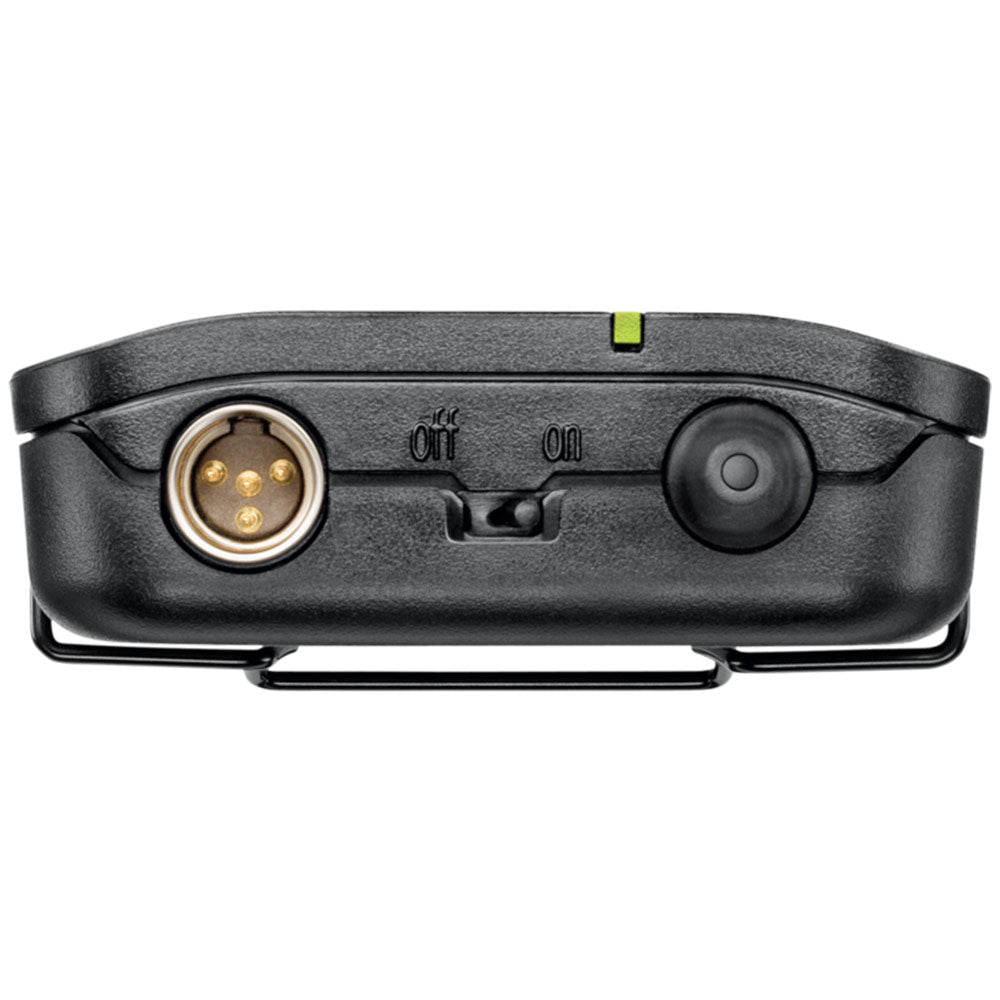

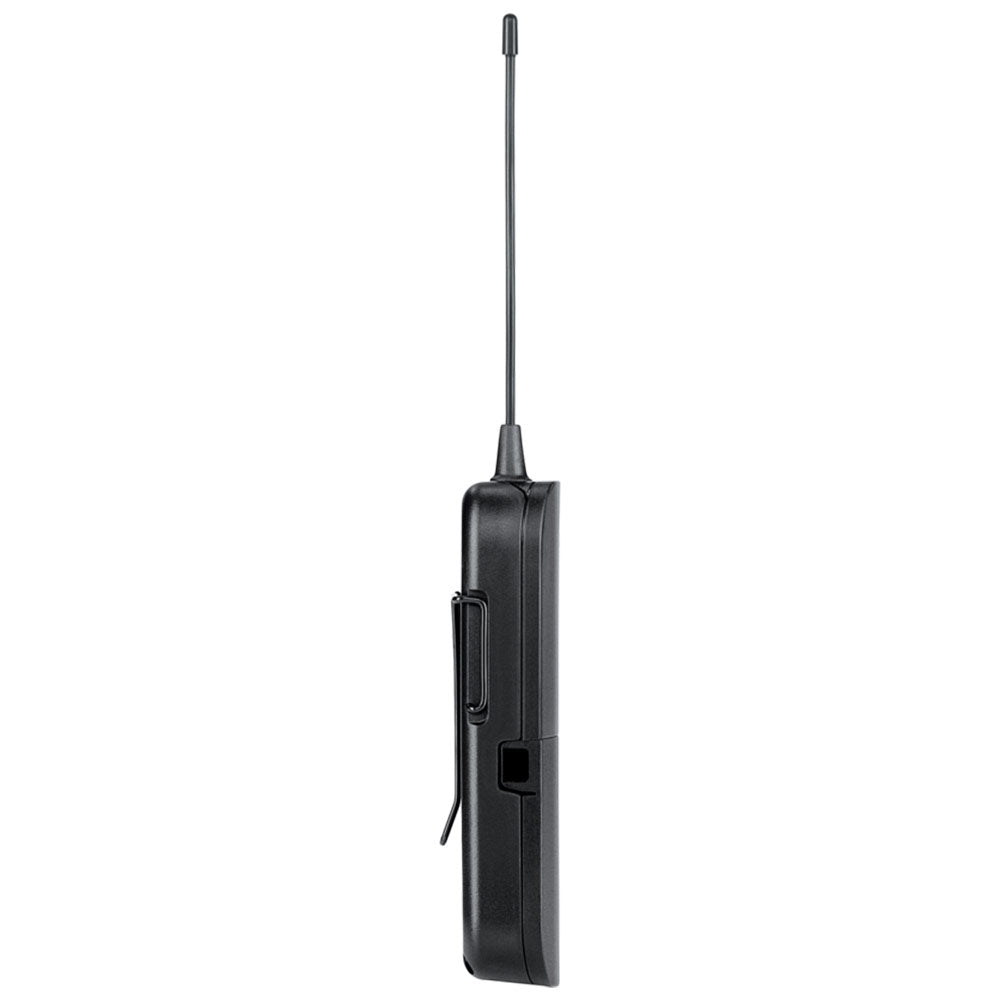

Wireless Transmitters

  • Power and battery status LED
  • Adjustable gain control
  • Quick & easy frequency matching

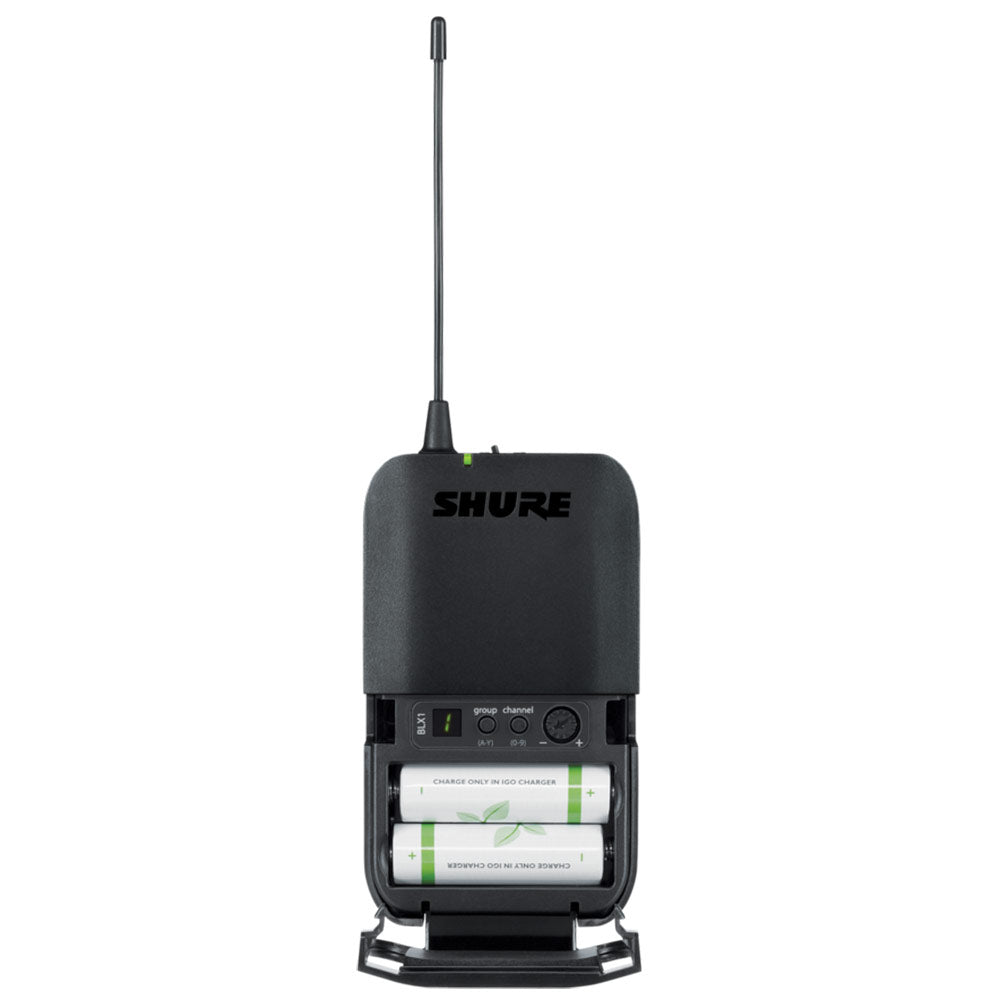

  • 2 AA batteries (included) provide up to 14 hours of continuous use
  • 300 feet (91 m) operating range (line of sight)

WA302 1/4" Cable Adapter
XLR-to-TQG instrument cable to connect transmitter to a guitar or bass.


Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.

BLX System General Features:

  • Up to 12 compatible systems per frequency band (region dependent)
  • One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference
  • Up to 14 hours of continuous use from 2 AA batteries (included)
  • Up to 300 ft (91 m) operating range for total wireless freedom
  • XLR and 1/4" output connectors
  • Rugged and reliable Shure construction
  • Legendary Shure microphones options featuring integrated microphone capsule design

More +

Product Specs

Operating Range300 ft (91 m) line of sight (actual range depends on RF signal absorption, reflection and interference)
Available Frequencies

Between 524–865 MHz (available frequencies depend on applicable regulations in country where system used)

Audio Range50–15,000 Hz (dependent on microphone type)
Transmitter RF Output Power10 mW, typical (varies by region)
Audio Output ConnectorXLR and 1/4" (6.3 mm) unbalanced
Maximum Output Level-27 dBV (XLR, mic level), -13 dBV (1/4")
Battery LifeUp to 14 hours
Dynamic Range100 dB A-weighted
System Distortion0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range-18°C (0°F) – +50°C (122°F)
Power RequirementsBLX1, BLX2: 2 AA alkaline or rechargeable batteries
BLX4: 12–18 V DC at 150 mA, supplied by external power supply
BLX88: 12–18 V DC at 320 mA, supplied by external power supply
BLX4R: 12–18 V DC at 260 mA, supplied by external power supply

More +
