Shure BLX14R/MX53 Headset Wireless System (H9 Band - 512-542 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

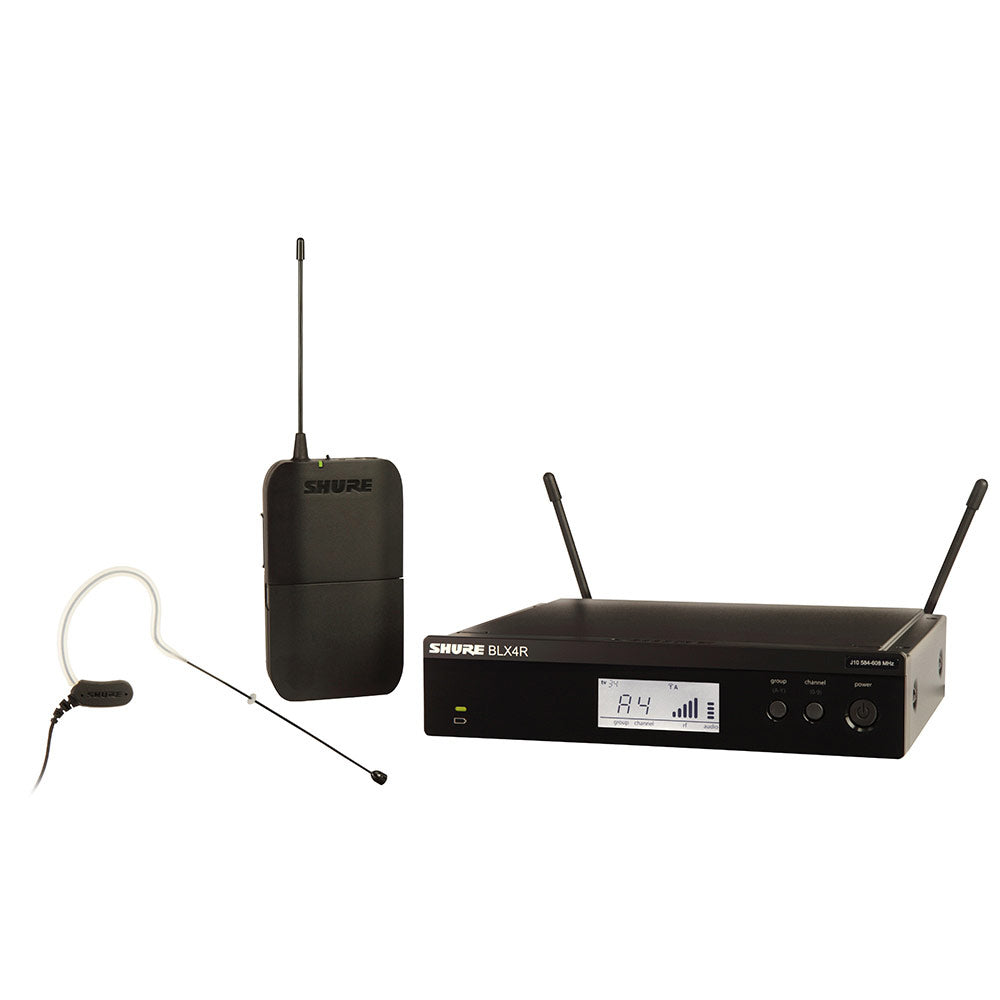

Includes: BLX4R Diversity Receiver and BLX1 Bodypack Transmitter with MX153 Subminiature Microphone.
Making the jump to wireless should be liberating, not challenging. Shure BLX Wireless systems combine professional quality sound with simple setup and an intuitive interface, for performance you can trust right out of the box. Precision built and available in a variety of handheld, lavalier, instrument and headset configurations, it's the most accessible way to own the stage.
BLX4R Diversity Receiver
- Up to 12 compatible systems per frequency band (region dependent)
- Microprocessor-controlled internal antenna diversity
- One-touch Quickscan frequency selection quickly locates the best frequency - 1/4" and XLR audio outputs
- Two color audio status indicator LED
- Adjustable output level
- Removable antennas for quick antenna distribution
- CD display with detailed RF and audio metering
- Rugged metal construction, rack mount hardware included
Wireless Transmitters
- Power and battery status LED
- Adjustable gain control
- Quick & easy frequency matching
- 2 AA batteries (included) provide up to 14 hours of continuous use
- 300 feet (91 m) operating range (line of sight)
MX153 Omnidirectional Subminiature Condenser Earset Microphone
Premium sub-miniature earset microphone for discrete, exceptional clarity in spoken word applications.
Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.
BLX System General Features:
- Up to 12 compatible systems per frequency band (region dependent)
- One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference
- Up to 14 hours of continuous use from 2 AA batteries (included)
- Up to 300 ft (91 m) operating range for total wireless freedom
- XLR and 1/4" output connectors
- Rugged and reliable Shure construction
- Legendary Shure microphones options featuring integrated microphone capsule design
| Operating Range | 300 ft (91 m) line of sight (actual range depends on RF signal absorption, reflection and interference) |
| Available Frequencies | Between 524Ð865 MHz (available frequencies depend on applicable regulations in country where system used) |
| Audio Range | 50Ð15,000 Hz (dependent on microphone type) |
| Transmitter RF Output Power | 10 mW, typical (varies by region) |
| Audio Output Connector | XLR and 1/4" (6.3 mm) unbalanced |
| Maximum Output Level | -27 dBV (XLR, mic level), -13 dBV (1/4") |
| Battery Life | Up to 14 hours |
| Dynamic Range | 100 dB A-weighted |
| System Distortion | 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone) |
| Operating Temperature Range | -18¡C (0¡F) Ð +50¡C (122¡F) |
| Power Requirements | BLX1, BLX2: 2 AA alkaline or rechargeable batteries BLX4: 12Ð18 V DC at 150 mA, supplied by external power supply BLX88: 12Ð18 V DC at 320 mA, supplied by external power supply BLX4R: 12Ð18 V DC at 260 mA, supplied by external power supply |
Includes: BLX4R Diversity Receiver and BLX1 Bodypack Transmitter with MX153 Subminiature Microphone.
Making the jump to wireless should be liberating, not challenging. Shure BLX Wireless systems combine professional quality sound with simple setup and an intuitive interface, for performance you can trust right out of the box. Precision built and available in a variety of handheld, lavalier, instrument and headset configurations, it's the most accessible way to own the stage.
BLX4R Diversity Receiver
- Up to 12 compatible systems per frequency band (region dependent)
- Microprocessor-controlled internal antenna diversity
- One-touch Quickscan frequency selection quickly locates the best frequency - 1/4" and XLR audio outputs
- Two color audio status indicator LED
- Adjustable output level
- Removable antennas for quick antenna distribution
- CD display with detailed RF and audio metering
- Rugged metal construction, rack mount hardware included
Wireless Transmitters
- Power and battery status LED
- Adjustable gain control
- Quick & easy frequency matching
- 2 AA batteries (included) provide up to 14 hours of continuous use
- 300 feet (91 m) operating range (line of sight)
MX153 Omnidirectional Subminiature Condenser Earset Microphone
Premium sub-miniature earset microphone for discrete, exceptional clarity in spoken word applications.
Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.
BLX System General Features:
- Up to 12 compatible systems per frequency band (region dependent)
- One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference
- Up to 14 hours of continuous use from 2 AA batteries (included)
- Up to 300 ft (91 m) operating range for total wireless freedom
- XLR and 1/4" output connectors
- Rugged and reliable Shure construction
- Legendary Shure microphones options featuring integrated microphone capsule design
| Operating Range | 300 ft (91 m) line of sight (actual range depends on RF signal absorption, reflection and interference) |
| Available Frequencies | Between 524Ð865 MHz (available frequencies depend on applicable regulations in country where system used) |
| Audio Range | 50Ð15,000 Hz (dependent on microphone type) |
| Transmitter RF Output Power | 10 mW, typical (varies by region) |
| Audio Output Connector | XLR and 1/4" (6.3 mm) unbalanced |
| Maximum Output Level | -27 dBV (XLR, mic level), -13 dBV (1/4") |
| Battery Life | Up to 14 hours |
| Dynamic Range | 100 dB A-weighted |
| System Distortion | 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone) |
| Operating Temperature Range | -18¡C (0¡F) Ð +50¡C (122¡F) |
| Power Requirements | BLX1, BLX2: 2 AA alkaline or rechargeable batteries BLX4: 12Ð18 V DC at 150 mA, supplied by external power supply BLX88: 12Ð18 V DC at 320 mA, supplied by external power supply BLX4R: 12Ð18 V DC at 260 mA, supplied by external power supply |
