Shure BLX188/CVL Dual Lavalier Wireless System (H10 Band - 542-572 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

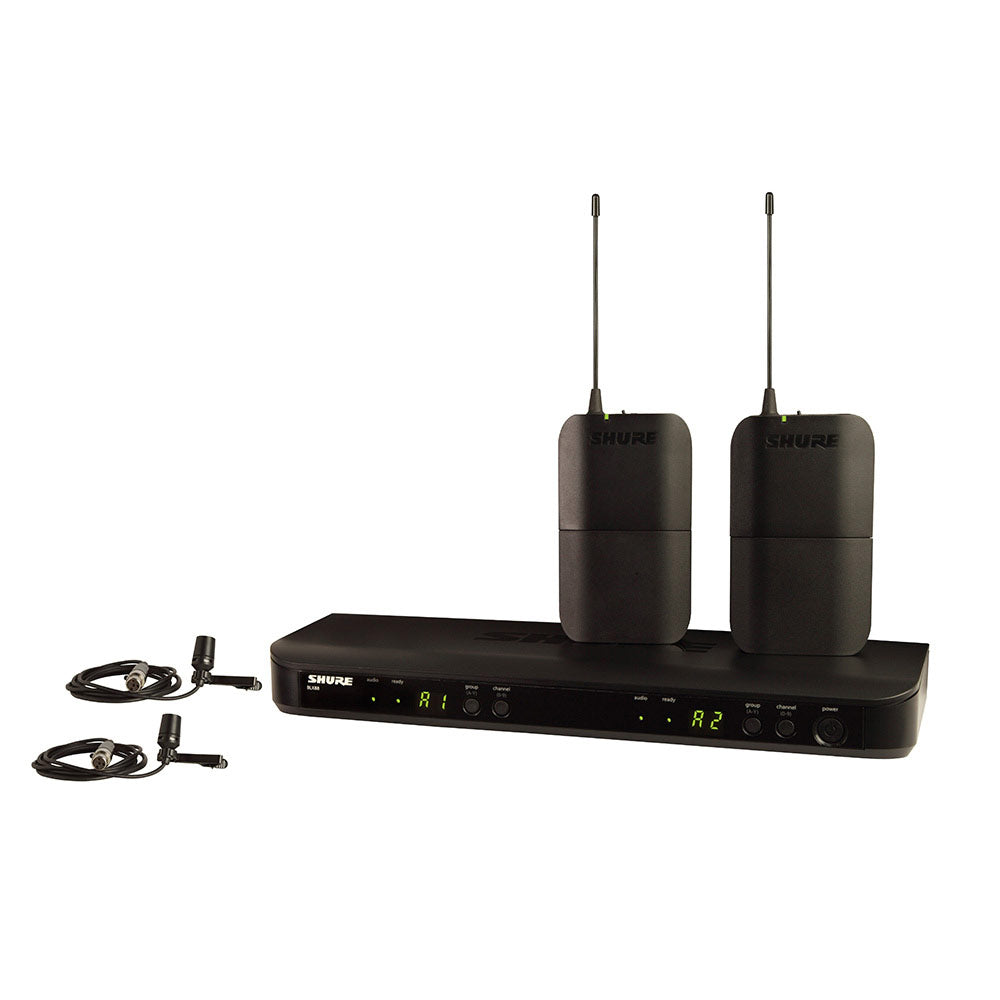

The BLX188/CVL Dual Channel Lavalier Wireless System is part of the Dual Channel Lavalier wireless systems family. Includes BLX88 dual-channel receiver, 2 BLX1 bodypack transmitters, 2 CVL lavalier microphones, lavalier clip, windscreens, and user guide. Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.
Features:
- Up to 12 compatible systems per frequency band (region dependent)
- One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference
- Up to 14 hours of continuous use from 2 AA batteries (included)
- Up to 300 ft (91 m) operating range for total wireless freedom
- XLR and 1/4 output connectors
- Rugged and reliable Shure construction
- Legendary Shure microphones options featuring integrated microphone capsule design
Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.
BLX System General Features:
- Up to 12 compatible systems per frequency band (region dependent)
- One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference
- Up to 14 hours of continuous use from 2 AA batteries (included)
- Up to 300 ft (91 m) operating range for total wireless freedom
- XLR and 1/4" output connectors
- Rugged and reliable Shure construction
- Legendary Shure microphones options featuring integrated microphone capsule design
| Operating Range: | 300 ft (91 m) line of sight (actual range depends on RF signal absorption, reflection and interference) |
| Available Frequencies | Between 524Ð865 MHz (available frequencies depend on applicable regulations incountry where system used) |
| Audio Range | 50Ð15,000 Hz (dependent on microphone type) |
| Transmitter RF Output Power | 10 mW, typical (varies by region) |
| Audio Output Connector | XLR and 1/4" (6.3 mm) unbalanced |
| Maximum Output Level | -27 dBV (XLR, mic level), -13 dBV (1/4") |
| Battery Life | Up to 14 hours |
| Dynamic Range | 100 dB A-weighted |
| System Distortion | 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone) |
| Operating Temperature Range | -18¡C (0¡F) Ð +50¡C (122¡F) |
| Power Requirements | BLX1, BLX2: 2 AA alkaline or rechargeable batteries BLX4: 12Ð18 V DC at 150 mA, supplied by external power supply BLX88: 12Ð18 V DC at 320 mA, supplied by external power supply BLX4R: 12Ð18 V DC at 260 mA, supplied by external power supply |
The BLX188/CVL Dual Channel Lavalier Wireless System is part of the Dual Channel Lavalier wireless systems family. Includes BLX88 dual-channel receiver, 2 BLX1 bodypack transmitters, 2 CVL lavalier microphones, lavalier clip, windscreens, and user guide. Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.
Features:
- Up to 12 compatible systems per frequency band (region dependent)
- One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference
- Up to 14 hours of continuous use from 2 AA batteries (included)
- Up to 300 ft (91 m) operating range for total wireless freedom
- XLR and 1/4 output connectors
- Rugged and reliable Shure construction
- Legendary Shure microphones options featuring integrated microphone capsule design
Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.
BLX System General Features:
- Up to 12 compatible systems per frequency band (region dependent)
- One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference
- Up to 14 hours of continuous use from 2 AA batteries (included)
- Up to 300 ft (91 m) operating range for total wireless freedom
- XLR and 1/4" output connectors
- Rugged and reliable Shure construction
- Legendary Shure microphones options featuring integrated microphone capsule design
| Operating Range: | 300 ft (91 m) line of sight (actual range depends on RF signal absorption, reflection and interference) |
| Available Frequencies | Between 524Ð865 MHz (available frequencies depend on applicable regulations incountry where system used) |
| Audio Range | 50Ð15,000 Hz (dependent on microphone type) |
| Transmitter RF Output Power | 10 mW, typical (varies by region) |
| Audio Output Connector | XLR and 1/4" (6.3 mm) unbalanced |
| Maximum Output Level | -27 dBV (XLR, mic level), -13 dBV (1/4") |
| Battery Life | Up to 14 hours |
| Dynamic Range | 100 dB A-weighted |
| System Distortion | 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone) |
| Operating Temperature Range | -18¡C (0¡F) Ð +50¡C (122¡F) |
| Power Requirements | BLX1, BLX2: 2 AA alkaline or rechargeable batteries BLX4: 12Ð18 V DC at 150 mA, supplied by external power supply BLX88: 12Ð18 V DC at 320 mA, supplied by external power supply BLX4R: 12Ð18 V DC at 260 mA, supplied by external power supply |
