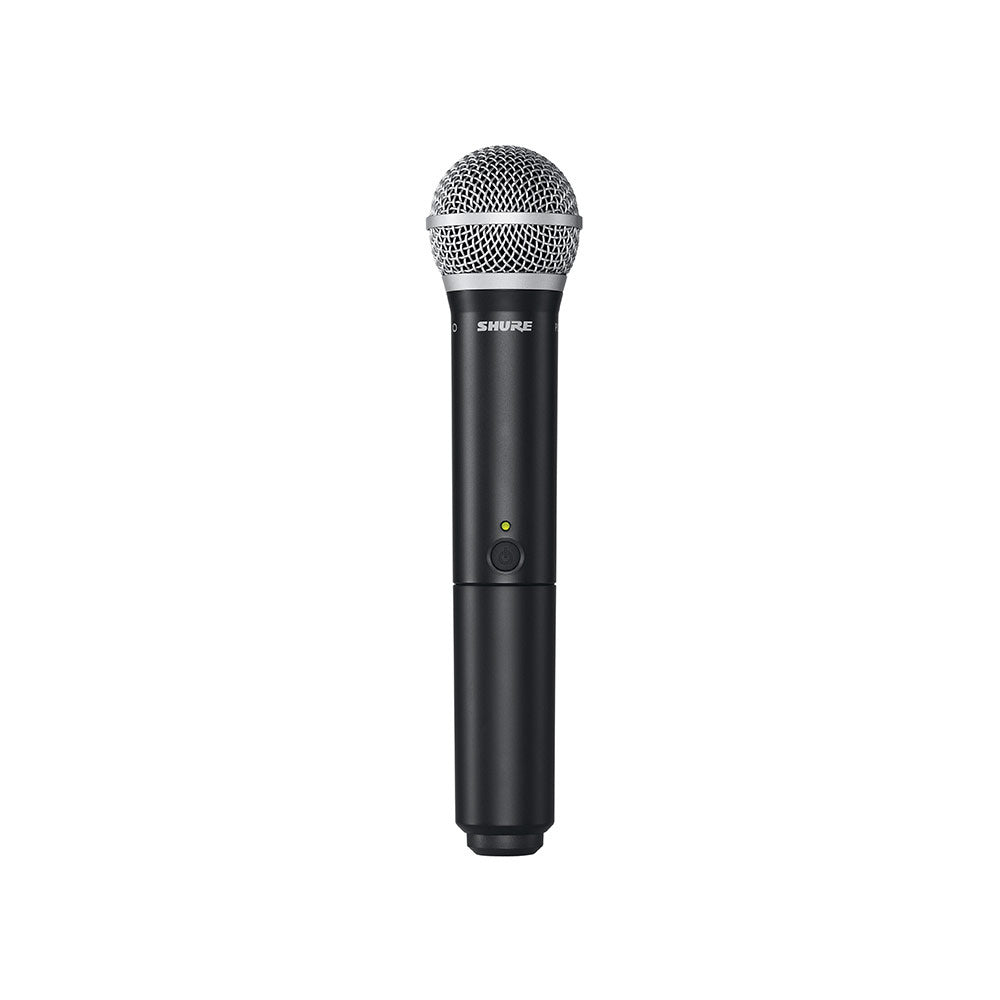

Shure BLX2/PG58 Handheld Wireless Transmitter (H9 Band - 512-572 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Making the jump to wireless should be liberating, not challenging. Shure BLX Wireless systems combine professional quality sound with simple setup and an intuitive interface, for performance you can trust right out of the box. Precision built and available in a variety of handheld, lavalier, instrument and headset configurations, it's the most accessible way to own the stage.
Features:
- Power and battery status LED
- Adjustable gain control
- Quick & easy frequency matching
- 2 AA batteries (included) provide up to 14 hours of continuous use
- 300 feet (91 m) operating range (line of sight)
PG58 Cardioid Dynamic Microphone
Professional-quality microphone capsule for lead and backup vocal performance applications.
Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.
BLX System General Features:
- Up to 12 compatible systems per frequency band (region dependent)
- One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference
- Up to 14 hours of continuous use from 2 AA batteries (included)
- Up to 300 ft (91 m) operating range for total wireless freedom
- XLR and 1/4" output connectors
- Rugged and reliable Shure construction
- Legendary Shure microphones options featuring integrated microphone capsule design
| Working Range | 91 m (300 ft) Line of Sight Note: Actual range depends on RF signal absorption, reflection and interference. |
| Audio Frequency Response | 50 to 15,000 Hz Note: Dependent on microphone type |
| Total Harmonic Distortion | Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical |
| Dynamic Range | 100 dB, A-weighted, typical |
| Operating Temperature | -18¡C (0¡F) to 57¡C (135¡F) Note: Battery characteristics may limit this range. |
| Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the 1/4-inch output. |
| Gain Adjustment Range | 10 dB |
| RF Transmitter Output | 10 mW, typical varies by region |
| Dimensions | 224 mm X 53 mm dia. (8 7/8 X 2 1/8 in.) |
| Weight | 218 g (7.7 oz.) (without batteries) |
| Housing | Molded ABS |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | up to 14 hours (alkaline) |
Making the jump to wireless should be liberating, not challenging. Shure BLX Wireless systems combine professional quality sound with simple setup and an intuitive interface, for performance you can trust right out of the box. Precision built and available in a variety of handheld, lavalier, instrument and headset configurations, it's the most accessible way to own the stage.
Features:
- Power and battery status LED
- Adjustable gain control
- Quick & easy frequency matching
- 2 AA batteries (included) provide up to 14 hours of continuous use
- 300 feet (91 m) operating range (line of sight)
PG58 Cardioid Dynamic Microphone
Professional-quality microphone capsule for lead and backup vocal performance applications.
Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.
BLX System General Features:
- Up to 12 compatible systems per frequency band (region dependent)
- One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference
- Up to 14 hours of continuous use from 2 AA batteries (included)
- Up to 300 ft (91 m) operating range for total wireless freedom
- XLR and 1/4" output connectors
- Rugged and reliable Shure construction
- Legendary Shure microphones options featuring integrated microphone capsule design
| Working Range | 91 m (300 ft) Line of Sight Note: Actual range depends on RF signal absorption, reflection and interference. |
| Audio Frequency Response | 50 to 15,000 Hz Note: Dependent on microphone type |
| Total Harmonic Distortion | Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical |
| Dynamic Range | 100 dB, A-weighted, typical |
| Operating Temperature | -18¡C (0¡F) to 57¡C (135¡F) Note: Battery characteristics may limit this range. |
| Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the 1/4-inch output. |
| Gain Adjustment Range | 10 dB |
| RF Transmitter Output | 10 mW, typical varies by region |
| Dimensions | 224 mm X 53 mm dia. (8 7/8 X 2 1/8 in.) |
| Weight | 218 g (7.7 oz.) (without batteries) |
| Housing | Molded ABS |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | up to 14 hours (alkaline) |
