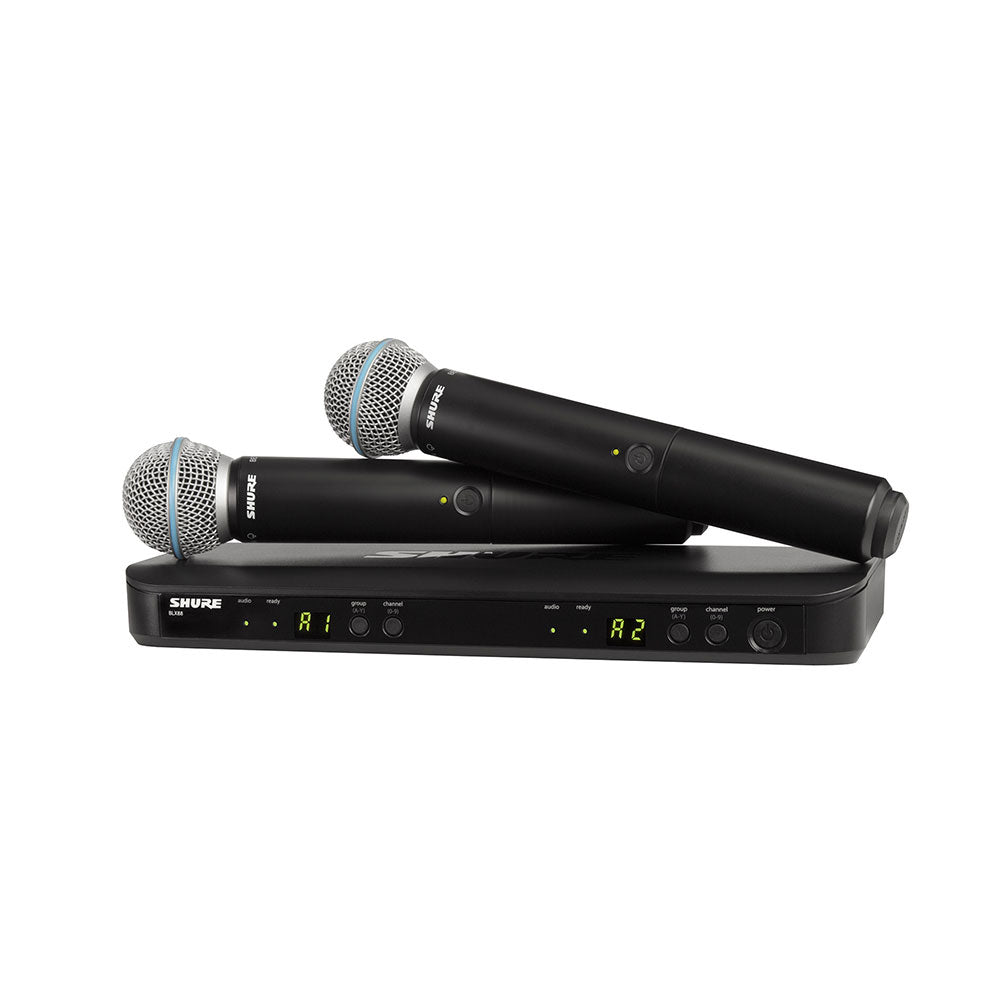

Shure BLX288/B58 Dual Handheld Wireless System with Beta 58A (H10 Band - 542-572 MHz)


  • Dale #:

    SHUR-BLX288B58H10
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The BLX Wireless Vocal System from Shure joins world-class design and construction with simple and easy setup and operation, featuring QuickScan frequency selection and the precision-engineered Beta 58A® vocal microphone capsule for optimized for lead vocal performance. Legendary sound and perfor... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The BLX Wireless Vocal System from Shure joins world-class design and construction with simple and easy setup and operation, featuring QuickScan frequency selection and the precision-engineered Beta 58A® vocal microphone capsule for optimized for lead vocal performance. Legendary sound and performance, right out of the box.

Included: BLX24 wireless receiver; 2 BLX2/B58 handheld transmitters with integrated Beta 58A® supercardioid dynamic microphone capsule; microphone clips; padded zipper cases.

Features:

  • System includes choice of Shure microphone, transmitter, and receiver
  • Choice of receiver type for portability or to install on site or in rack
  • Transmitters work for up to 14 hours on two AA batteries
  • Runs up to 12 systems per frequency band


When performance is set free from wires, it can go to exciting places. But noise and dropouts can stop it cold. BLX® Wireless makes it simple to get great sound out of a dependable wireless system. And when you can go wireless without worry, you can perform without limits.

HOW IT WORKS
BLX Wireless Systems provide professional-quality sound with simple setup and an intuitive interface. Choose from a wide range of transmitter form factors (handheld, bodypack, headworn, lavalier, instrument clip-on) and use it with single- and dual-channel, as well as rack-mounted receivers.

WHY IT'S BETTER

Professional wireless made easy
The system is designed to set up quickly, manage simply, and provide legendary Shure audio quality.

Versatility included
An impressive variety of Shure microphones are available in BLX systems, so you can find the sound that works for you.

Extend the stage
The system operates up to a range of 300 feet, so you can take the show into the crowd without interruption.

More +

Product Specs

System
Working Range91 m (300 ft) Line of Sight
Note: Actual range depends on RF signal absorption, reflection and interference.
Audio Frequency Response50 to 15,000 Hz Note: Dependent on microphone type
Total Harmonic DistortionRef. ±33 kHz deviation with 1 kHz tone 0.5%, typical
Dynamic Range100 dB, A-weighted, typical
Operating Temperature-18°C (0°F) to 57°C (135°F)
Note: Battery characteristics may limit this range.
PolarityPositive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug)
produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
BLX1
Audio Input Level
max-16 dBV maximum
min (0 dB)+10 dBV maximum
Gain Adjustment Range26 dB
Input Impedance1 M?
RF Transmitter Output10 mW, typical varies by region
Dimensions4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight2.6 oz. (75 g), without batteries
HousingMolded ABS
Power Requirements2 LR6 AA batteries, 1.5 V, alkaline
Battery Lifeup to 14 hours (alkaline)
Audio Input Level
0dB-20 dBV maximum
-10dB-10 dBV maximum
Dimensions4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight2.6 oz. (75 g), without batteries
HousingMolded ABS
Power Requirements2 LR6 AA batteries, 1.5 V, alkaline
Battery Lifeup to 14 hours (alkaline)
Audio Input Level
0dB-20 dBV maximum
-10dB-10 dBV maximum
Gain Adjustment Range10 dB
RF Transmitter Output10 mW, typical varies by region
Dimensions8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
Weight7.7 oz. (218 g) without batteries
HousingMolded ABS
Power Requirements2 LR6 AA batteries, 1.5 V, alkaline
Battery Lifeup to 14 hours (alkaline)
BLX4 & BLX88
Output Impedance
XLR connector200 ?
6.35 mm (1/4") connector50 ?
Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone
XLR connector-27 dBV (into 100 k? load)
6.35 mm (1/4") connector-13 dBV (into 100 k? load)
RF Sensitivity-105 dBm for 12 dB SINAD, typical
Image Rejection>50 dB, typical
Dimensions
BLX41.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D
BLX881.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D
Weight
BLX48.5 oz. (241 g)
BLX8815.1 oz. (429 g)
HousingMolded ABS
Power Requirements12-15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
