Shure BLX288/B58 Dual Handheld Wireless System with Beta 58A (H9 Band - 512-542 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The BLX Wireless Vocal System from Shure joins world-class design and construction with simple and easy setup and operation, featuring QuickScan frequency selection and the precision-engineered Beta 58A® vocal microphone capsule for optimized for lead vocal performance. Legendary sound and performance, right out of the box.

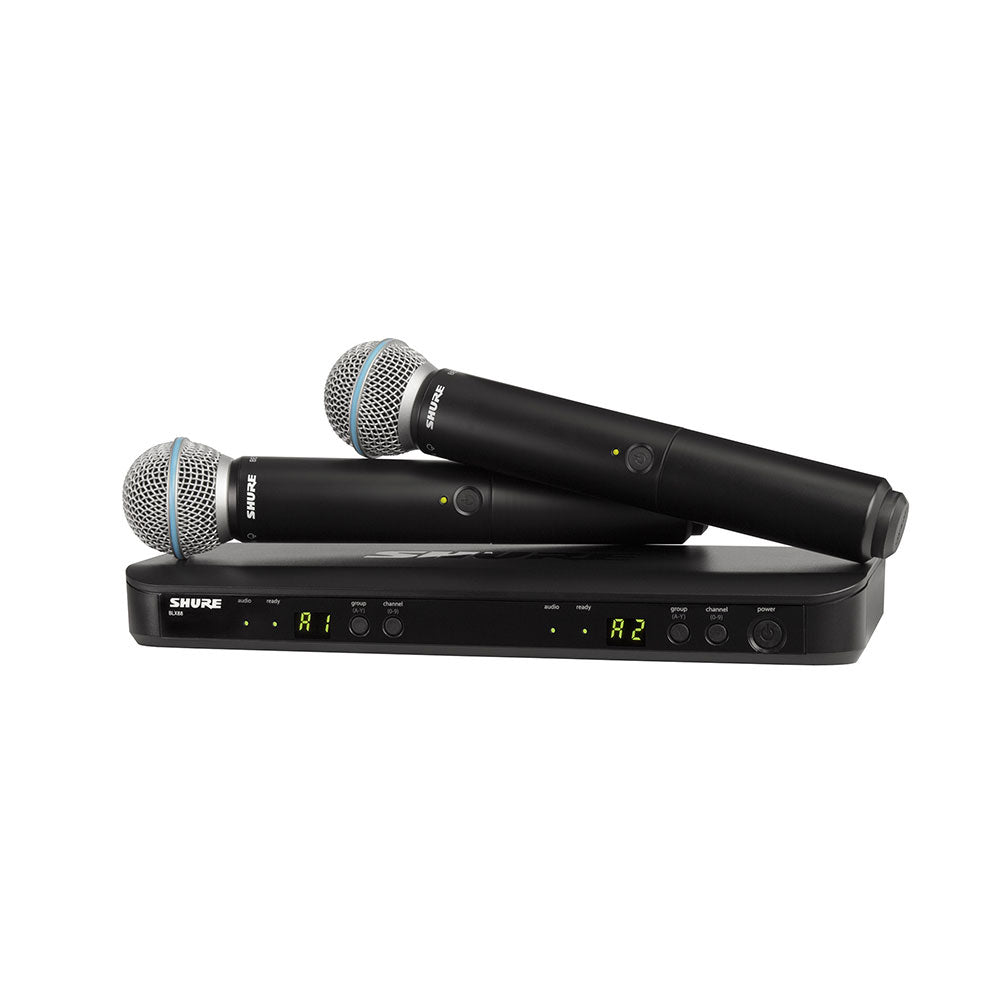

Included: BLX24 wireless receiver; 2 BLX2/B58 handheld transmitters with integrated Beta 58A® supercardioid dynamic microphone capsule; microphone clips; padded zipper cases.
Features:
- System includes choice of Shure microphone, transmitter, and receiver
- Choice of receiver type for portability or to install on site or in rack
- Transmitters work for up to 14 hours on two AA batteries
- Runs up to 12 systems per frequency band
When performance is set free from wires, it can go to exciting places. But noise and dropouts can stop it cold. BLX® Wireless makes it simple to get great sound out of a dependable wireless system. And when you can go wireless without worry, you can perform without limits.
HOW IT WORKS
BLX Wireless Systems provide professional-quality sound with simple setup and an intuitive interface. Choose from a wide range of transmitter form factors (handheld, bodypack, headworn, lavalier, instrument clip-on) and use it with single- and dual-channel, as well as rack-mounted receivers.
WHY IT'S BETTER
Professional wireless made easy
The system is designed to set up quickly, manage simply, and provide legendary Shure audio quality.
Versatility included
An impressive variety of Shure microphones are available in BLX systems, so you can find the sound that works for you.
Extend the stage
The system operates up to a range of 300 feet, so you can take the show into the crowd without interruption.
| System | |
| Working Range | 91 m (300 ft) Line of Sight Note: Actual range depends on RF signal absorption, reflection and interference. |
| Audio Frequency Response | 50 to 15,000 Hz Note: Dependent on microphone type |
| Total Harmonic Distortion | Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical |
| Dynamic Range | 100 dB, A-weighted, typical |
| Operating Temperature | -18¡C (0¡F) to 57¡C (135¡F) Note: Battery characteristics may limit this range. |
| Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output. |
| BLX1 | |
| Audio Input Level | |
| max | -16 dBV maximum |
| min (0 dB) | +10 dBV maximum |
| Gain Adjustment Range | 26 dB |
| Input Impedance | 1 M? |
| RF Transmitter Output | 10 mW, typical varies by region |
| Dimensions | 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D |
| Weight | 2.6 oz. (75 g), without batteries |
| Housing | Molded ABS |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | up to 14 hours (alkaline) |
| Audio Input Level | |
| 0dB | -20 dBV maximum |
| -10dB | -10 dBV maximum |
| Dimensions | 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D |
| Weight | 2.6 oz. (75 g), without batteries |
| Housing | Molded ABS |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | up to 14 hours (alkaline) |
| Audio Input Level | |
| 0dB | -20 dBV maximum |
| -10dB | -10 dBV maximum |
| Gain Adjustment Range | 10 dB |
| RF Transmitter Output | 10 mW, typical varies by region |
| Dimensions | 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia. |
| Weight | 7.7 oz. (218 g) without batteries |
| Housing | Molded ABS |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | up to 14 hours (alkaline) |
| BLX4 / BLX88 | |
| Output Impedance | |
| XLR connector | 200 ? |
| 6.35 mm (1/4") connector | 50 ? |
| Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone | |
| XLR connector | -27 dBV (into 100 k? load) |
| 6.35 mm (1/4") connector | -13 dBV (into 100 k? load) |
| RF Sensitivity | -105 dBm for 12 dB SINAD, typical |
| Image Rejection | >50 dB, typical |
| Dimensions | |
| BLX4 | 1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D |
| BLX88 | 1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D |
| Weight | |
| BLX4 | 8.5 oz. (241 g) |
| BLX88 | 15.1 oz. (429 g) |
| Housing | Molded ABS |
| Power Requirements | 12-15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive) |
The BLX Wireless Vocal System from Shure joins world-class design and construction with simple and easy setup and operation, featuring QuickScan frequency selection and the precision-engineered Beta 58A® vocal microphone capsule for optimized for lead vocal performance. Legendary sound and performance, right out of the box.
Included: BLX24 wireless receiver; 2 BLX2/B58 handheld transmitters with integrated Beta 58A® supercardioid dynamic microphone capsule; microphone clips; padded zipper cases.
Features:
- System includes choice of Shure microphone, transmitter, and receiver
- Choice of receiver type for portability or to install on site or in rack
- Transmitters work for up to 14 hours on two AA batteries
- Runs up to 12 systems per frequency band
When performance is set free from wires, it can go to exciting places. But noise and dropouts can stop it cold. BLX® Wireless makes it simple to get great sound out of a dependable wireless system. And when you can go wireless without worry, you can perform without limits.
HOW IT WORKS
BLX Wireless Systems provide professional-quality sound with simple setup and an intuitive interface. Choose from a wide range of transmitter form factors (handheld, bodypack, headworn, lavalier, instrument clip-on) and use it with single- and dual-channel, as well as rack-mounted receivers.
WHY IT'S BETTER
Professional wireless made easy
The system is designed to set up quickly, manage simply, and provide legendary Shure audio quality.
Versatility included
An impressive variety of Shure microphones are available in BLX systems, so you can find the sound that works for you.
Extend the stage
The system operates up to a range of 300 feet, so you can take the show into the crowd without interruption.
| System | |
| Working Range | 91 m (300 ft) Line of Sight Note: Actual range depends on RF signal absorption, reflection and interference. |
| Audio Frequency Response | 50 to 15,000 Hz Note: Dependent on microphone type |
| Total Harmonic Distortion | Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical |
| Dynamic Range | 100 dB, A-weighted, typical |
| Operating Temperature | -18¡C (0¡F) to 57¡C (135¡F) Note: Battery characteristics may limit this range. |
| Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output. |
| BLX1 | |
| Audio Input Level | |
| max | -16 dBV maximum |
| min (0 dB) | +10 dBV maximum |
| Gain Adjustment Range | 26 dB |
| Input Impedance | 1 M? |
| RF Transmitter Output | 10 mW, typical varies by region |
| Dimensions | 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D |
| Weight | 2.6 oz. (75 g), without batteries |
| Housing | Molded ABS |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | up to 14 hours (alkaline) |
| Audio Input Level | |
| 0dB | -20 dBV maximum |
| -10dB | -10 dBV maximum |
| Dimensions | 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D |
| Weight | 2.6 oz. (75 g), without batteries |
| Housing | Molded ABS |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | up to 14 hours (alkaline) |
| Audio Input Level | |
| 0dB | -20 dBV maximum |
| -10dB | -10 dBV maximum |
| Gain Adjustment Range | 10 dB |
| RF Transmitter Output | 10 mW, typical varies by region |
| Dimensions | 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia. |
| Weight | 7.7 oz. (218 g) without batteries |
| Housing | Molded ABS |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | up to 14 hours (alkaline) |
| BLX4 / BLX88 | |
| Output Impedance | |
| XLR connector | 200 ? |
| 6.35 mm (1/4") connector | 50 ? |
| Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone | |
| XLR connector | -27 dBV (into 100 k? load) |
| 6.35 mm (1/4") connector | -13 dBV (into 100 k? load) |
| RF Sensitivity | -105 dBm for 12 dB SINAD, typical |
| Image Rejection | >50 dB, typical |
| Dimensions | |
| BLX4 | 1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D |
| BLX88 | 1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D |
| Weight | |
| BLX4 | 8.5 oz. (241 g) |
| BLX88 | 15.1 oz. (429 g) |
| Housing | Molded ABS |
| Power Requirements | 12-15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive) |
