Shure BLX288/SM58-H10 Wireless Dual Vocal System with Two (2) SM58 (H11 Band - 572-596 MHz)

  • Dale #:

    SHUR-BLX288SM58H11
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The BLX288/SM58 Wireless Dual Vocal System combines simple wireless setup, professional-grade performance, and two SM58 industry-standard vocal microphones to deliver warm and clear vocal reproduction.Main Features: Available Transmitter Form factors: Handheld Operating range (up to): 100 m (Unde... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

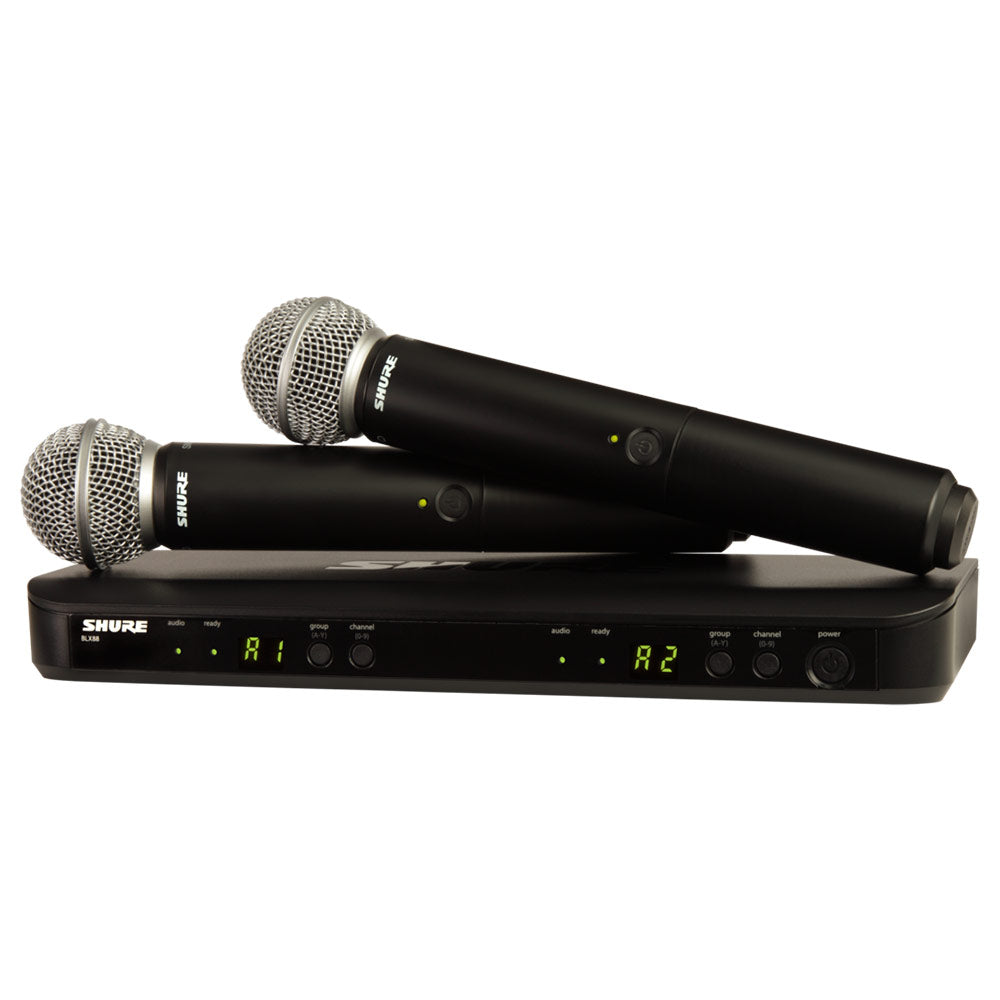

The BLX288/SM58 Wireless Dual Vocal System combines simple wireless setup, professional-grade performance, and two SM58 industry-standard vocal microphones to deliver warm and clear vocal reproduction.

Main Features:

  • Available Transmitter Form factors: Handheld
  • Operating range (up to): 100 m (Under typical conditions)

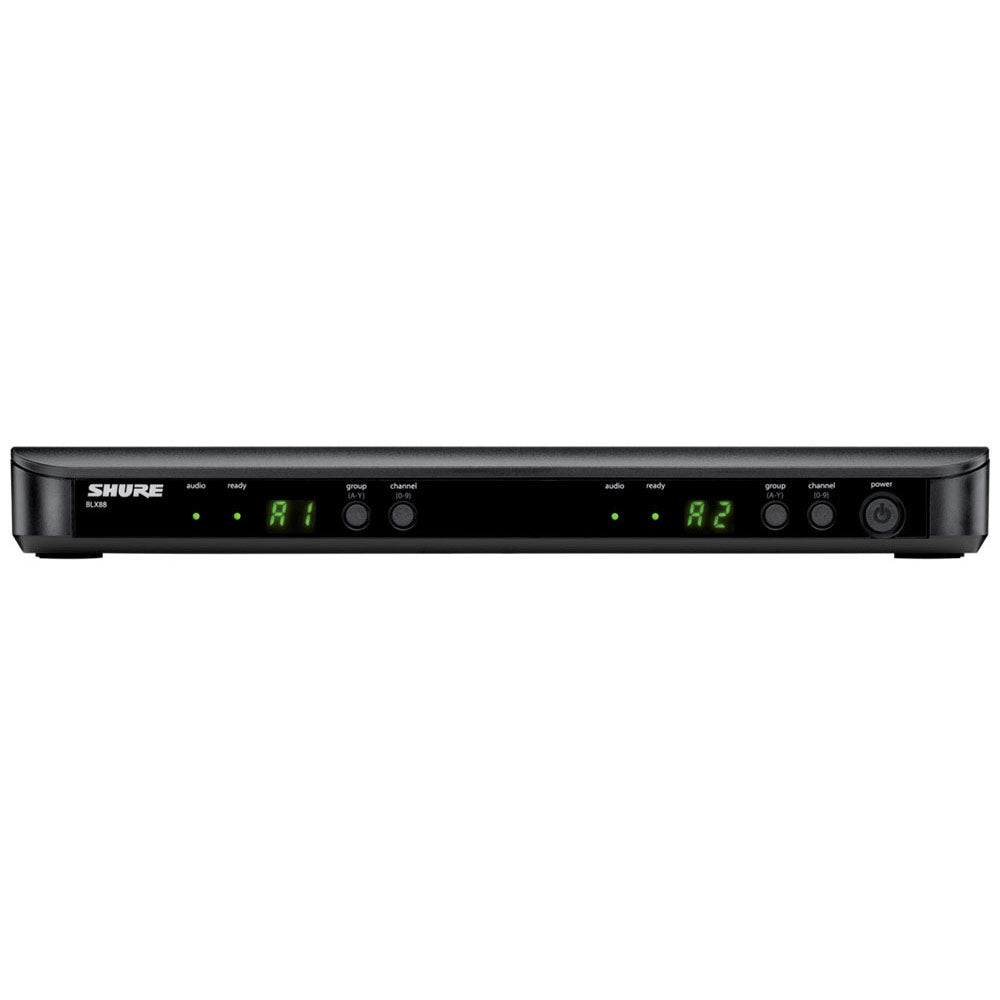

BLX88 Dual Wireless Receiver for BLX Wireless System Features:

  • Up to 12 compatible systems (region dependent)
  • Microprocessor-controlled internal antenna diversity
  • One touch QuickScan locates the best open Frequency
  • 1/4" and XLR audio outputs
  • Two color audio status indicator LED
    • Green: Normal audio levels
    • Red: Excessive audio levels (overload/clipping)

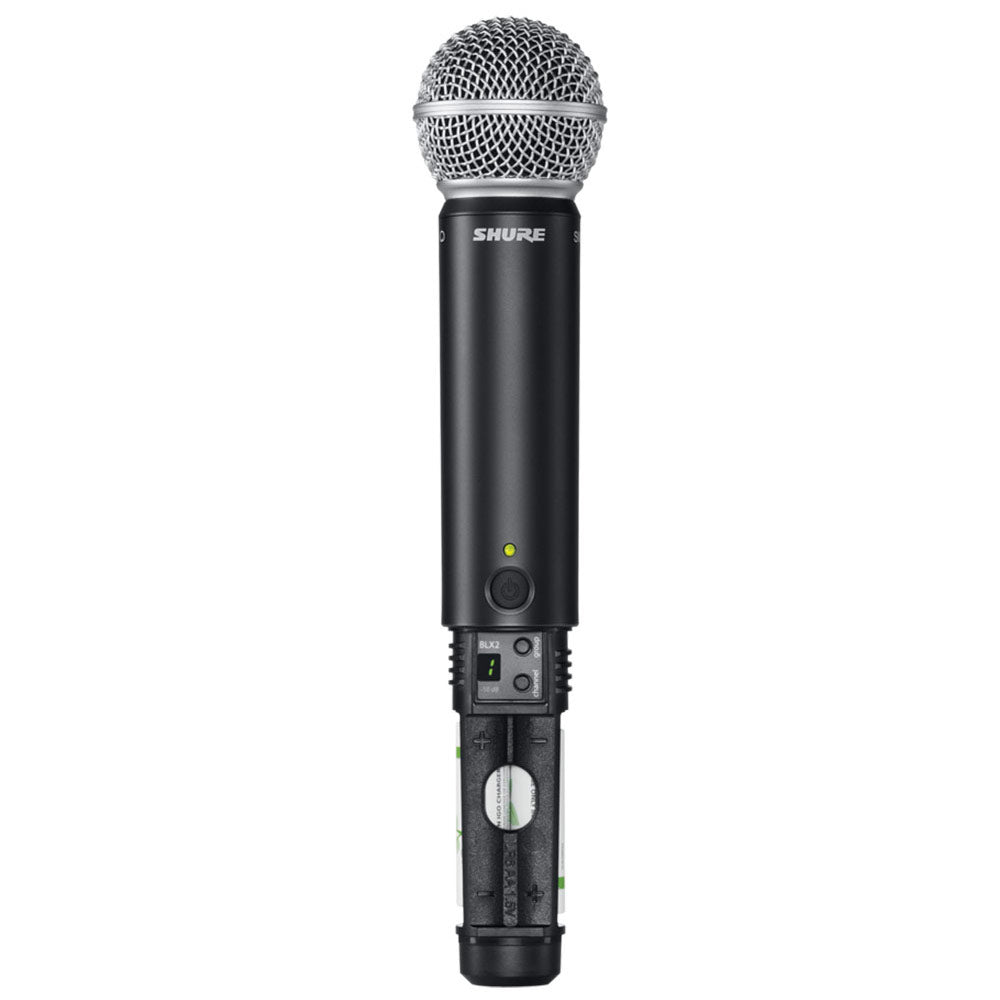

BLX2/SM58 Handheld transmitter with SM58 capsule Features:

  • Power and battery status LED
  • Adjustable gain control
  • Quick and easy frequency matching
  • AA batteries (included) provide up to 14 hours of continuous use
  • 100 m (300 ft) operating range (line of sight)
  • Integrated microphone capsule design
  • -10 dB gain attenuation
  • Lightweight, rugged construction
  • Color ID caps (available separately).

More +

Product Specs

System
Working Range91 m (300 ft) Line of Sight
Note: Actual range depends on RF signal absorption, reflection and interference.
Audio Frequency Response50 to 15,000 Hz Note: Dependent on microphone type
Total Harmonic DistortionRef. ±33 kHz deviation with 1 kHz tone 0.5%, typical
Dynamic Range100 dB, A-weighted, typical
Operating Temperature-18°C (0°F) to 57°C (135°F)
Note: Battery characteristics may limit this range.
PolarityPositive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug)
produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
BLX1
Audio Input Level
max-16 dBV maximum
min (0 dB)+10 dBV maximum
Gain Adjustment Range26 dB
Input Impedance1 M?
RF Transmitter Output10 mW, typical varies by region
Dimensions4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight2.6 oz. (75 g), without batteries
HousingMolded ABS
Power Requirements2 LR6 AA batteries, 1.5 V, alkaline
Battery Lifeup to 14 hours (alkaline)
Audio Input Level
0dB-20 dBV maximum
-10dB-10 dBV maximum
Dimensions4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight2.6 oz. (75 g), without batteries
HousingMolded ABS
Power Requirements2 LR6 AA batteries, 1.5 V, alkaline
Battery Lifeup to 14 hours (alkaline)
Audio Input Level
0dB-20 dBV maximum
-10dB-10 dBV maximum
Gain Adjustment Range10 dB
RF Transmitter Output10 mW, typical varies by region
Dimensions8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
Weight7.7 oz. (218 g) without batteries
HousingMolded ABS
Power Requirements2 LR6 AA batteries, 1.5 V, alkaline
Battery Lifeup to 14 hours (alkaline)
BLX4 & BLX88
Output Impedance
XLR connector200 ?
6.35 mm (1/4") connector50 ?
Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone
XLR connector-27 dBV (into 100 k? load)
6.35 mm (1/4") connector-13 dBV (into 100 k? load)
RF Sensitivity-105 dBm for 12 dB SINAD, typical
Image Rejection>50 dB, typical
Dimensions
BLX41.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D
BLX881.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D
Weight
BLX48.5 oz. (241 g)
BLX8815.1 oz. (429 g)
HousingMolded ABS
Power Requirements12-15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
