Shure BLX288/SM58-H10 Wireless Dual Vocal System with Two (2) SM58 (J11 Band - 596-616 MHz)

  • Dale #:

    SHUR-BLX288SM58J11
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The BLX288/SM58 Wireless Dual Vocal System combines simple wireless setup, professional-grade performance, and two SM58 industry-standard vocal microphones to deliver warm and clear vocal reproduction.Main Features: Available Transmitter Form factors: Handheld Operating range (up to): 100 m (Unde... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

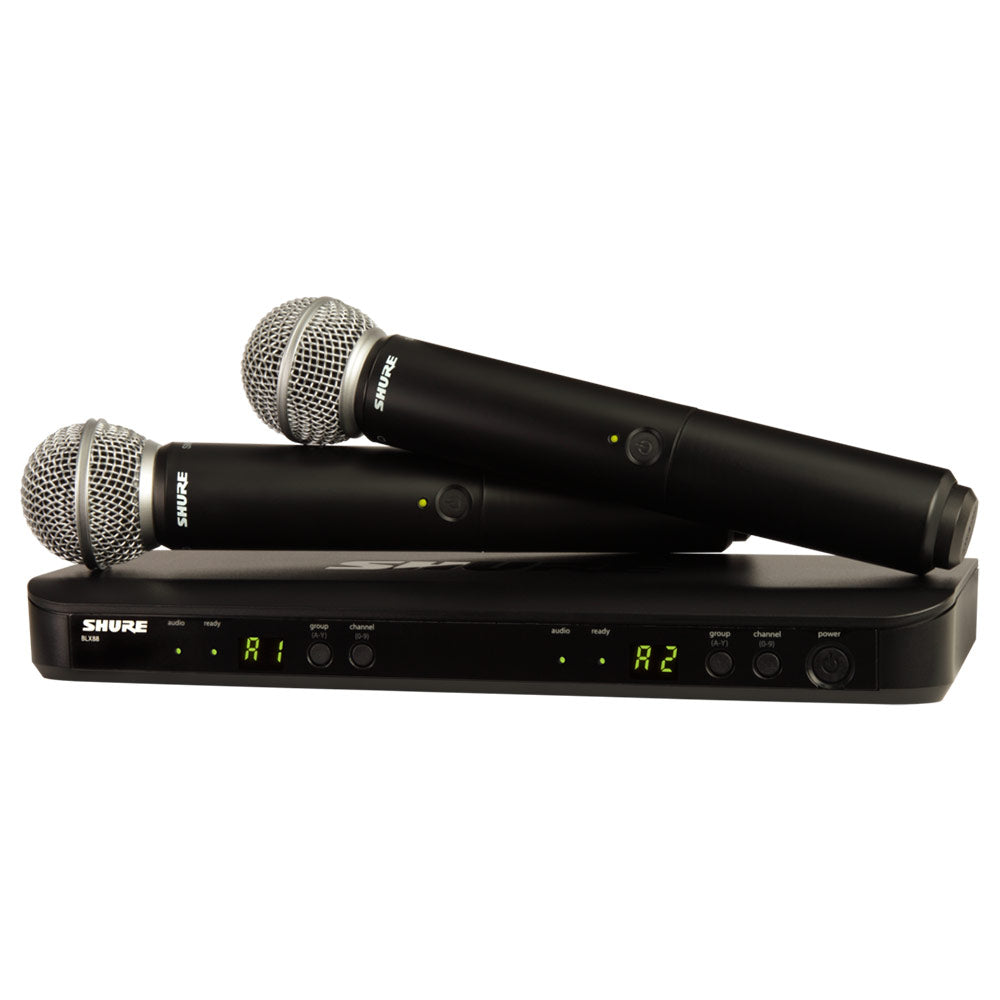

The BLX288/SM58 Wireless Dual Vocal System combines simple wireless setup, professional-grade performance, and two SM58 industry-standard vocal microphones to deliver warm and clear vocal reproduction.

Main Features:

  • Available Transmitter Form factors: Handheld
  • Operating range (up to): 100 m (Under typical conditions)

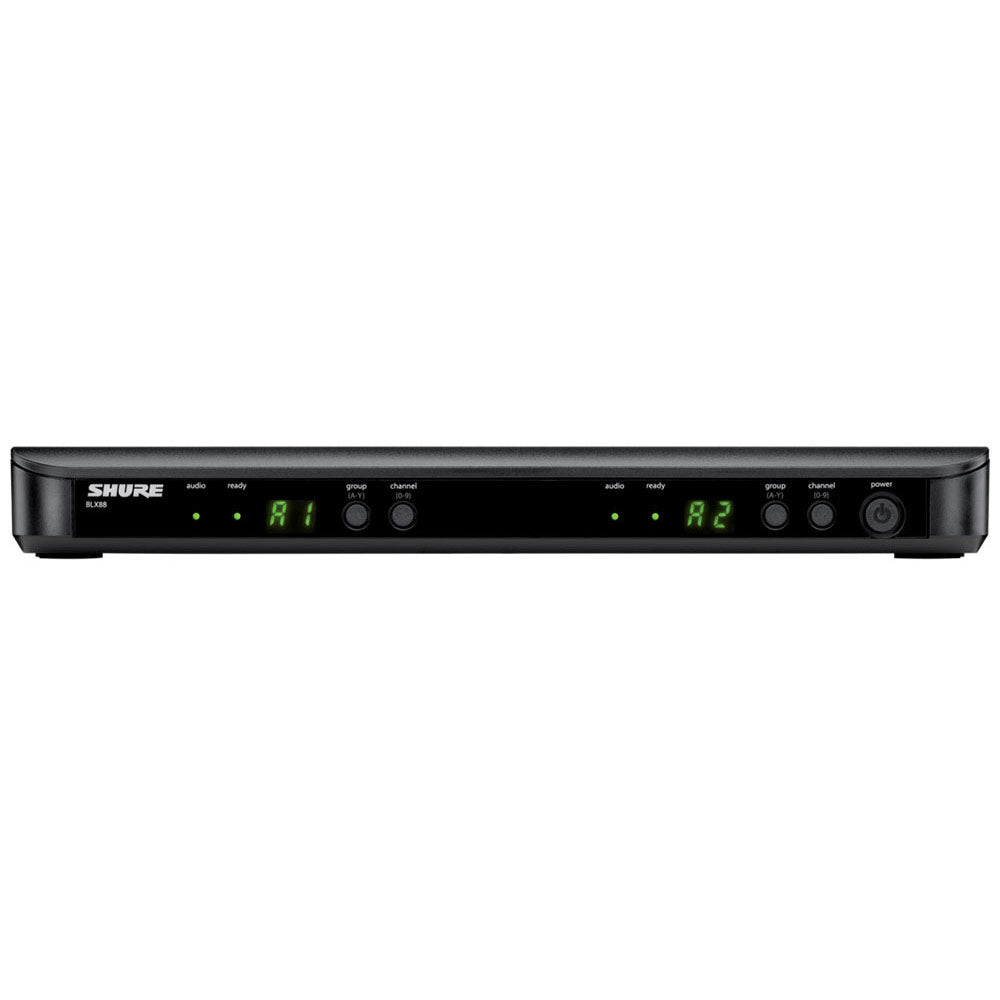

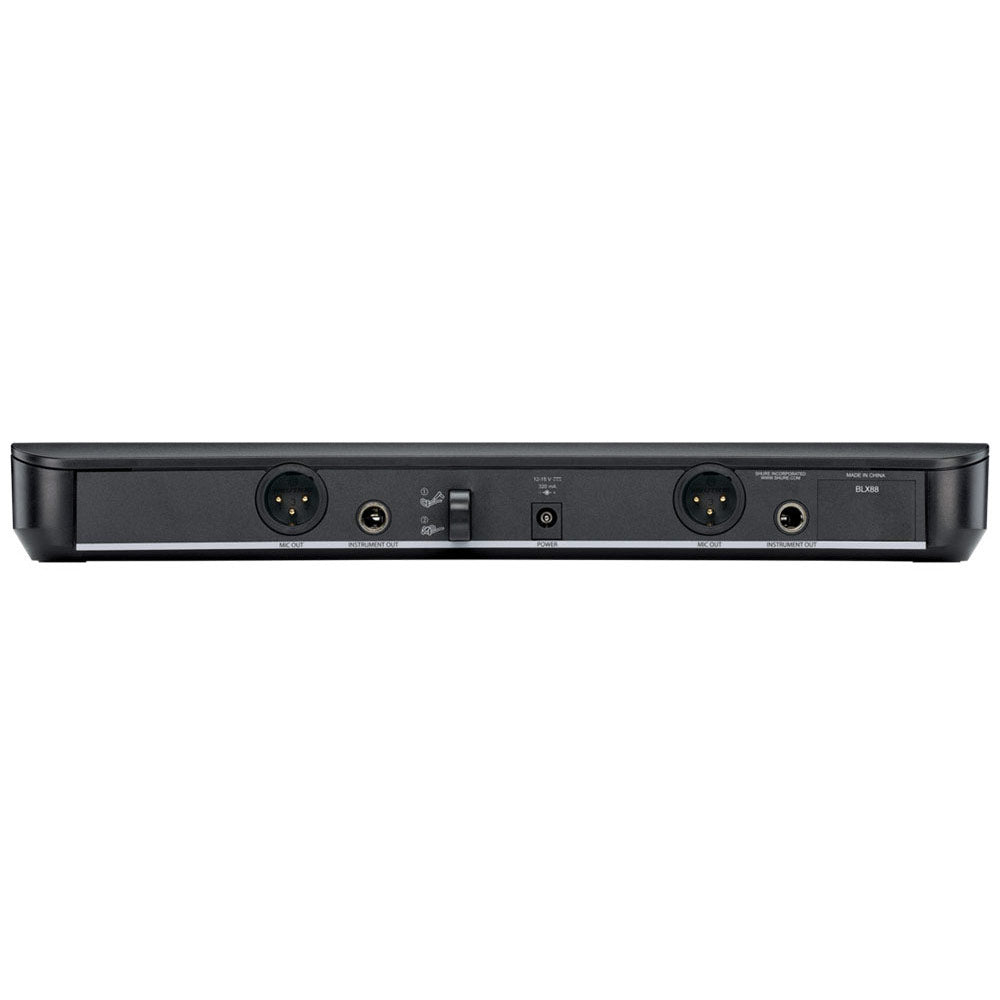

BLX88 Dual Wireless Receiver for BLX Wireless System Features:

  • Up to 12 compatible systems (region dependent)
  • Microprocessor-controlled internal antenna diversity
  • One touch QuickScan locates the best open Frequency
  • 1/4" and XLR audio outputs
  • Two color audio status indicator LED
    • Green: Normal audio levels
    • Red: Excessive audio levels (overload/clipping)

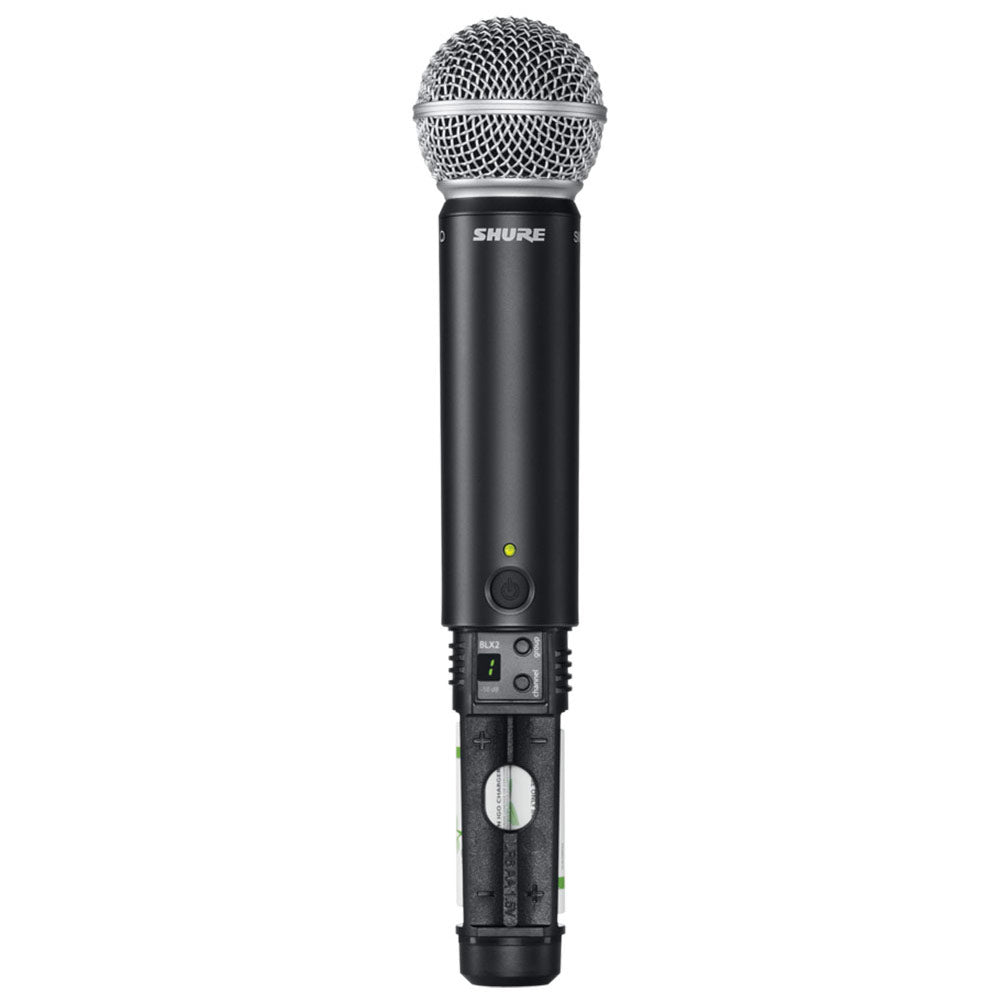

BLX2/SM58 Handheld transmitter with SM58 capsule Features:

  • Power and battery status LED
  • Adjustable gain control
  • Quick and easy frequency matching
  • AA batteries (included) provide up to 14 hours of continuous use
  • 100 m (300 ft) operating range (line of sight)
  • Integrated microphone capsule design
  • -10 dB gain attenuation
  • Lightweight, rugged construction
  • Color ID caps (available separately).

More +

Product Specs

System
Working Range91 m (300 ft) Line of Sight
Note: Actual range depends on RF signal absorption, reflection and interference.
Audio Frequency Response50 to 15,000 Hz Note: Dependent on microphone type
Total Harmonic DistortionRef. ±33 kHz deviation with 1 kHz tone 0.5%, typical
Dynamic Range100 dB, A-weighted, typical
Operating Temperature-18°C (0°F) to 57°C (135°F)
Note: Battery characteristics may limit this range.
PolarityPositive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug)
produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
BLX1
Audio Input Level
max-16 dBV maximum
min (0 dB)+10 dBV maximum
Gain Adjustment Range26 dB
Input Impedance1 M?
RF Transmitter Output10 mW, typical varies by region
Dimensions4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight2.6 oz. (75 g), without batteries
HousingMolded ABS
Power Requirements2 LR6 AA batteries, 1.5 V, alkaline
Battery Lifeup to 14 hours (alkaline)
Audio Input Level
0dB-20 dBV maximum
-10dB-10 dBV maximum
Dimensions4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight2.6 oz. (75 g), without batteries
HousingMolded ABS
Power Requirements2 LR6 AA batteries, 1.5 V, alkaline
Battery Lifeup to 14 hours (alkaline)
Audio Input Level
0dB-20 dBV maximum
-10dB-10 dBV maximum
Gain Adjustment Range10 dB
RF Transmitter Output10 mW, typical varies by region
Dimensions8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
Weight7.7 oz. (218 g) without batteries
HousingMolded ABS
Power Requirements2 LR6 AA batteries, 1.5 V, alkaline
Battery Lifeup to 14 hours (alkaline)
BLX4 & BLX88
Output Impedance
XLR connector200 ?
6.35 mm (1/4") connector50 ?
Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone
XLR connector-27 dBV (into 100 k? load)
6.35 mm (1/4") connector-13 dBV (into 100 k? load)
RF Sensitivity-105 dBm for 12 dB SINAD, typical
Image Rejection>50 dB, typical
Dimensions
BLX41.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D
BLX881.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D
Weight
BLX48.5 oz. (241 g)
BLX8815.1 oz. (429 g)
HousingMolded ABS
Power Requirements12-15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
